CRL Mill 200, 300, 350, and 400 Series Bottom Rail for Glass 241" Long
CRL Mill 200, 300, 350, and 400 Series Bottom Rail for Glass 241" Long
Regular price
$227.14 CAD
Regular price
Sale price
$227.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BRGLSM
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

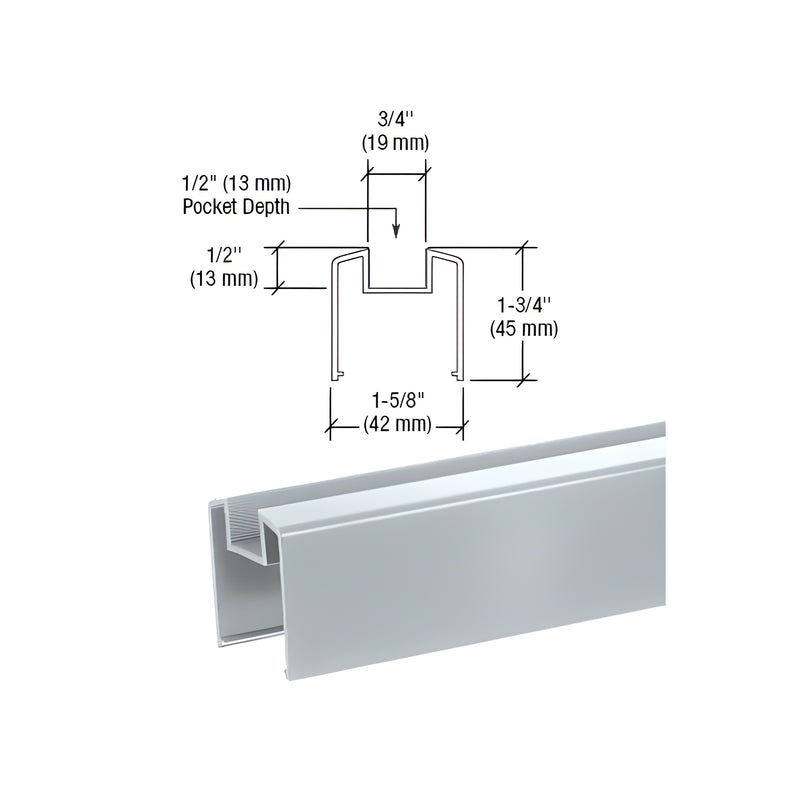

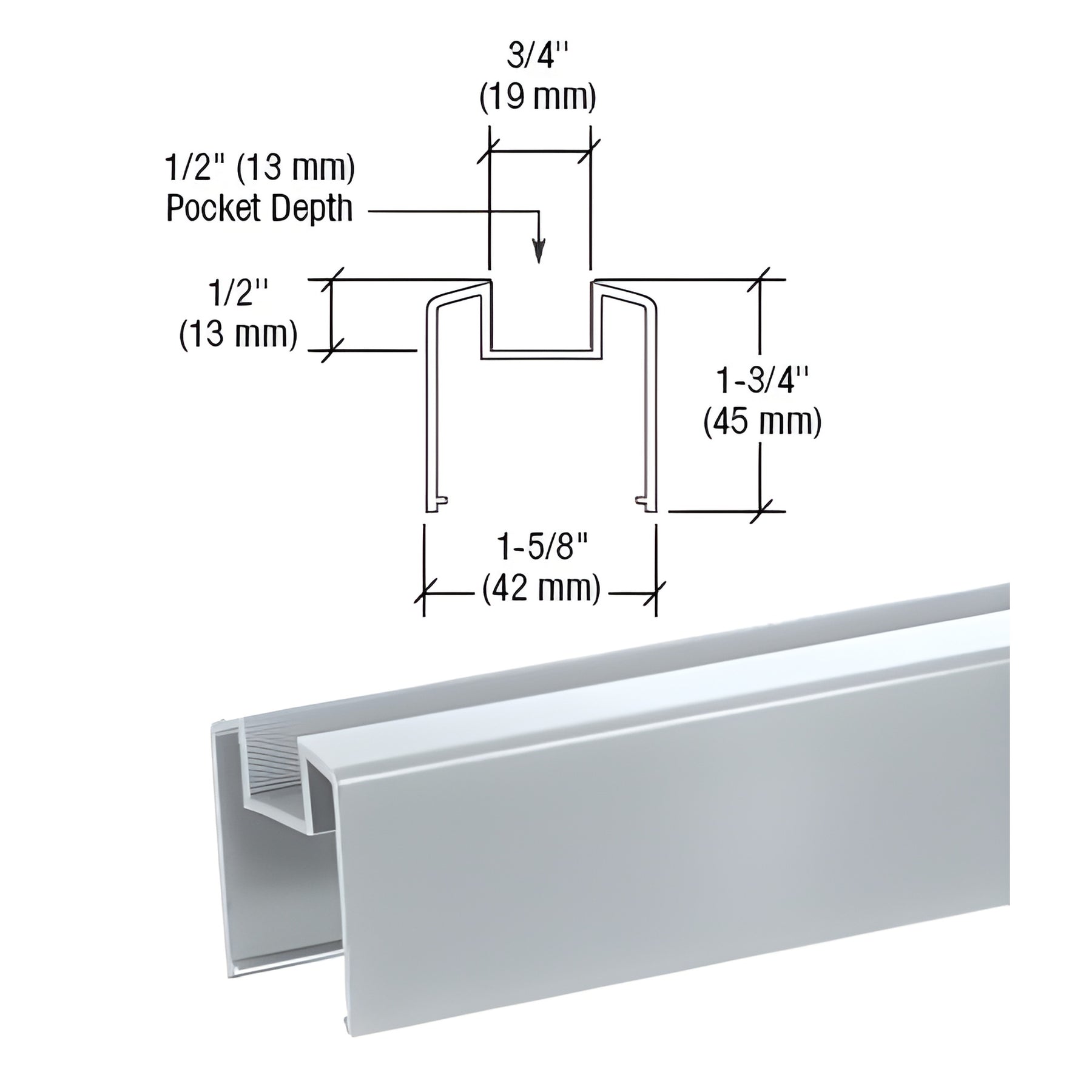

| Base Plate Width 1/2 in. | (13 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 1/4 in. To 1/2 in. (6 mm To 12 mm) |
| Height 1-3/4 in. | (44 mm) |
| Length 241 in. | (6121 mm) |
| Material | Aluminum |
| Width 1-5/8 in. | (41 mm) |
Overview
The CRL 200, 300, 350, and 400 Series Bottom Rail is expertly designed to fit 1/4" to 1/2" (6 to 12 mm) tempered glass, ensuring a perfect fit with vinyl or 1/2" (12 mm) glazing when wet glazed.
Available in seven standard colors and an unfinished chromate option, these rails effortlessly snap over the Rail Connecting Block for a straightforward installation.
Each rail is supplied in 20'-1" (6.12 m) stock lengths, offering a versatile solution for various glass applications.
Please note, all ARS/AWS products are custom-painted upon order and are non-refundable or returnable.
For precise shipping weights, contact CRL Customer Service prior to ordering, as images and colors may differ due to monitor settings.
Available in seven standard colors and an unfinished chromate option, these rails effortlessly snap over the Rail Connecting Block for a straightforward installation.
Each rail is supplied in 20'-1" (6.12 m) stock lengths, offering a versatile solution for various glass applications.
Please note, all ARS/AWS products are custom-painted upon order and are non-refundable or returnable.
For precise shipping weights, contact CRL Customer Service prior to ordering, as images and colors may differ due to monitor settings.
