CRL Dark Bronze SFIC Rim Cylinder Housing for Door Locks
CRL Dark Bronze SFIC Rim Cylinder Housing for Door Locks
Regular price
$92.14 CAD
Regular price
Sale price
$92.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2CHDU
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-5/32 in. (29.4 mm)
Finish/Color
Dark Bronze
Length
1-9/32 in. (32.5 mm)
Material
Brass
Type
Mortise
Overview
- Compatible with Any 7-Pin SFIC Type Core
- Available in Several Architectural Finishes

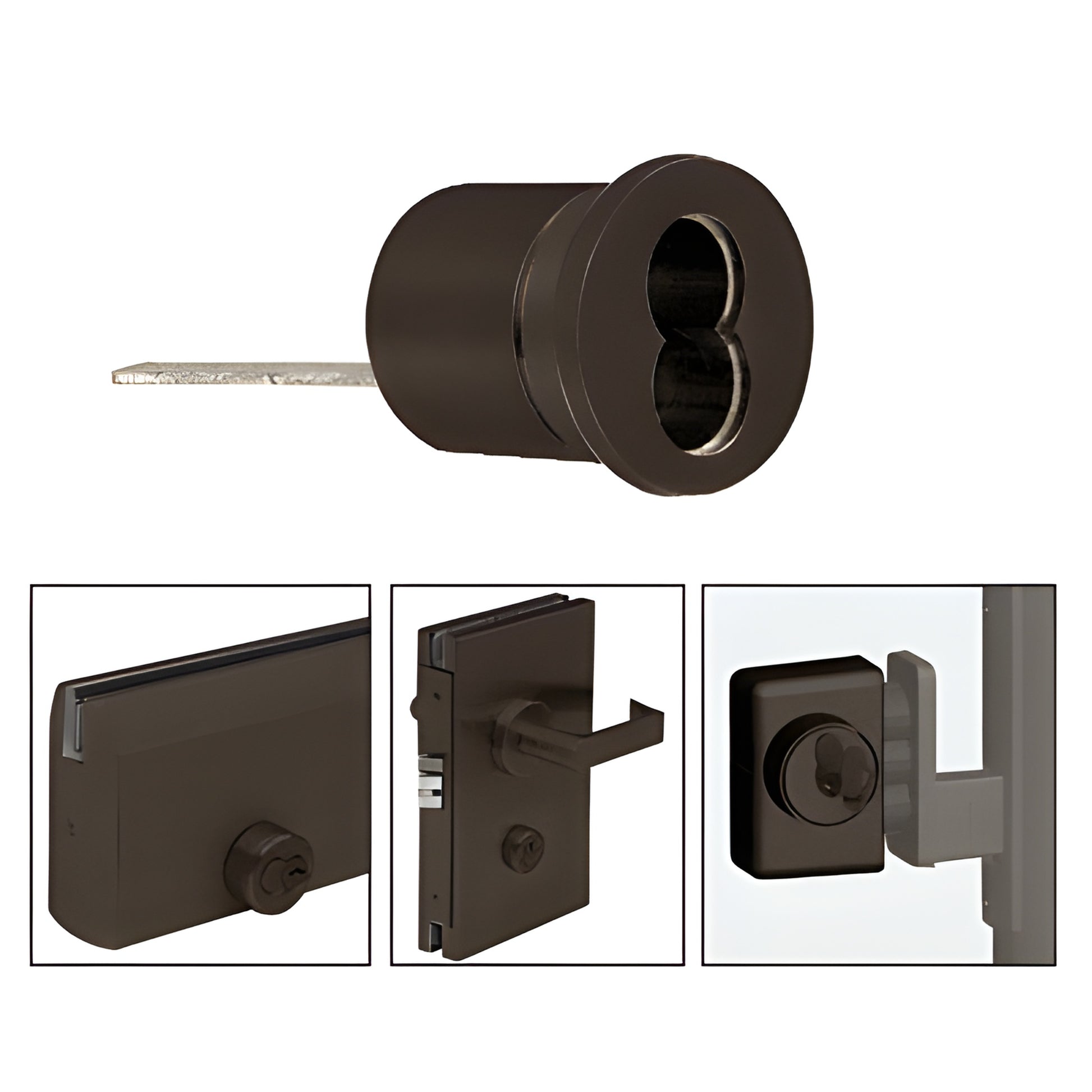

CRL Mortise Housings for 7-Pin Small Format Interchangeable Cores (SFIC) convert standard mortise keyed cylinders to a 7-pin SFIC interchangeable core system. Ideal for Door Rails with locks, 4" x 10" and 6" x 10" Center Locks, panic handles and deadbolt handles—remove the existing mortise cylinder, select the correct cam, and install the new housing and SFIC core for fast rekeying. SKU: 2CHDU.
CRL Rim Cylinder Housings for 7-Pin SFIC are supplied as the standard option in our Locking Ladder Pulls with interchangeable cores and are suitable wherever 7-pin SFIC cylinders are required. Note: SFIC cores are sold separately.
ORDERING INFORMATION:
- Each mortise housing includes a 1/2" (12 mm) tall cylinder ring and three cams: DRA10CAM (installed), DRACAM, and DRA610CAM for easy conversion.
- Not compatible with larger removable core systems.
- When used with CRL Low Profile Wedge-Lock® Door Rails, order a DRA256 Series Cylinder Ring separately.
- SFIC cores must be ordered separately.
Ready to convert to a 7-pin SFIC interchangeable core? Contact CRL or add SKU 2CHDU to your cart.
