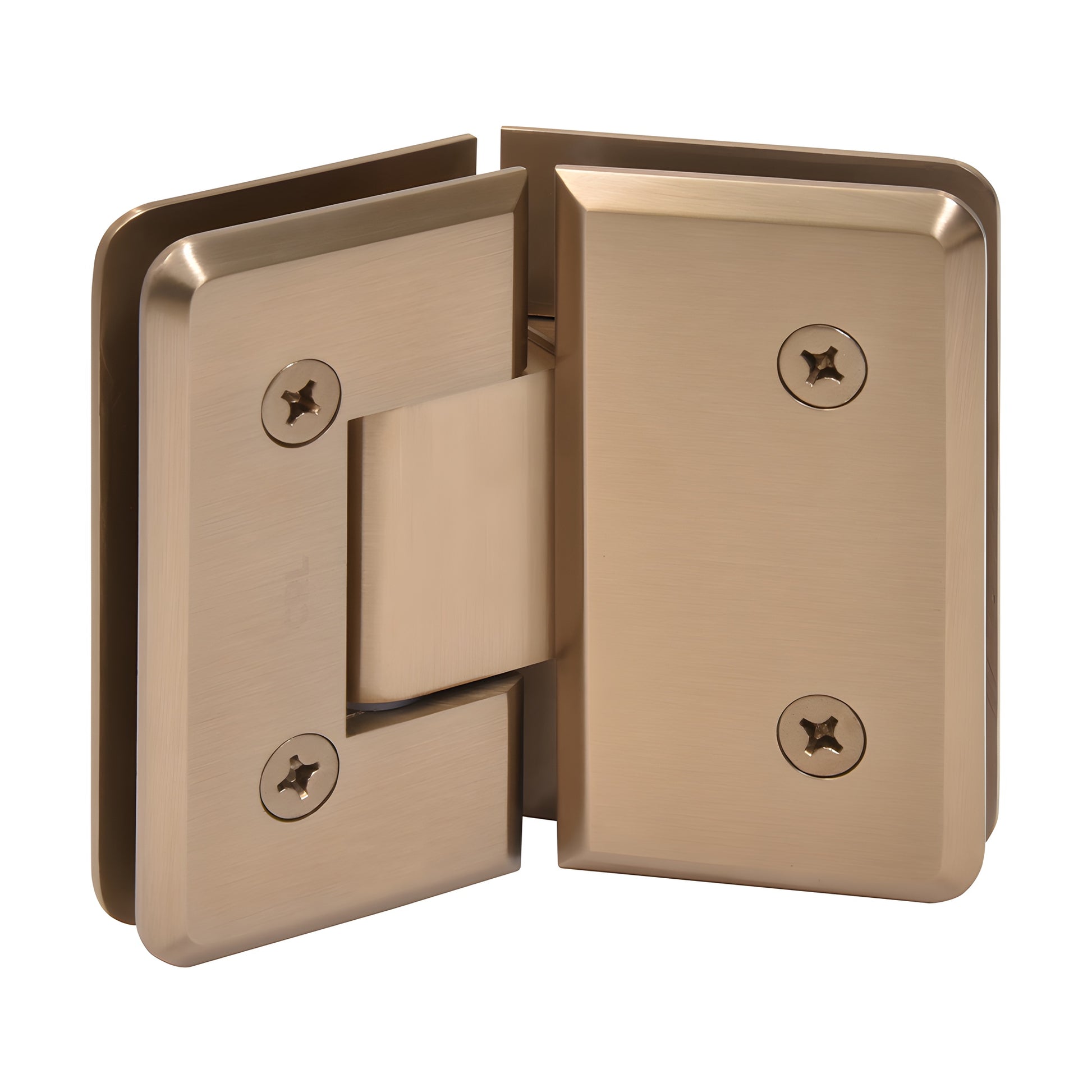

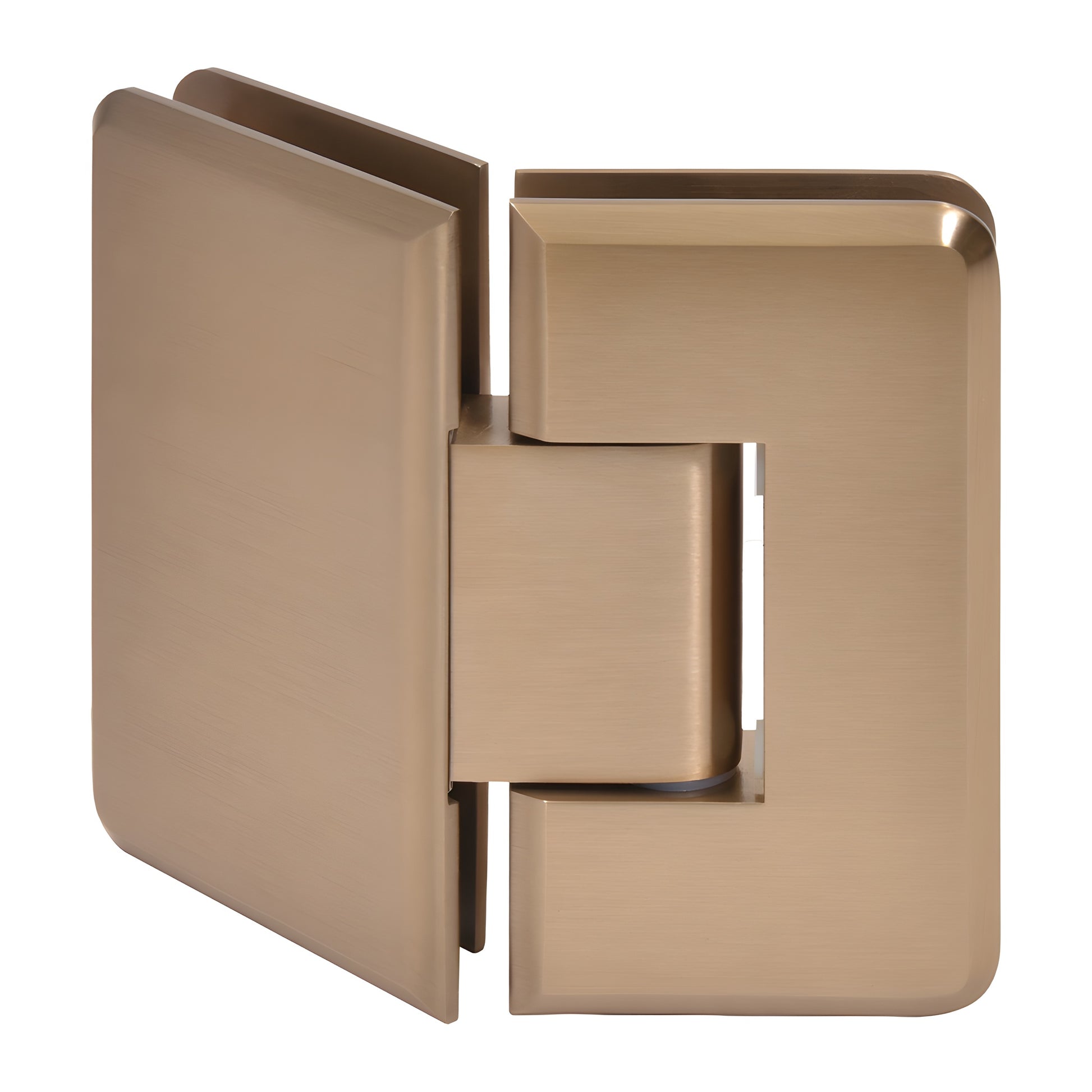

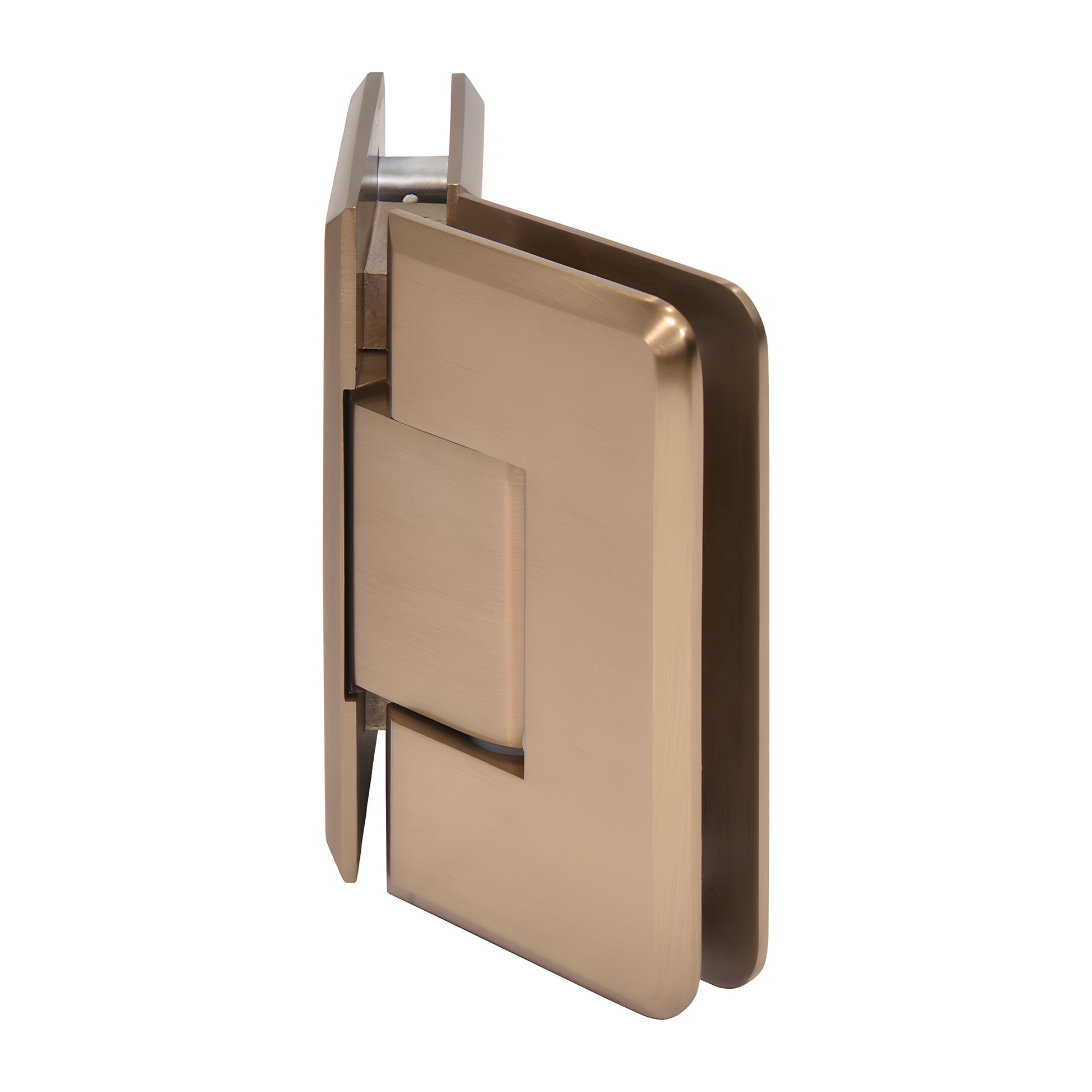

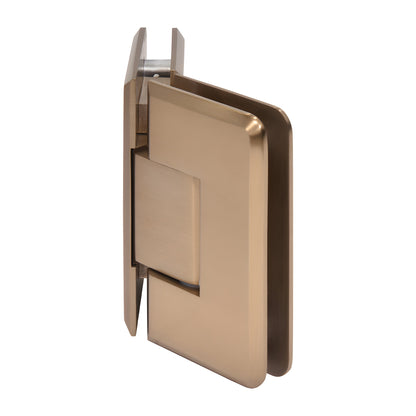

CRL Cologne 045 135Β° Dark Brushed Bronze Glass-to-Glass Shower Hinge

CRL Cologne 045 135Β° Dark Brushed Bronze Glass-to-Glass Shower Hinge

$398.28 CAD
$398.28 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# C0L045DBBZ
Shipping Weight: 3.24 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Edge Profile
Beveled
Finish/Color
Dark Brushed Bronze
Glass To Glass Angle
135
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

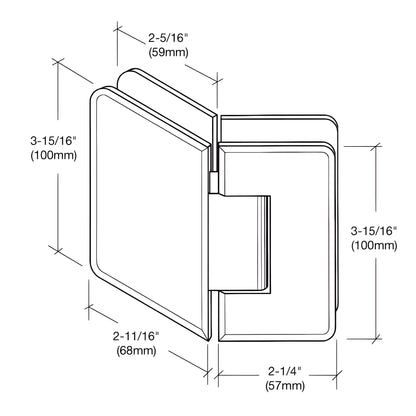

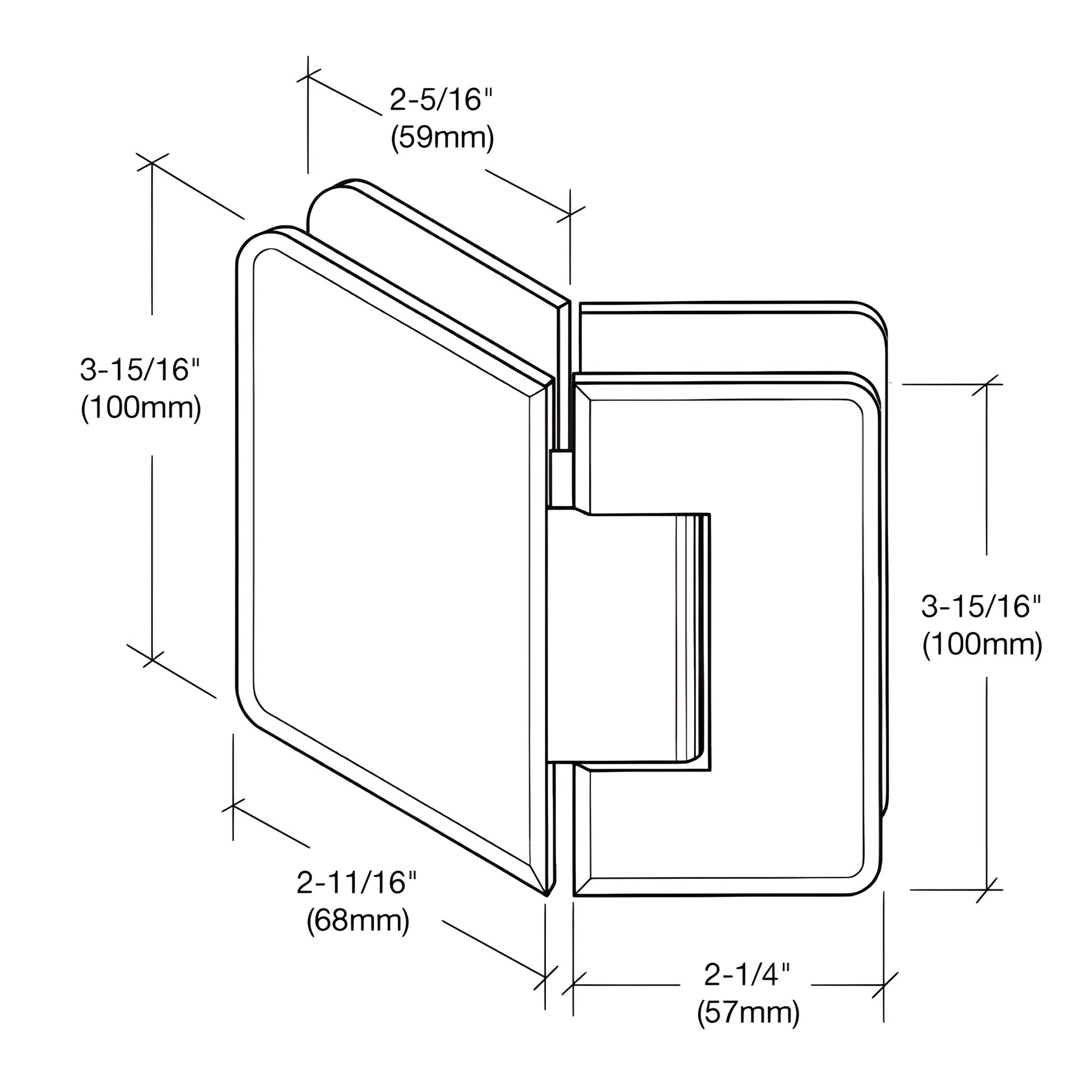

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Maximum Door Width
36 in. (914 mm)
Mounting Type
Glass To Glass
Positive Close
No
Self-Centering
Yes
Series
Cologne
Width - Door Portion
2-1/4 in. (57 mm)
Width - Sidelite Portion
2-11/16 in. (68.3 mm)

Overview

  • Accommodates 3/8" to 1/2" (10 to 12 mm) glass
  • Available in several beautiful finishes (custom finishes available on request)
  • 135ΒΊ glass-to-glass installation
  • Use monolithic tempered safety glass

CRL Cologne Hinges (SKU: C0L045DBBZ) are heavy-duty brass shower door hinges with radius corners and beveled edges for a sleek appearance. Designed as an alternative to Vienna hinges, Cologne hinges support wider, heavier shower doors that conventional hinges cannot. Two internal steel pins provide mounting flexibility: leave pins in place for CRL "mouse-ears" cut-outs or remove them for rectangular/square corner cut-outs (may fit some competitive cut-outs).

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90ΒΊ on one side and 85ΒΊ on the other. Standard models ship with the 90ΒΊ side active; pre-set models ship at 85ΒΊ for a 5ΒΊ tighter closure into the shower. Rotate (do not flip) the pin to change the setting.

Custom Pivot Pins: Specify custom pivot pin angles (up to 45ΒΊ) for off-angle walls or non-90ΒΊ installations to achieve proper door closing.

Load Capacity & Door Size: Using two hinges with 3/8"–1/2" glass, supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges, supports up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

Specifications:

  • Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
  • Construction: Solid brass
  • Hinge Swings: 90ΒΊ in and 90ΒΊ out
  • Closing Type: Self-centering when within 15ΒΊ of closed position
  • Cut-Out: Cut-out required (except C0L092, which requires cut-out for door plus two holes for fixed panel)
  • Includes: Gaskets, screws, and glass fabrication dimensions
  • Maximum clamping screw torque: 60 lbfΒ·in (677.9 cNΒ·m)

For specialized installations, contact CRL Technical Sales to request custom finishes or pivot pin angles. Use only the template included with this hingeβ€”CRL cut-out dimensions may not match other brands.

Product Warning:

Specifications

Templates
C0L045 Template
