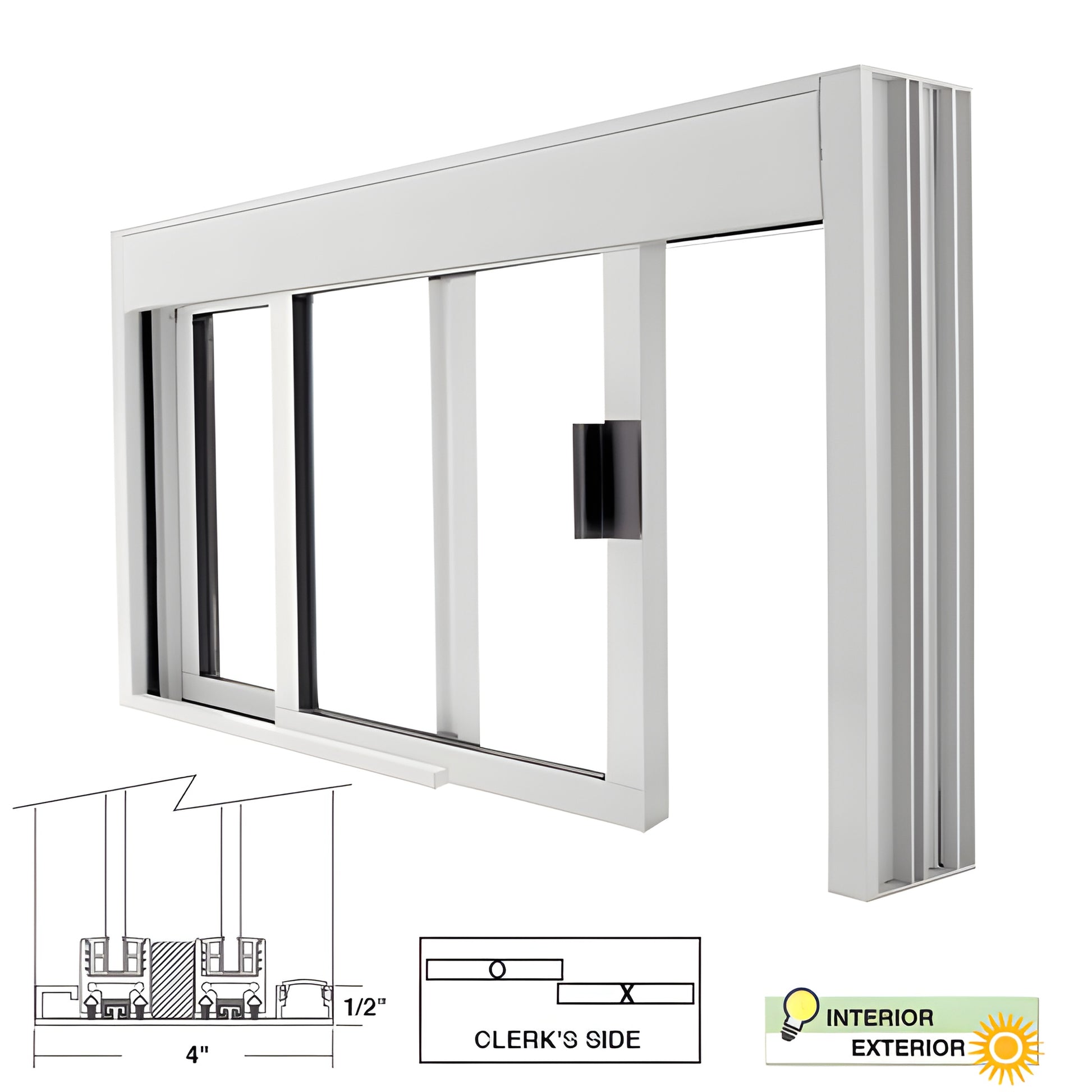

CRL Deluxe Manual Service/Pass-Through Window, Unglazed, Half-Track

• Ships unglazed; includes vinyl for 1/4" or 1/2" glass (larger vinyl accepts 9/16")
• OX Clerkside configuration (X = sliding panel)
• Sturdy self-latching handle for secure operation
• Popular 47-1/2" W x 35-3/4" H frame fits 48" x 36" opening
• No-track under sliding panel (manual open/manual close) for clear counter passage

SKU: DW48360XUA

CRL Standard Size Manual Deluxe Service Windows ship fully assembled and can be ordered unglazed (ready to glaze) or factory glazed (ready to install). Built for heavy-duty commercial use—ideal as a drive-thru service window, walk-up service window, or interior security window—these manual deluxe service windows deliver enhanced durability and performance.

Available finishes: Satin Anodized or Duranodic Bronze. Bottom-condition options include an aluminum half-track (no track under sliding panel for unobstructed counter passage) or a stainless steel step-sill with water dam for exterior applications. Custom versions are available—contact CRL for quotes.

Unglazed DW standard models include two sets of glazing vinyl (for 1/4" and 1/2" glass). For thicker glazing: 5/8" glazing vinyl (maximum glazing thickness for DW windows) is available separately as CRL WV3865 (sold by the foot, 100 ft minimum). For 3/8" glass, use the supplied 1/2" vinyl with CRL 982116X34GRY double-sided adhesive foam tape (sold separately in 200 ft rolls).

Glass size for the 47-1/2" W x 35-3/4" H frame with aluminum half-track: two pieces, 21-3/8" W x 31-15/16" H.

Heavy-duty service windows; not designed to serve as the primary building seal for severe weather conditions.

Order or request a quote for DW48360XUA—CRL manual deluxe service windows for commercial drive-thru and walk-up applications.
