CRL 36in BP Dry-Glazed Frameless Glass Door Kit Brushed SS w/Lock

• Door-only or complete entrance kits available
• 3' single door or 6' double door kits — for use with 1/2" (12 mm) tempered glass
• Finish options: brushed or polished stainless steel; clear or black/bronze anodized
• Net door width: 35-3/4" (908 mm)
• Patented dry glaze rails (BP style) for frameless glass entrances — SKU: BP4BS12SEL

CRL Dry Glazed Frameless Glass Door Kits are designed for commercial and high-end residential entrances where a clean, frameless look is desired. Kits are available as door-only or complete entrance packages; you supply the 1/2" (12 mm) fully tempered glass. The system uses our patented dry glaze rails and is a BP Style Door Type with finishes in brushed or polished stainless steel and clear or black/bronze anodized.

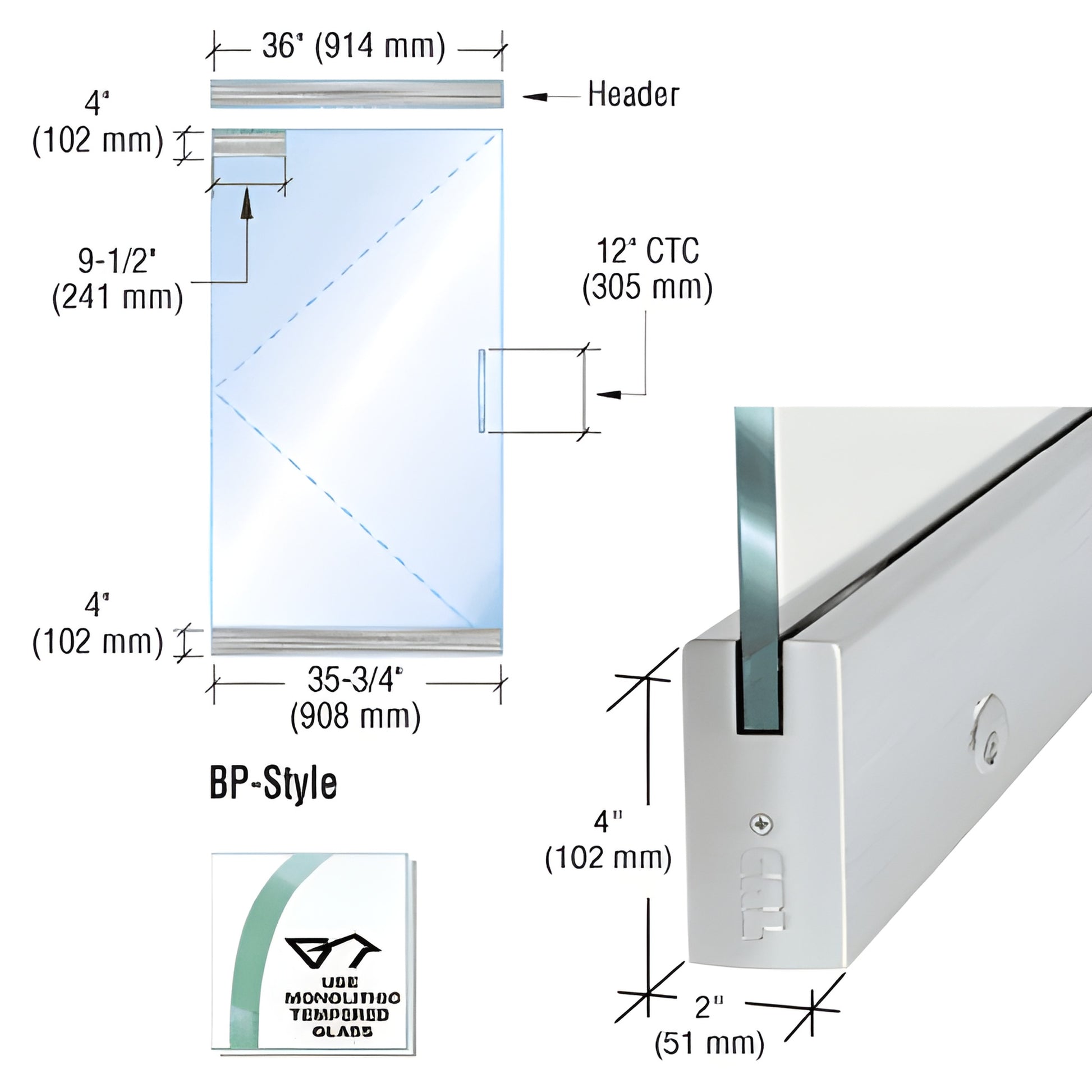

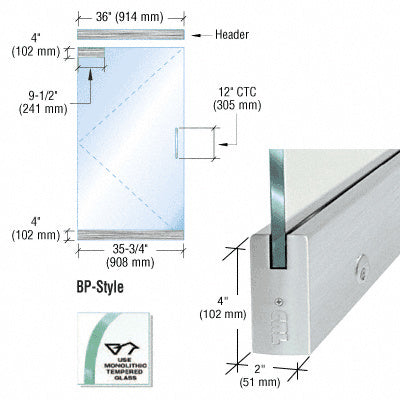

This kit requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle and a notch for the top patch. Net door width is 35-3/4" (908 mm). CRL follows GANA Guidelines for maximum door sizes when using this product.

Door-only kits include rails, a Jackson® overhead concealed door closer with bottom pivot, and a pull handle. Complete entrance kits add a 1-3/4" x 4" (45 x 102 mm) header prepped for a Jackson® overhead concealed door closer. Kits are available with locks in the bottom rails. Thresholds sold separately.

• One DR4S Series dry glaze top patch rail
• One DR4S Series dry glaze rail with 777S lock
• One Model DRA1020 cylinder/thumbturn combo
• One Model 777SP strike plate
• One Model 20104M20 Jackson® overhead door closer
• One CRL8010AS closer arm
• One CRL8010DP bottom pivot
• One CRL8010FS mounting clip
• One Model CM12X12 pull handle
• One Model DCH4 36" header

Stainless Steel Advisory
