CRL Dry Glazed Frameless Glass 3' BP-Style Satin Anodized Single Door Complete Entrance Kit - with Lock

• Door Only or Complete Entrance Kits Available
• 3' Single Door or 6' Double Door Kits for Use with 1/2" (12 mm) Tempered Glass
• Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes Net Door Width is 35-3/4" (908 mm)

CRL offers Dry Glazed Frameless Glass Door Kits for single or double door entrances in door only or complete entrance kits. All you supply is the 1/2" (12 mm) tempered glass.

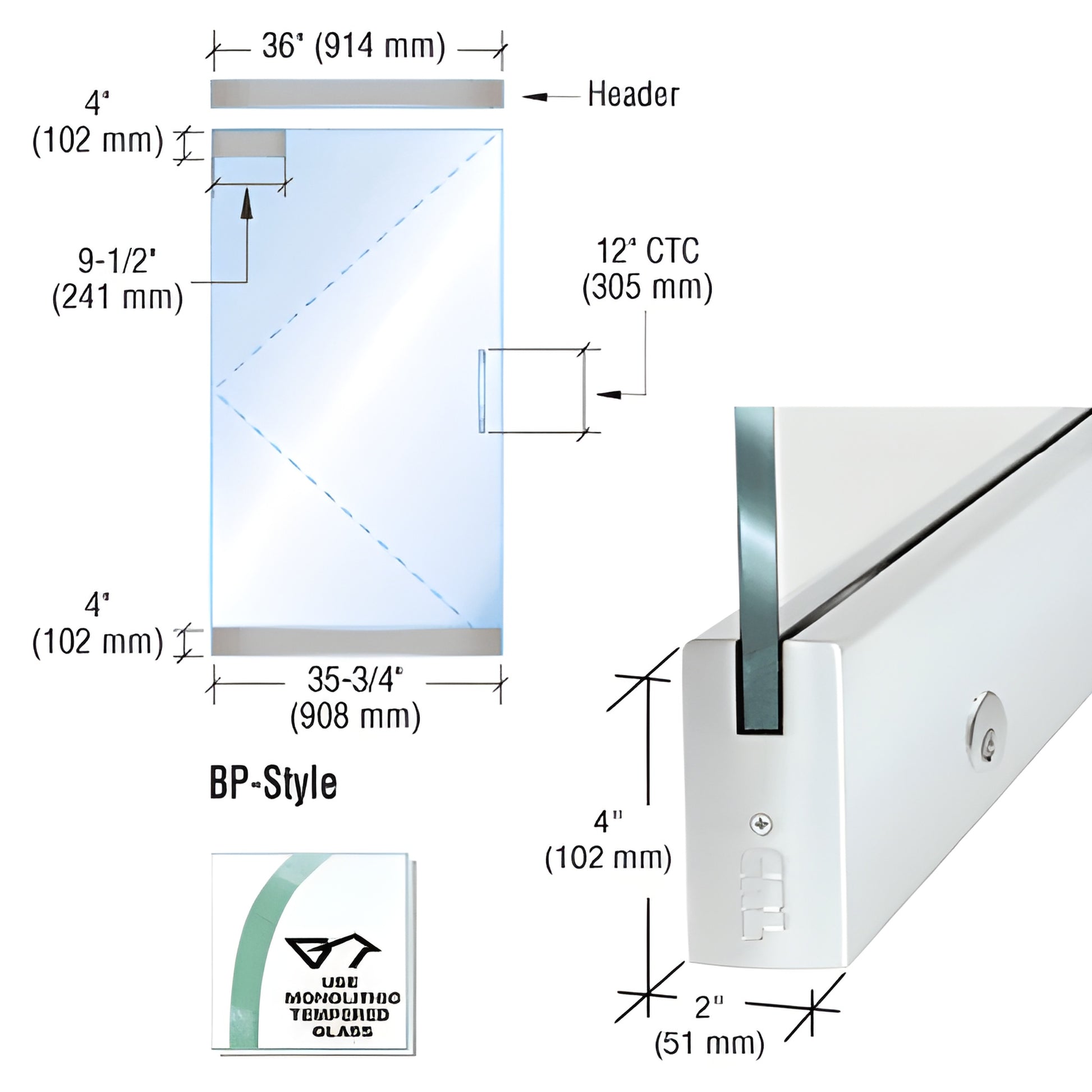

This kit utilizes our patented dry glaze rails. It is a 'BP' Style Door Type in brushed or polished stainless steel, clear or black/bronze anodized finishes. It works with 1/2" (12 mm) fully tempered glass. It requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle, and a notch for the top patch. Net door width is 35-3/4" (908 mm).

Door Only Kits include Rails, Jackson® Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson® Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

With Lock Kits Include:

One DR4S Series Dry Glaze Top Patch Rail

One DR4S Series Dry Glaze Rail With 777S Lock

One Model DRA1020 Cylinder/Thumbturn Combo

One Model 777SP Strike Plate

One Model 20104M20 Jackson® Overhead Door Closer

One CRL8010AS Closer Arm

One CRL8010DP Bottom Pivot

One CRL8010FS Mounting Clip

One Model CM12X12 Pull Handle

One Model DCH4 36" Header
