CRL Geneva Series Polished Chrome Wall Mount Bracket for Glass
Item# GE90SCH
Shipping Weight: 1.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Chrome
Material
Brass
Mounting Type
Wall Mount
Series
Geneva
- Square corner clamps match configuration of our Geneva, Concord, Vienna, Cardiff, and Senior Cardiff series hinges
- Fits 5/16" to 1/2" (8 to 12 mm) glass
- Compatible with the CRL All Glass Restroom Partition System
- Use monolithic tempered glass

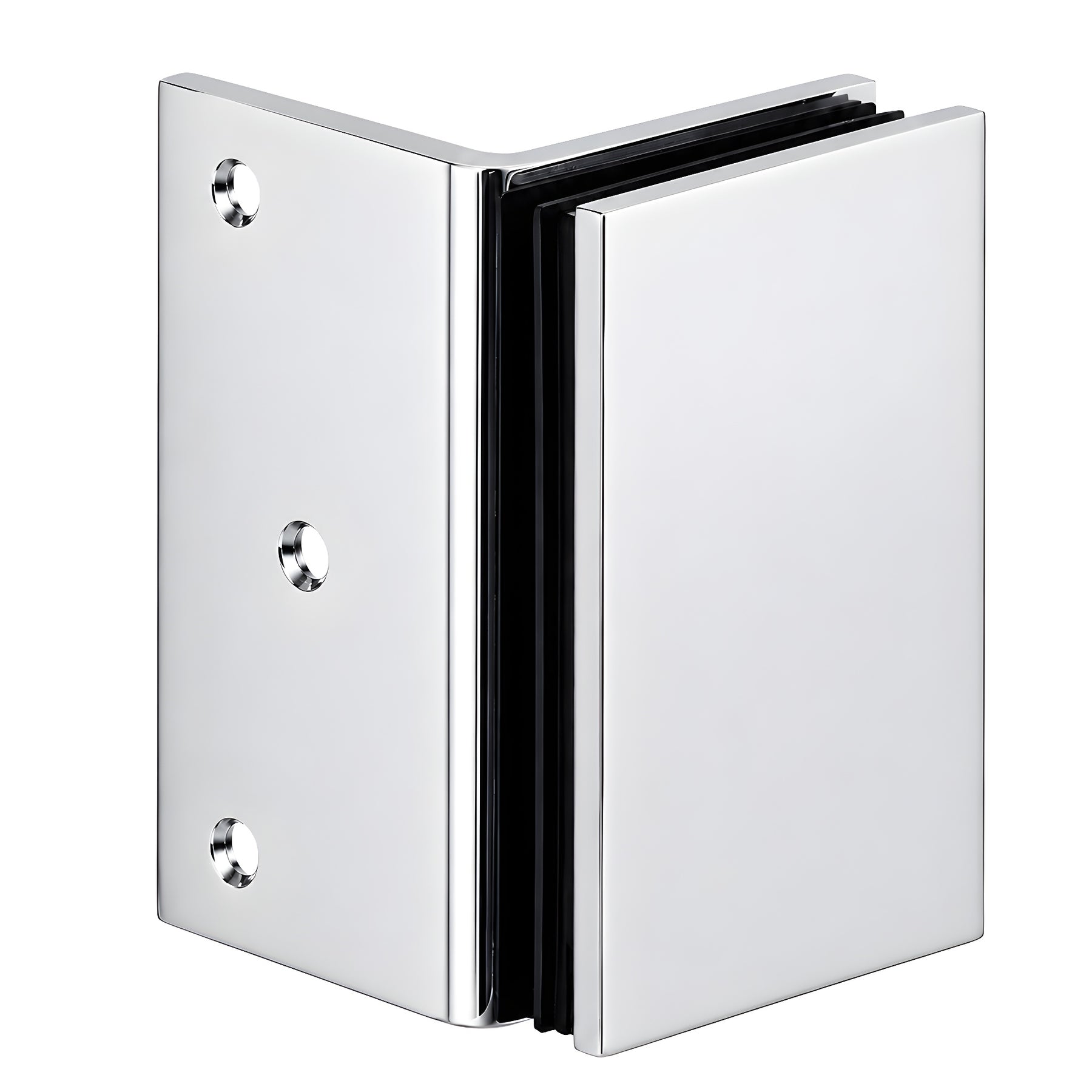

CRL Geneva Series Wall Mount Brackets (SKU: GE90SCH) are solid brass wall-mount brackets and glass shelf brackets designed for 5/16" to 1/2" (8 to 12 mm) tempered glass. Featuring square corners and edges in multiple decorator finishes, these brackets match the configuration of many popular CRL hinge and clamp series for seamless design coordination. Includes gaskets and mounting screws for easy installation. Drawings, templates and custom finishes available upon request.
SPECIFICATIONS
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and mounting screws
Hole Diameter Required: Two 3/4" (19 mm) holes per panel
Replacement Hardware: CRL P612 for replacement screws
Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor.
Order the GE90SCH solid brass Geneva series wall mount bracket for durable, coordinated glass hardware — add to cart or contact CRL for custom finishes and drawings.
