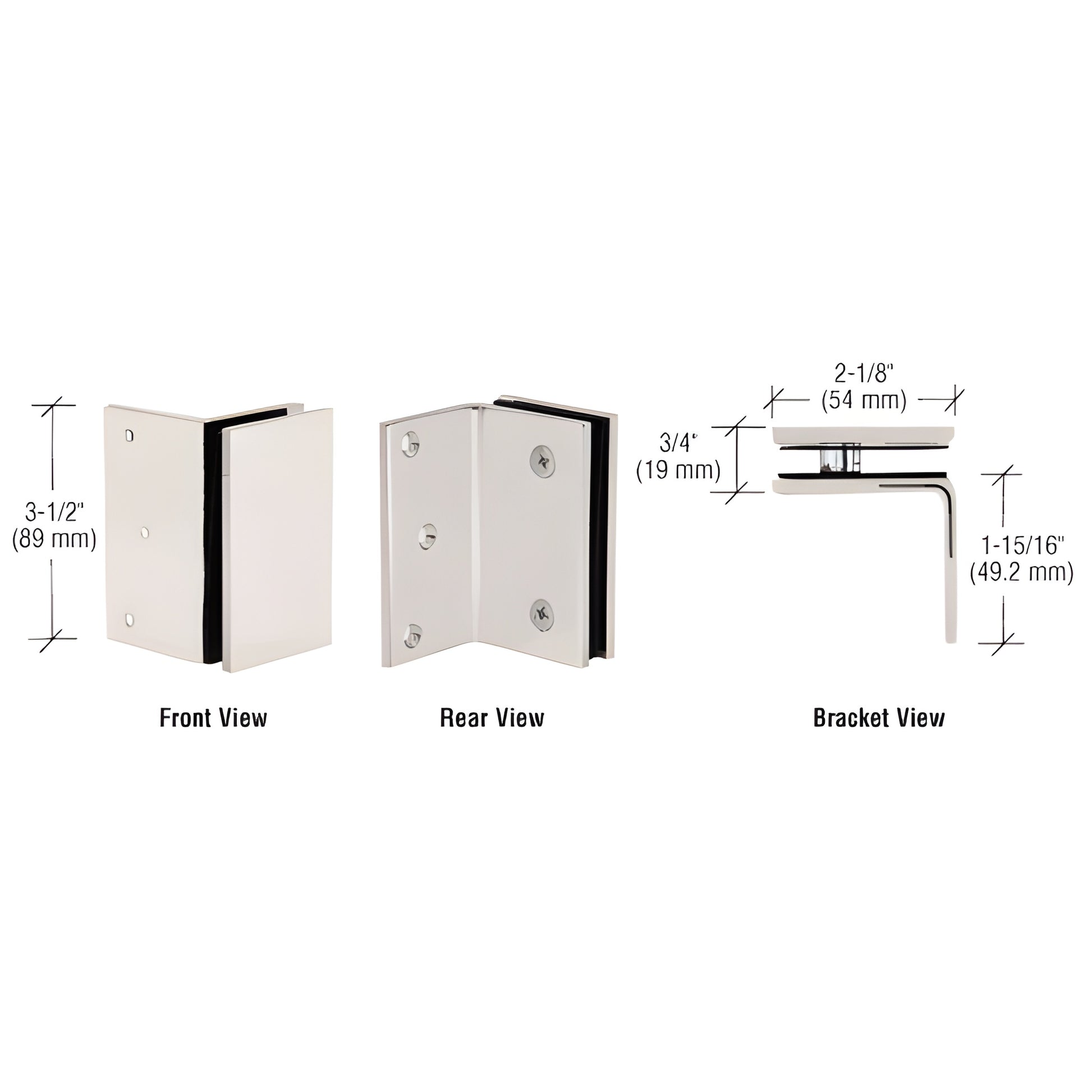

CRL Geneva Satin Nickel Wall Mount Bracket for Glass Panels
CRL Geneva Satin Nickel Wall Mount Bracket for Glass Panels
Regular price
$95.34 CAD
Regular price
Sale price
$95.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GE90SSN
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Nickel
Material
Brass
Mounting Type
Wall Mount
Series
Geneva
Overview
- Square corner clamps that match the configuration of Geneva, Concord, Vienna, Cardiff, and Senior Cardiff hinge series
- For 5/16" to 1/2" (8 to 12 mm) glass — fits tempered and float glass panels
- Solid brass construction for corrosion resistance and long-lasting finish
- Decorator finishes with square corners and edges to match our most popular clamps and hinges
- SKU: GE90SSN

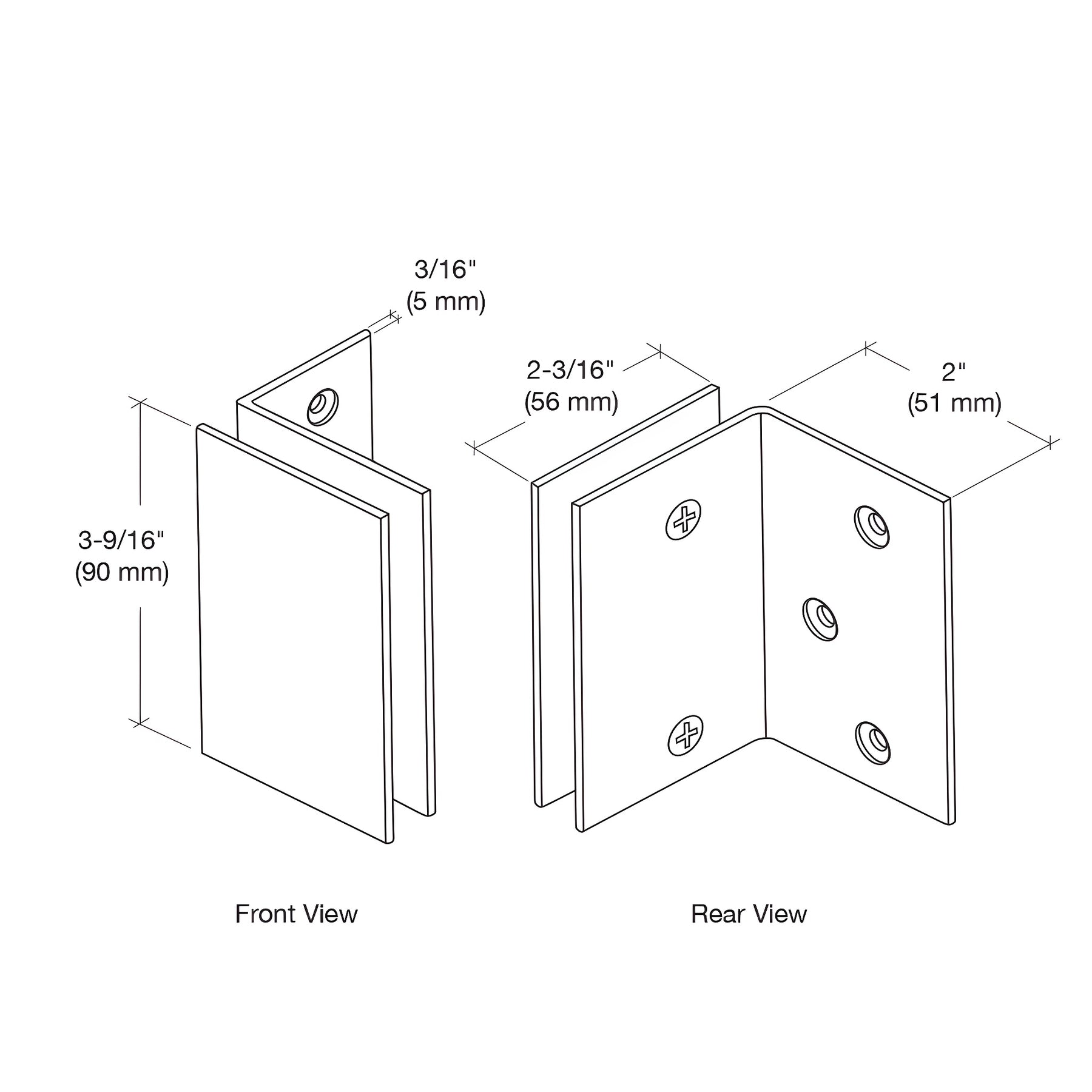

CRL Geneva Series Wall Mount Brackets are solid-brass wall mount glass brackets engineered for 5/16" to 1/2" (8–12 mm) glass. Use them as glass shelf brackets or as square-corner clamp hardware to attach tempered or float glass to walls. They match the configuration of many popular hinge and clamp series for seamless design continuity and are available in several decorator finishes. Drawings, installation templates, and custom finishes are available on request for architectural and retail glass applications.
SPECIFICATIONS
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and mounting screws
Required Hole Diameter: Two 3/4" (19 mm) holes per panel
Replacement Hardware: CRL P612 replacement screws
Order SKU GE90SSN today — contact CRL for drawings, templates, and custom finish options.
