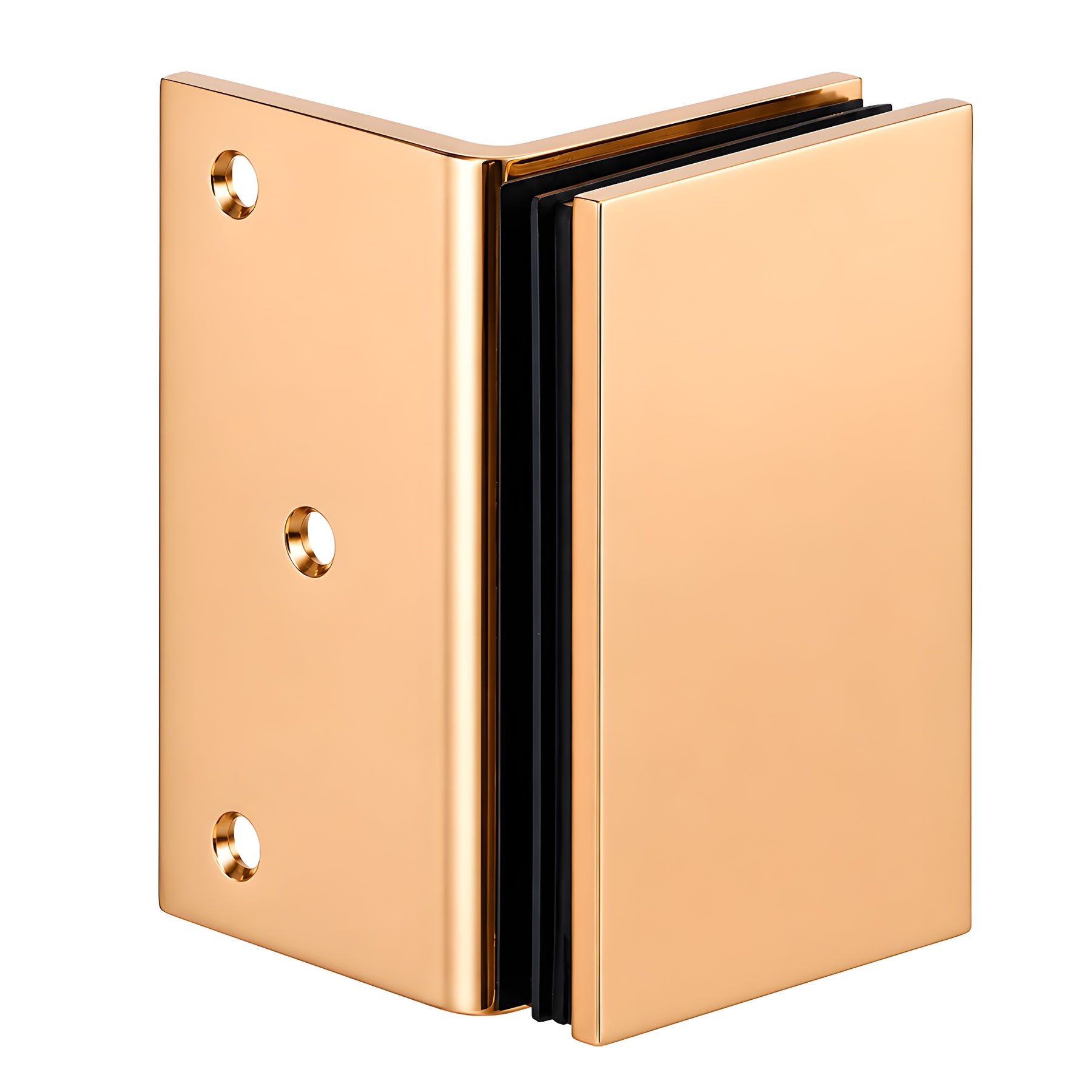

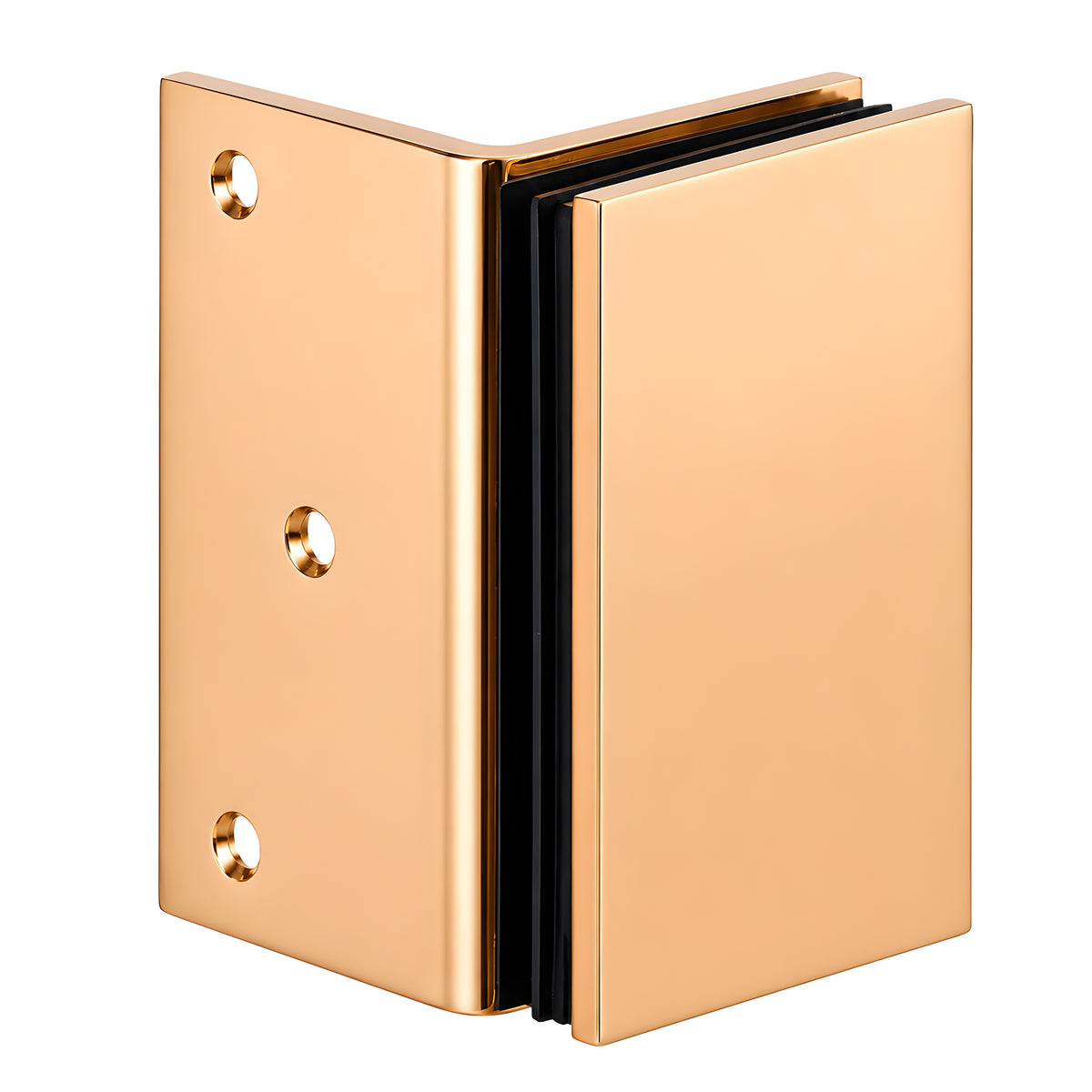

CRL Geneva Gold-Plated Wall Mount Bracket - Replacement Hardware
CRL Geneva Gold-Plated Wall Mount Bracket - Replacement Hardware
Regular price
$128.93 CAD
Regular price
Sale price
$128.93 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GE90SGP
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gold Plated
Material
Brass
Mounting Type
Wall Mount
Series
Geneva
Overview
- Square corner clamps match configuration of Geneva, Concord, Vienna, Cardiff, and Senior Cardiff series hinges
- Fits 5/16" to 1/2" (8 to 12 mm) glass—ideal for tempered and laminated panels
- Solid brass construction for corrosion resistance and lasting finish
- Decorator finishes and styles to match our most popular clamps and hinges

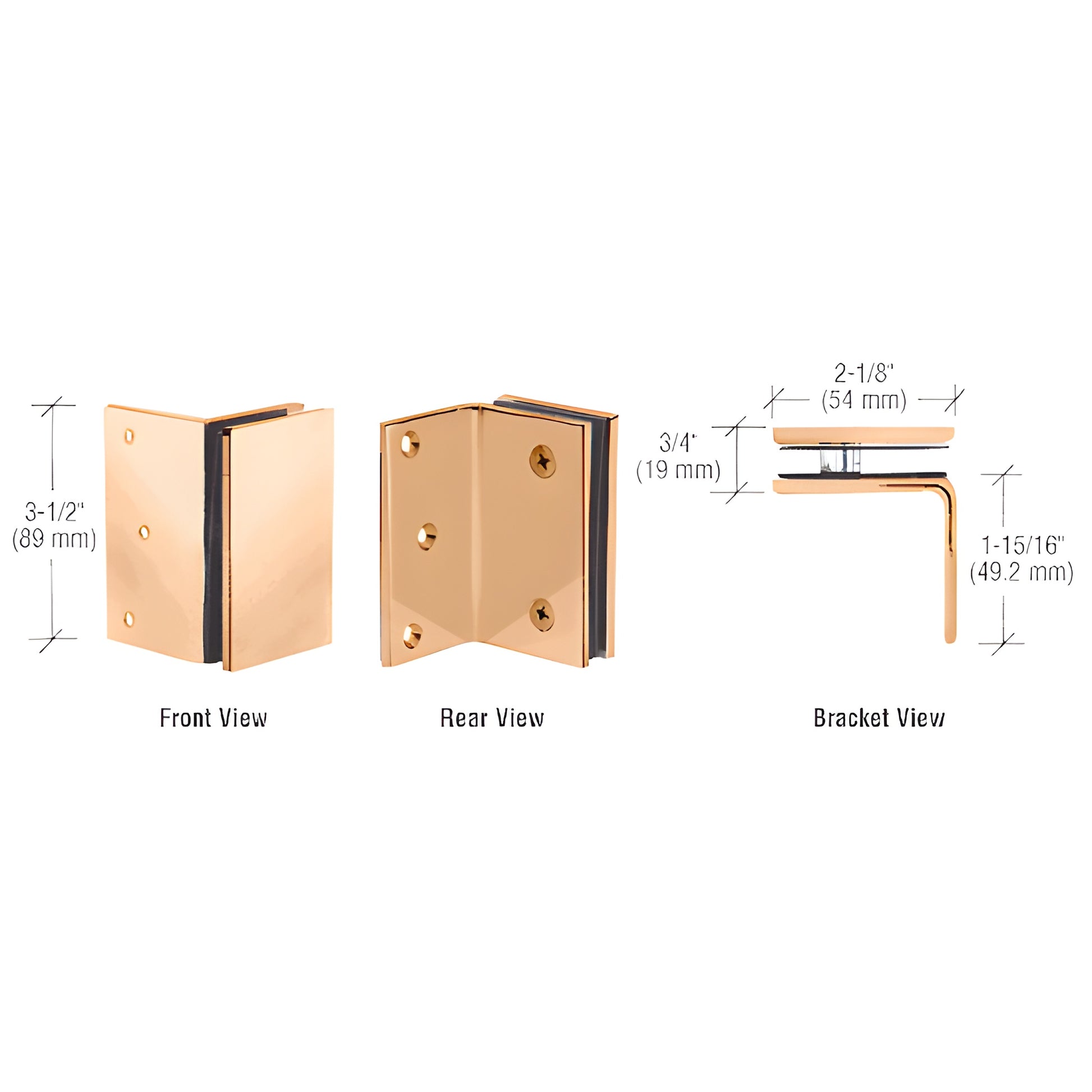

CRL Geneva Series Wall Mount Brackets (SKU: GE90SGP) are precision brass wall-mount glass brackets designed for 5/16" to 1/2" (8 to 12 mm) glass. Use as a wall-to-glass clamp or horizontal glass shelf bracket. Square corners and edges provide a clean, modern look and match the configuration of our Geneva, Concord, Vienna, Cardiff, and Senior Cardiff hinge series. Available in multiple decorator finishes; drawings, templates and custom finishes available on request.
SPECIFICATIONS
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid brass
Includes: Gaskets and mounting screws
Hole Diameter Required: Two 3/4" (19 mm) holes per panel
Replacement Hardware: CRL P612 (replacement screws)
Order the GE90SGP Geneva Series brass wall mount bracket today to match your existing hinge and clamp finishes.
