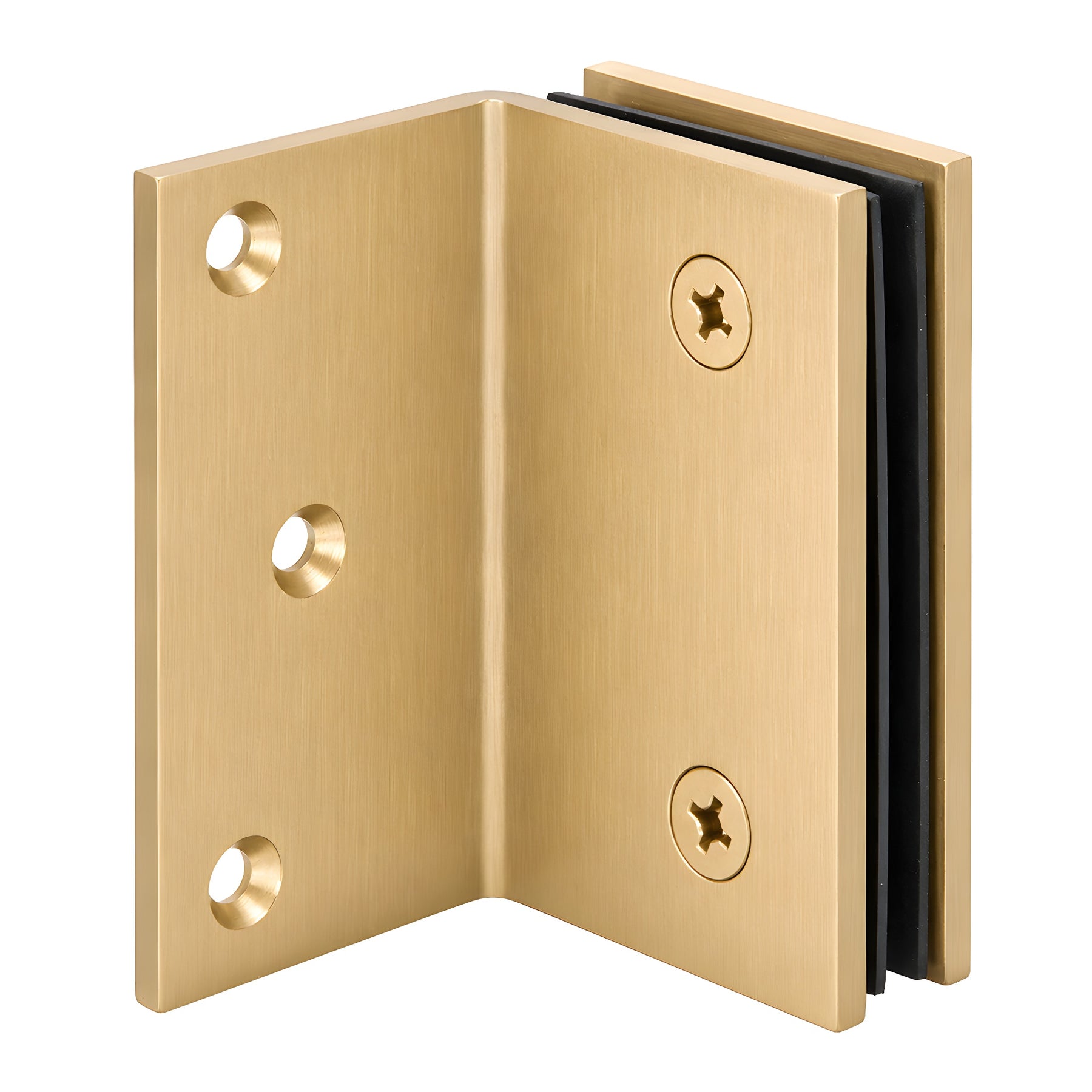

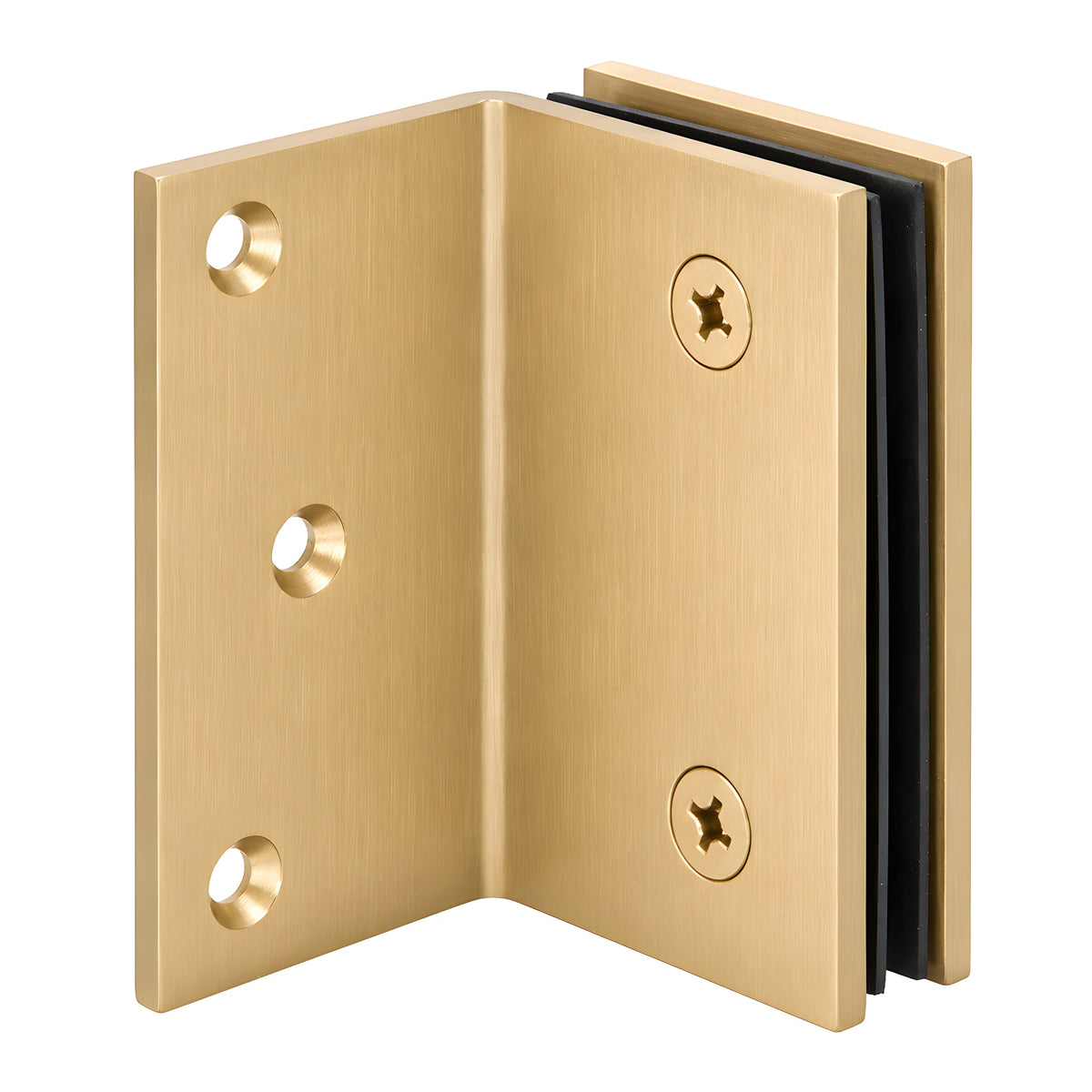

CRL Geneva Series Satin Brass Wall Bracket for Glass Panels
CRL Geneva Series Satin Brass Wall Bracket for Glass Panels
Regular price
$96.42 CAD
Regular price
Sale price
$96.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GE90SSB
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Material
Brass
Mounting Type
Wall Mount
Series
Geneva
Overview
- Square corner glass clamps—match configuration of Geneva, Concord, Vienna, Cardiff, and Senior Cardiff hinge series
- Fits glass 5/16" to 1/2" (8 to 12 mm)
- Solid brass construction for strength and decor-grade appearance
- Decorator finishes and square-corner style to match popular clamps and hinges
CRL Geneva Series Wall Mount Brackets — precision square corner wall-mount brackets for glass panels and shelves. Designed for 5/16"–1/2" (8–12 mm) glass, these solid brass brackets double as horizontal shelf supports and coordinate with our most popular hinge and clamp series. Available in multiple decorator finishes; drawings, templates and custom finishes available on request. Ideal for frameless glass installations, glass shelf mounting, and architectural glass hardware applications.
Specifications
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and mounting screws
Mounting Hole Requirement: Two 3/4" (19 mm) holes per panel
Replacement Hardware: CRL P612 replacement screws
Brass Finish Advisory:
Brass is durable but can oxidize and develop a tarnished appearance over time. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section.
SKU: GE90SSB
Order now to get solid brass square corner glass brackets that match your Geneva-series hinges and clamps.
