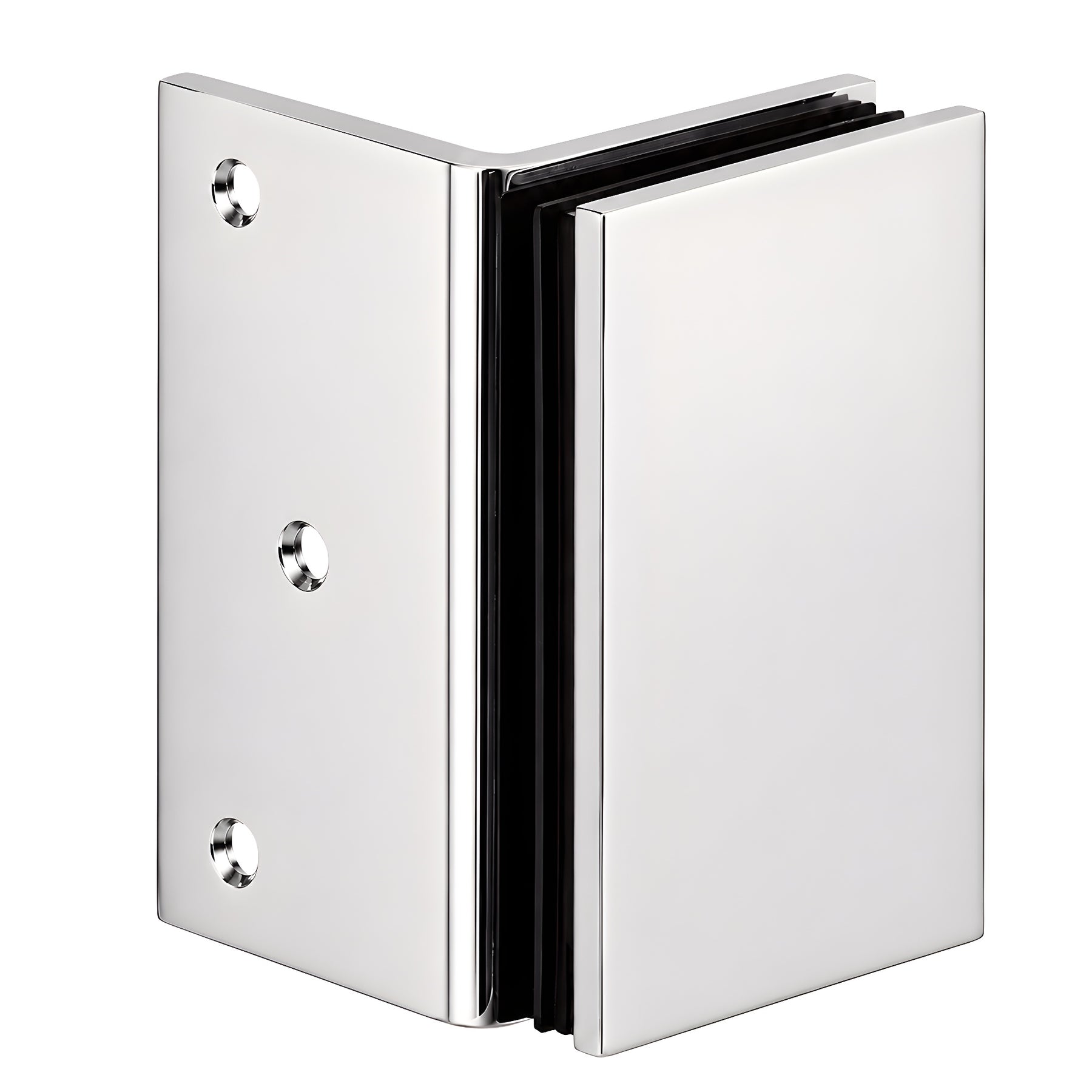

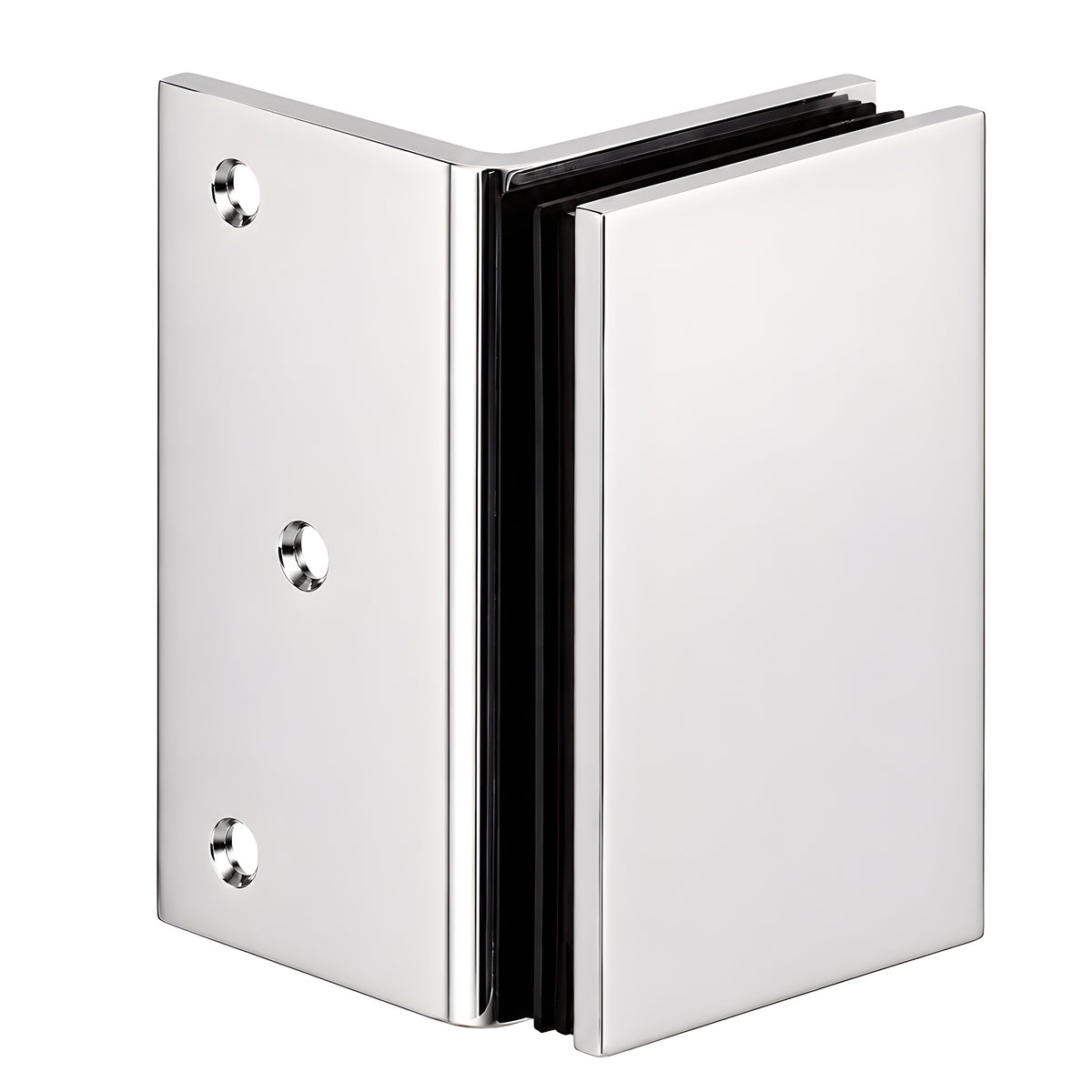

CRL Geneva Wall Mount Bracket Polished Nickel Finish
CRL Geneva Wall Mount Bracket Polished Nickel Finish
Regular price
$84.50 CAD
Regular price
Sale price
$84.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GE90SPN
Shipping Weight: 1.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Nickel
Material
Brass
Mounting Type
Wall Mount
Series
Geneva
Overview
- Square-corner glass clamps compatible with Geneva, Concord, Vienna, Cardiff, and Senior Cardiff hinge series
- Fits 5/16" to 1/2" (8 to 12 mm) glass
- Solid brass construction
- Decorator finishes and styles to match our most popular clamps

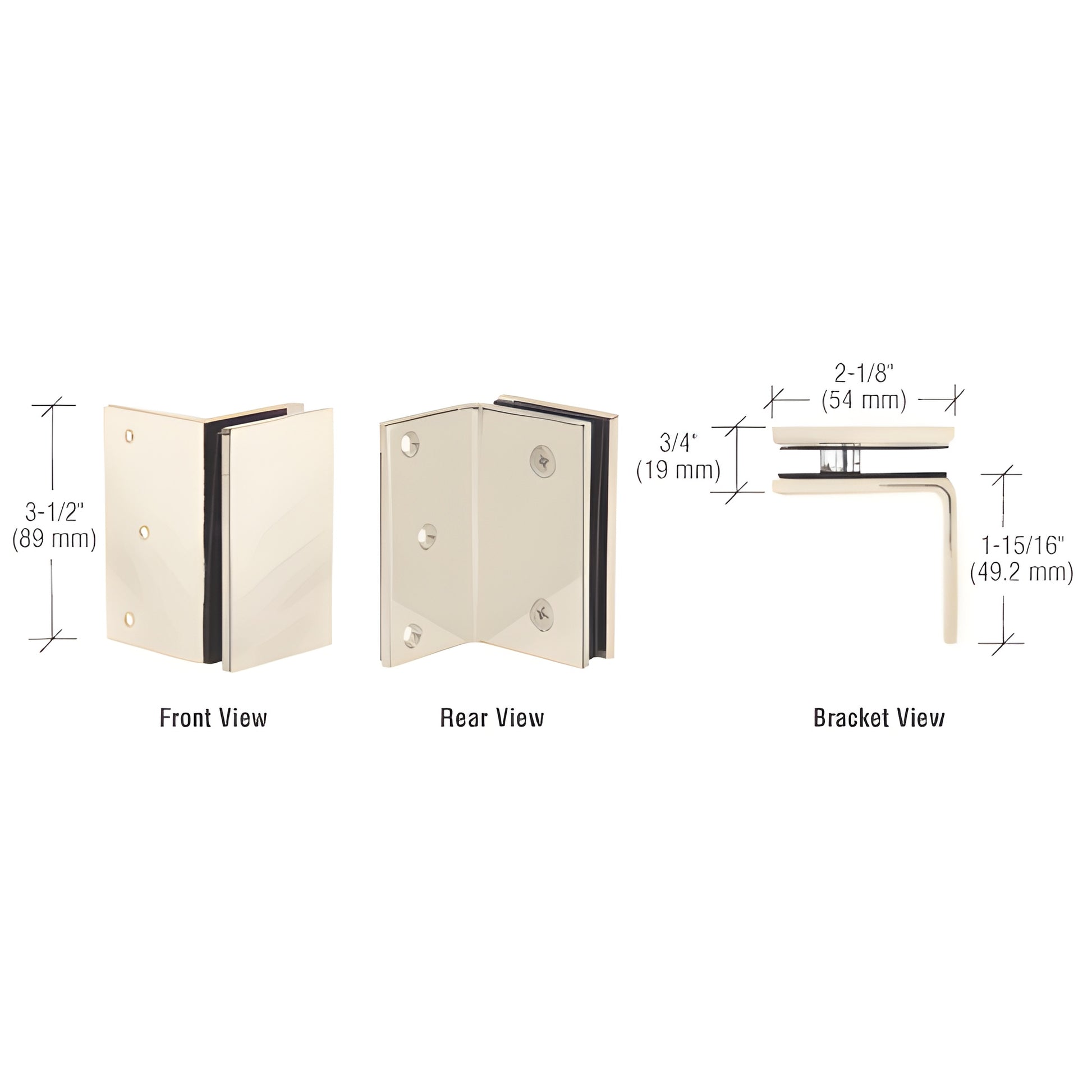

CRL Geneva Series Wall Mount Brackets (SKU: GE90SPN) are solid-brass, square-corner wall-mount glass brackets designed for 5/16" to 1/2" (8 to 12 mm) glass. Use them as wall-mounted glass clamps or horizontal shelf brackets—ideal as a brass glass shelf bracket or square corner glass clamp where a coordinated look with Geneva, Concord, Vienna, Cardiff, and Senior Cardiff hinge series is required. Available in multiple decorator finishes; drawings, templates and custom finishes are available on request.
SPECIFICATIONS
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and mounting screws
Required Hole Diameter: Two 3/4" (19 mm) holes per panel
Replacement Hardware: CRL P612 replacement screws
Shop the GE90SPN Geneva Series wall mount bracket now to complete your coordinated glass hardware project.
