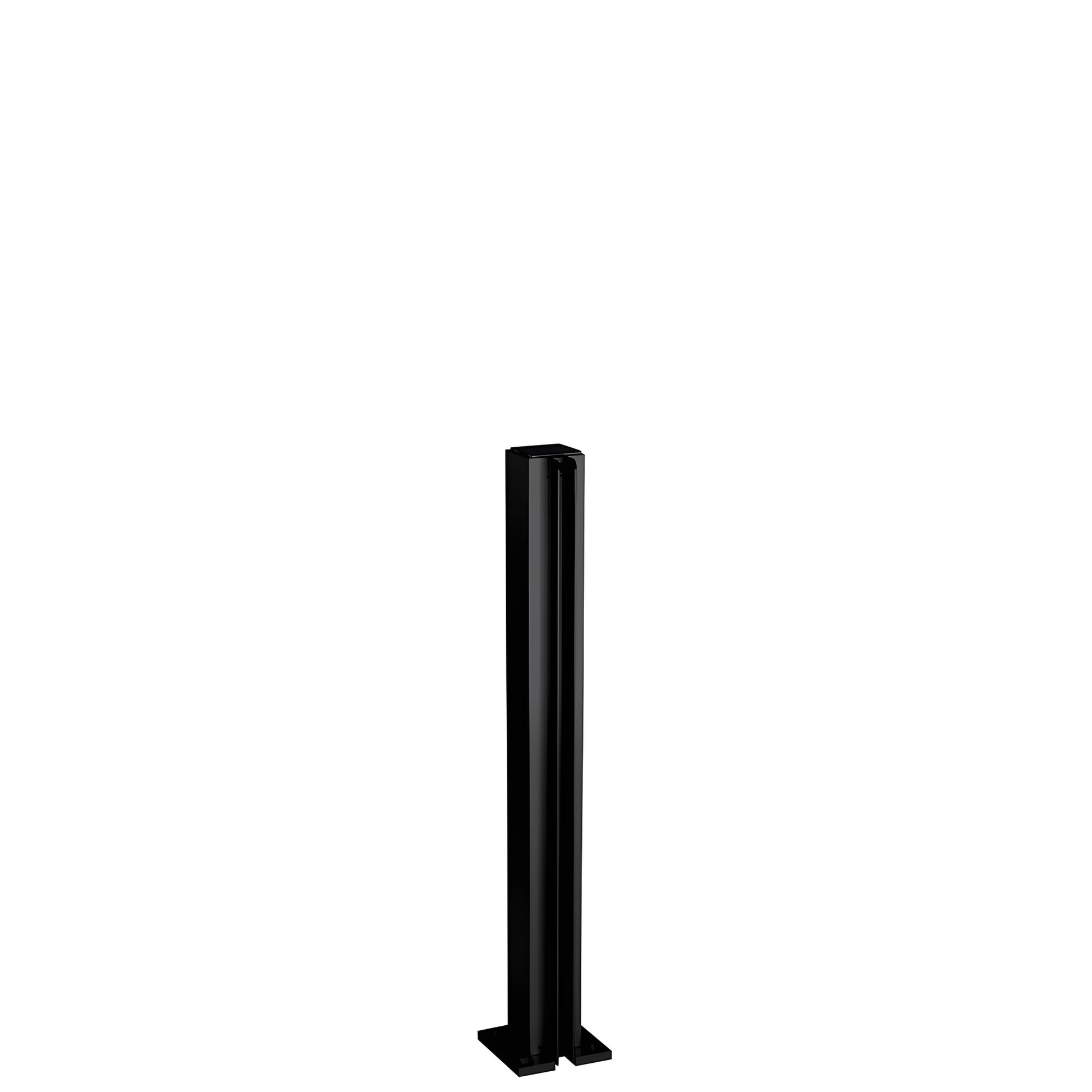

CRL Matte Black 12" End Partition Post - Restroom Stall Hardware

• Stock post sizes for immediate shipment — SKU: D990MBL12E
• Standard heights: 12", 18", and 24" (305, 457, and 610 mm) in four finishes
• Eight standard configurations: End, Center, Corner, 3-Way, 4-Way, 135° Center (LH and RH), and 45° Center
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) thick glass
• Top cap and mounting base included; four wood screws supplied
• Designed for monolithic tempered glass — glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

CRL Design Series partition posts are popular aluminum partition posts for offices, banks, restaurants, and commercial interiors. Slim-line profile, full-length glazing channels, and an easy-to-install mounting base make these partition posts a favored choice for tempered glass office partitions and glass divider systems. Use Cat. No. 33SC Clear Silicone to secure glass in the channels. Custom 135° posts are also available in select finishes and sizes. Each assembled post includes one attached top cap, one attached mounting base, and four wood screws.

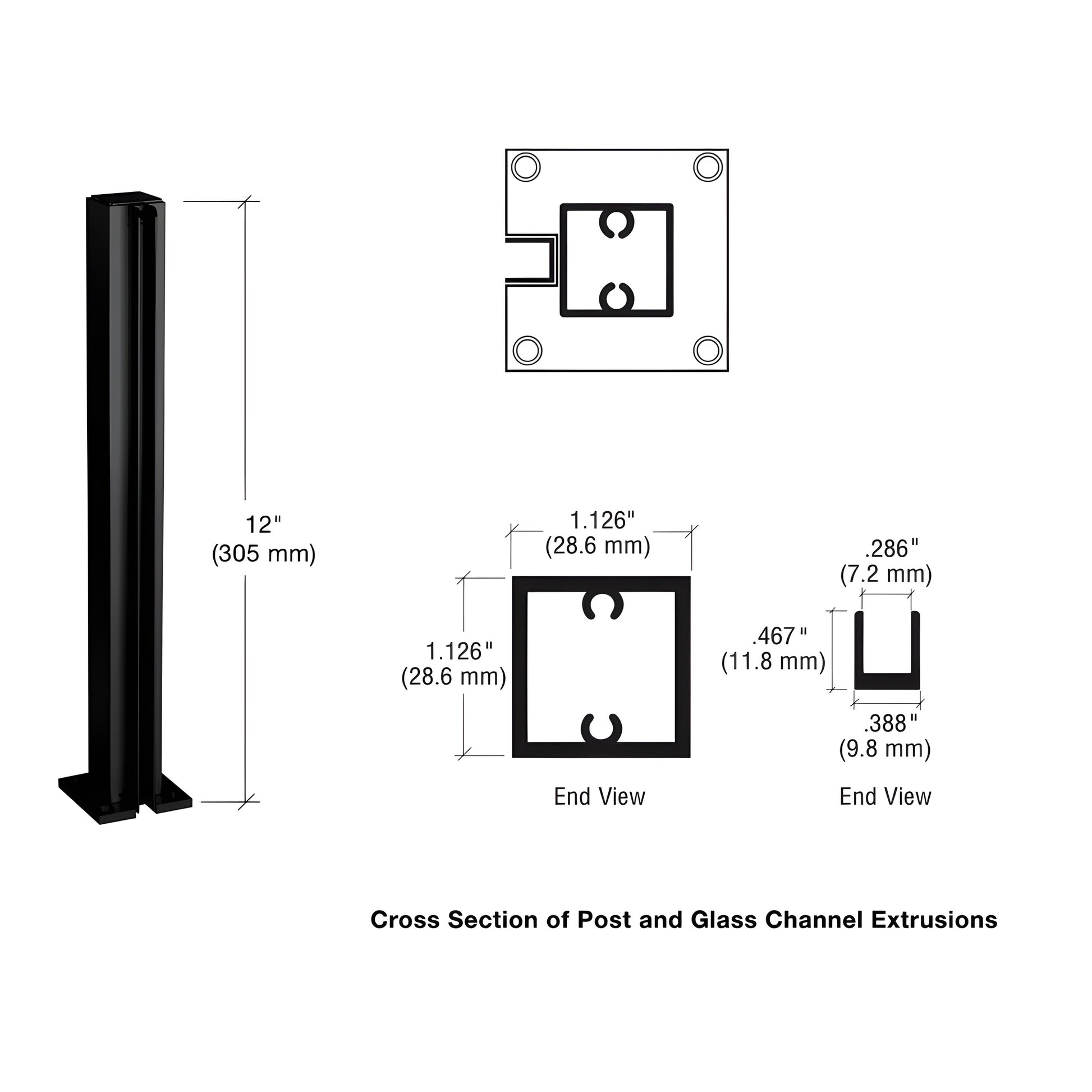

These fully assembled Design Series posts measure 1-1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. You can also "Make Your Own" Design Series partition posts with CRL components — instructions and requirements, parts page.

Product Warning:

The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.


Order SKU D990MBL12E now to get stock aluminum partition posts ready for immediate delivery.
