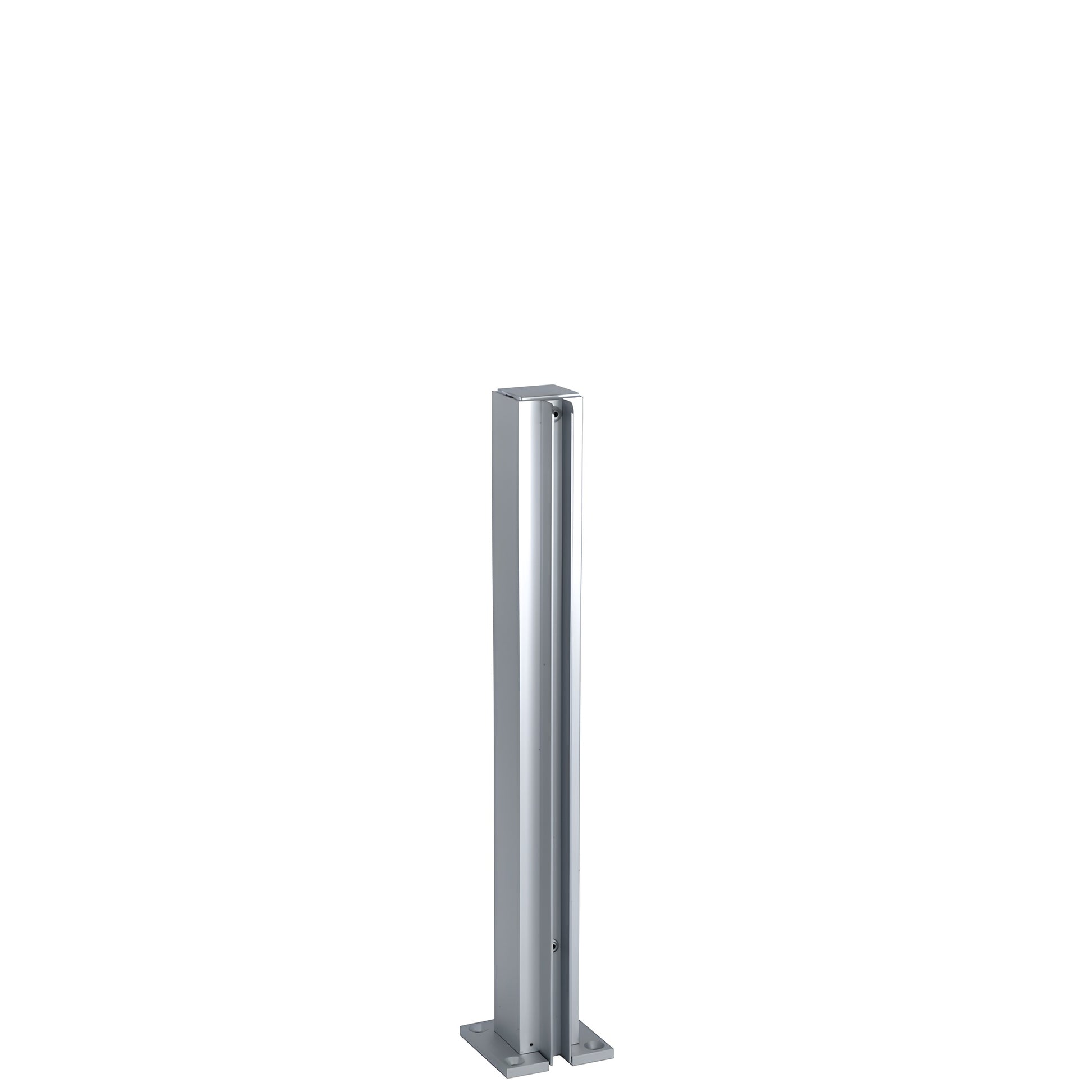

CRL 14 in Satin Anodized Aluminum End-Design Glass Partition Post
CRL 14 in Satin Anodized Aluminum End-Design Glass Partition Post
Regular price
$105.60 CAD
Regular price
Sale price
$105.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990A14E
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
End Post
Finish/Color
Satin Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
8 (355.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship — SKU D990A14E
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm); available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; four wood screws provided
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are popular, ready-to-ship aluminum posts for glass partitions, widely used in banks, offices, and restaurants. Their slim-line profile, full-length glazing channels, and easy-to-install mounting base make them a time-saving choice for commercial glass partition installs. Glass is secured using Cat. No. 33SC Clear Silicone. Custom 135° posts available in select finishes and sizes. Each fully assembled post includes one attached top cap, one attached mounting base, and four wood screws.

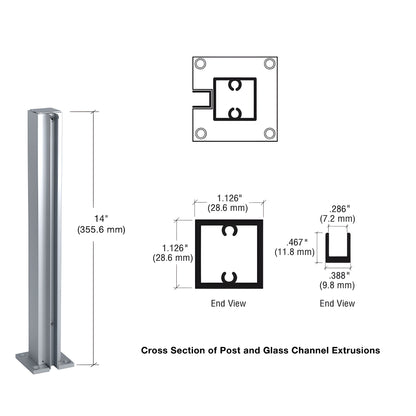

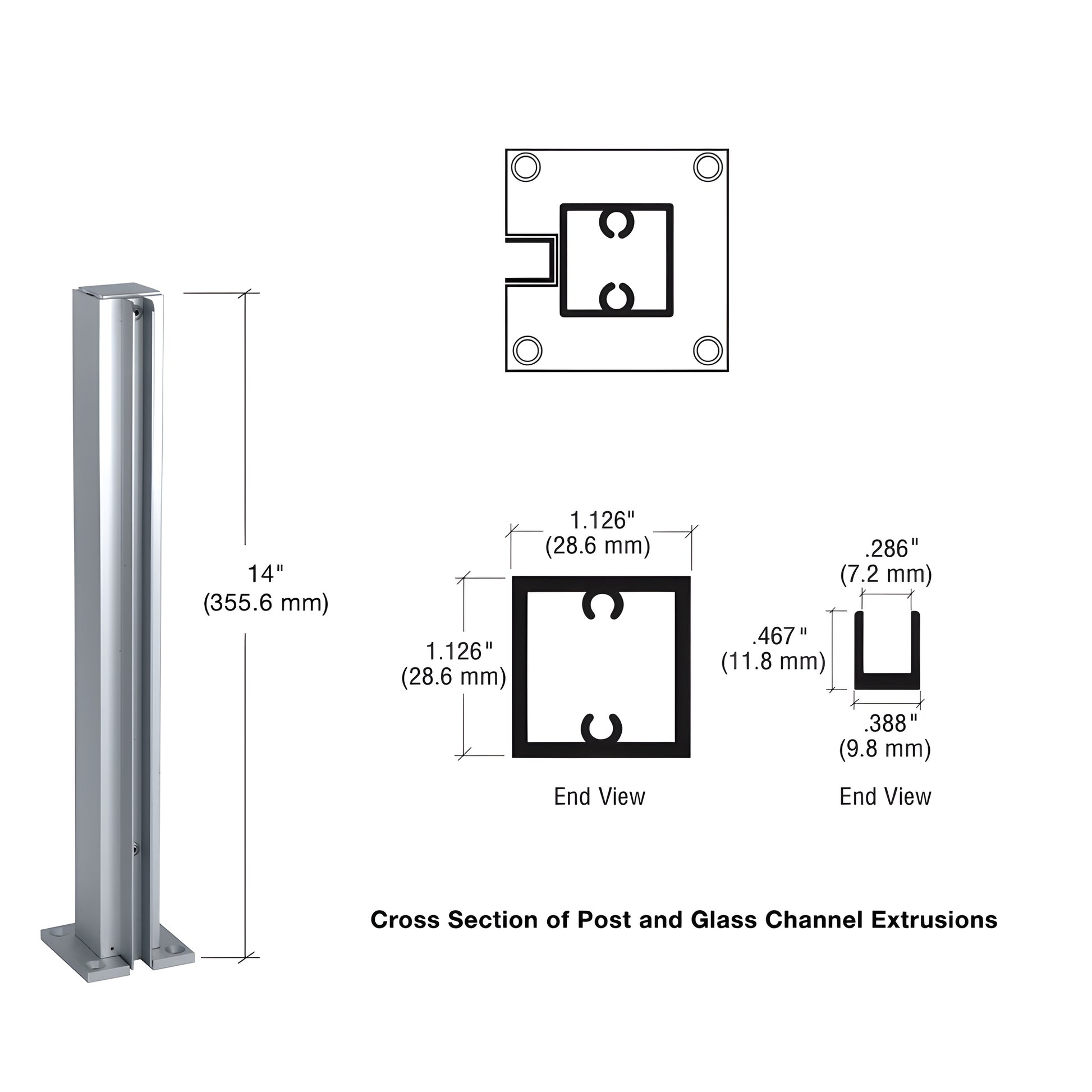

These posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full length and rise 15/32" (12 mm) from the post surface.
You can also "Make Your Own" Design Series partition posts with CRL components: Instructions and requirements, parts page.
Product note:
Use Cat. No. 33SC Clear Silicone to secure glass into the glazing channels.
Ready to order durable aluminum partition posts for glass partitions? Contact CRL Customer Service or add SKU D990A14E to your cart.
