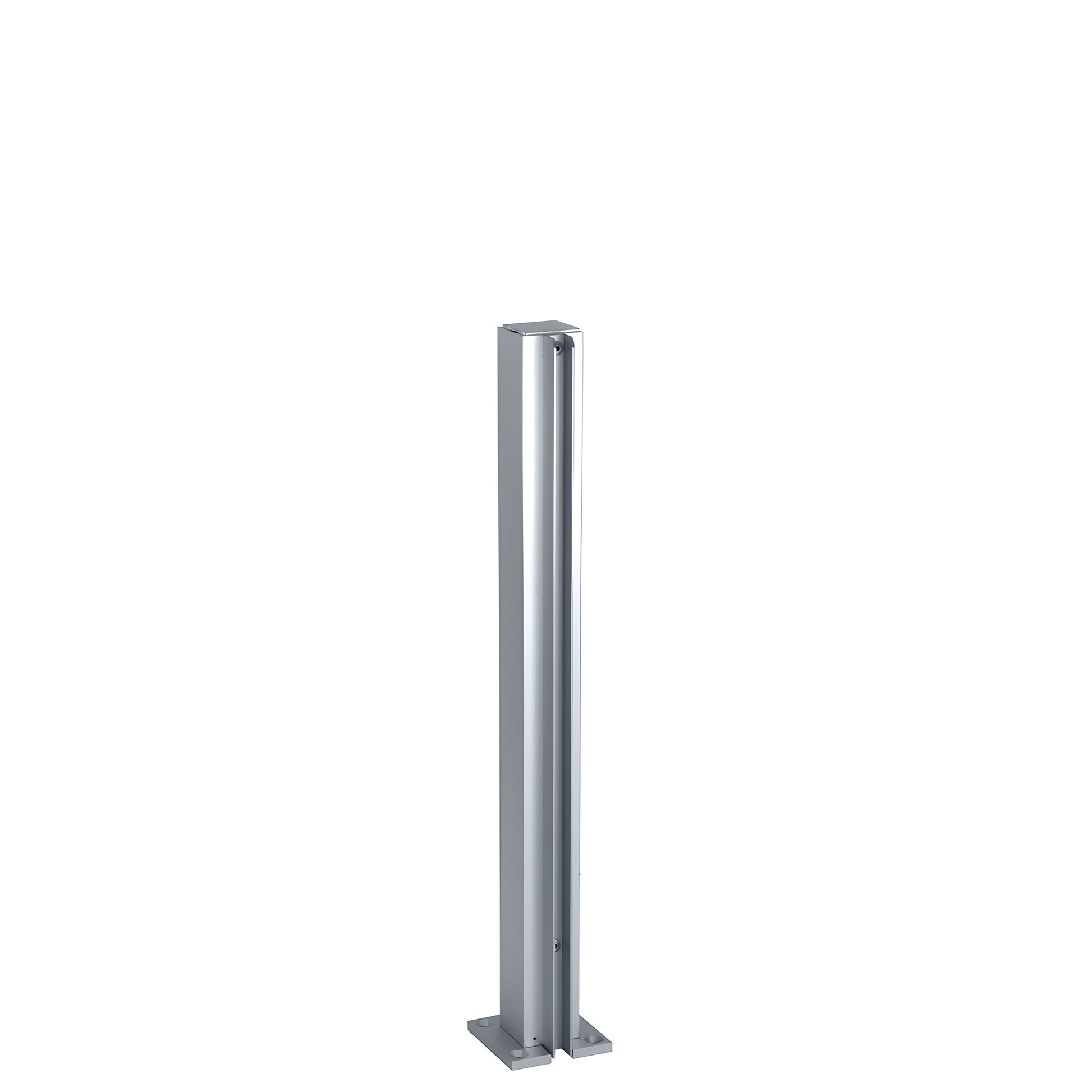

CRL Satin Anodized Aluminum 16 in End-Design Glass Partition Post

• Stock post sizes, RED-E to ship — SKU: D990A16E
• Standard heights: 12", 18", 24" (305, 457, 610 mm)
• Available in four finishes
• Five configurations: End, Center, Corner, 3-Way, 4-Way
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included

CRL Design Series partition posts deliver a slim-profile, easy-to-install aluminum solution for office, bank, restaurant, and commercial glass partitions. Ready-to-ship stock sizes and a simple mounting base make these aluminum partition posts ideal for rapid installations. Use Cat. No. 33SC Clear Silicone to secure glass into full-length glazing channels. Custom 135° posts are available in select finishes and sizes. Each assembled post includes one attached top cap, one attached mounting base, and four wood screws.

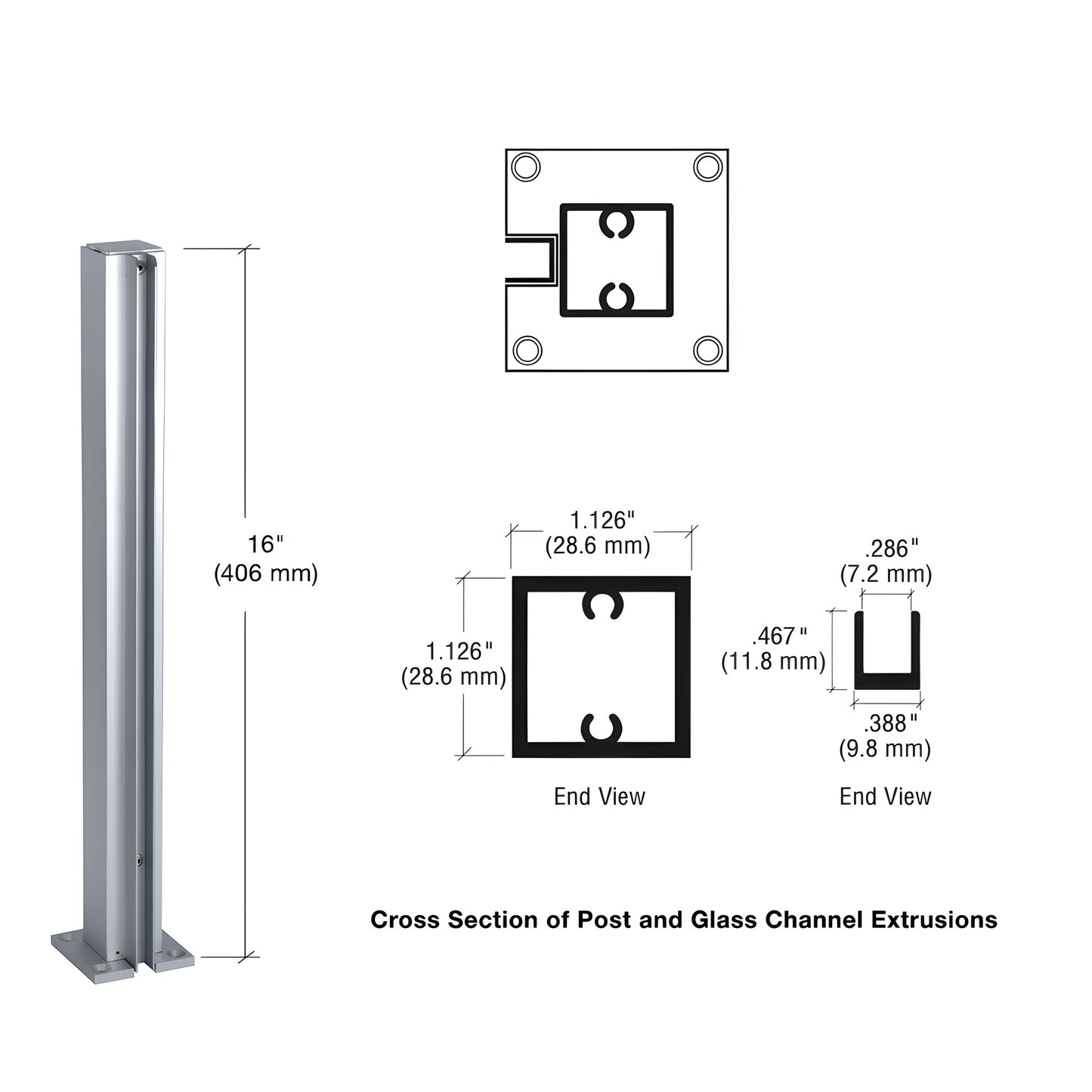

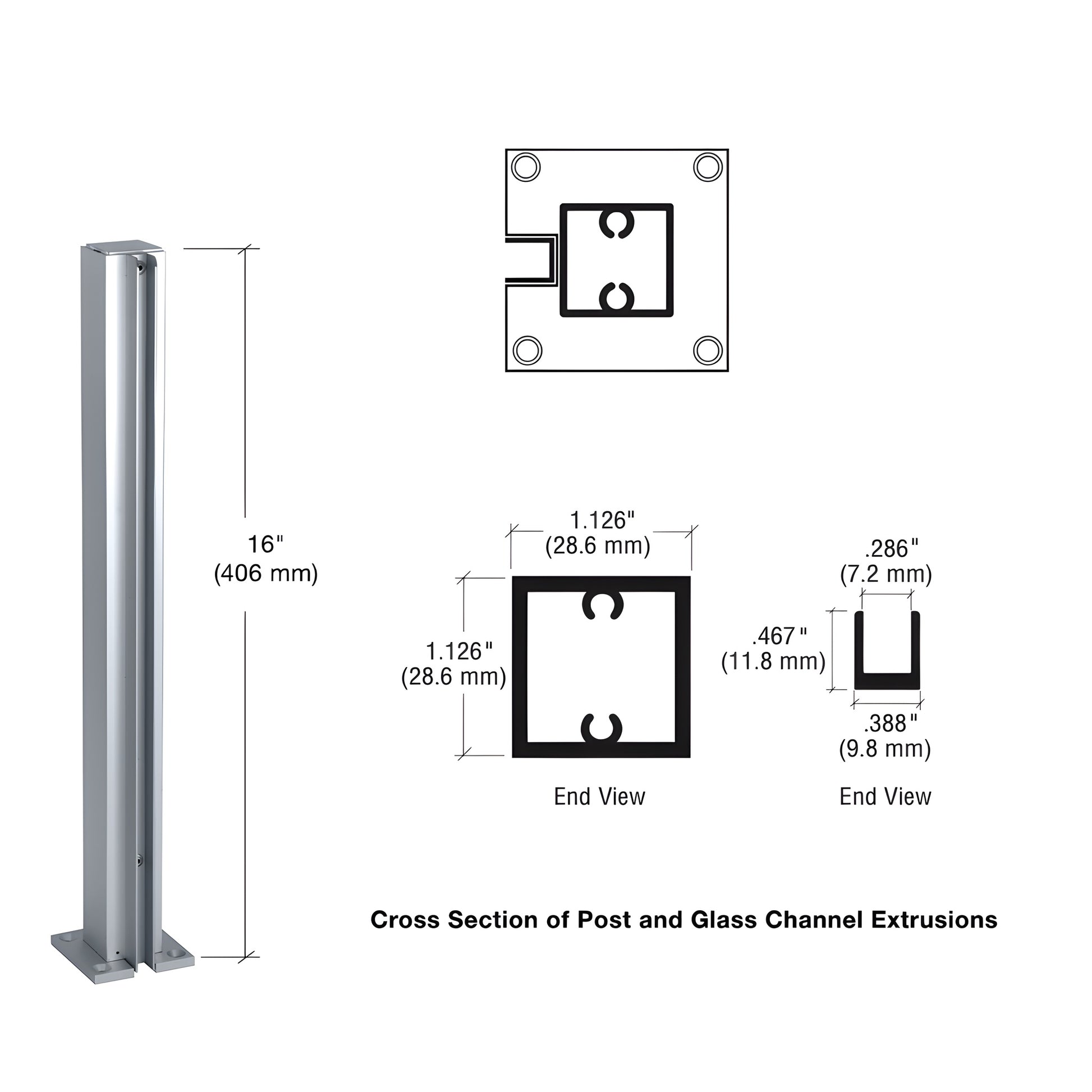

These fully assembled Design Series posts measure 1-1/8" (28.6 mm) square. Mounting base plates are 2" (51 mm) square. Glazing channels run full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.

You can also "Make Your Own" Design Series partition posts with CRL components — see instructions and requirements and the parts page.

Product Warning:

Secure glass into glazing channels using Cat. No. 33SC Clear Silicone.

Order Design Series partition posts (SKU: D990A16E) today for fast delivery and easy installation.
