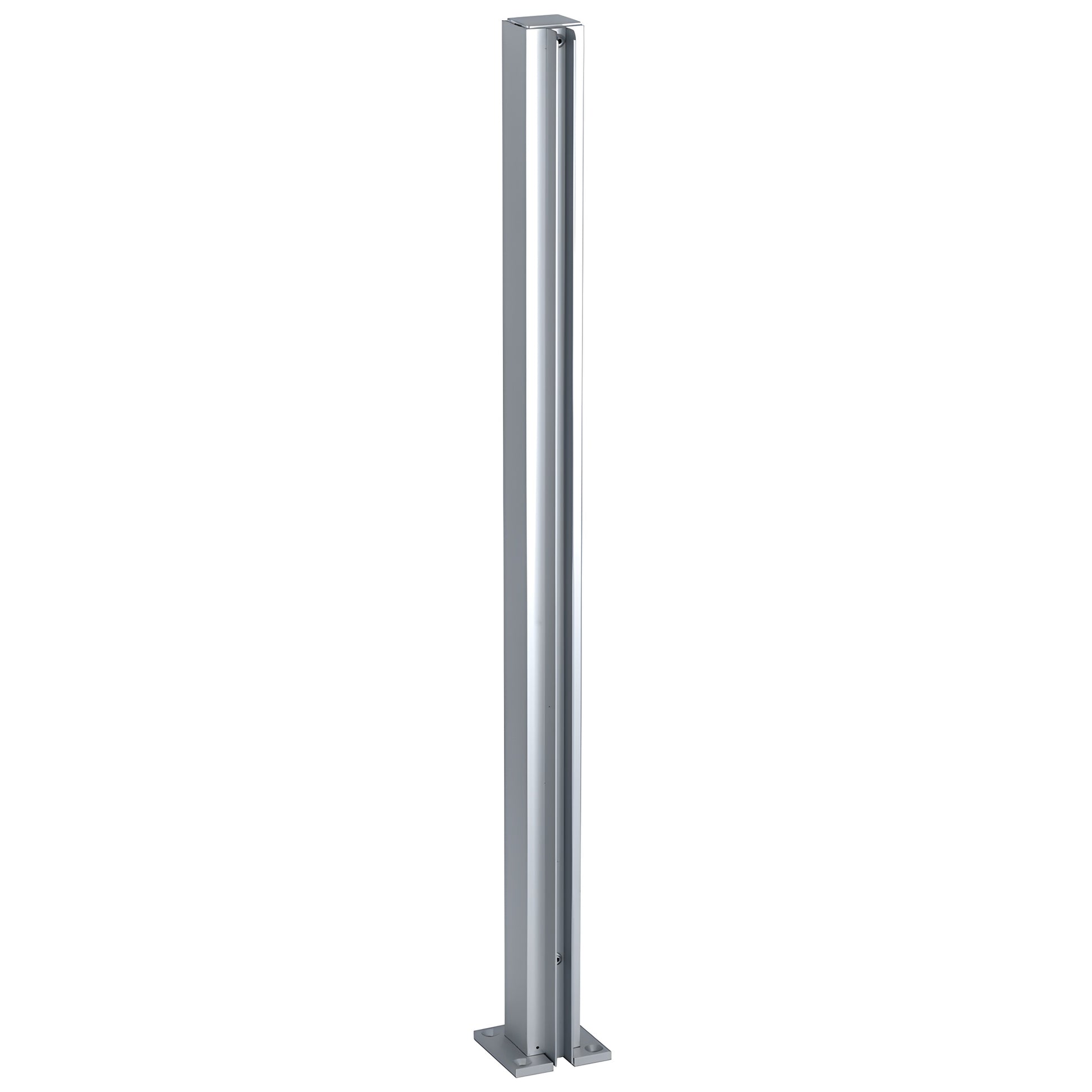

CRL 30 in Satin Anodized Aluminum End Design Partition Post

• Stock partition post sizes, RED-E to ship — SKU: D990A30E
• Standard heights: 12", 18", and 24" (305, 457, 610 mm) — available in four finishes
• Five configurations: End, Center, Corner, 3-Way, and 4-Way
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included; use with monolithic tempered glass

CRL Design Series partition posts are a popular, ready-to-ship solution for glass partitions and tempered glass dividers in banks, offices, and restaurants. The slim-line 1-1/8" (28.6 mm) square profile and easy-to-install mounting base make these partition posts ideal for commercial glass partition installations. Glass is secured in the full-length glazing channels using Cat. No. 33SC Clear Silicone. Custom 135° posts are also available in select finishes and sizes. Each post ships fully assembled with one attached top cap, one attached mounting base, and four wood screws for mounting.

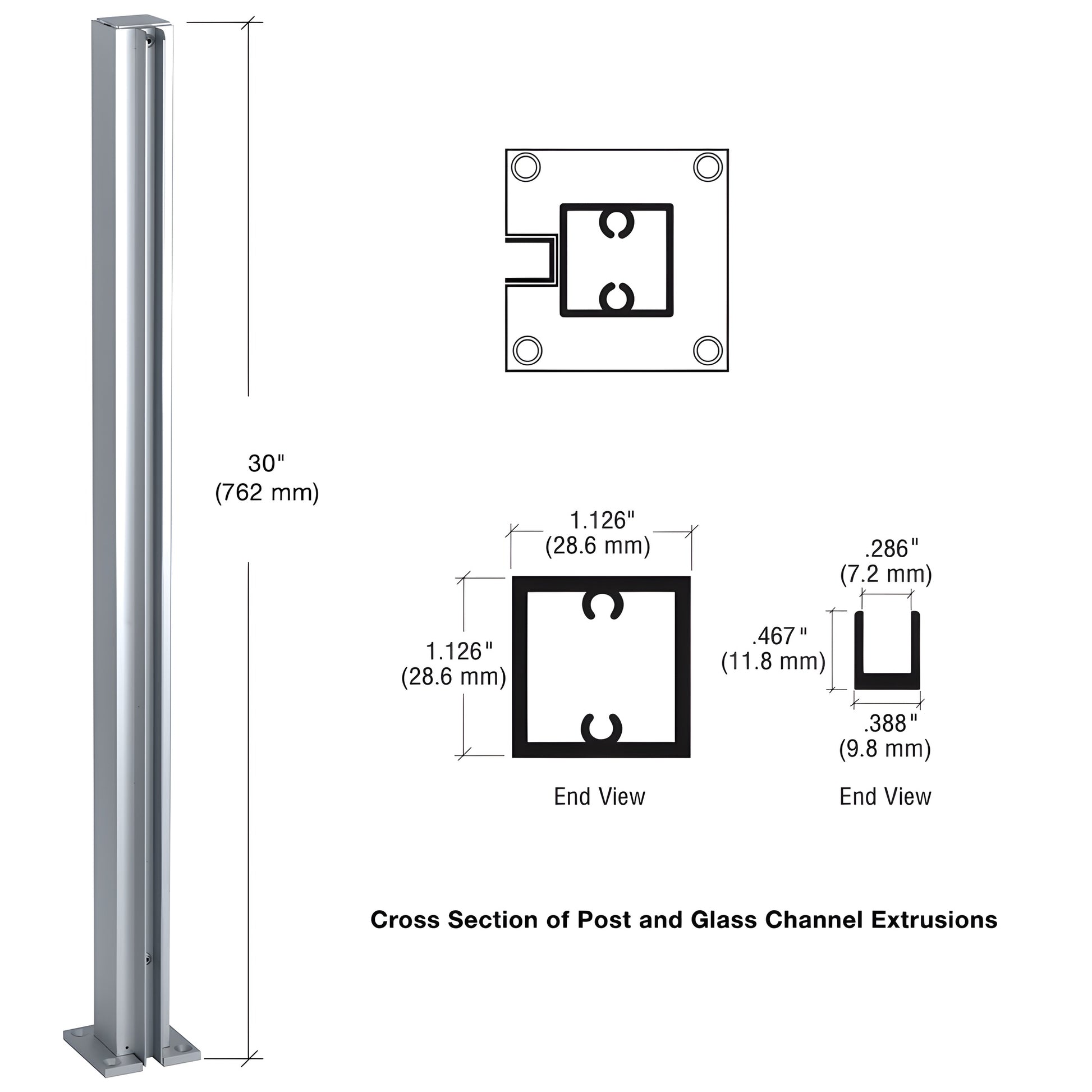

These posts feature 2" (51 mm) square mounting base plates. Glazing channels rise 15/32" (12 mm) from the post surface and include glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass. Use these partition posts for interior glass partition walls, tempered glass office dividers, and countertop shield installations.

You can also build custom Design Series partition posts from CRL components — see instructions and requirements and the parts page.

Product Warning:

Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone.
