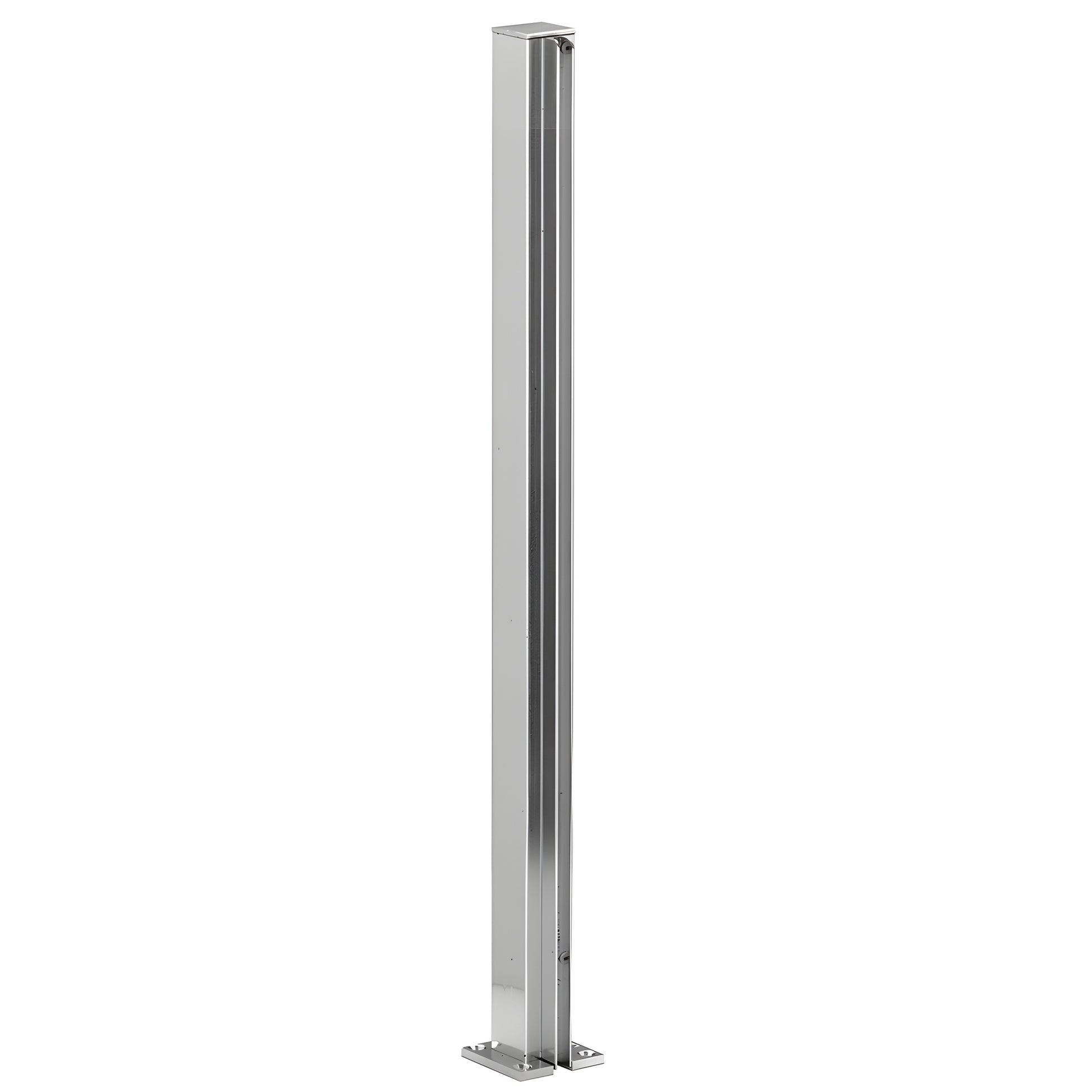

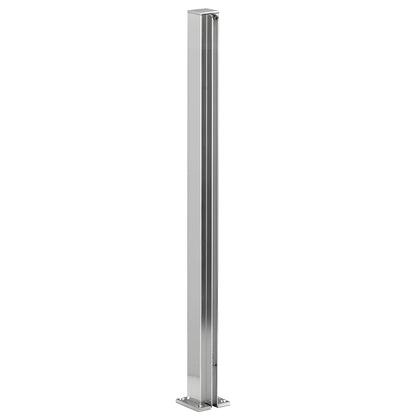

CRL Brite 30" Anodized Aluminum Restroom Partition End Post
CRL Brite 30" Anodized Aluminum Restroom Partition End Post
Regular price
$118.10 CAD
Regular price
Sale price
$118.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BA30E
Shipping Weight: 1.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
End Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
30 in. (762 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship (SKU: D990BA30E)
- Standard heights: 12", 18", and 24" (305, 457, 610 mm) — available in four finishes
- Five configurations: End, Center, Corner, 3‑Way, and 4‑Way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) tempered glass
- Top cap and mounting base included; mounting hardware supplied
- Use with monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are a popular choice for glass partitions in banks, offices, restaurants, and commercial interiors. Ready for immediate delivery, these slim-profile aluminum posts feature full-length channels to securely hold 1/4" (6 mm) tempered glass and simplify installation — a reliable, low-profile solution for interior glass partitions and office divider systems. The assembly includes one attached top cap, one attached mounting base, and four wood screws.

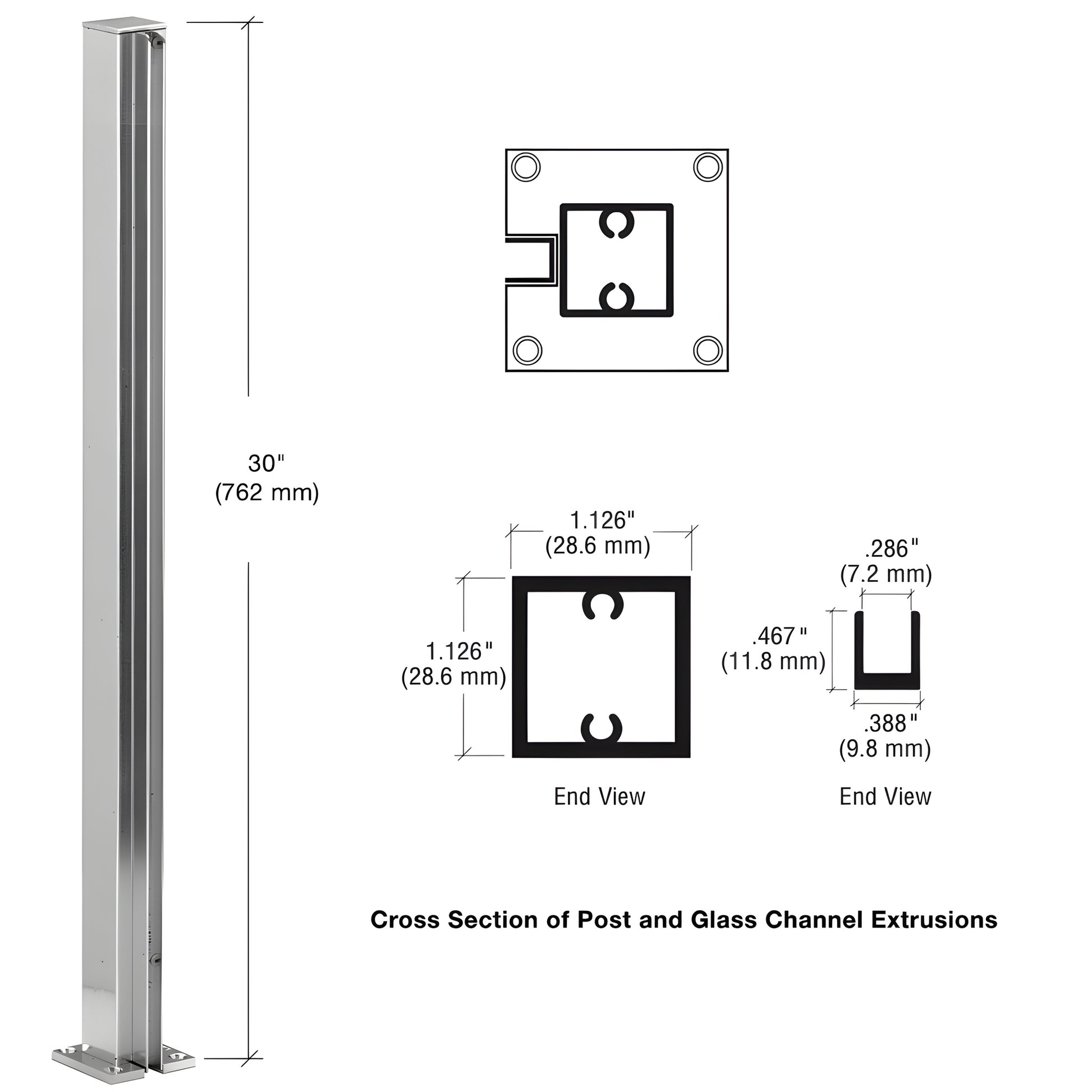

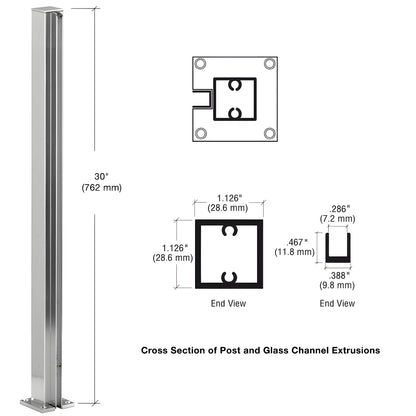

Fully assembled posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full post length and rise 15/32" (12 mm) from the post surface. For silicone sealant, use Cat. No. 33SC Clear Silicone. Custom 135° posts are available in select finishes and sizes.
You can also build custom Design Series partition posts using CRL components — see instructions and requirements and the parts page.
Product note:
Glazing channels are designed for monolithic tempered glass secured with Cat. No. 33SC Clear Silicone.
Order CRL Design Series partition posts (SKU D990BA30E) for fast shipping and easy installation — contact us to buy or request a quote.
