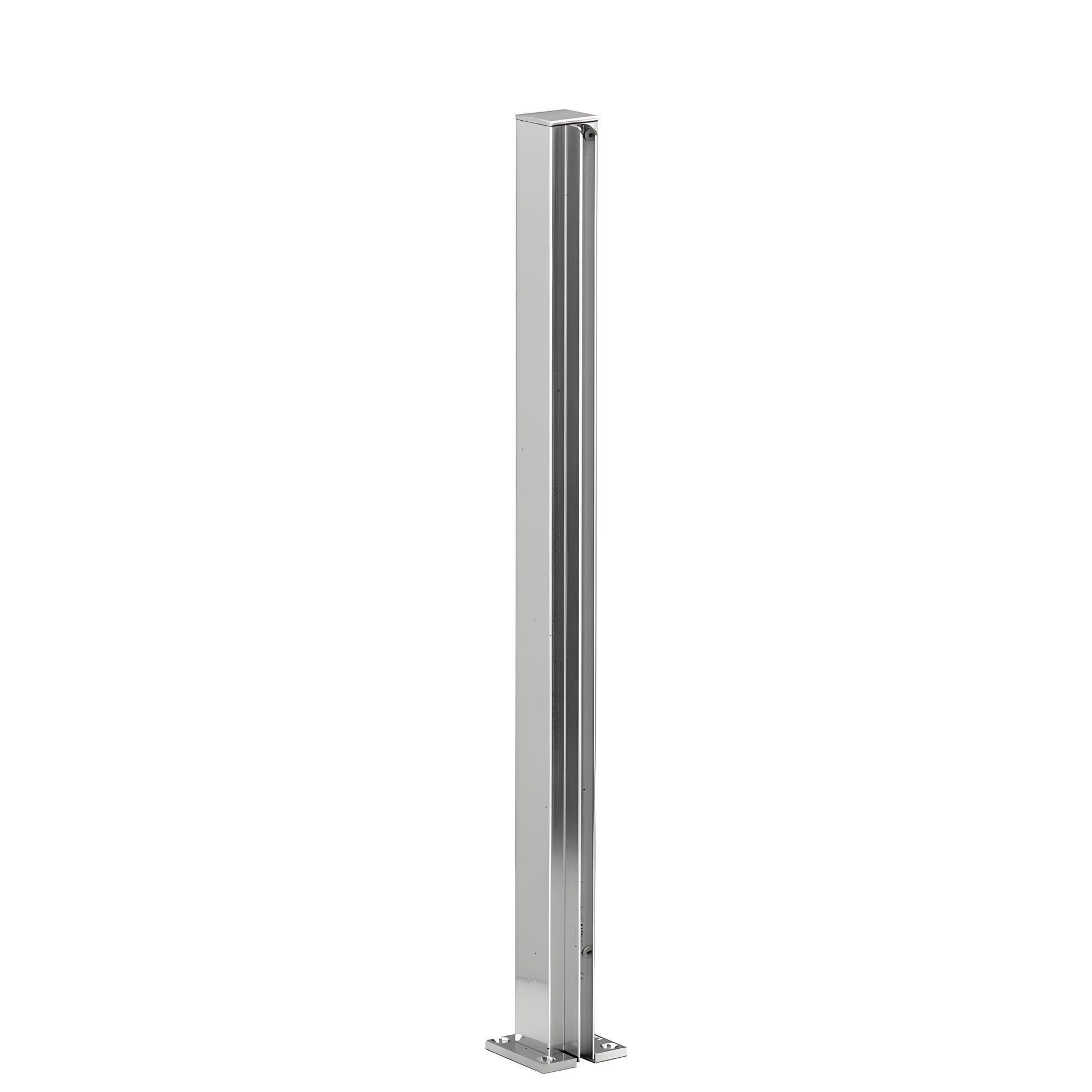

CRL Brite Anodized 24 in End Design Series Partition Post
CRL Brite Anodized 24 in End Design Series Partition Post
Regular price
$177.85 CAD
Regular price
Sale price
$177.85 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BA24E
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
End Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock Post Sizes, RED-E to Ship (SKU: D990BA24E)
- Standard Heights: 12", 18", and 24" (305, 457, and 610 mm)
- Available in Four Finishes
- Five Standard Configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included
- Designed for use with monolithic tempered glass
CRL Design Series partition posts offer a slim-profile aluminum solution for interior glass partitions, bank counters, office dividers, and restaurant screens. Popular for immediate delivery in standard stock sizes, these fully assembled posts include an attached top cap, attached mounting base, and four wood screws for fast installation. The full-length glazing channels secure 1/4" (6 mm) monolithic tempered glass; use Cat. No. 33SC Clear Silicone to seal the glass into the channel. Custom 135° posts are available in select finishes and sizes.

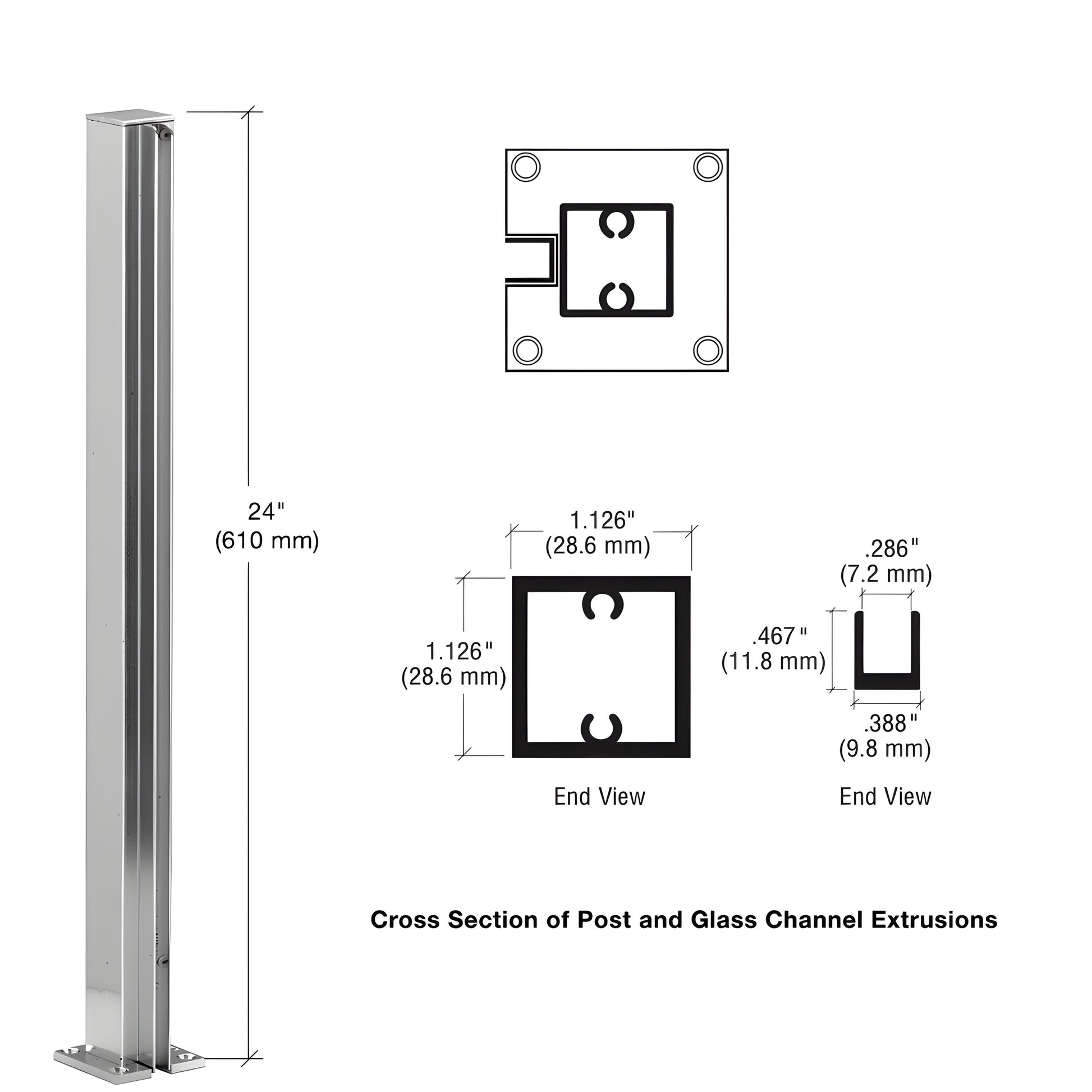

Each Design Series post measures 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full post length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.
You can also "Make Your Own" Design Series partition posts with CRL components: instructions and requirements, parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Order SKU D990BA24E today for fast shipping on durable aluminum partition posts for glass dividers — contact CRL Customer Service to confirm availability and lead time.
