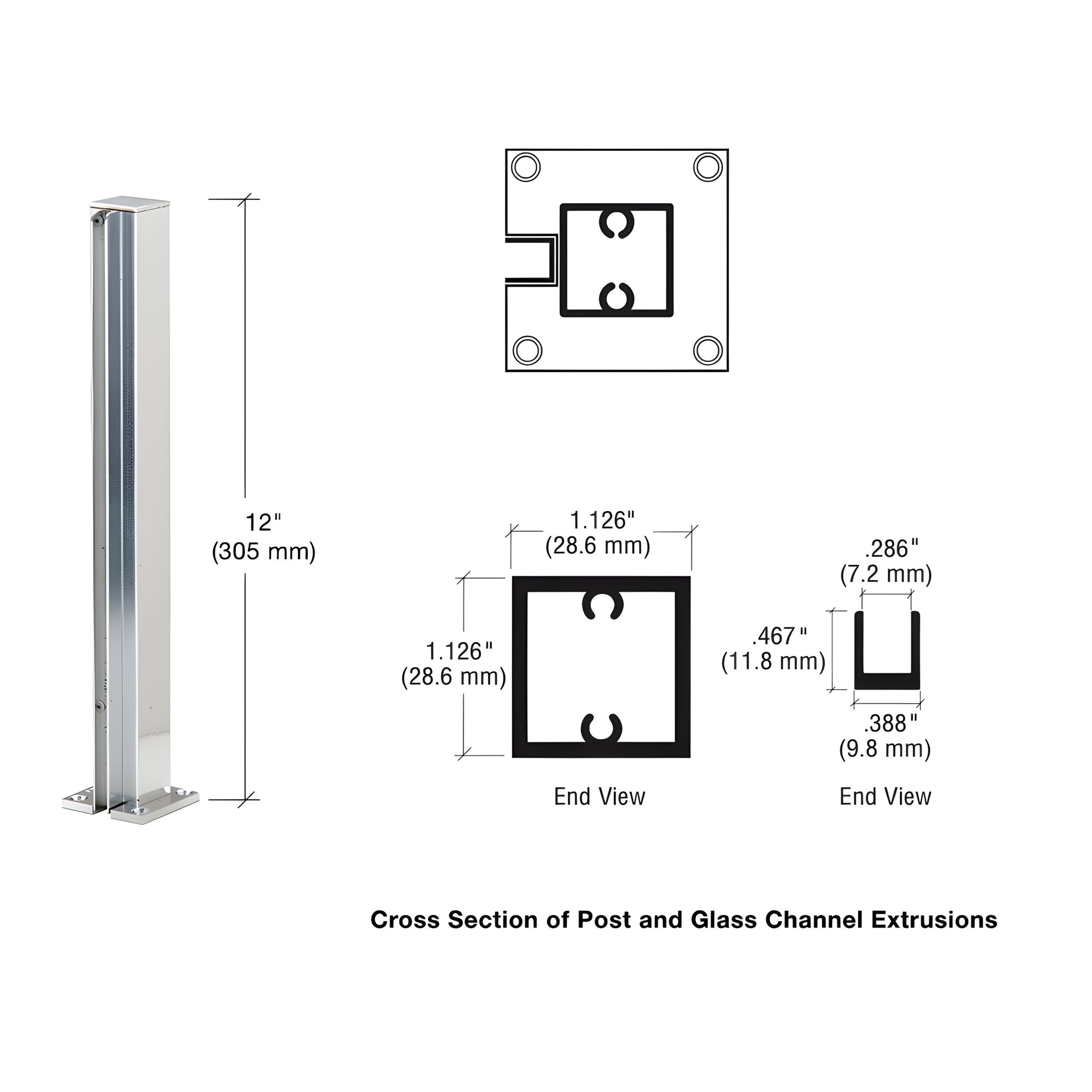

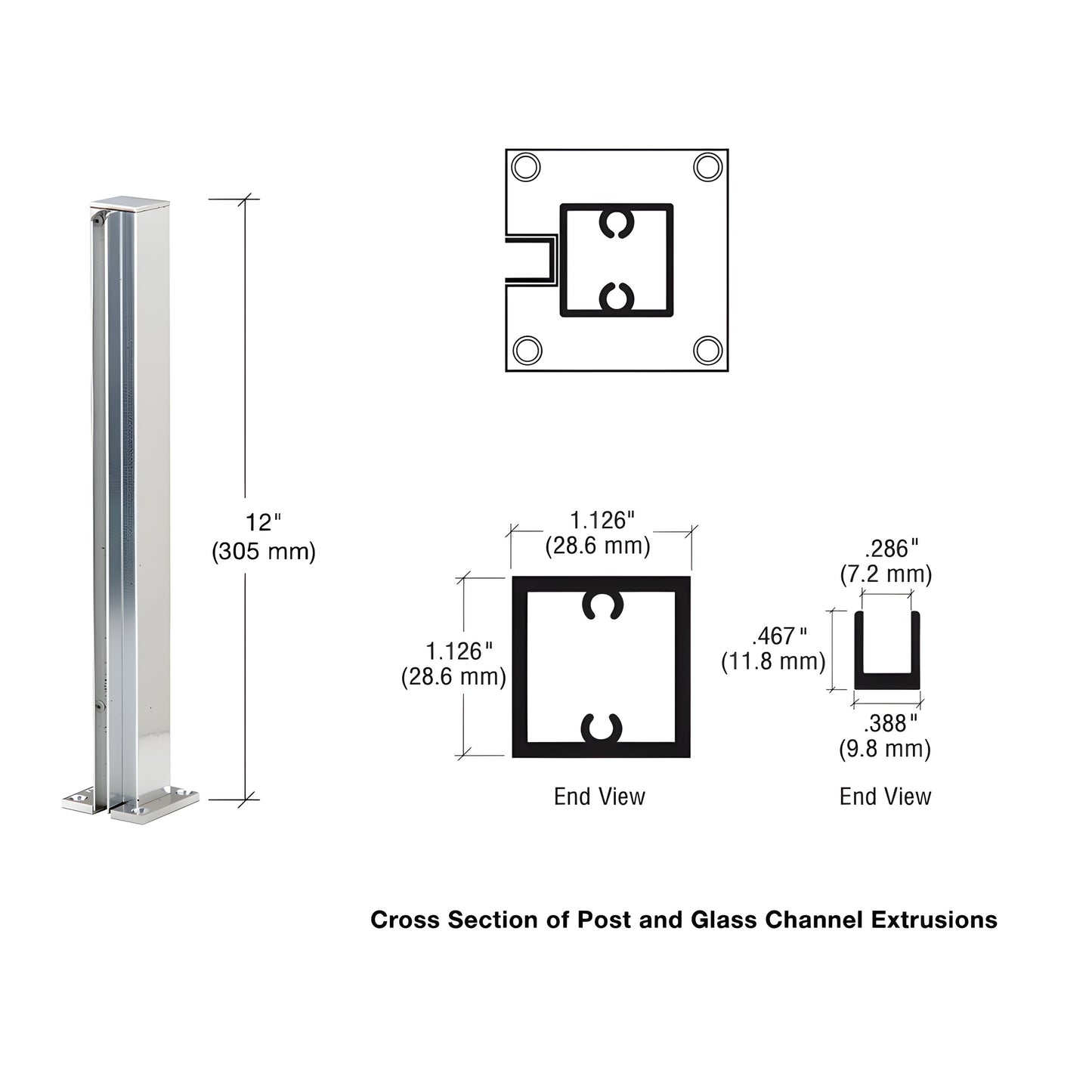

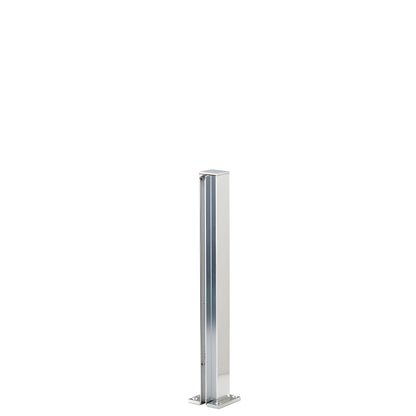

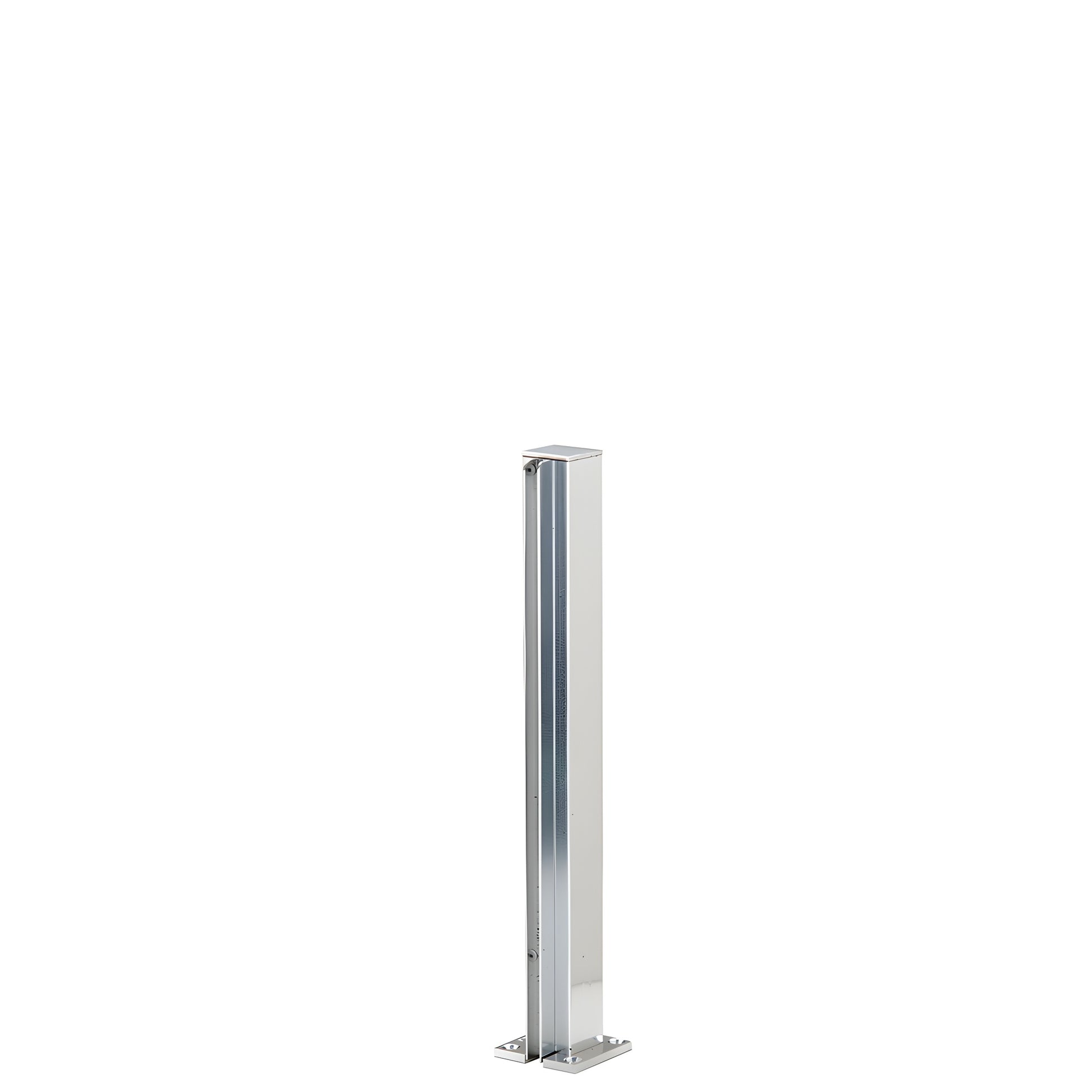

CRL Brite Anodized 12 in Aluminum End Mount Partition Post
Item# D990BA12E
Shipping Weight: 10.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
End Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
12 in. (304.8 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
- SKU: D990BA12E
- Stock partition posts for immediate shipment
- Standard heights: 12", 18", 24" (305, 457, 610 mm) in four finishes
- Supports 1/4" (6 mm) monolithic tempered glass with full-length glazing channels
- Eight configurations: End, Center, Corner, 3‑Way, 4‑Way, 135° Center (LH & RH), 45° Center
- Aluminum tubing, slim 1‑1/8" (28.6 mm) square profile for modern glass partitions
- Includes attached top cap, attached mounting base and four wood screws; base plate 2" (51 mm) square
- Glazing channels rise 15/32" (12 mm); glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
- Easy installation—use Cat. No. 33SC Clear Silicone to secure glass
CRL Design Series partition posts are a popular choice for banks, offices, restaurants and commercial interiors requiring durable, slim-profile glass partition posts. These fully assembled aluminum posts ship from stock in standard sizes and finishes, offering fast lead times and reliable performance. The full-length glazing channels accept monolithic tempered glass and are compatible with supplied glazing vinyl.
Custom 135° posts are available in select finishes and sizes. You can also build your own Design Series partition posts using CRL components — see instructions and requirements and the parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.
Ready to order? Add SKU D990BA12E to your cart or contact CRL Customer Service for quotes and availability.
