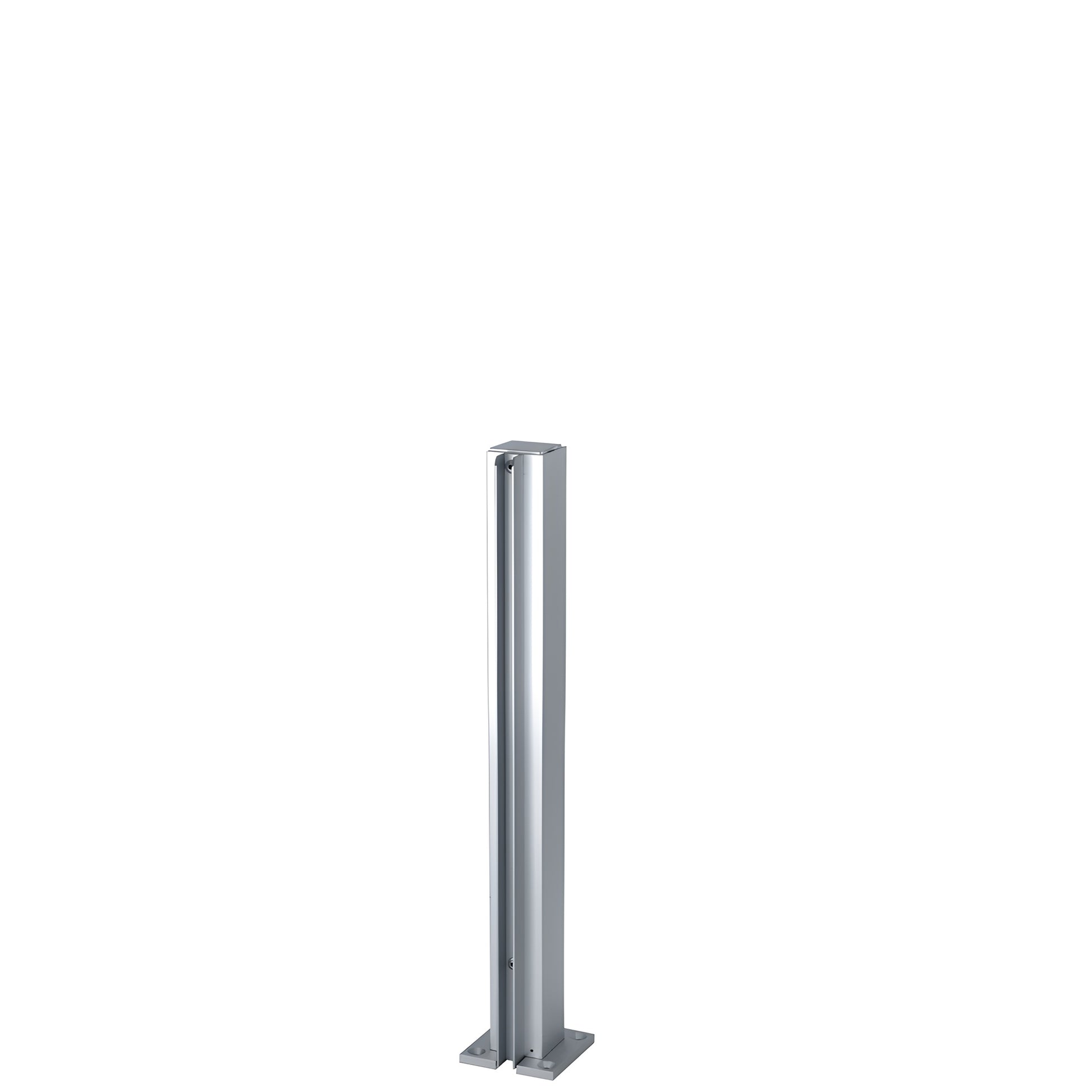

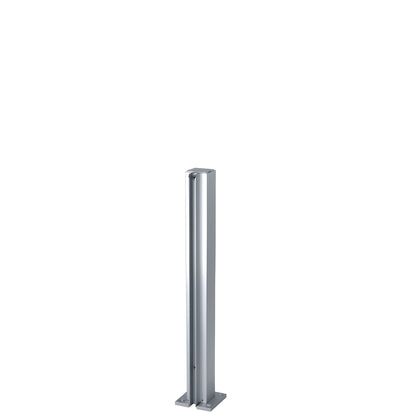

CRL 12" Satin Anodized End-Design Partition Post for Glass

• Stock post sizes for immediate shipment
• Standard heights: 12", 18", and 24" (305, 457, 610 mm) in four finishes
• Eight standard configurations: End, Center, Corner, 3-Way, 4-Way, 135° Center (LH and RH), and 45° Center
• Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included; four wood screws supplied
• Designed for monolithic tempered glass; glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass supplied

CRL Design Series partition posts (SKU: D990A12E) are popular aluminum glass partition posts used in banks, offices, and restaurants. Their slim-line profile, full-length glazing channels, and easy-to-install mounting base make them a preferred choice for glass partitions and interior glass dividers. Glass is secured using Cat. No. 33SC Clear Silicone. Some finishes and sizes are also available as custom 135° posts. Each fully assembled post includes one attached top cap, one attached mounting base, and four wood screws.

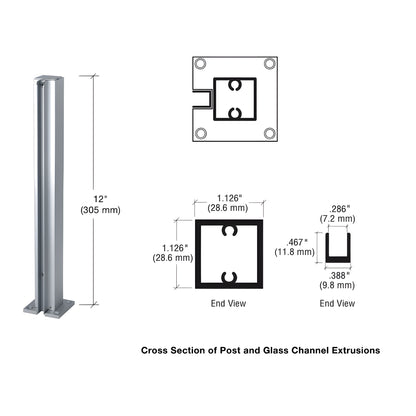

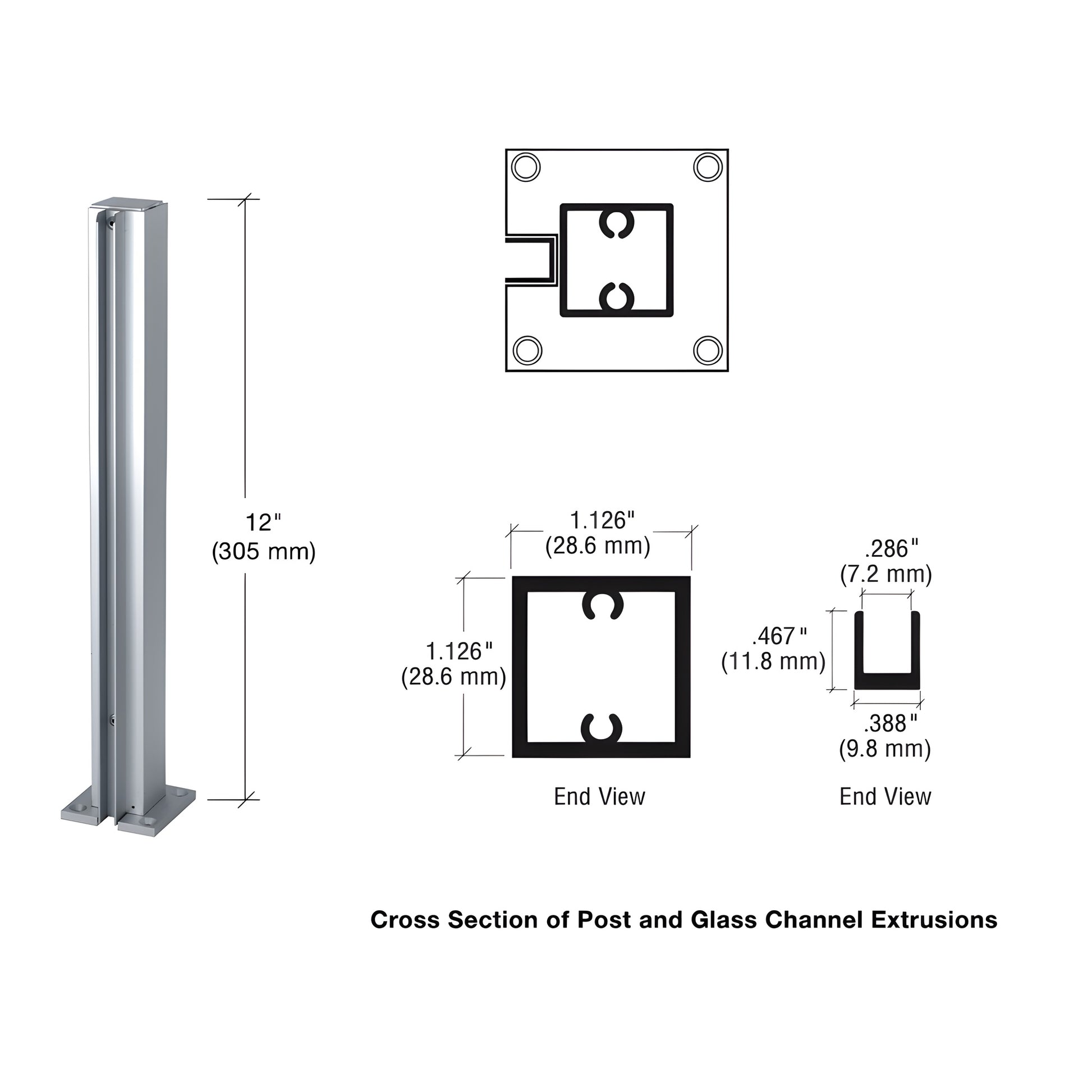

These Design Series posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface and run full length of the post.

You can also "Make Your Own" Design Series partition posts with CRL components — instructions and requirements and parts page.

Product Warning:

Glass is secured into glazing channels using Cat. No. 33SC Clear Silicone. Follow manufacturer instructions for safe installation.



Order CRL Design Series partition posts (SKU: D990A12E) today to get durable aluminum glass posts ready for immediate shipment.
