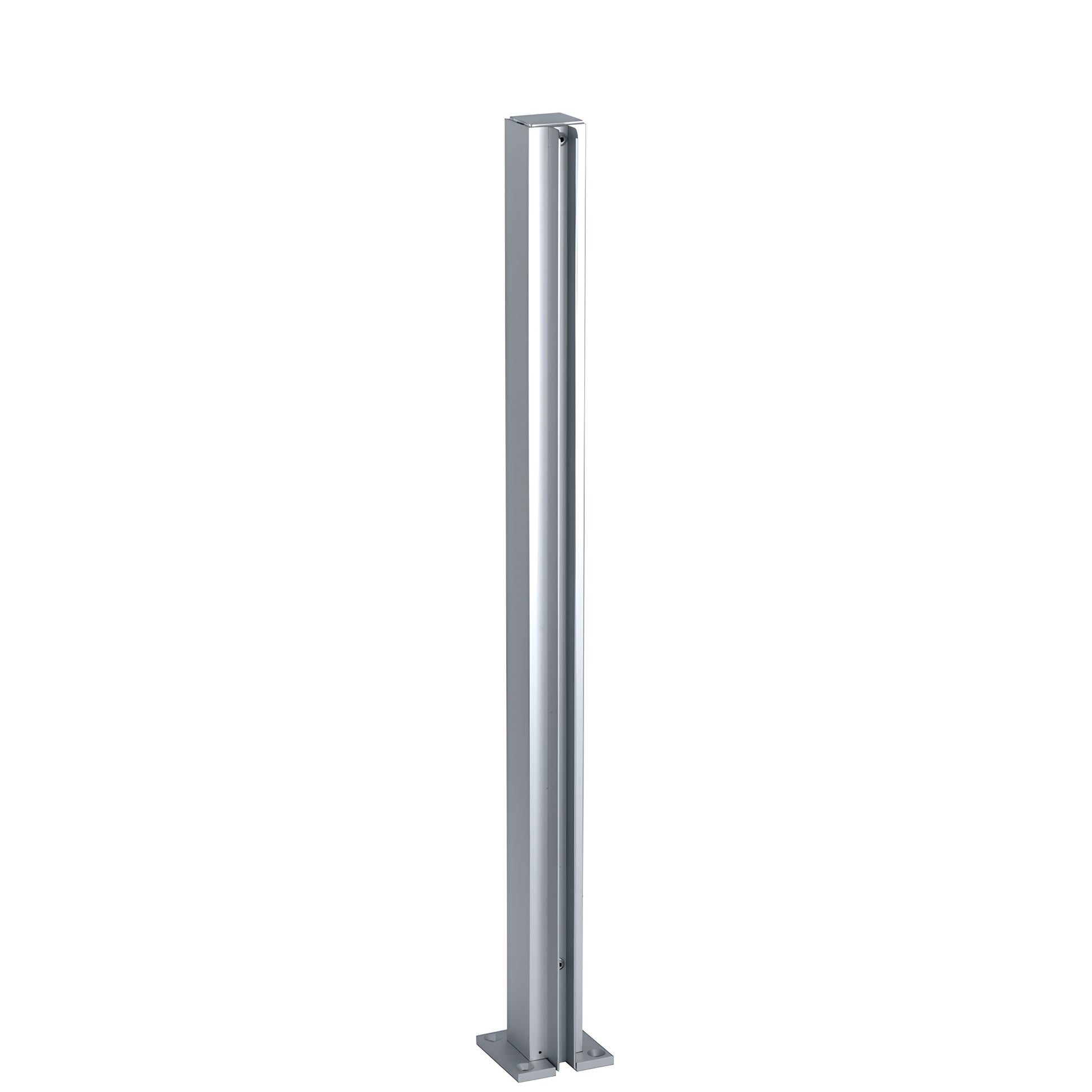

CRL 24" Satin Anodized Aluminum Glass Partition End Post
Item# D990A24E
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
End Post
Finish/Color
Satin Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full-Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts (SKU: D990A24E) are popular aluminum partition posts for tempered glass, stocked in standard sizes for immediate delivery. Commonly specified for banks, offices, and restaurants, these slim-profile posts feature full-length glazing channels and an easy-to-install mounting base for fast on-site installation.

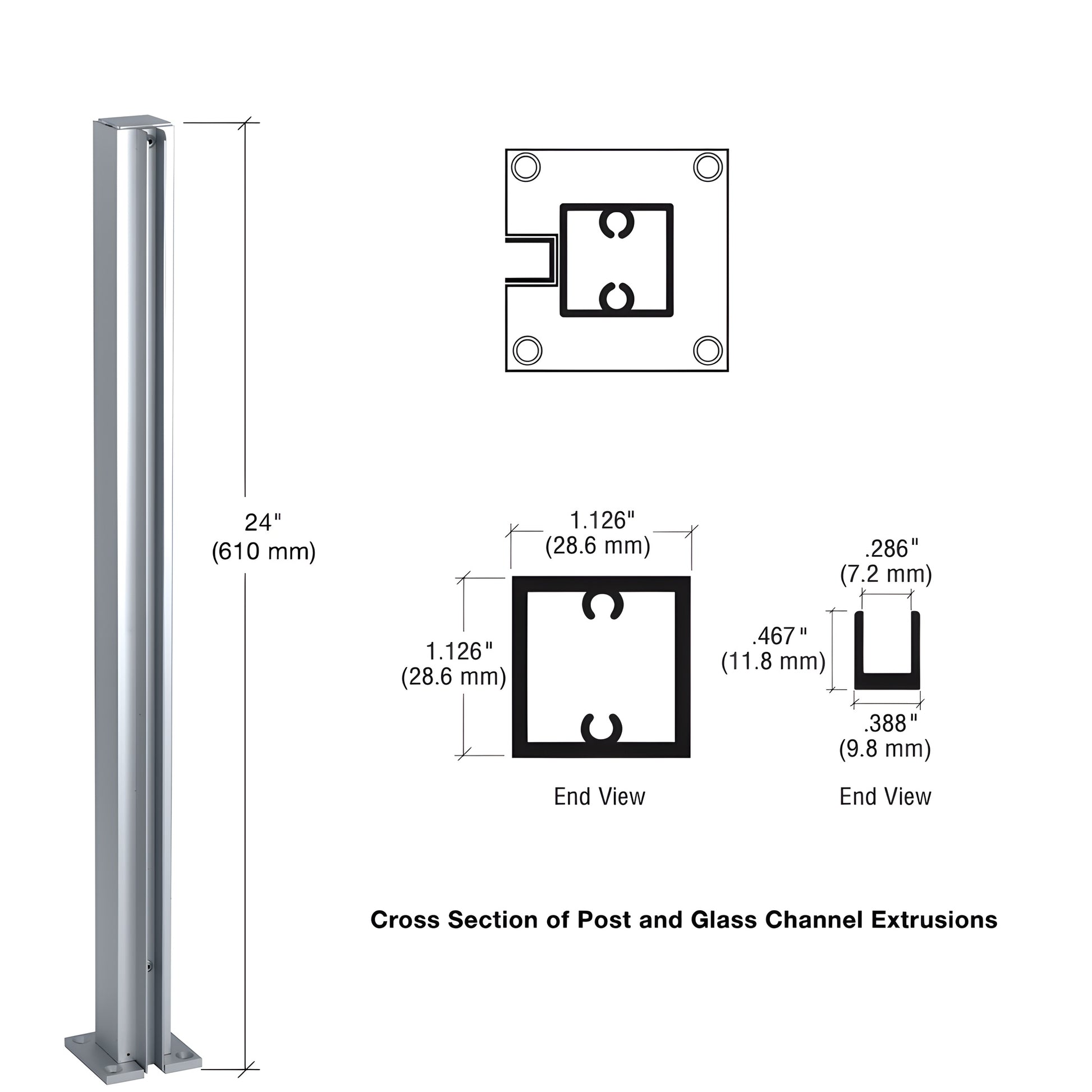

Each fully assembled post measures 1-1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels run the full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.
Posts ship with one attached top cap, one attached mounting base, and four wood screws. Glass is secured into the glazing channels using Cat. No. 33SC Clear Silicone (sold separately). Custom 135° posts are available in some finishes and sizes.
You can also "Make Your Own" Design Series Partition Posts with CRL components: Instructions and requirements, parts page.
Product Warning:
Secure glass into glazing channels using Cat. No. 33SC Clear Silicone as instructed.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor.
Shop now for ready-to-ship aluminum partition posts for glass partitions and streamline your commercial installation.
