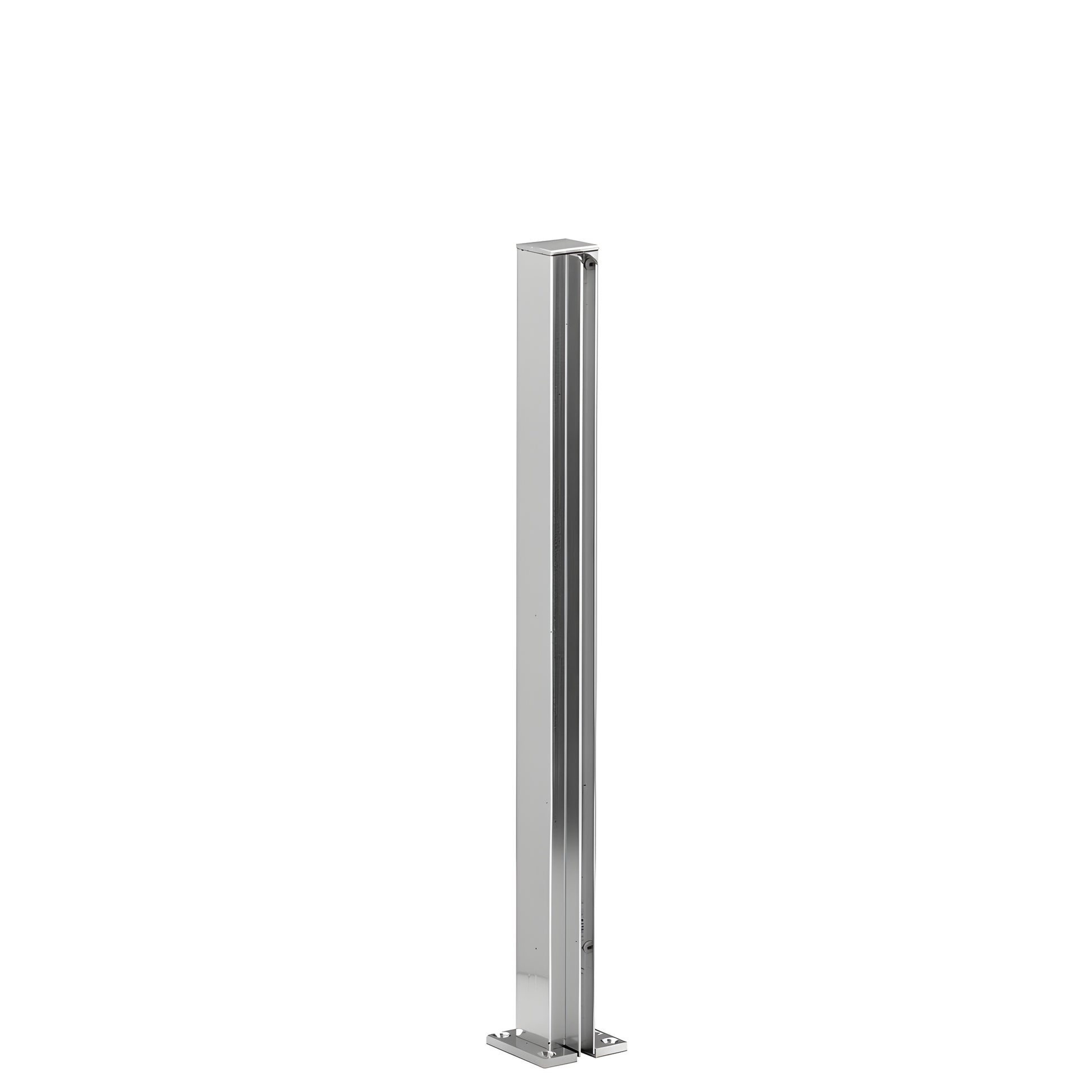

CRL Brite Anodized 18" Partition End Post - Restroom Stall Hardware
CRL Brite Anodized 18" Partition End Post - Restroom Stall Hardware
Regular price
$127.83 CAD
Regular price
Sale price
$127.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BA18E
Shipping Weight: 15.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
End Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED‑E to ship — SKU D990BA18E
- Standard heights: 12", 18", 24" (305, 457, 610 mm) in four finishes
- Five configurations: End, Center, Corner, 3‑Way, 4‑Way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; four wood screws supplied
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are popular aluminum partition posts used for banks, offices, restaurants and commercial interiors. Slim‑line profile, full‑length glazing channels, and an easy‑to‑install mounting base make these posts a contractor favorite for tempered glass partitions and dividers. Posts ship assembled with attached top cap, attached mounting base, and mounting screws. Glazing is secured using Cat. No. 33SC Clear Silicone.

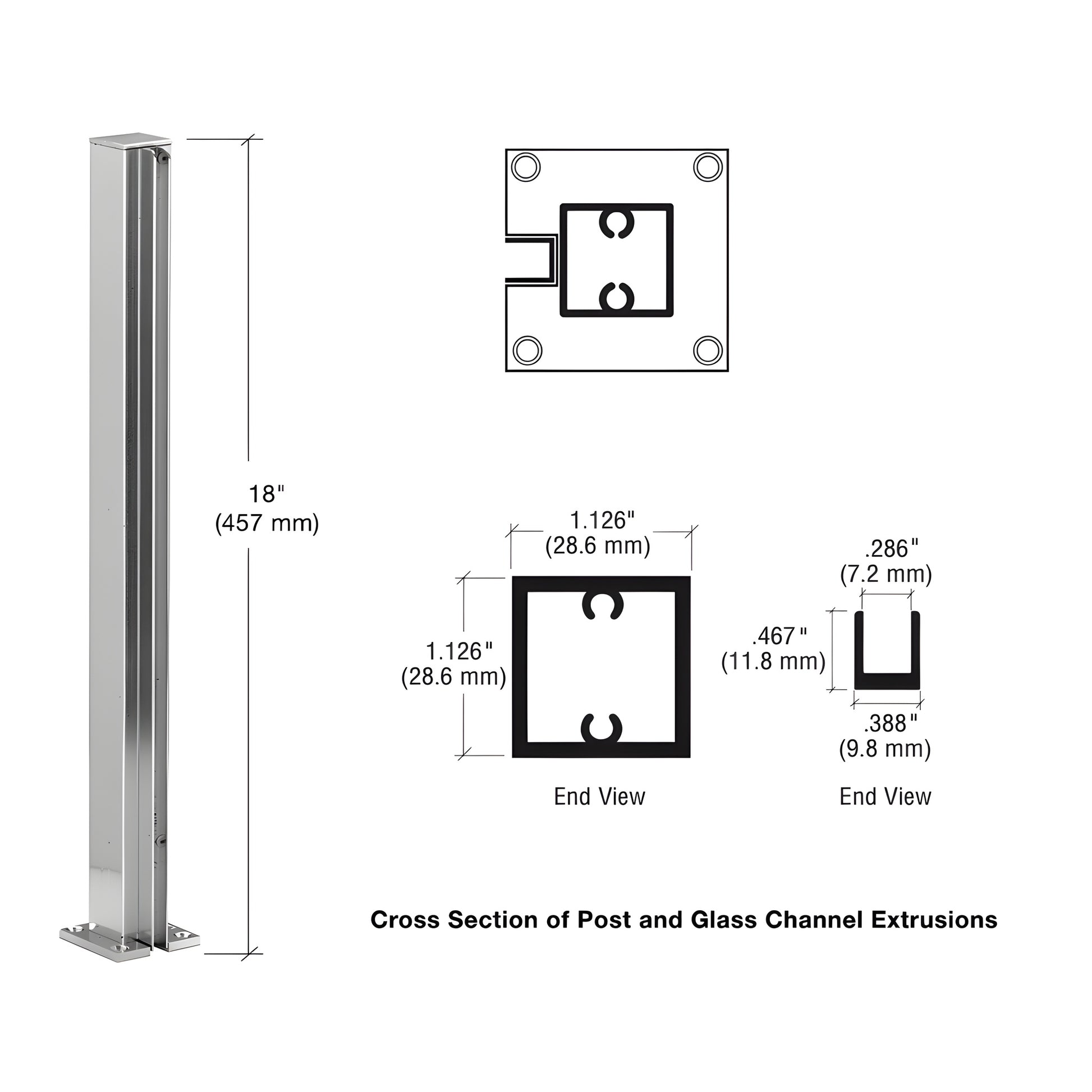

These fully assembled Design Series posts measure 1‑1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface.
You can also build custom partition posts from CRL components — see instructions and requirements and the parts page.
Product warning:
Use Cat. No. 33SC Clear Silicone to secure glass into the glazing channels.
Order CRL Design Series aluminum partition posts (tempered glass compatible) now — ready to ship for fast installation.
