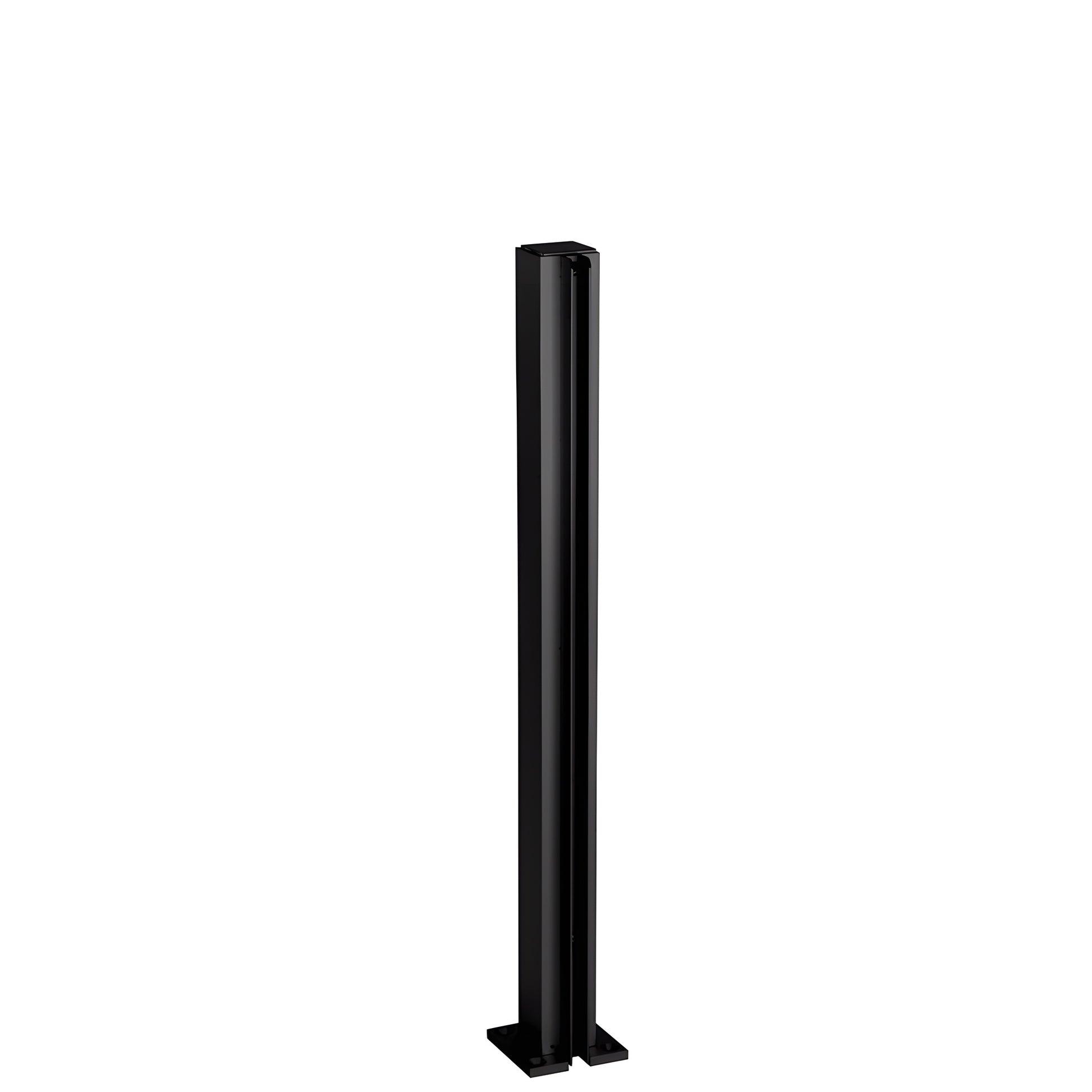

CRL 18 in Duranodic Bronze End-Design Restroom Partition Post
CRL 18 in Duranodic Bronze End-Design Restroom Partition Post
Regular price
$127.83 CAD
Regular price
Sale price
$127.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990DU18E
Shipping Weight: 15.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
End Post
Finish/Color
Dark Bronze Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- SKU: D990DU18E — Stock post sizes, RED-E to Ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm); available in four finishes
- Five configurations: End, Center, Corner, 3‑Way, and 4‑Way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
- Designed for monolithic tempered glass panels; use Cat. No. 33SC Clear Silicone to secure glass
CRL Design Series partition posts are popular commercial aluminum partition posts for glass, stocked in common sizes and ready for immediate delivery. Used for years in banks, offices, and restaurants, these slim-profile posts feature full-length glazing channels and an easy-to-install mounting base for fast installation. Each fully assembled post includes one attached top cap, one attached mounting base, and four wood screws for mounting. Custom 135° posts are available in select finishes and sizes.

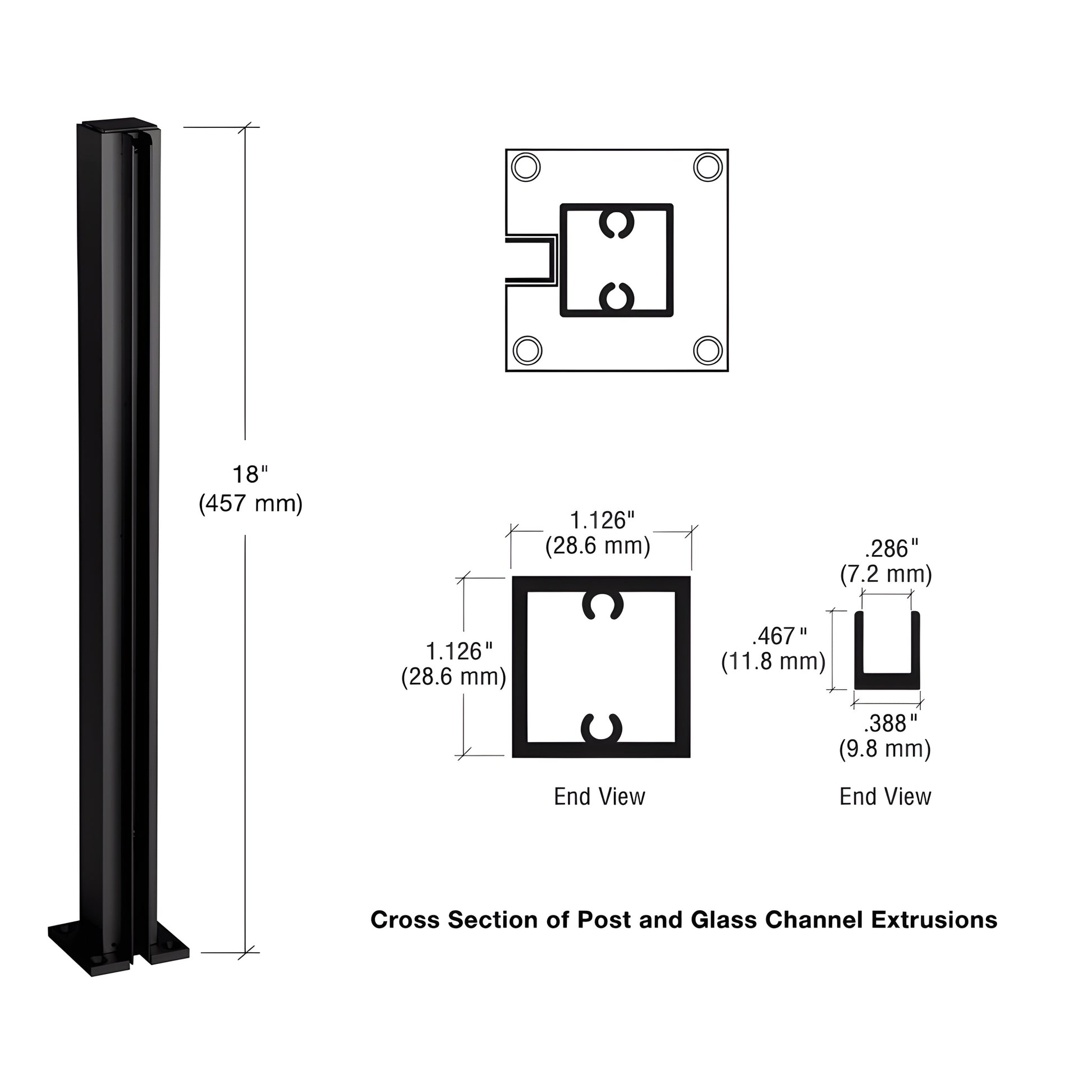

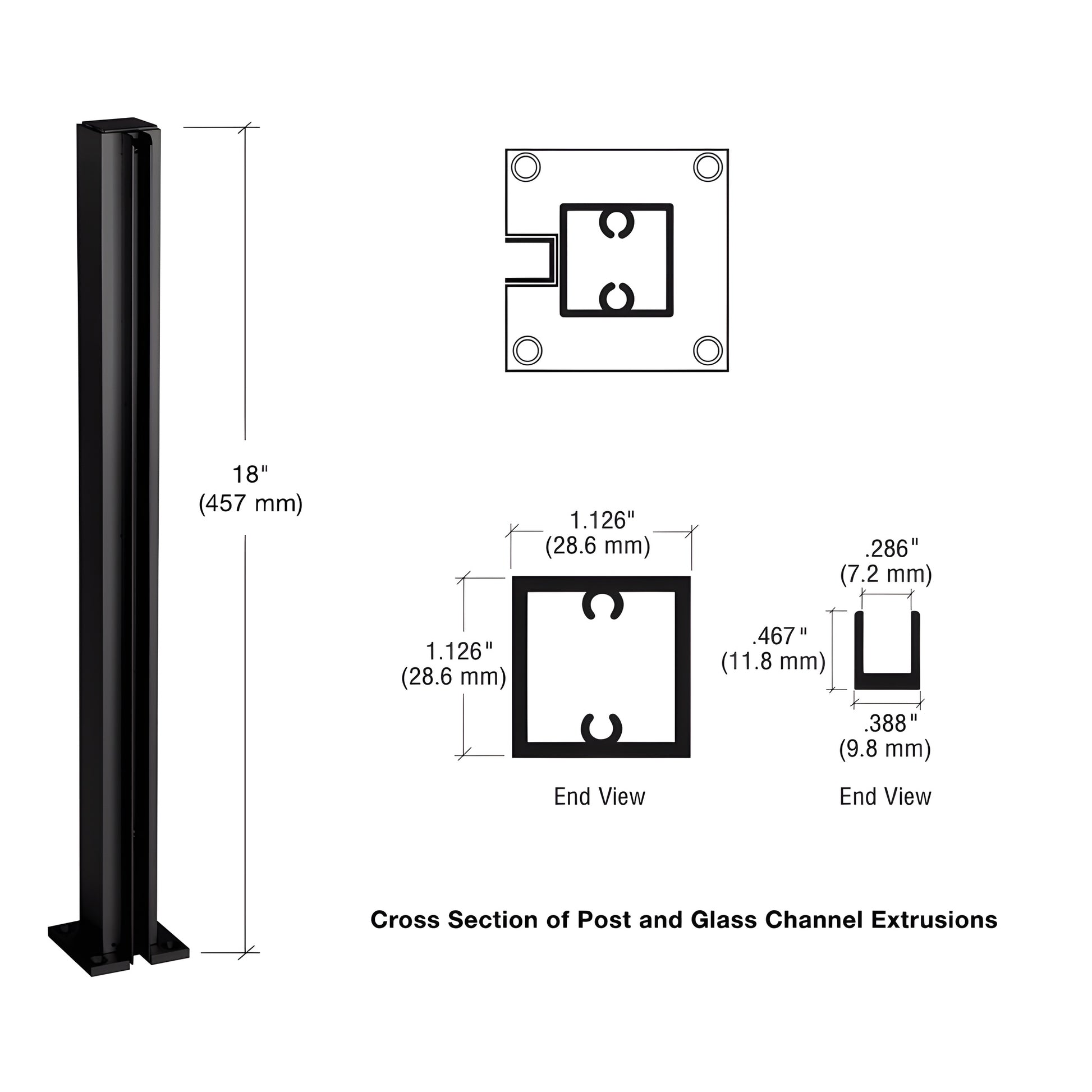

These posts measure 1-1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is provided to fill the channel.
You can also "Make Your Own" Design Series partition posts with CRL components — instructions and requirements, parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Order SKU D990DU18E now for fast delivery — add to cart or contact CRL Customer Service for volume pricing and lead times.
