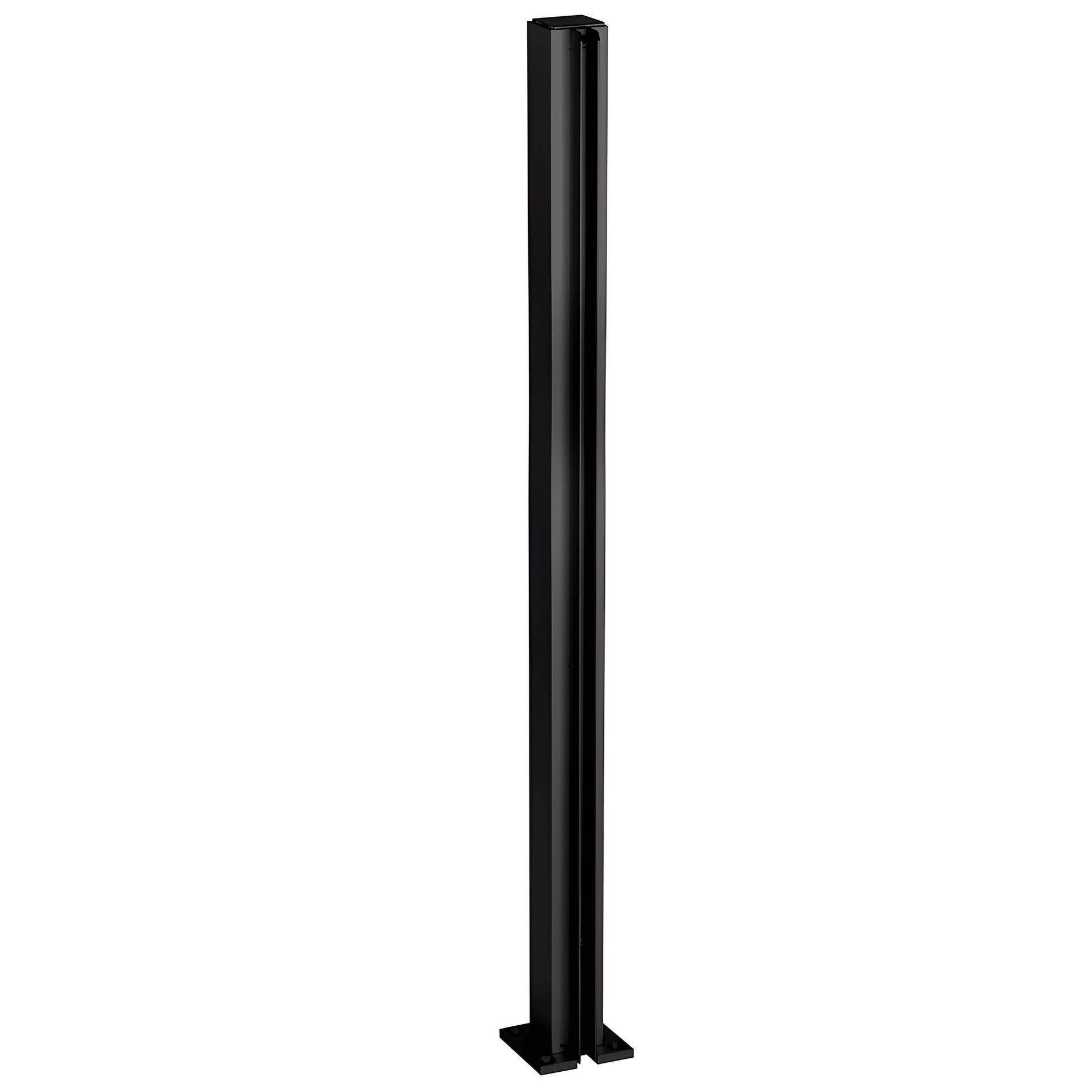

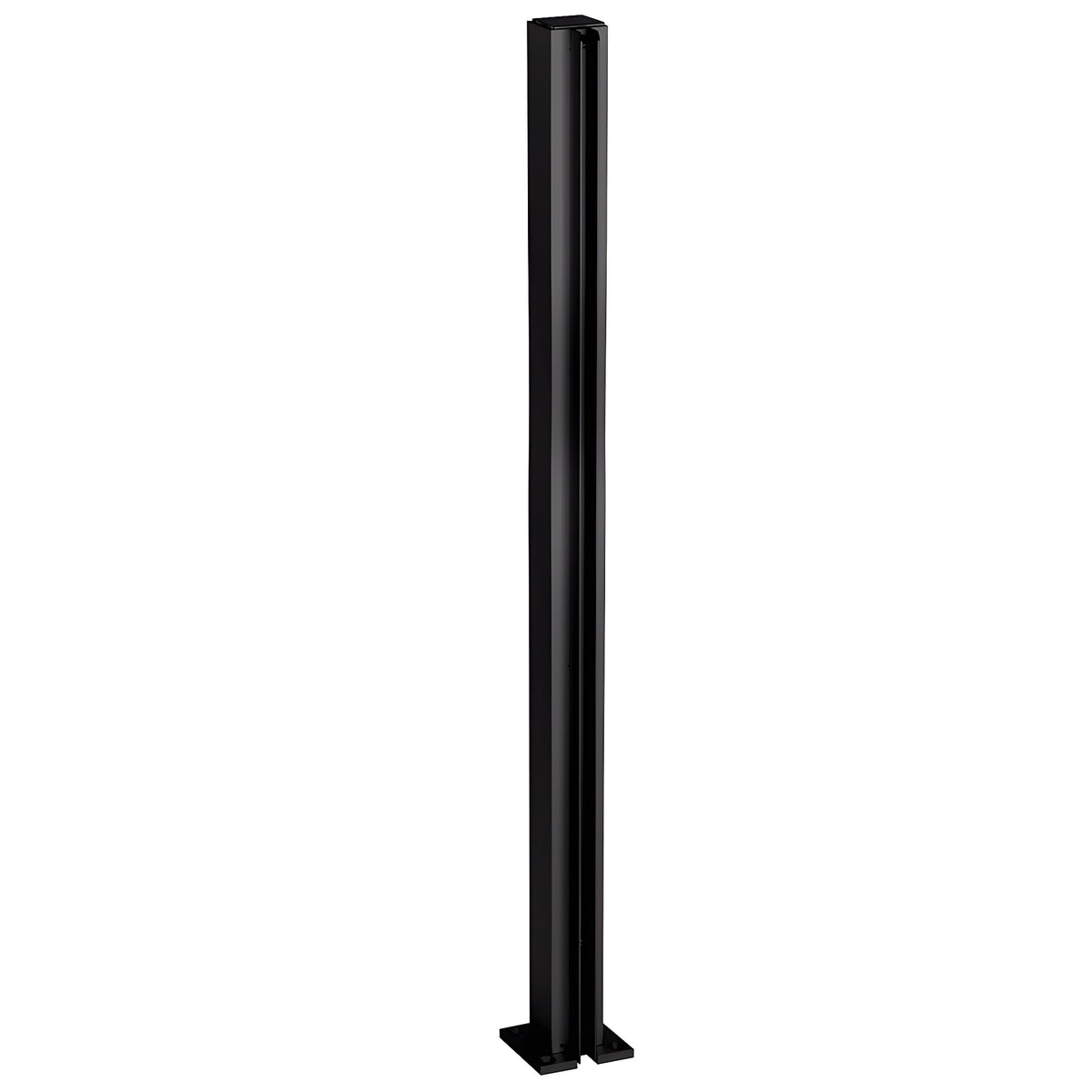

CRL Duranodic Bronze 30in End Design Glass Partition Post
Item# D990DU30E
Shipping Weight: 1.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
End Post
Finish/Color
Dark Bronze Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
30 in. (762 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
- Stock post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) — available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; four wood screws supplied
- Use monolithic tempered glass (glazing vinyl supplied for 1/4" and 3/16" glass)
CRL Design Series Partition Posts (SKU D990DU30E) are a popular choice for commercial interior glass partitions — commonly used in banks, offices, and restaurants. The slim-line, 1-1/8" (28.6 mm) square post profile and easy-to-install 2" (51 mm) square mounting base speed installation and deliver a clean, modern look for tempered glass partitions. Full-length glazing channels rise 15/32" (12 mm) from the post surface to secure glass with Cat. No. 33SC Clear Silicone.
Each fully assembled post includes one attached top cap, one attached mounting base, and four wood screws. Glass is secured in the glazing channels using supplied glazing vinyl and recommended clear silicone. Custom 135° posts are available in select finishes and sizes.

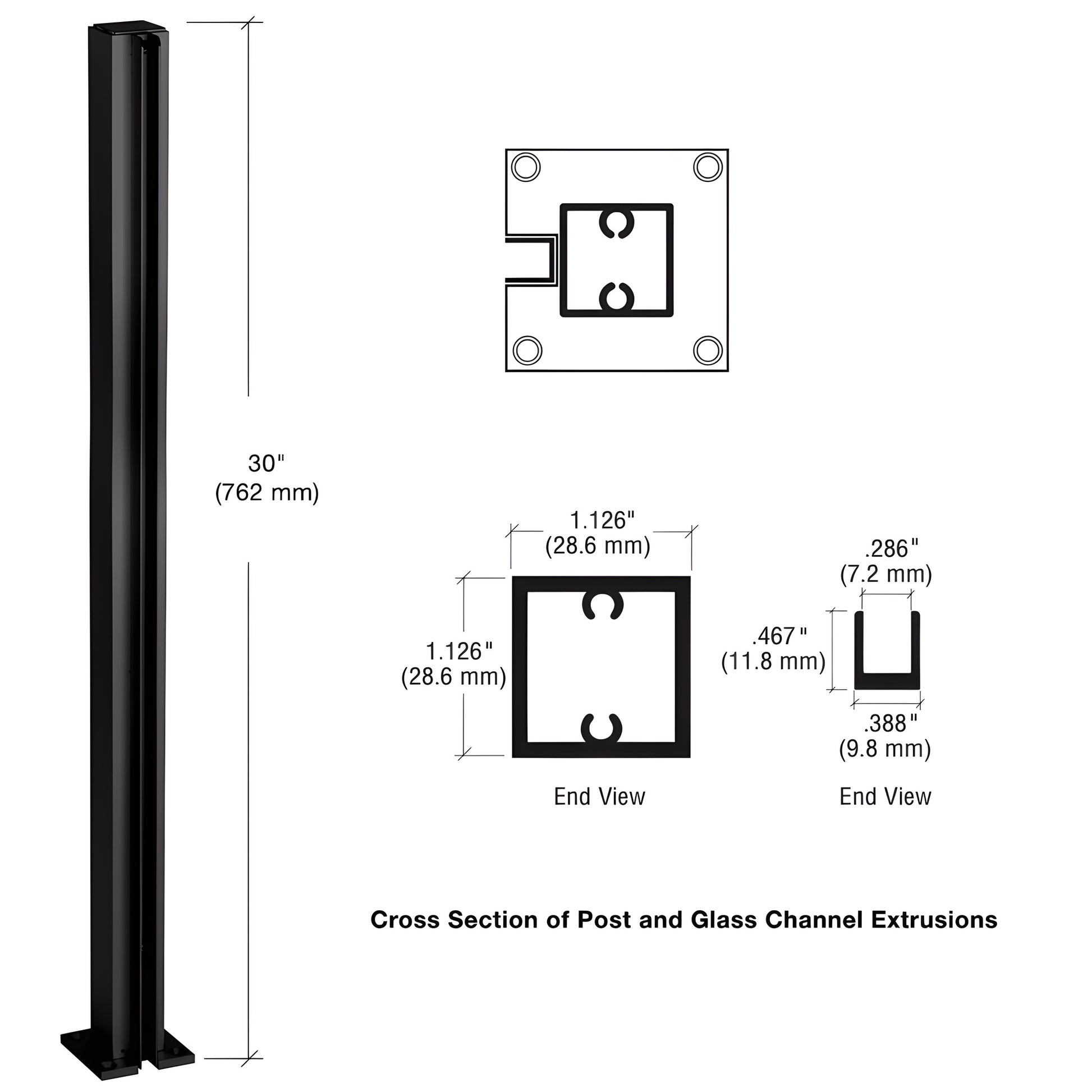

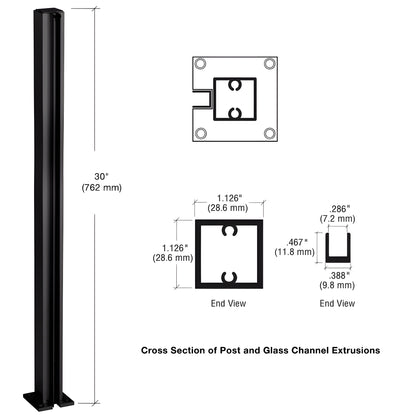

Dimensions and details:
- Post cross-section: 1-1/8" (28.6 mm) square
- Mounting base plate: 2" (51 mm) square
- Glazing channel rise: 15/32" (12 mm)
- Glass compatibility: 1/4" (6 mm) and 3/16" (5 mm) monolithic tempered glass
You can also "Make Your Own" Design Series Partition Posts with CRL components — instructions and requirements, parts page.
Product note:
Most shipping weights are approximate. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
