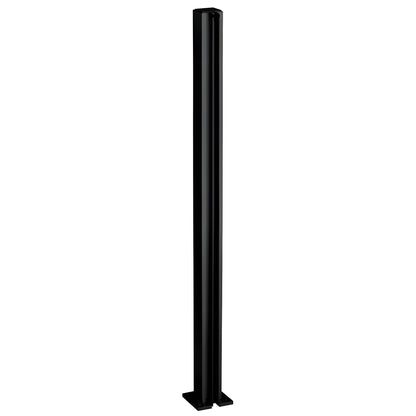

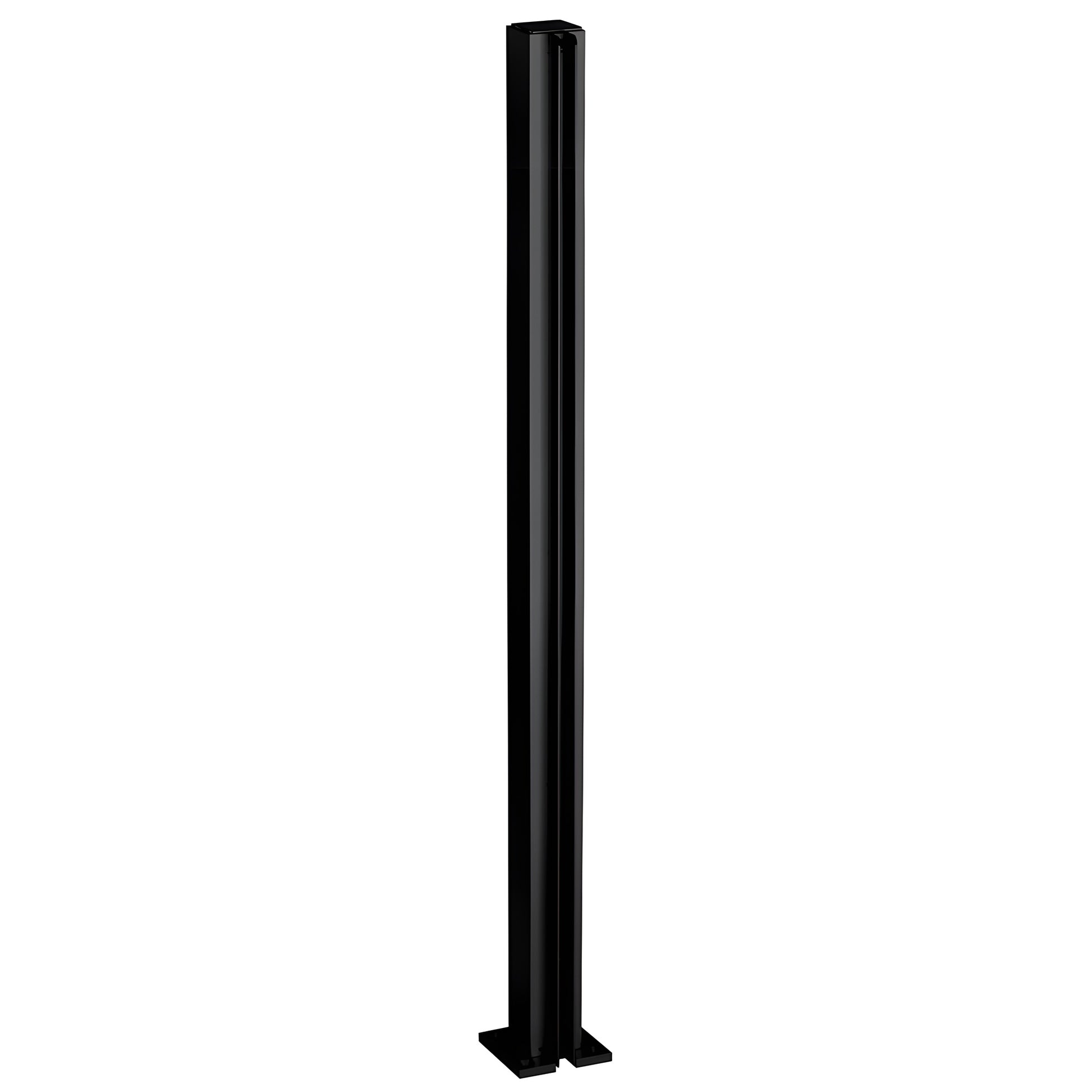

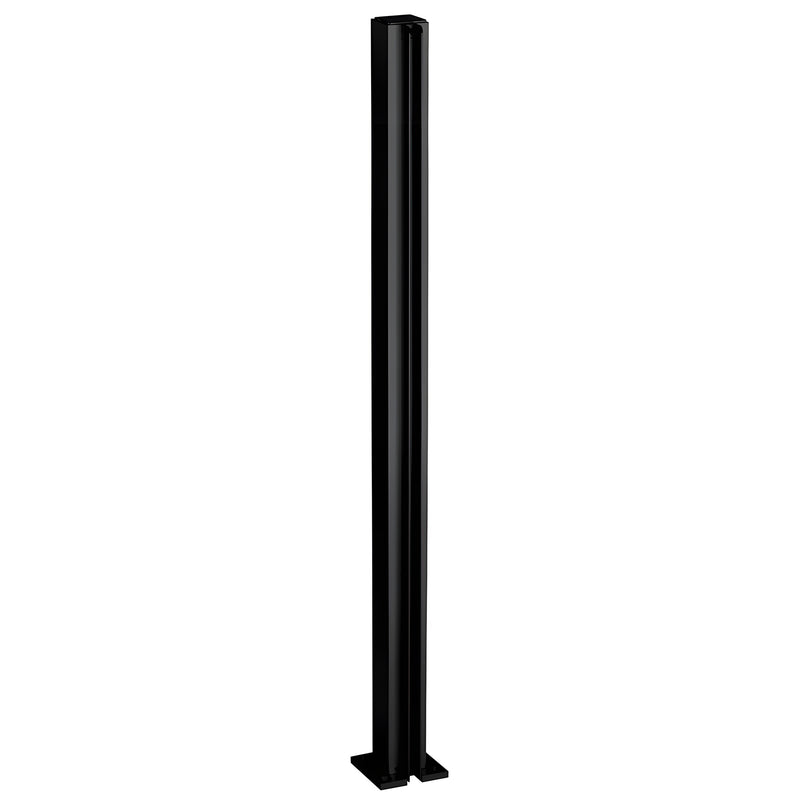

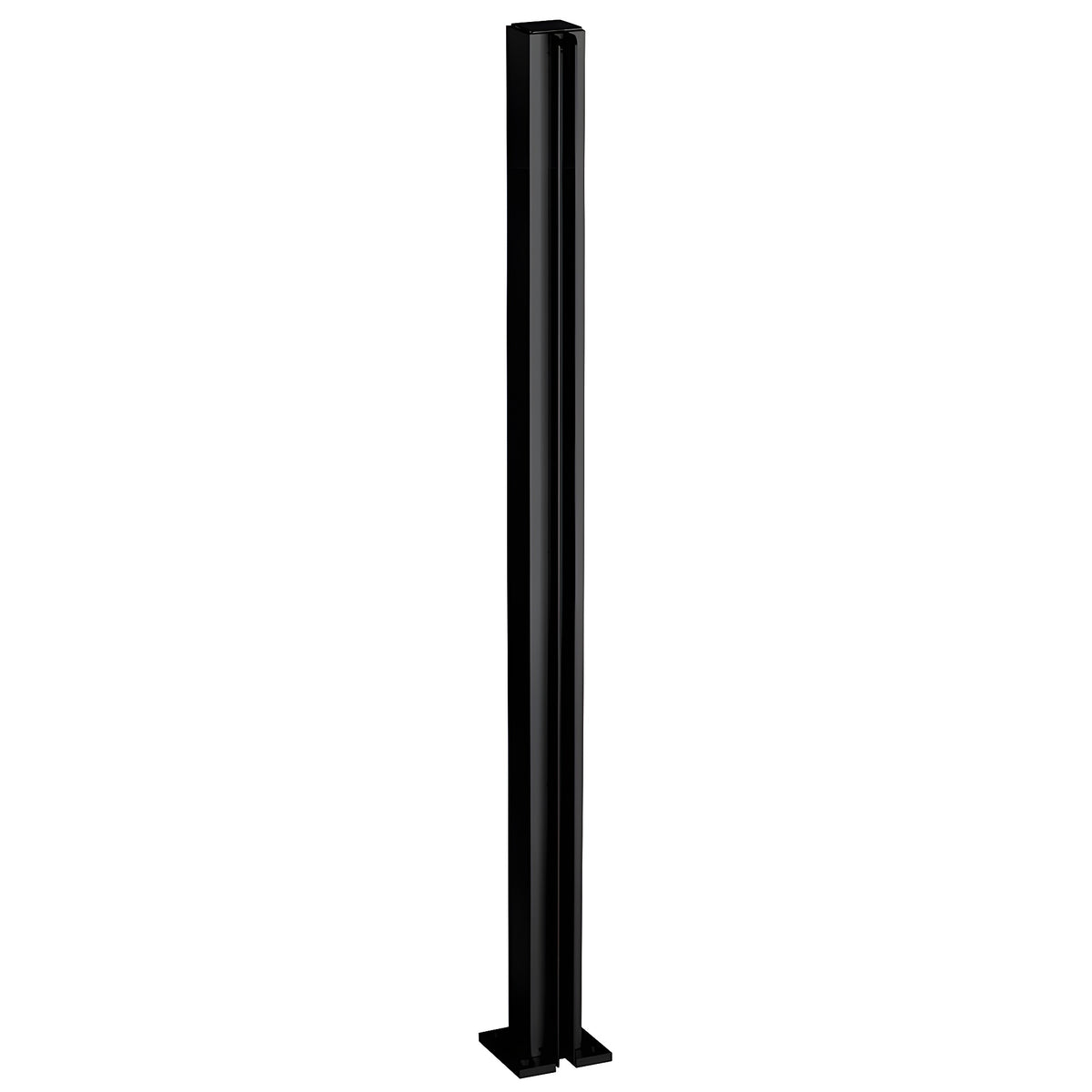

CRL 30 in Semi-Gloss Black End Design Stall Partition Post

CRL 30 in Semi-Gloss Black End Design Stall Partition Post

$141.73 CAD
$141.73 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# D990BL30E
Shipping Weight: 1.27 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
End Post
Finish/Color
Semi-Gloss Black (PSP290005)
Glazing Attachment Type
U-Channel
Glazing Thickness
3/16 in. & 1/4 in. (5 mm & 6 mm)
Height
30 in. (762 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square

Overview

  • Stock post sizes, RED‑E to ship — SKU D990BL30E
  • Standard heights: 12", 18", and 24" (305, 457, and 610 mm) in four finishes
  • Five configurations: End, Center, Corner, 3‑Way, and 4‑Way
  • Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
  • Top cap and mounting base included; four wood screws supplied
  • Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

CRL Design Series partition posts (SKU D990BL30E) are slim‑profile aluminum posts popular for banks, offices, and restaurants. Available in standard stock sizes for immediate delivery, these easy‑to‑install partition posts feature full‑length channels that secure 1/4" tempered glass with Cat. No. 33SC Clear Silicone. Custom 135° posts are available in select finishes and sizes.

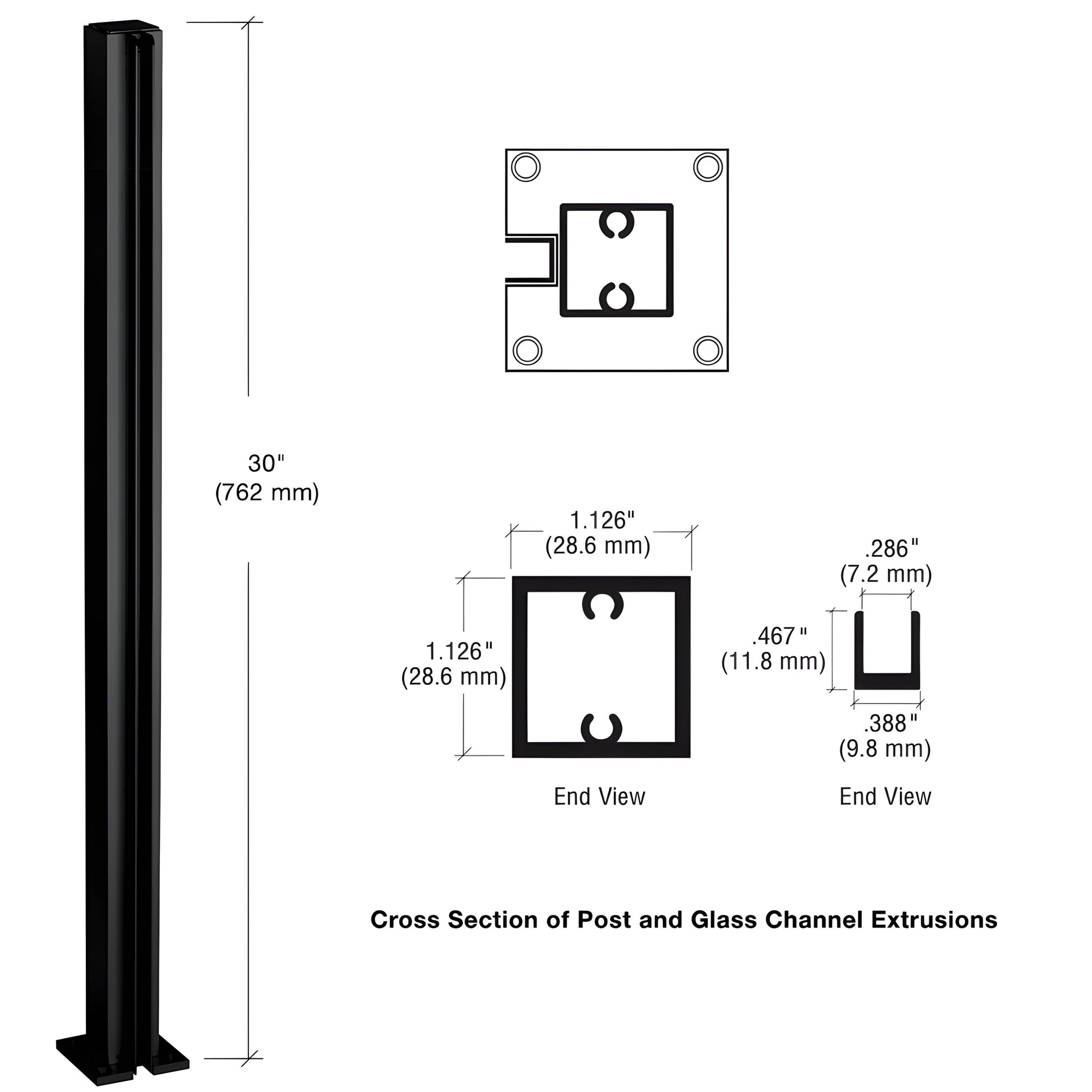

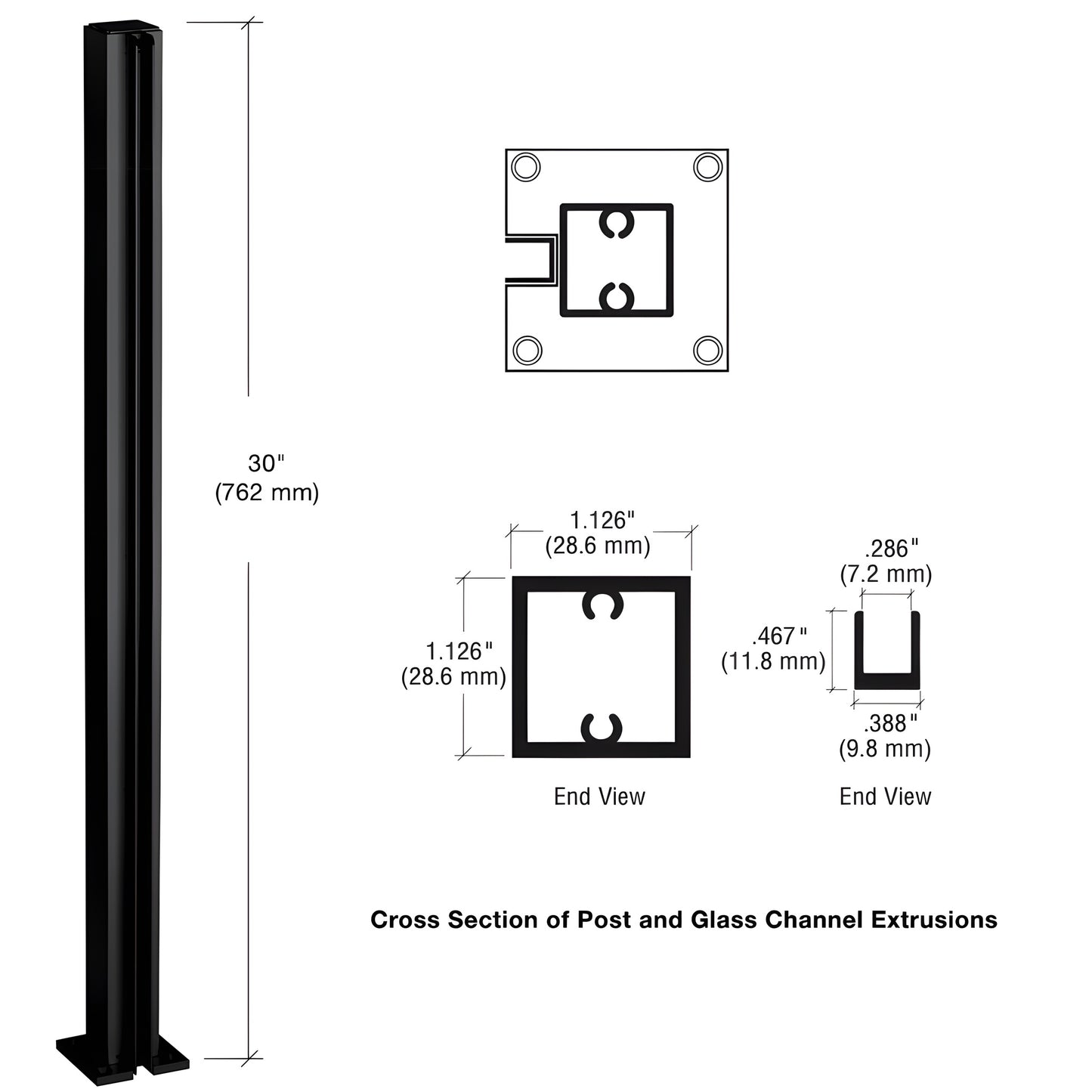

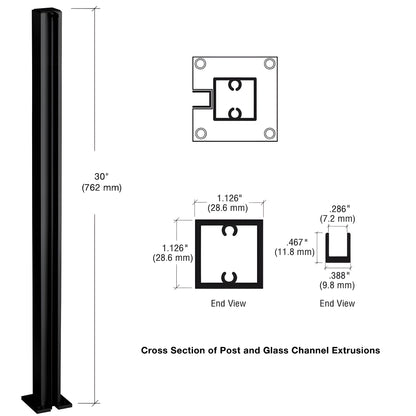

Each fully assembled post measures 1‑1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels extend full length and rise 15/32" (12 mm) from the post surface.

Make your own Design Series partition posts using CRL components or order ready‑assembled posts for fast installation.

Product Warning:
Use Cat. No. 33SC Clear Silicone to secure glass into glazing channels. Follow glass handling and installation safety practices for monolithic tempered glass.

Most shipping weights are approximate and have not been verified. If exact shipping weight is required to calculate costs, contact CRL Customer Service before ordering. Product images are actual product or close representations; colors may vary by monitor.



Order SKU D990BL30E now for fast shipping and easy installation.
