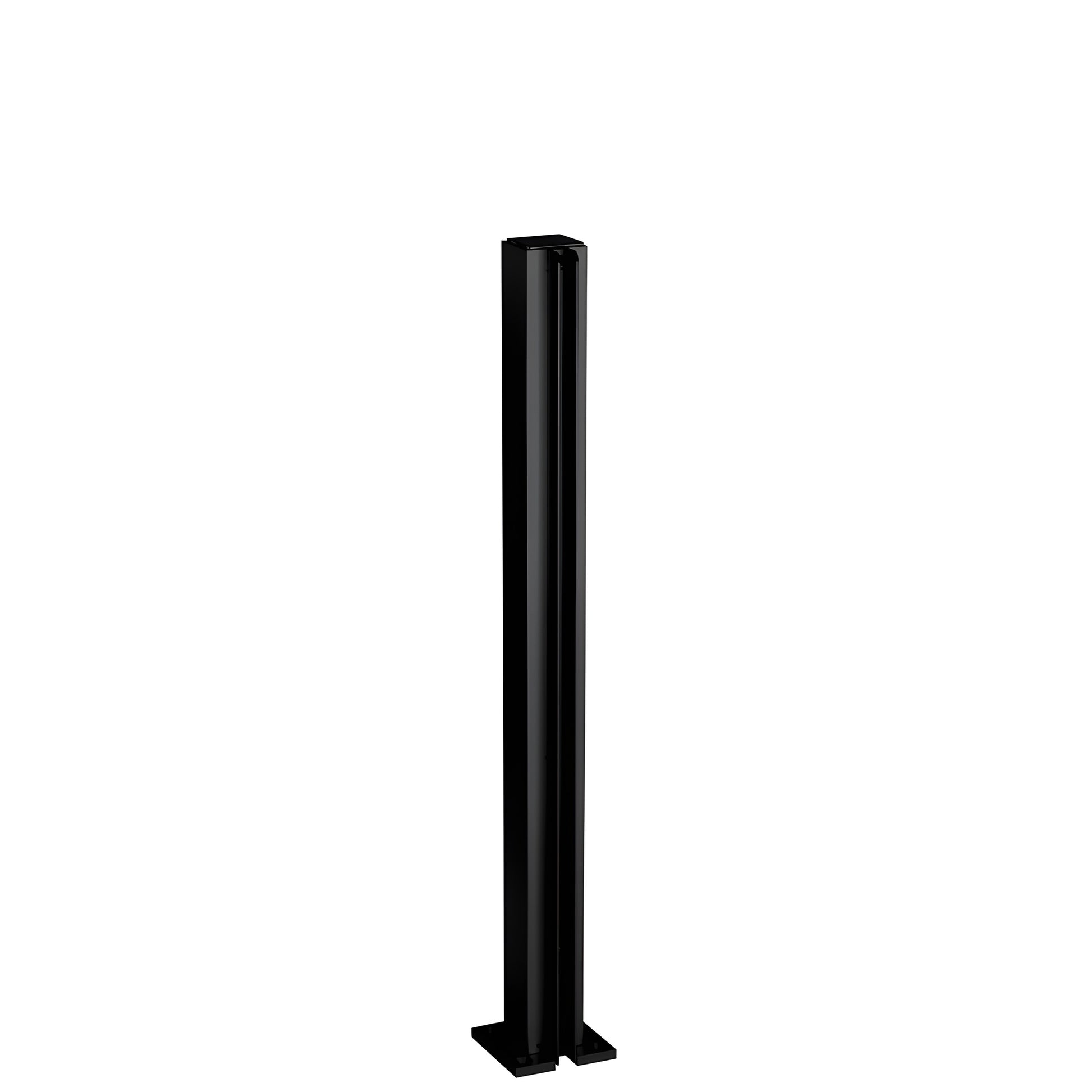

CRL 18in Semi-Gloss Black End-Design Partition Post - Restroom

• SKU: D990BL18E — Stock post sizes, RED-E to ship
• Standard heights: 12", 18", and 24" (305, 457, 610 mm); available in four finishes
• Five configurations: End, Center, Corner, 3-Way, and 4-Way
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included; use with monolithic tempered glass

CRL Design Series partition posts are popular aluminum partition posts for glass, stocked in standard sizes and ready for immediate delivery. Used for years in banks, offices, and restaurants, these slim-profile glass partition posts feature an easy-to-install mounting base and full-length glazing channels. Secure glass with CRL Cat. No. 33SC clear silicone. Custom 135° posts available in select finishes and sizes. Each post ships fully assembled with one attached top cap, one attached mounting base, and four wood screws.

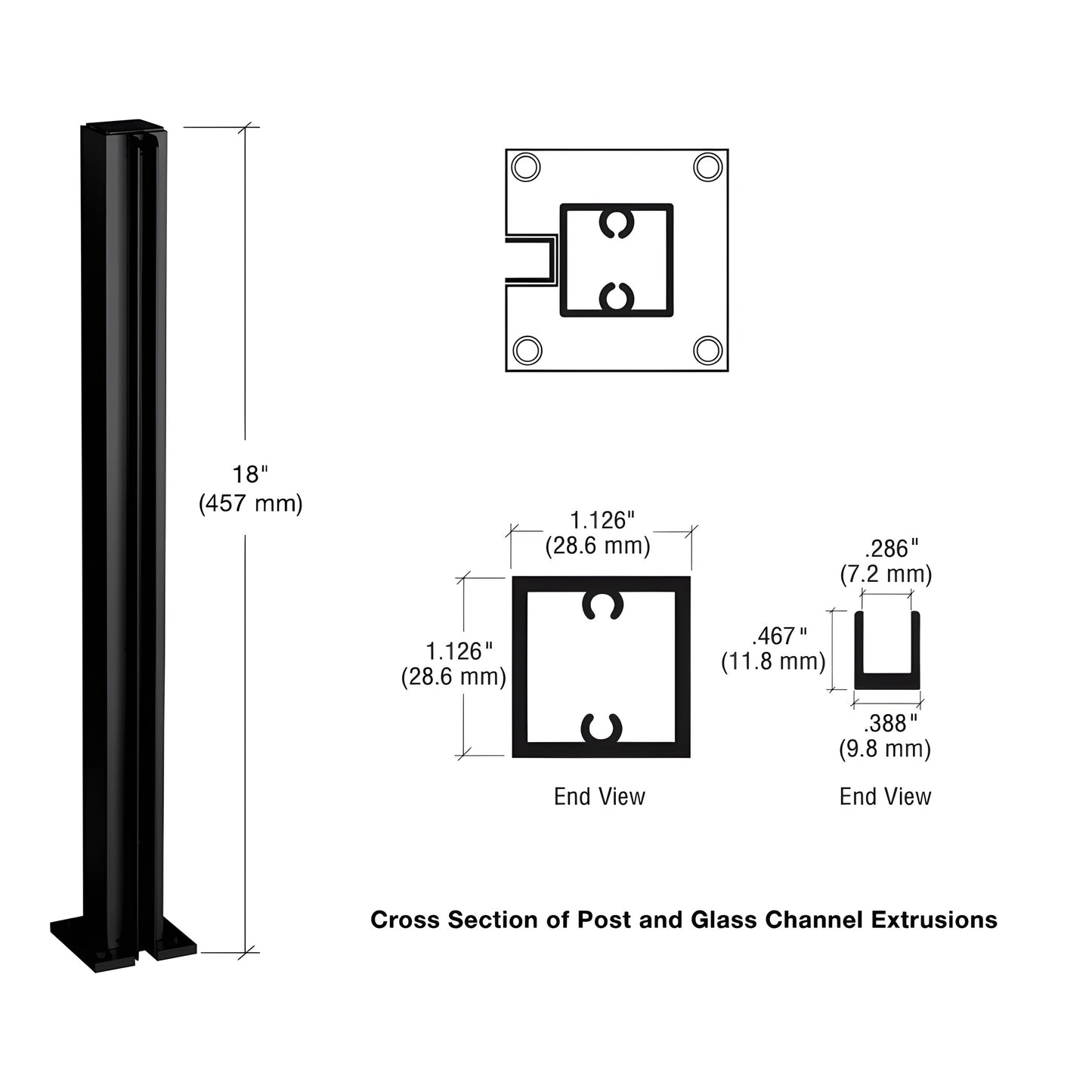

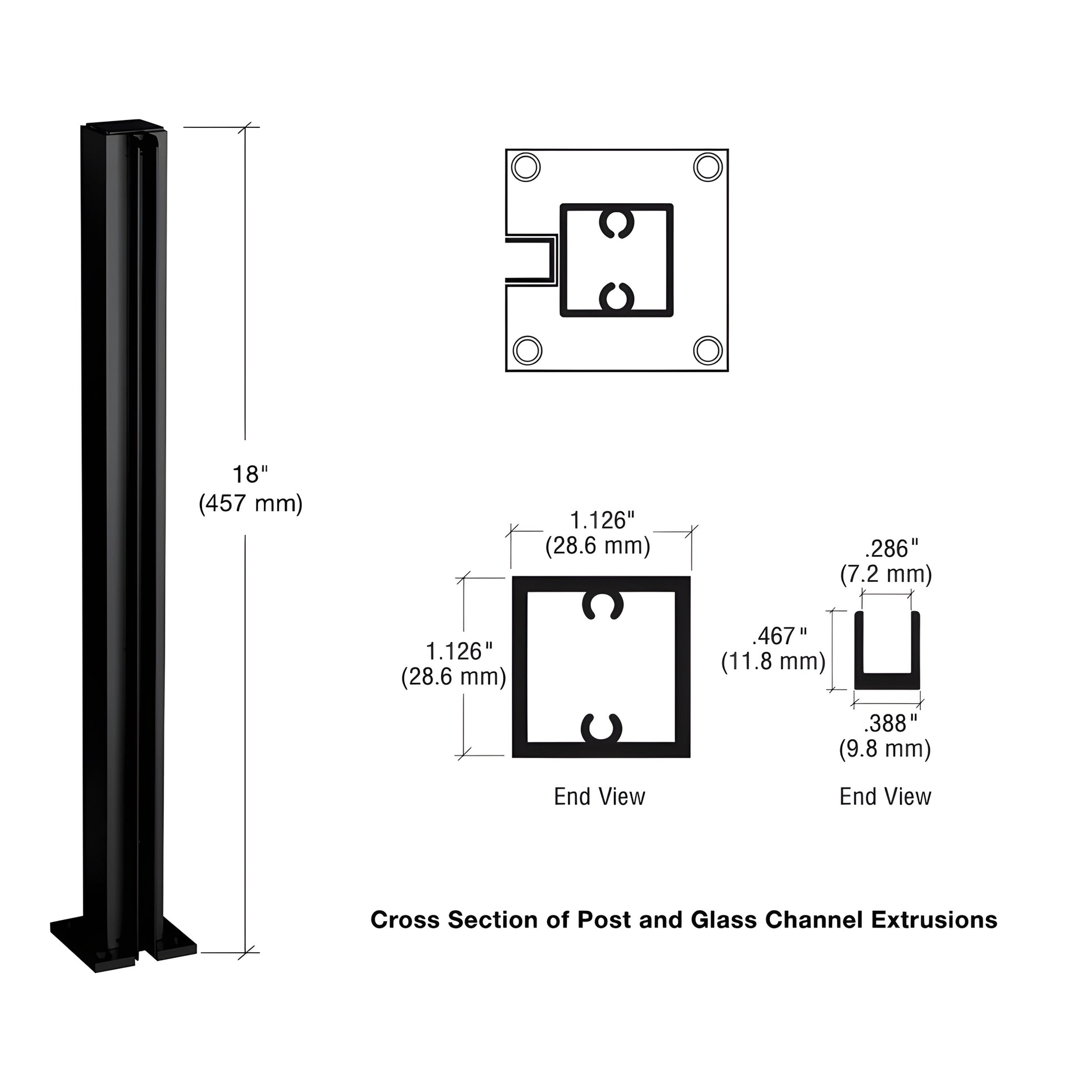

These fully assembled posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.

You can also "Make Your Own" Design Series partition posts with CRL components.

Product Warning:

Glass should be secured into glazing channels using CRL Cat. No. 33SC clear silicone. Follow all local building codes and tempered glass installation guidelines.


Order SKU D990BL18E or contact CRL Customer Service to confirm finish availability and lead time.
