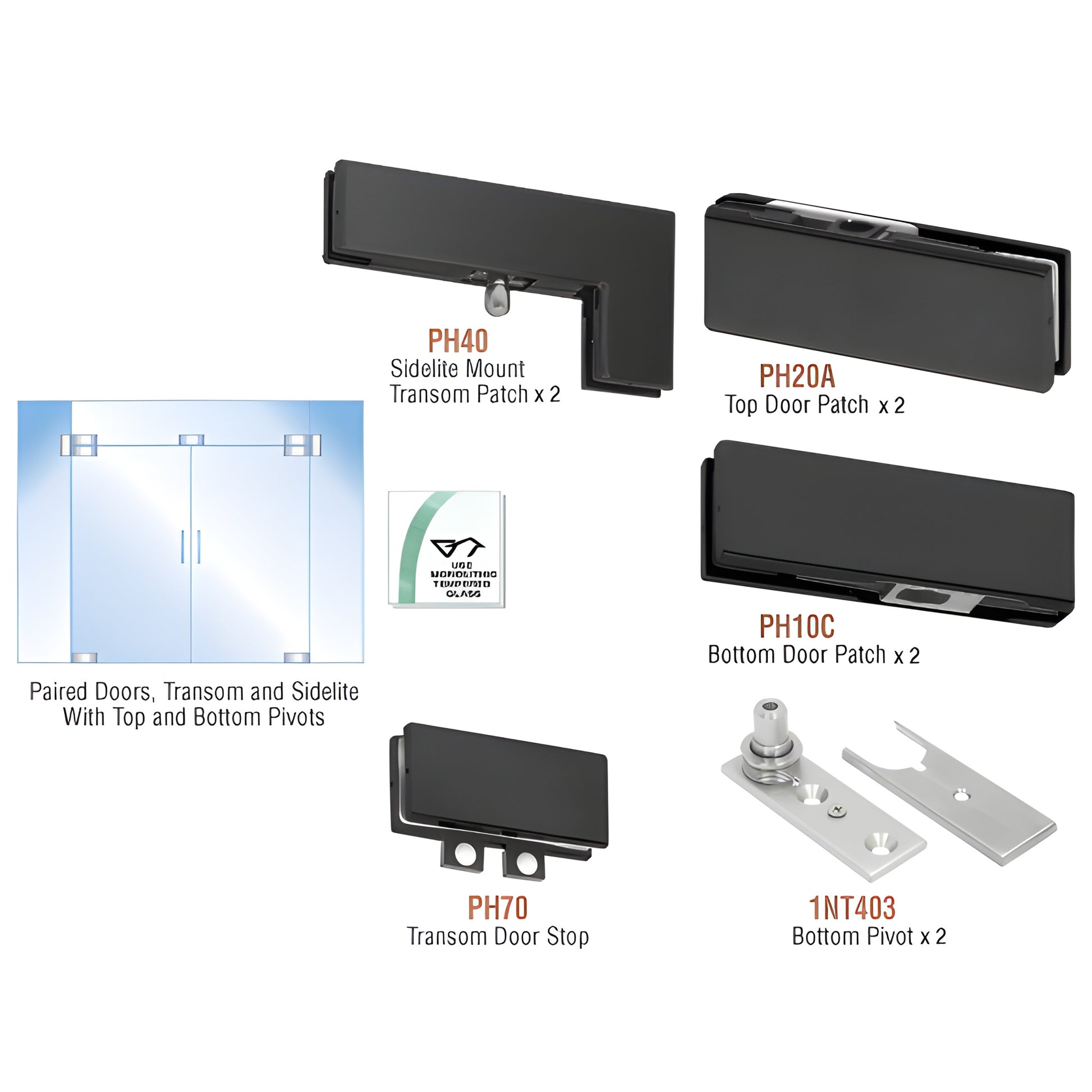

• PHA8MBL matte black tempered glass double-door pivot kit with transom, sidelites, top/bottom patches and pivots.
1 1

CRL

CRL Matte Black Patch Door Kit for Double Doors w/ Transom & Lock

CRL Matte Black Patch Door Kit for Double Doors w/ Transom & Lock

$582.51 CAD
$582.51 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA8MBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-3/4 in. (69.85 mm)

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks

CRL PHA8 North American Double Door Kits (SKU: PHA8MBL) include all hardware needed to install a pair of free-swinging glass doors with fixed transom and two sidelites (glass and any additional supports for the fixed transom and sidelites not included). Designed for tempered glass pivot applications, pivot setback is 2-3/4" (70 mm). Use with a floor closer with tapered spindle (ordered separately) for controlled closing.

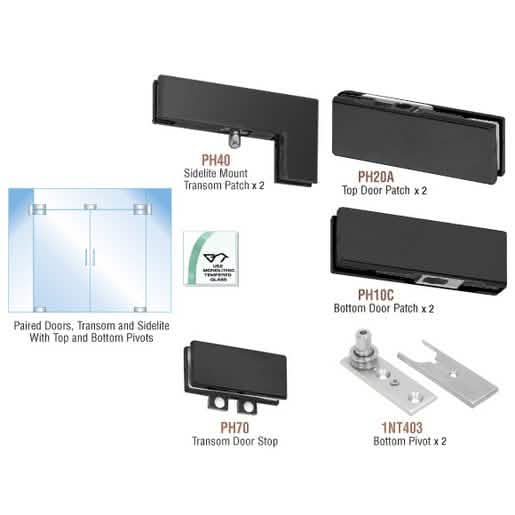

Kit contains:
  • 2 - PH40 sidelite mount transom patches
  • 2 - PH20A top door patches
  • 2 - PH10C bottom door patches
  • 1 - PH70 transom door stop
  • 2 - 1NT403 bottom pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with locks include two Cat. No. AMR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; colors may vary due to monitor settings.
