CRL Matte Black RH Sidelite/Transom Patch+Support Fin Bracket 1NT300

• Works with Both 2-3/4" (70 mm) and 2-9/16" (65 mm) Pivot Setback Door Patch Fittings
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Left and Right Handed

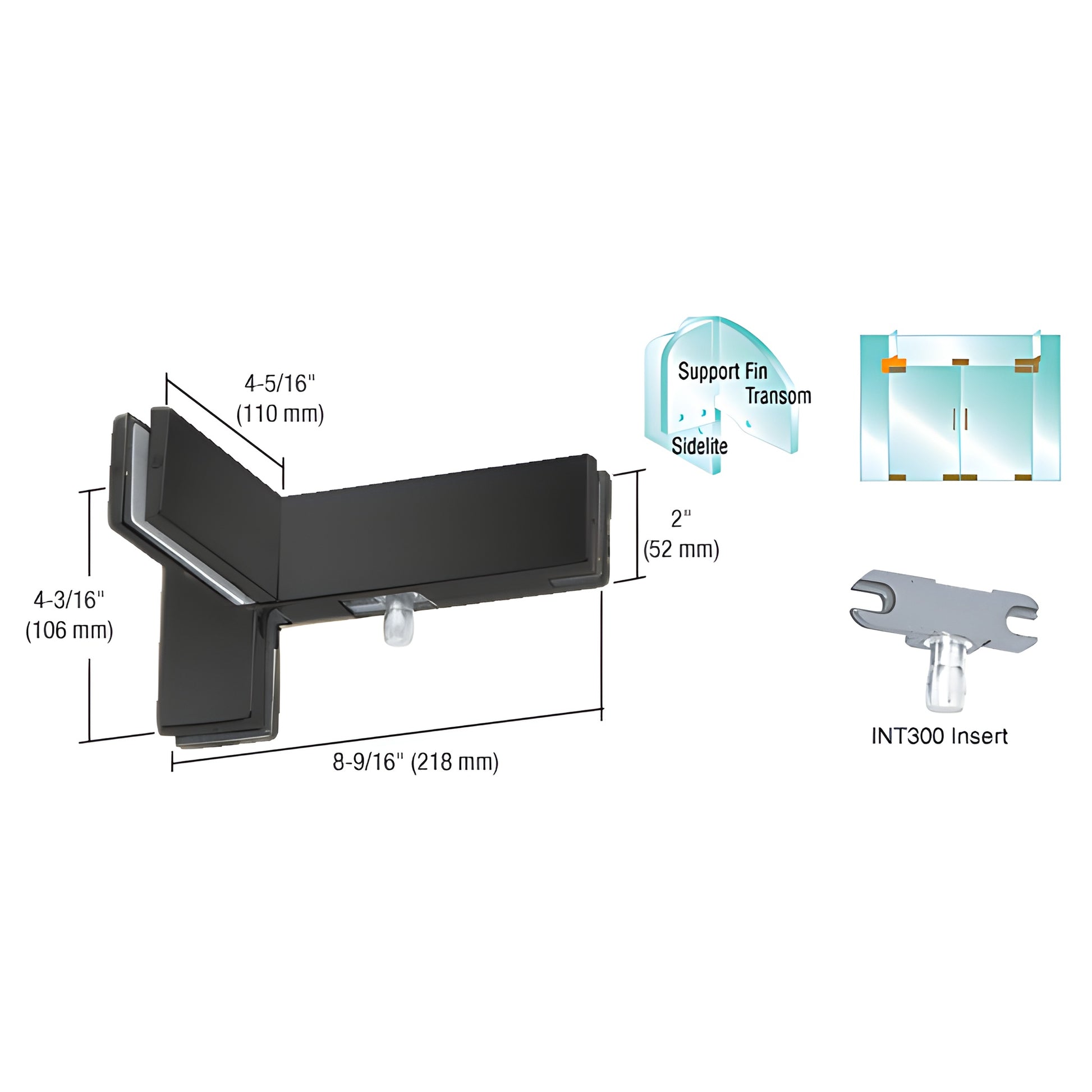

CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket (SKU: PH41RMBL) is a sidelite-mounted transom support for frameless glass door systems. It includes an INT300 insert for mounting doors with CRL PH20A or PH21A top door patch fittings. For single doors the insert can be removed on the non-hinged side to allow a double swinging door. Use an INT306 Transom Patch Door Stop Insert for a one-way door, or install an INT305 Transom Patch Keeper Insert when using an AMR205 lock for top-of-door installations.

Support fin glass must be sized per approved design criteria (see GANA or the Manufacturers Manual) and the fin should be secured to the ceiling using a Ceiling Mounted Support Fin Bracket. If the transom weight exceeds 100 lbs. (45.4 kg), ceiling support is required to prevent patch slippage. For heavier transoms consider Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact our Technical Sales Department for assistance.

GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) diameter holes and two corner notches.

COMES WITH:
Template and instructions.

Product Warning:
These fittings are not for use with laminated glass.
