CRL SS RH Sidelite Transom Patch w/ Fin Bracket & 1NT300 Insert

• Works with Both 2-3/4" (70 mm) and 2-9/16" (65 mm) Pivot Setback Door Patch Fittings
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Left and Right Handed

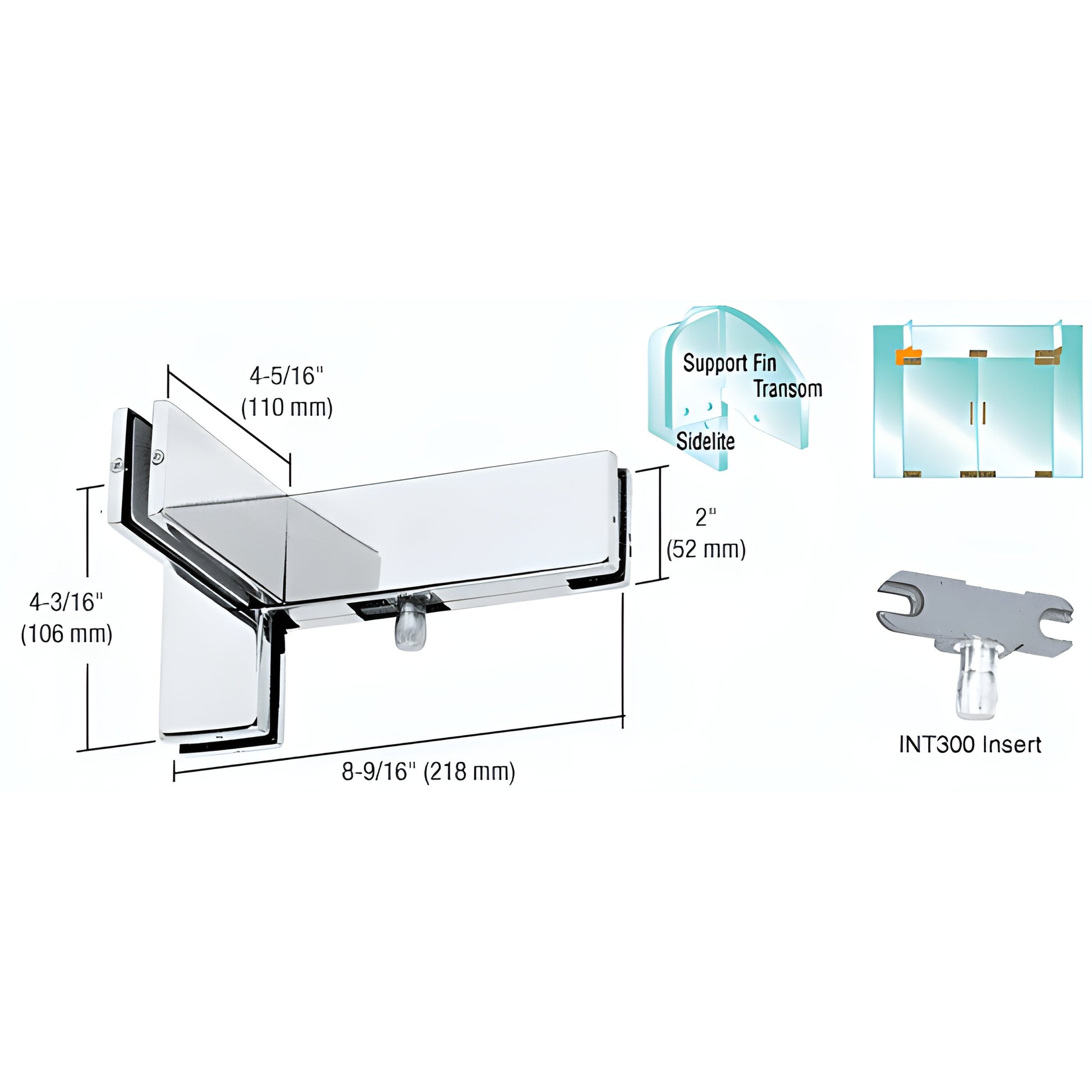

The CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket (SKU: PH41RPS) supports a transom from a sidelite glass panel and pairs with CRL top door patch fittings for secure frameless glass door installations. It includes an INT300 insert for mounting doors with CRL PH20A or PH21A top door patch fittings. For single doors the insert can be removed on the non-hinged side to allow a double swinging door. Use an INT306 transom patch door stop insert to create a one-way door, or install an INT305 transom patch keeper insert to work with an AMR205 lock for top-of-door installations. The support fin glass should be sized per approved design criteria (refer to GANA or the manufacturer's manual) and secured to the ceiling with a ceiling mounted support fin bracket for added stability.

If the transom weight exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling to prevent patch slippage. For heavy transoms, use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact our Technical Sales Department for assistance.

GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) Diameter Holes and Two Corner Notches

COMES WITH:
Template and Instructions

Product Warning:

NOTE: These fittings are not for use with laminated glass.
