CRL Satin Anodized RH Sidelite Transom Patch w/ Support Fin & 1NT300

• Works with Both 2-3/4" (70 mm) and 2-9/16" (65 mm) Pivot Setback Door Patch Fittings
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Left and Right Handed

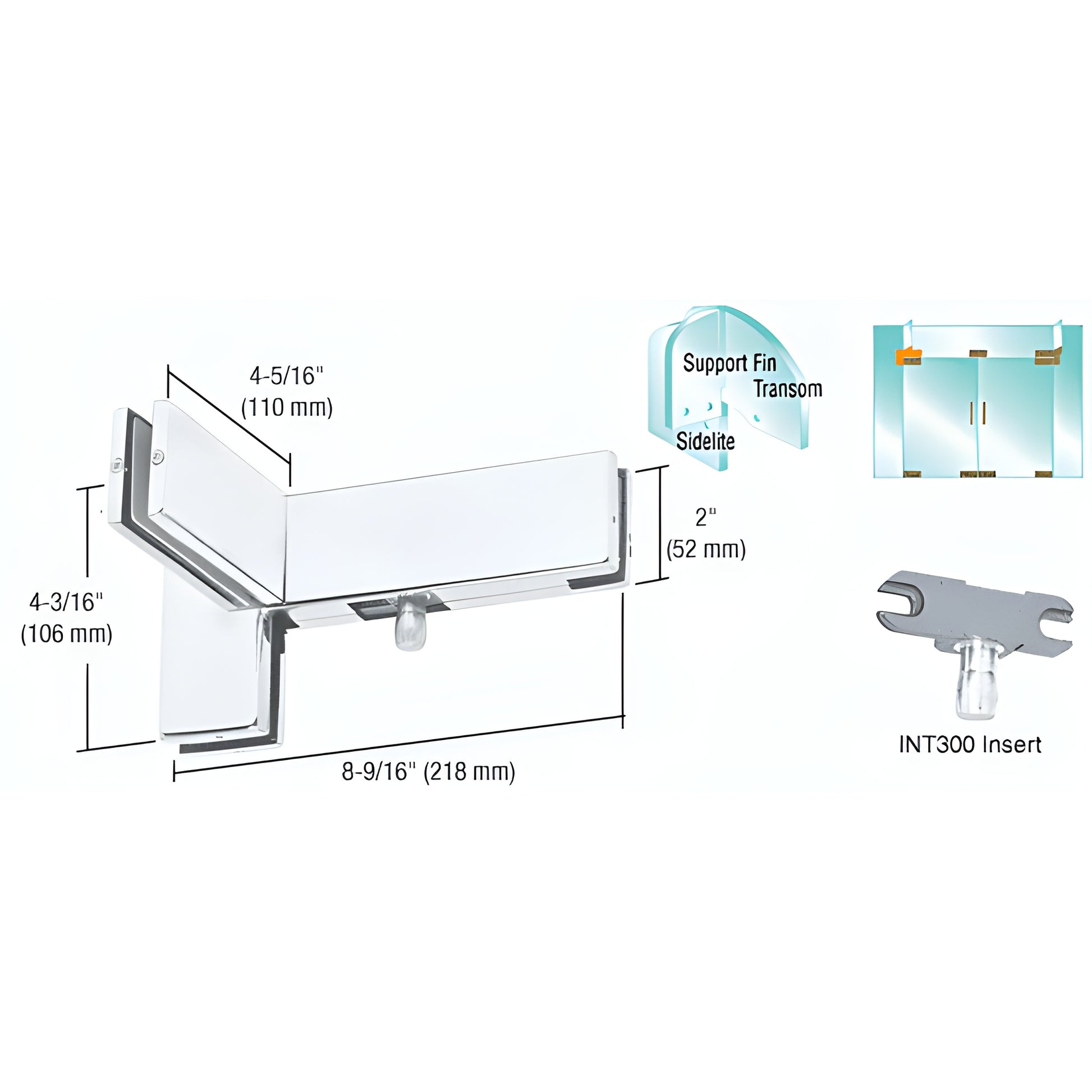

The CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket (SKU: PH41RA) supports a glass transom from an adjacent sidelite panel. Includes an INT300 Insert for mounting a door with CRL PH20A or PH21A Top Door Patch Fitting. For single-door installations the insert can be removed on the non-hinged side to create a double-swinging door. Use an INT306 Transom Patch Door Stop Insert for a one-way door, or install an INT305 Transom Patch Keeper Insert for use with an AMR205 Lock on top-of-door installations. The support fin glass must be sized per approved design criteria (refer to GANA or the manufacturer's manual) and secured to the ceiling with a Ceiling Mounted Support Fin Bracket.


If the transom weight exceeds 100 lbs. (45.4 kg) it must be supported from the ceiling to prevent patch slippage. Alternatives for heavy transoms include Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact our Technical Sales Department for assistance.

GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) Diameter Holes and Two Corner Notches

COMES WITH:
Template and Instructions


Product Warning:

NOTE: These Fittings are not for use with laminated glass.
