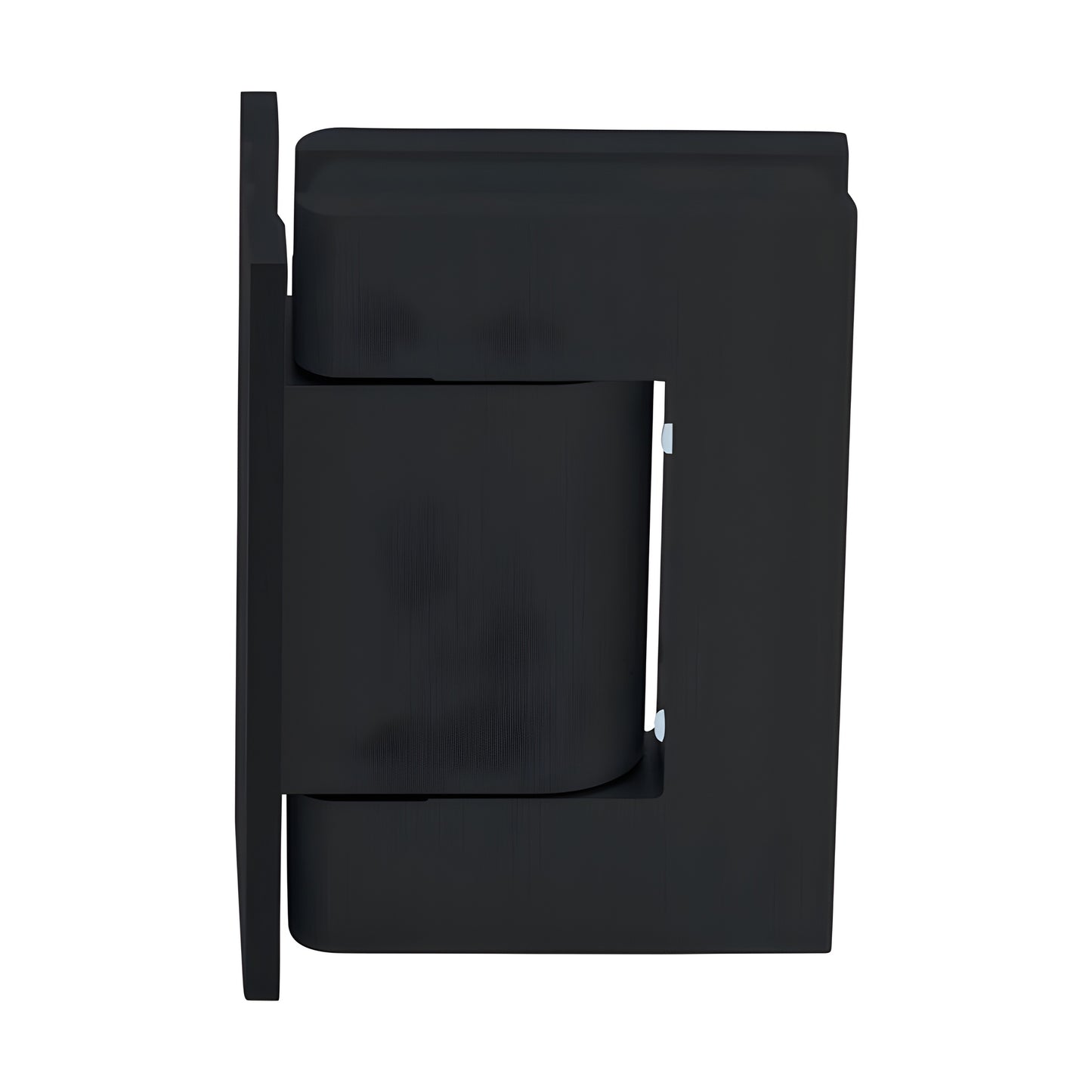

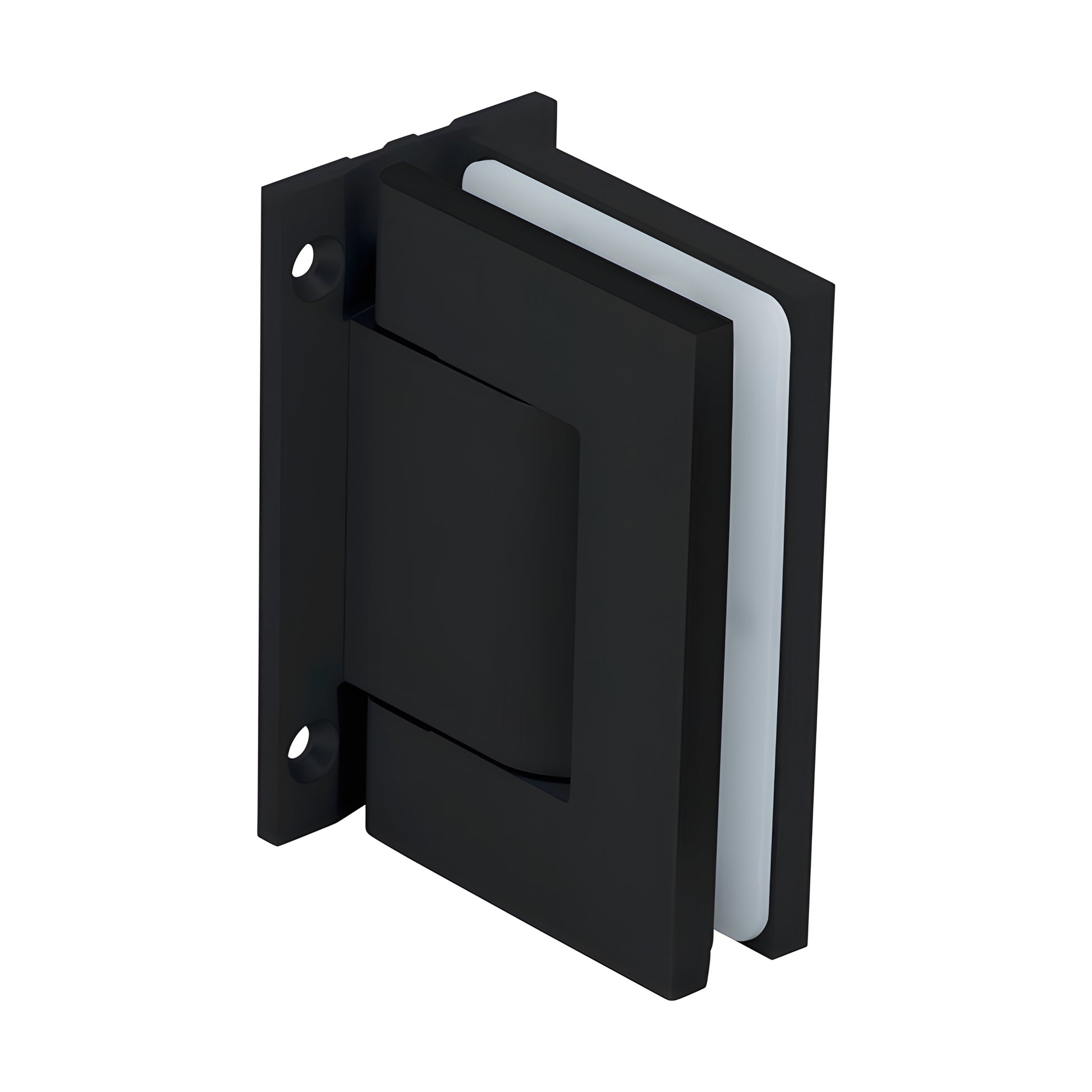

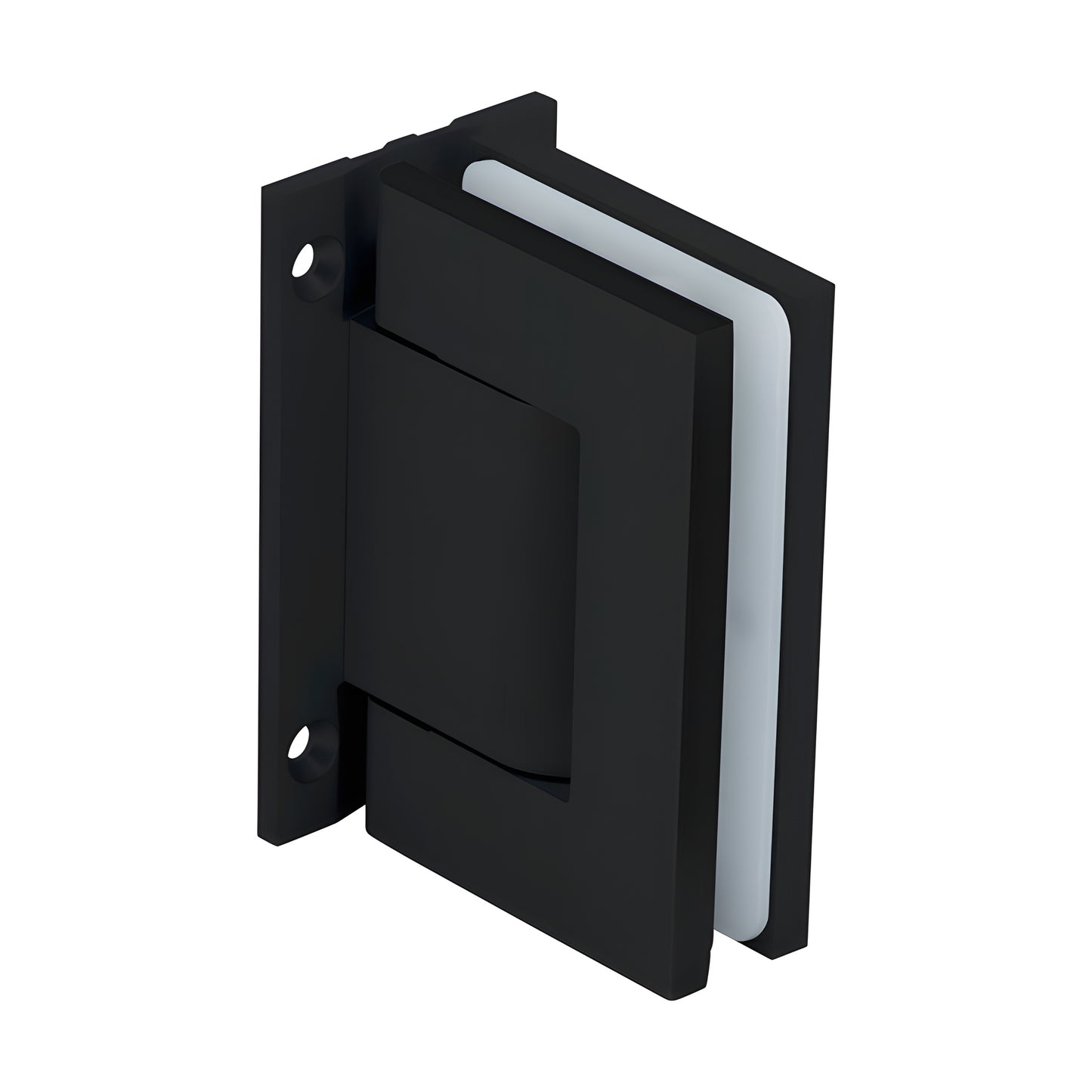

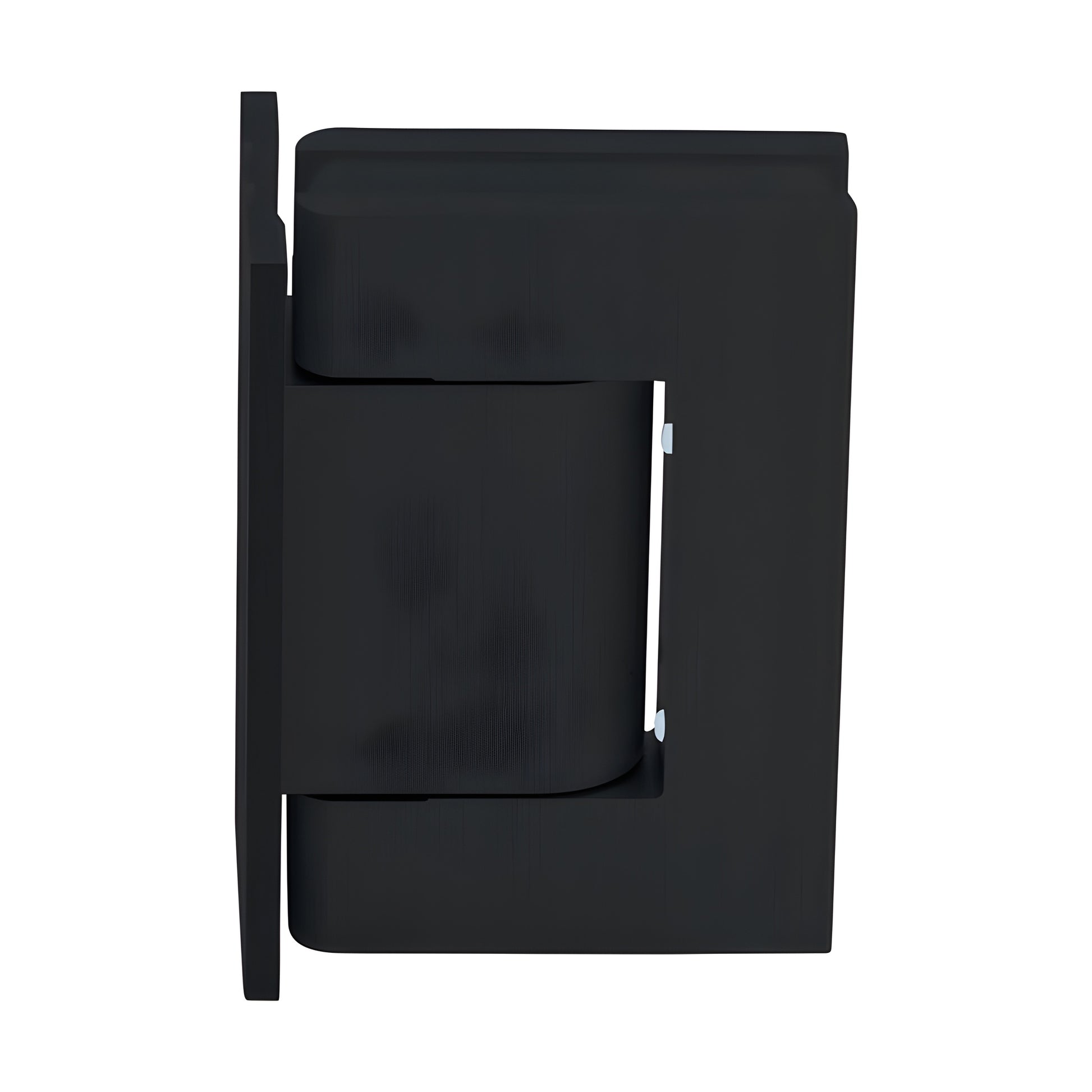

CRL Vernon Matte Black Glass Door Wall-Mount Hinge with Back Plate

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body in Brite Chrome, Satin Nickel, or Satin Anodized finishes
• Adjustable closing speed (3 mm allen key)
• A compact, wall-mount alternative to floor closers and patch fittings

The CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU: H8210BTMBL) provides a true oil-dynamic, self-closing solution for interior glass doors. This wall-mount hinge swings in and out a full 90º with a stop at 0º and an adjustable closing speed—ideal for a self-closing glass door without a floor-mounted or overhead closer. Designed for doors up to 39" (1 m) wide, two hinges support up to 220 lbs. (100 kg). Ambidextrous design allows for flexible left- or right-hand installation.

The Oil Dynamic Hinge bridges mechanical and hydraulic technologies so you can install an all-glass door in existing openings without extensive retrofit. Properly mounted, two hinges will support 5/16" to 9/16" (8 to 13.52 mm) glass, and the included snap-in molded gaskets suit the specified glass range. Oil Dynamic hinges have been endurance-tested for over 1 million cycles to ensure long-lasting performance for interior applications.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º inwards and outwards (except H8060 model)
Closing Type: Automatic closing from 0º to 80º (adjustable)
Cut-Out: Glass fabrication required; includes snap-in molded gaskets for 5/16"–9/16" glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

Product Warning:

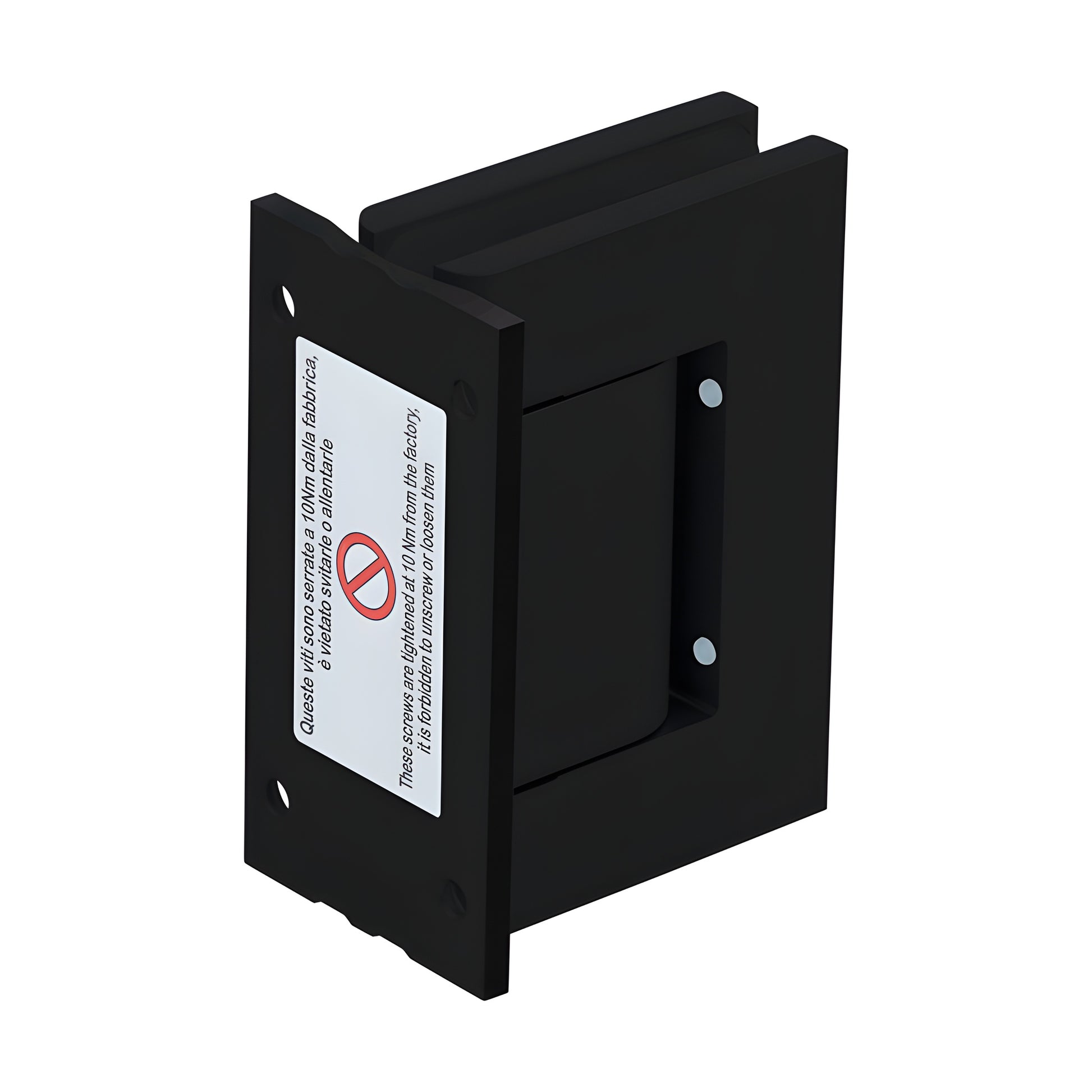

Do not use more than two hinges on one door. For applications outside intended use, obtain approval from the CRL Technical Sales Department. Use only the template included with the hinge—cut-out dimensions may differ from other brands. The adjustable closing speed valve uses a 3mm allen key and the hinge cover plate uses a 4mm allen key.
