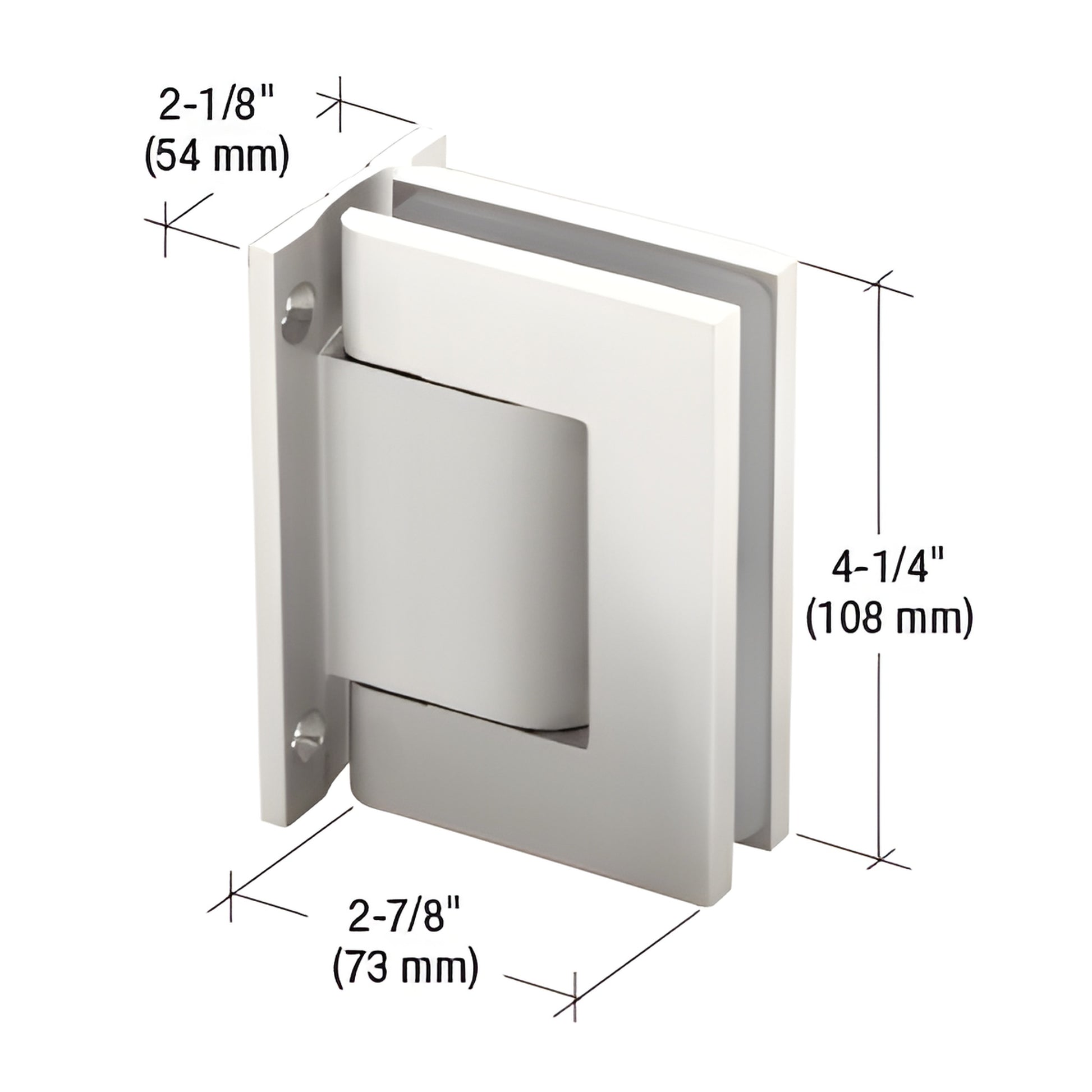

CRL Vernon Satin Nickel Wall Mount Full Back Plate Door Hinge

• For Self-Closing Glass Doors From 5/16" to 9/16" (8 to 13.52 mm) Thick
• Aluminum Body in Your Choice of Brite Chrome, Satin Nickel, and Satin Anodized Finishes
• Adjustable Closing Speed
• A Great Alternative to Floor Closers and Patch Fittings

This CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU: H8210BTSN) swings in and out a full 90º with a stop at 0º. The adjustable closing-speed valve lets you tune self-closing action for interior glass doors up to 39" (1 m) wide. Maximum capacity with two hinges is 220 lbs. (100 kg). Designed for interior applications only.


The Oil Dynamic Hinge blends automatic mechanical hinge function with hydraulic closing control, providing a self-closing glass door solution without floor-mounted or overhead closers. Ideal for retrofit installations where preserving an all-glass aesthetic is important, this oil-damped wall-mount hinge enables easier installation of frameless glass doors without extensive floor or header modifications.

Properly mounted, two Oil Dynamic Hinges support 5/16" to 9/16" (8 to 13.52 mm) thick glass doors up to 39" (1 m) wide and weighing up to 220 lbs. (100 kg). Do not use more than two hinges. The ambidextrous design adds installation flexibility. A 3mm allen-key adjustable valve controls closing speed.

The Oil Dynamic Hinge features an aluminum body with distinct configurations for Wall Mount and Glass-to-Glass applications and has been tested for durability (over 1 million cycles) for long-lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º Inwards and Outwards (Except H8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0º to 80º
Cut-Out Glass Fabrication Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

Product Warning:

Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out
