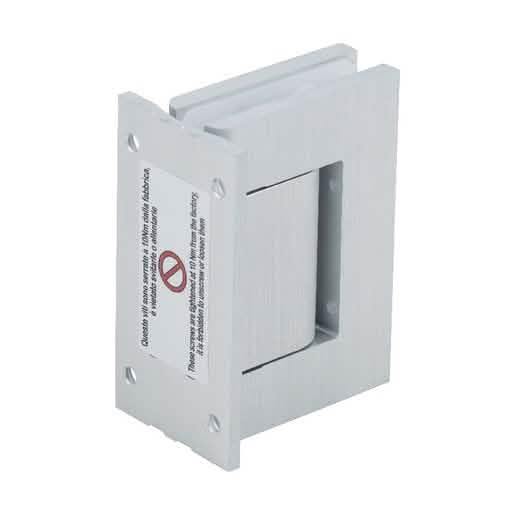

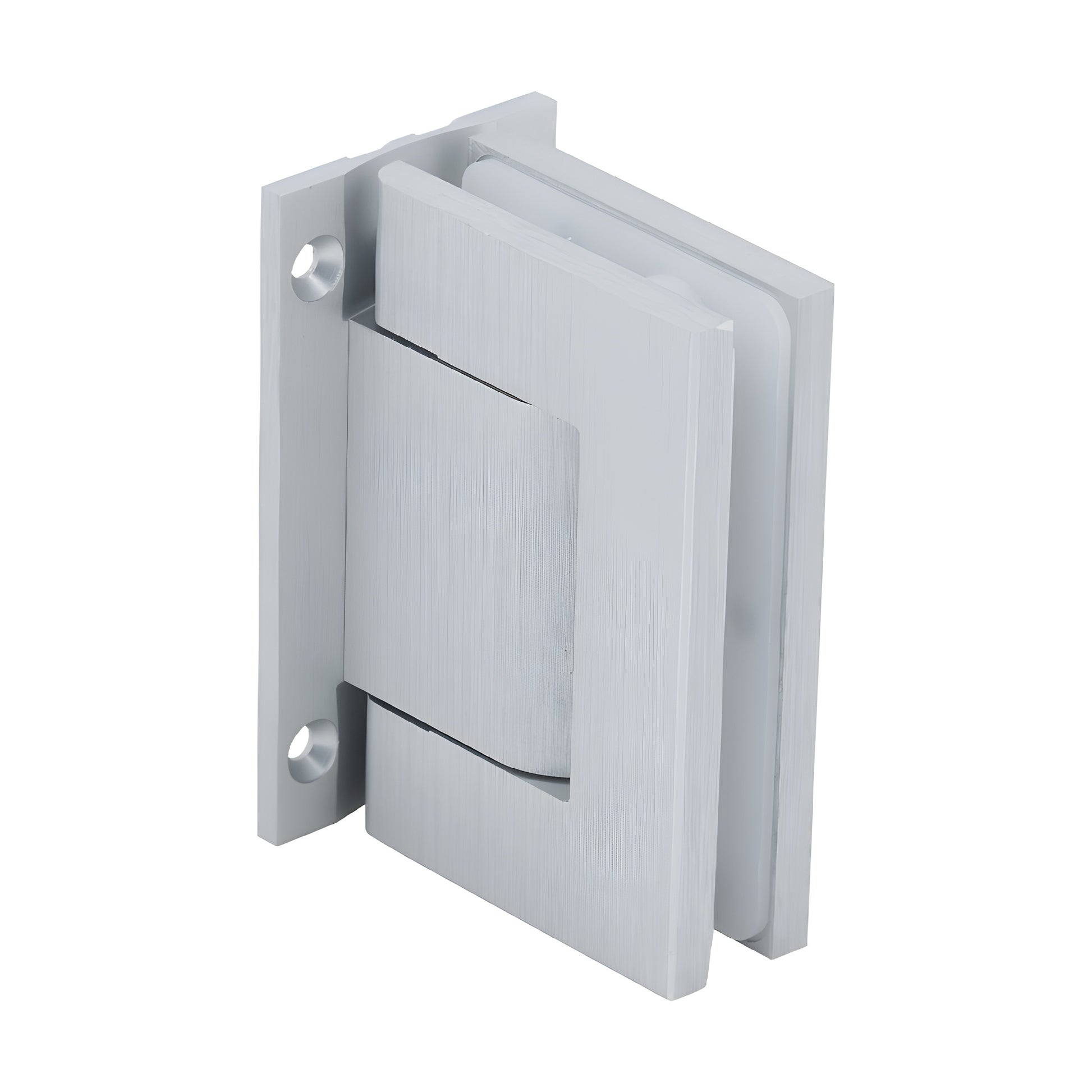

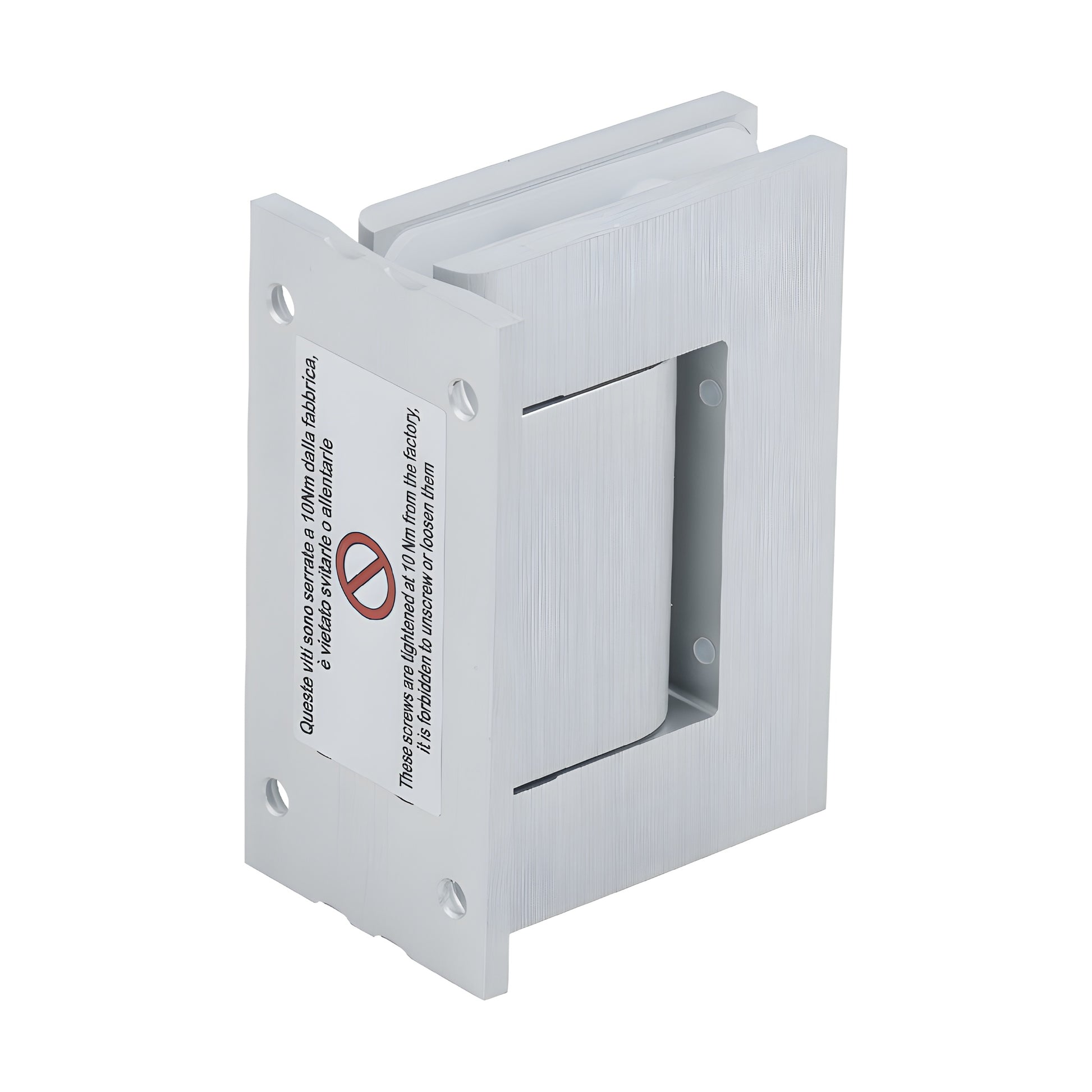

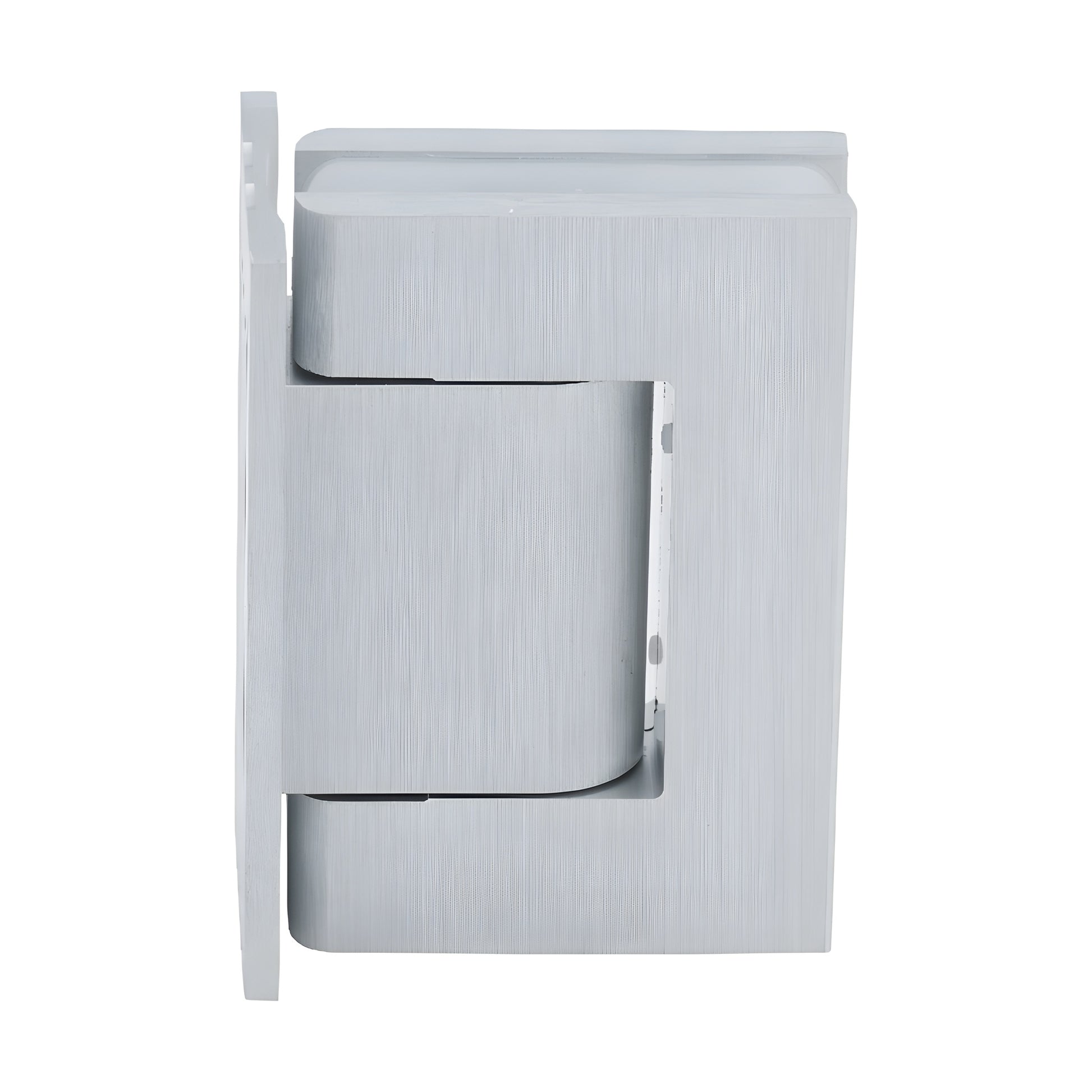

CRL Vernon Satin Anodized Wall-Mount Door Hinge Full Back Plate

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body available in Brite Chrome, Satin Nickel, and Satin Anodized finishes
• Adjustable closing speed with 3mm allen key valve
• Ambidextrous wall-mount Oil Dynamic hinge — alternative to floor closers and patch fittings

This CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU H8210BTSA) swings in and out a full 90º with a 0º stop. The hydraulic-style, oil-damped mechanism provides reliable self-closing action and an adjustable closing speed for precise control—ideal for interior and exterior glass door installations up to 39" (1 m) wide. Maximum recommended capacity using two hinges is 220 lbs. (100 kg).

The Oil Dynamic Hinge blends automatic-mechanical performance with hydraulic damping to eliminate the need for floor-mounted or overhead closers. That lets you install an all-glass door in existing openings without extensive floor or header retrofitting. Two properly mounted hinges support 5/16"–9/16" (8–13.52 mm) glass up to 39" wide and 220 lbs. Do not use more than two hinges.

Ambidextrous and tested to over 1 million cycles, the Oil Dynamic series is available in Wall Mount and Glass-to-Glass configurations and includes snap-in molded gaskets for 5/16"–9/16" glass.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º inwards and outwards (except H8060 model, which swings one way)
Closing Type: Automatic closing from 0º to 80º
Cut-Out Glass Fabrication Required
Includes: Snap-in molded gaskets for 5/16"–9/16" (8 to 13.52 mm) glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

Product Warning:

Do not use more than two hinges on one door. If hinges will be used for other than their intended purpose, obtain approval from the CRL Technical Sales Department. Use only the template provided—cut-out dimensions for CRL hinges may not match other brands.

*The adjustable closing speed valve uses a 3mm allen key and the hinge cover plate uses a 4mm allen key.
