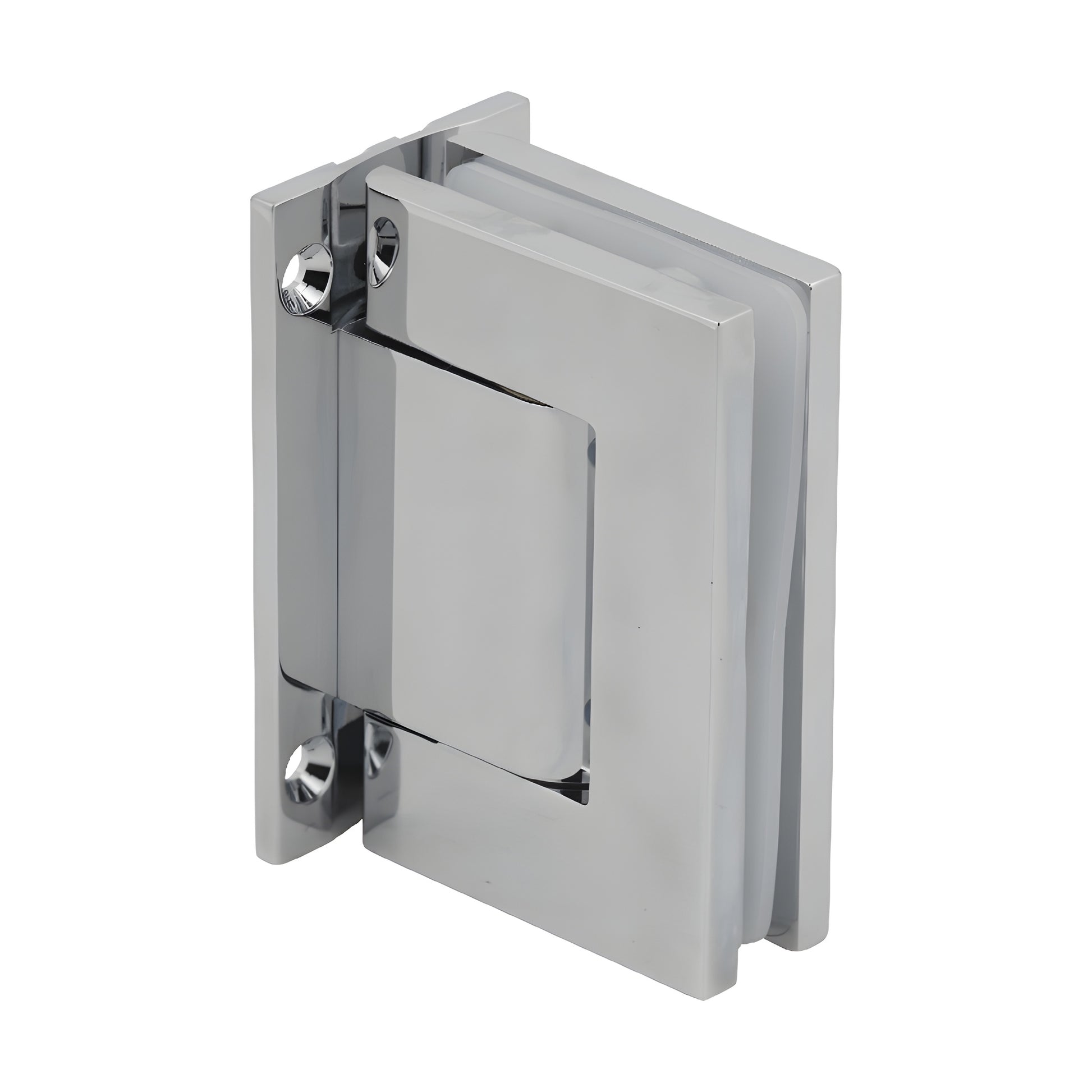

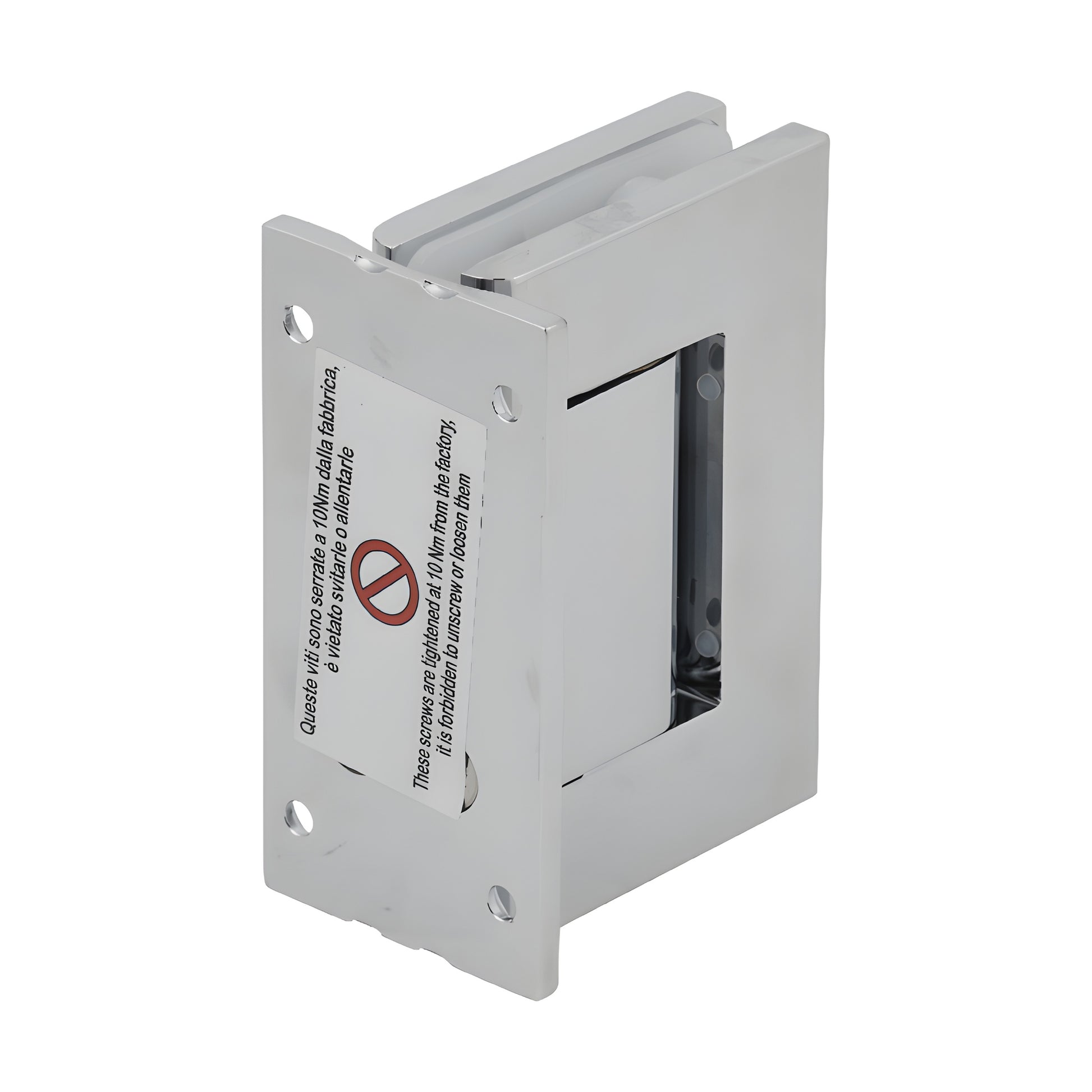

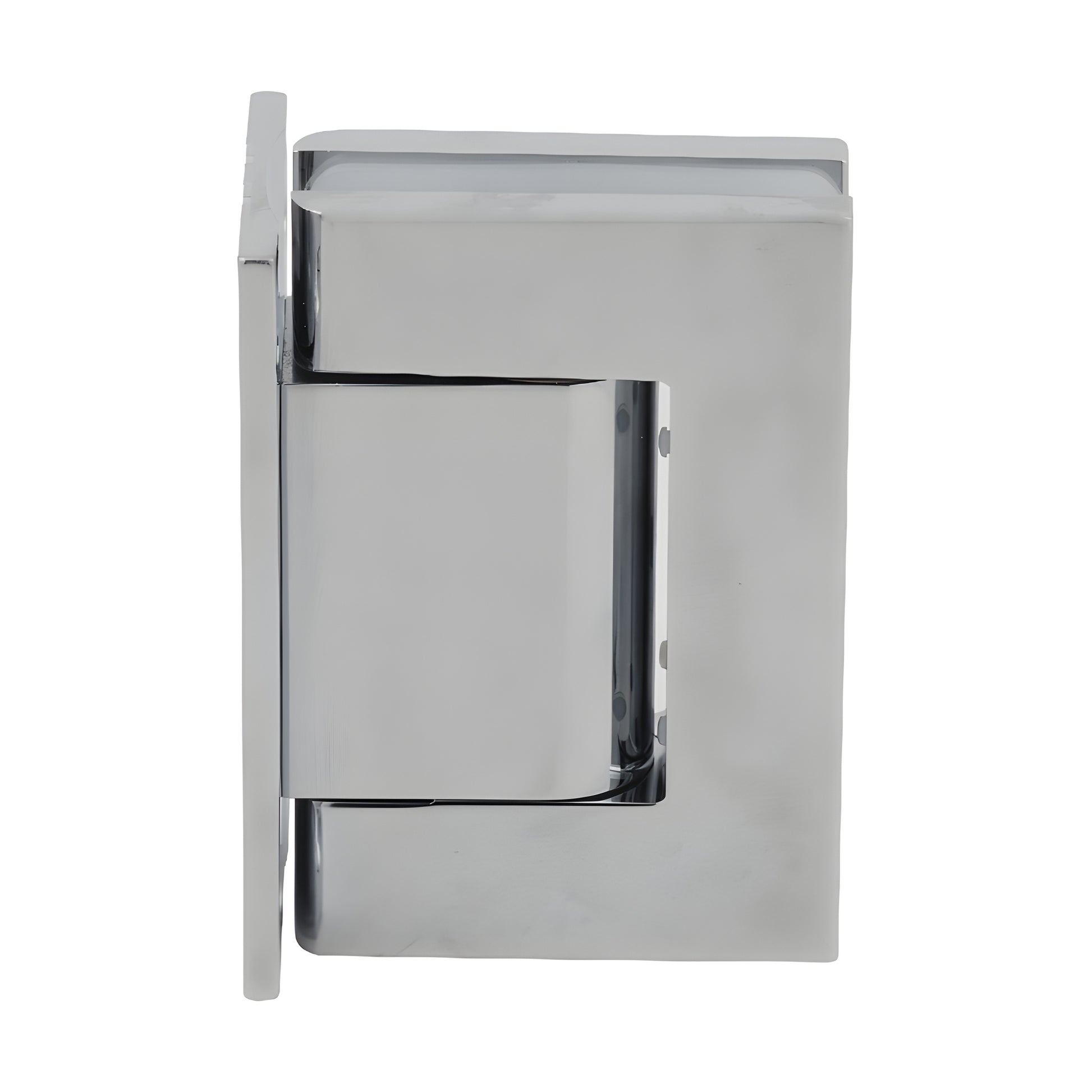

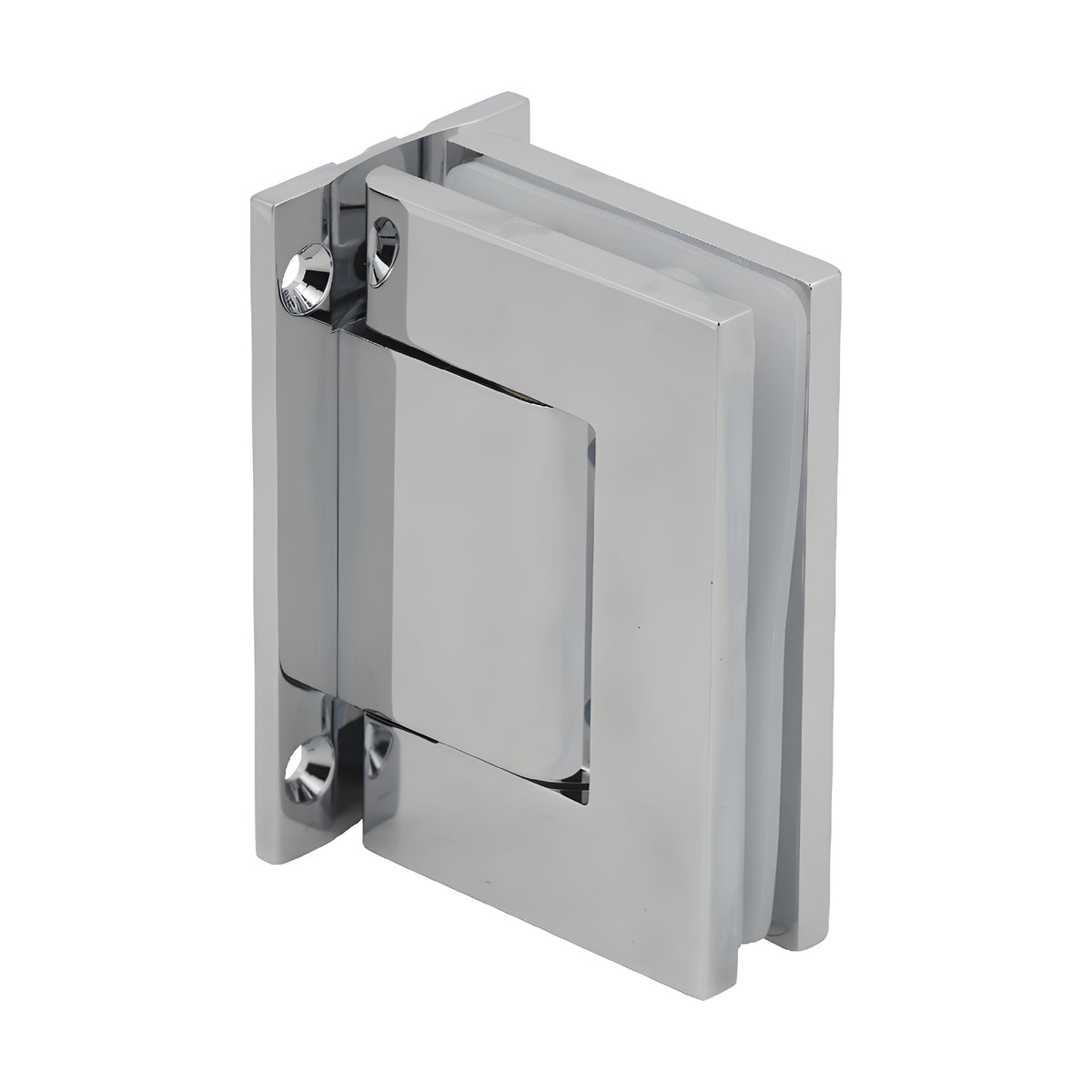

CRL Vernon Chrome Wall-Mount Full Back Plate Hinge for Glass Doors

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body available in Brite Chrome, Satin Nickel, or Satin Anodized finishes
• Adjustable closing speed (3 mm Allen key)
• Alternative to floor closers and patch fittings — ideal for retrofit all‑glass doors

This CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU H8210BTCH) swings a full 90º in and out with a stop at 0º and an adjustable closing speed. Intended for interior glass doors up to 39" (1 m) wide; maximum capacity using two hinges is 220 lbs. (100 kg).


The Oil Dynamic hinge blends automatic mechanical hinge convenience with hydraulic door closer performance. It enables a self-closing glass door installation without floor‑mounted or overhead closers, making it an excellent choice for retrofit all‑glass door projects and interior storefronts.


Properly mounted, two Oil Dynamic hinges support a single glass door (5/16" to 9/16" / 8 to 13.52 mm thick) up to 39" (1 m) wide and 220 lbs. (100 kg). A control valve adjusts closing speed; the hinge is ambidextrous for greater design flexibility.

The hinge features an aluminum body in Wall Mount and Glass‑to‑Glass configurations and has been tested to over 1 million cycles for long service life.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º inwards and outwards (except H8060 model, which swings one way)
Closing Type: Automatic closing from 0º to 80º
Cut-Out: Glass fabrication cut-out required
Includes: Snap‑in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

Product Warning:

Do not use more than two hinges on one door. For uses other than intended, obtain approval from the CRL Technical Sales Department. Use only the template included with the hinge; cut‑out dimensions may not match other brands. The hinge cover plate uses a 4 mm Allen key.
