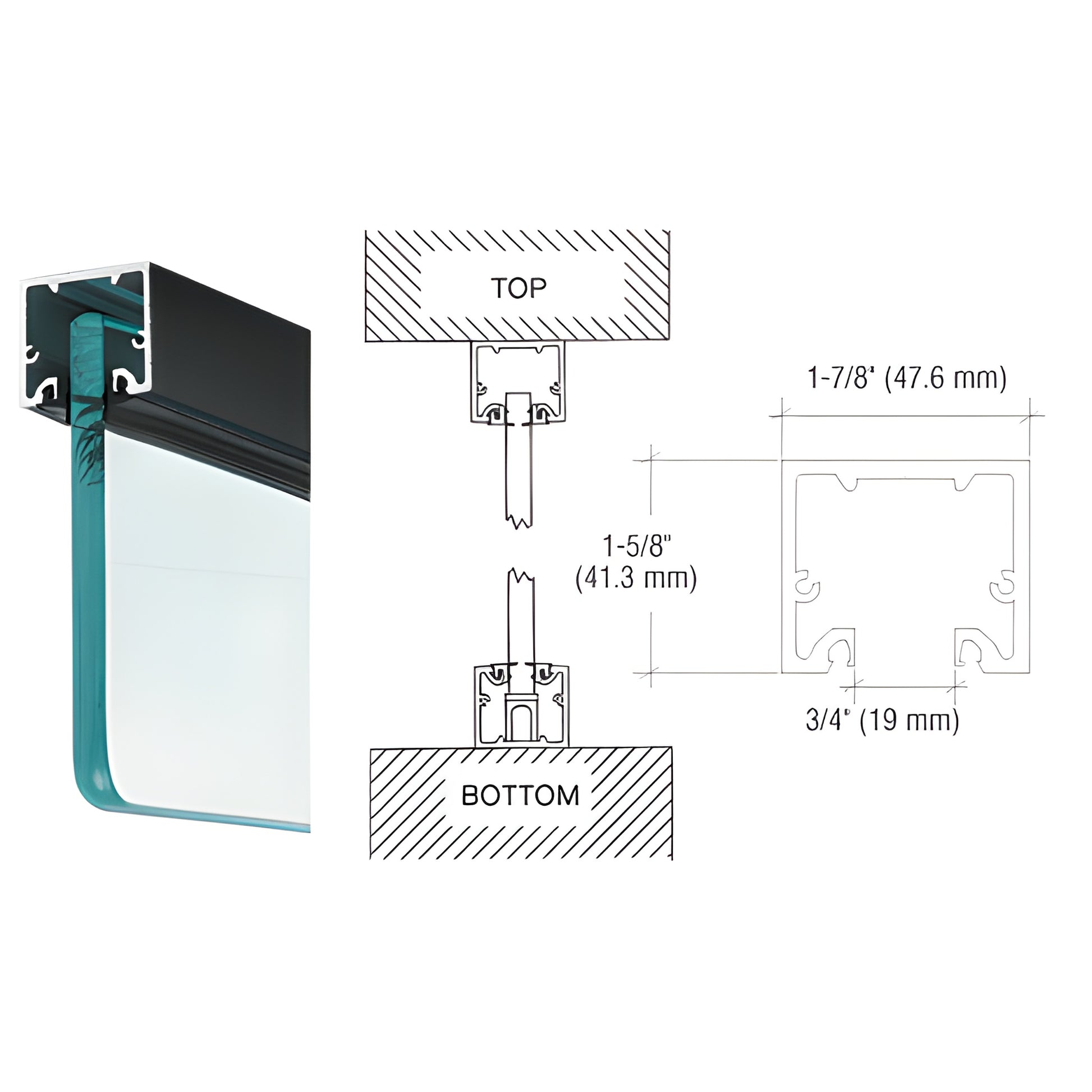

CRL Matte Black Wide U-Channel 120in Top-Load Gasket 3/8-1/2 Glass

• Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) glass
• Use with monolithic tempered glass
• Matches the width of door and sidelite rails for a consistent sight line
• Accepts roll-in glazing gasket, top pivot block (free-swinging pivot), and snap-in filler strip
• Ready-to-ship models from CRL inventory; available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel installation

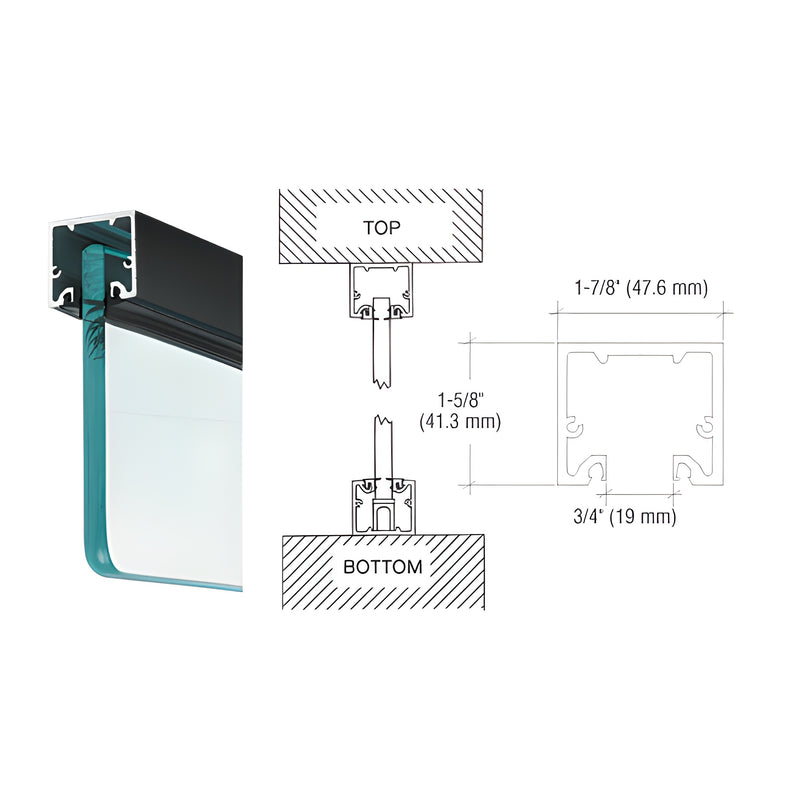

This aluminum extrusion was developed for three primary uses:

• As a U-channel that matches the width of our sidelite rails and door rails;
• As a narrow header that accepts a top free-swinging pivot to secure the top of doors;
• As an even sight line system—secure the fabricated narrow header to the opening, then attach the sidelite rail to the header using the 1/4" (6 mm) header saddle for a uniform appearance.

All drilling, tapping, and fabrication can be completed during manufacturing on request to save installation time. Ideal for installers seeking an aluminum glazing channel for tempered glass doors and sidelite systems with consistent sight lines and quick field-ready headers.

Quick Pick policy: these products are stocked in a centralized CRL service center and ship on the next weekly re-supply truck to your regional CRL service center. If your regional center is out of stock, your order can typically be filled within a few days. Check live stock by clicking "CHECK STOCK AVAILABILITY" above.

SKU: NH2MBLSL — Order now for fast shipping and optional fabrication services.
