CRL Stainless Wide U-Channel Top-Load Roll-In Gasket 3/8-1/2 120"

• Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) glass
• Use monolithic tempered glass
• Matches the width of door and sidelite rails
• Accepts roll-in glazing gasket, top pivot block, and snap-in filler strip
• Ready-to-ship models from CRL inventory
• Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel installation

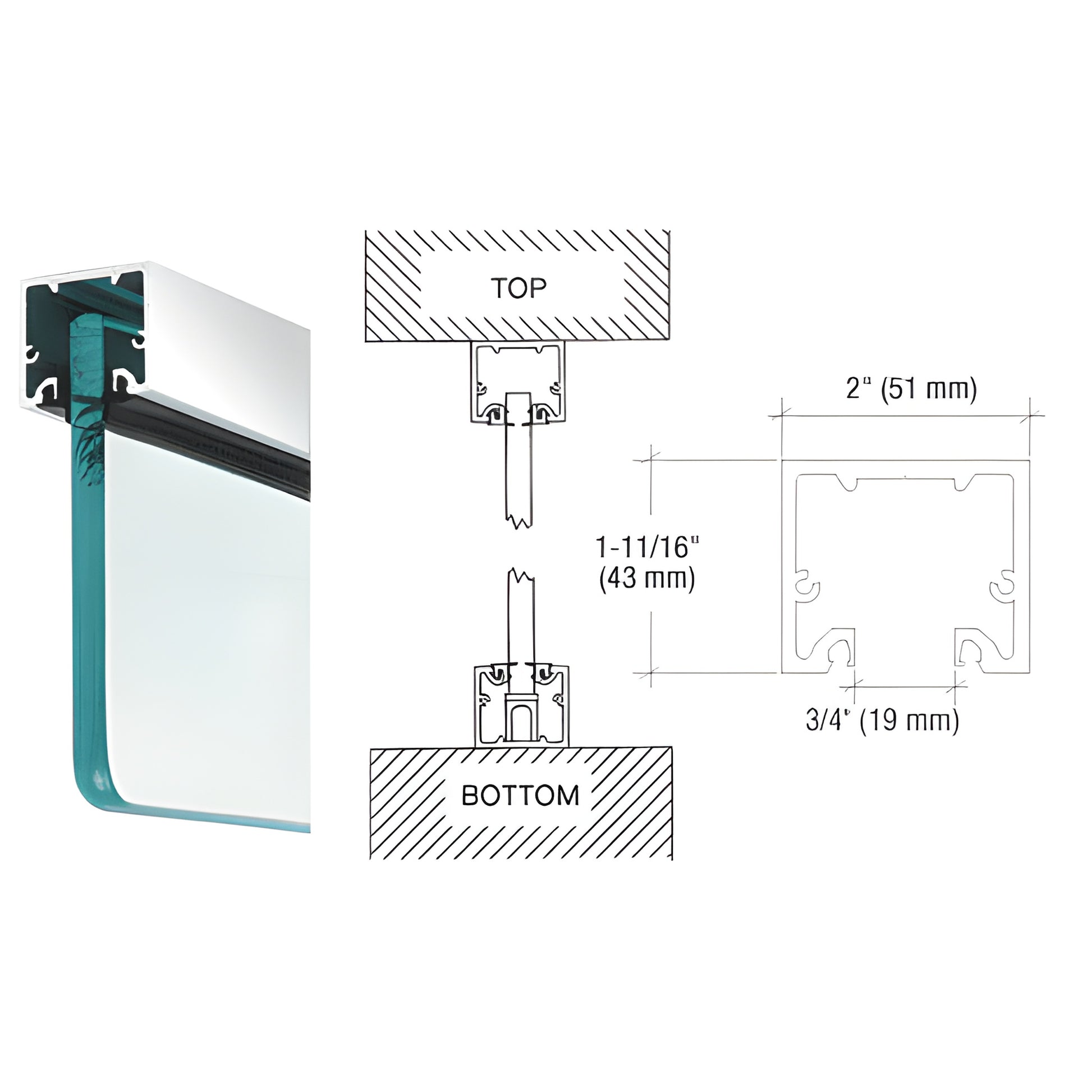

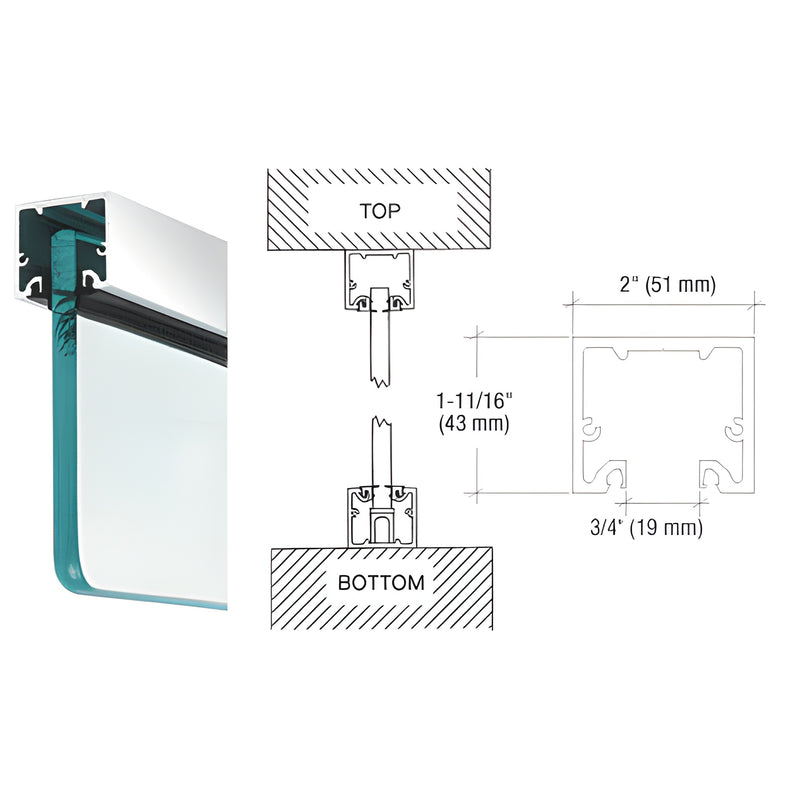

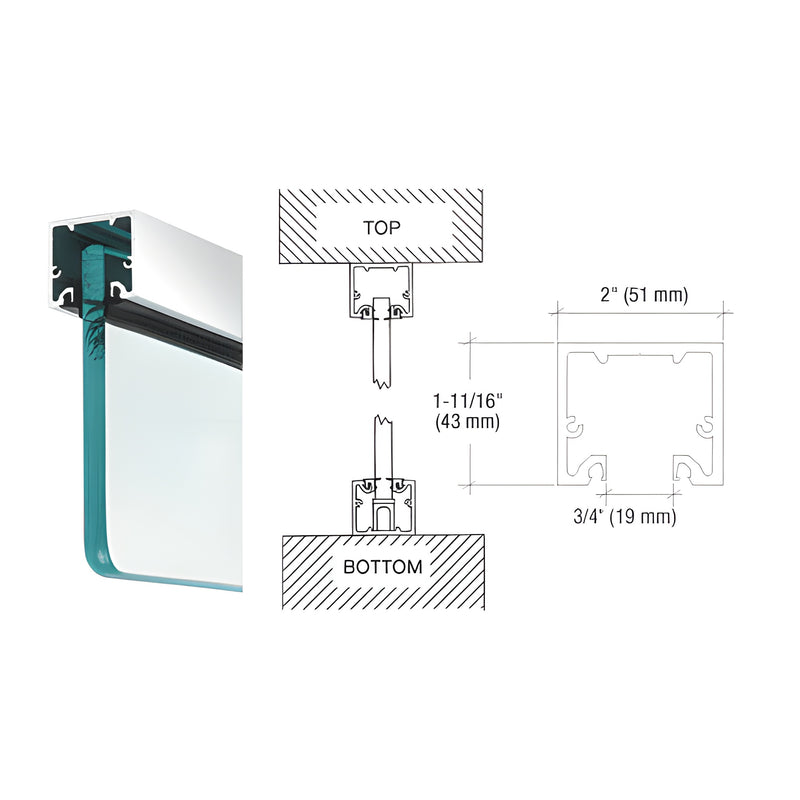

This stainless steel cladded aluminum extrusion (SKU: NH2PSSL) was developed for three primary glass door and storefront applications:

(1) As a U-channel that matches the width of our sidelite rails and door rails for a continuous sight line;

(2) As a narrow header that accepts a top free-swinging pivot to secure the top of doors (ideal for pivot door headers);

(3) As an even sight line system—secure the fabricated narrow header to the top of the opening, then attach the sidelite rail to the narrow header with the 1/4" (6 mm) header saddle. All drilling, tapping, and fabrication can be completed during manufacturing to save installation time.

Quick Pick policy: stocked in our centralized service center and shipped to your regional CRL service center on the next weekly re-supply truck. If your regional center is out of stock, your order can typically be filled in just a few days. Click the "CHECK STOCK AVAILABILITY" box above to confirm local inventory.

Product Warning:

This material is stainless steel cladded aluminum and must not be cut with a standard chop saw or abrasive blade—those methods will overheat and damage the cladding finish. Cut only with a cold saw to prevent finish damage. For guidance, contact Technical Sales.

Stainless Steel Advisory:
