CRL Matte Black Square Glass Clamp - Surface Mount for 3/4" Glass
CRL Matte Black Square Glass Clamp - Surface Mount for 3/4" Glass
Regular price
$67.01 CAD
Regular price
Sale price
$67.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# Z934MBL
Shipping Weight: 1.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

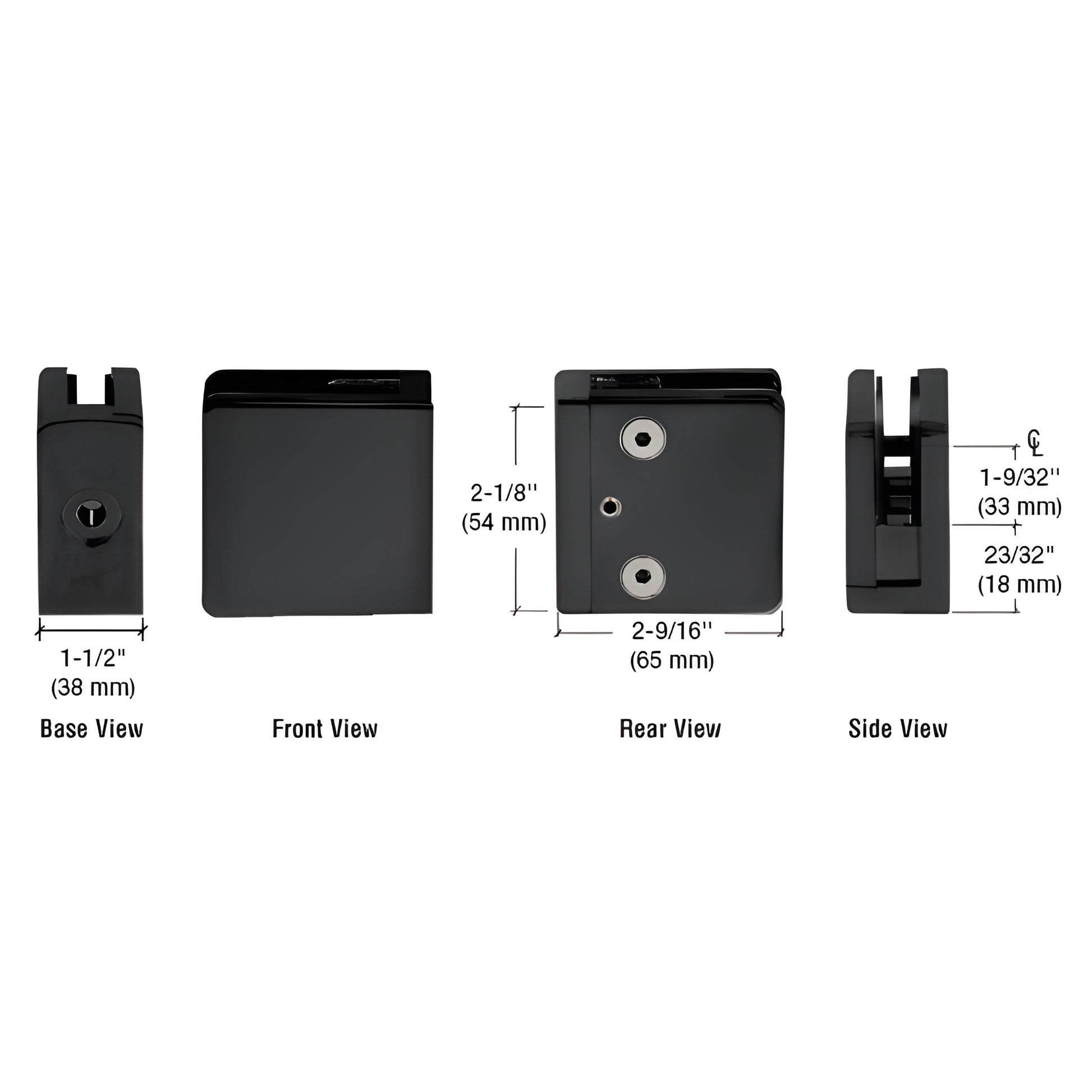

Description
Alloy
316
Base Type
Flat
Depth
3/4 in. (19 mm)
Finish/Color
Matte Black
Glazing Thickness
3/4 in. (19 mm)
Height
2-5/16 in. (59 mm)
Material
Stainless Steel
Profile
Square
Width
2-1/8 in. (54 mm)
Overview
- For use with square tubing or other flat surfaces
- 316 alloy stainless steel
- For 3/4" (19 mm) glass (flat surface mounting) — use monolithic tempered glass
- Custom painted finishes available upon request
CRL Brushed Stainless Z-Series Flat Surface Mount Square-Type Glass Clamp for 3/4" (19 mm) Glass — SKU: Z934MBL.
SPECIFICATIONS:
Glass Thickness: 3/4" (19 mm)
Base Design: Flat
For Use With: Square tubing or other flat surfaces
Material: 316 alloy stainless steel (corrosion-resistant for interior and exterior applications)
Glass Fabrication: One 7/8" (22 mm) diameter finger notch is required. The included steel pin must be used for 3/4" (19 mm) glass applications.
Includes: Rubber gaskets and steel pin
Replacement Hardware: CRL P612 for replacement screws
Product Warning:
For interior and exterior applications, CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Durable 316 stainless steel construction and flat-surface mounting make the Z934MBL an ideal glass clamp for frameless railing and partition projects requiring a 3/4" tempered glass panel. Contact us to order or request custom finishes.
