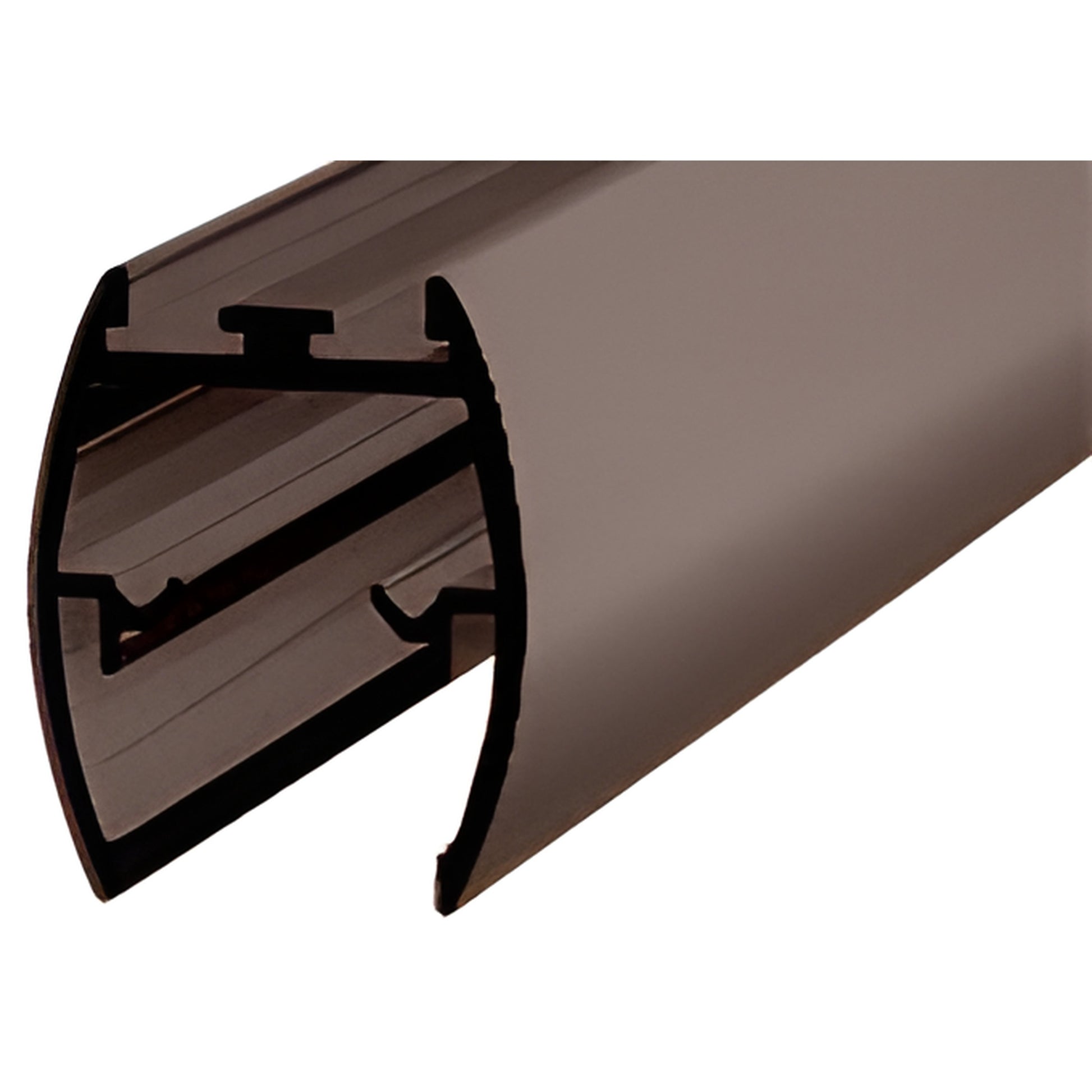

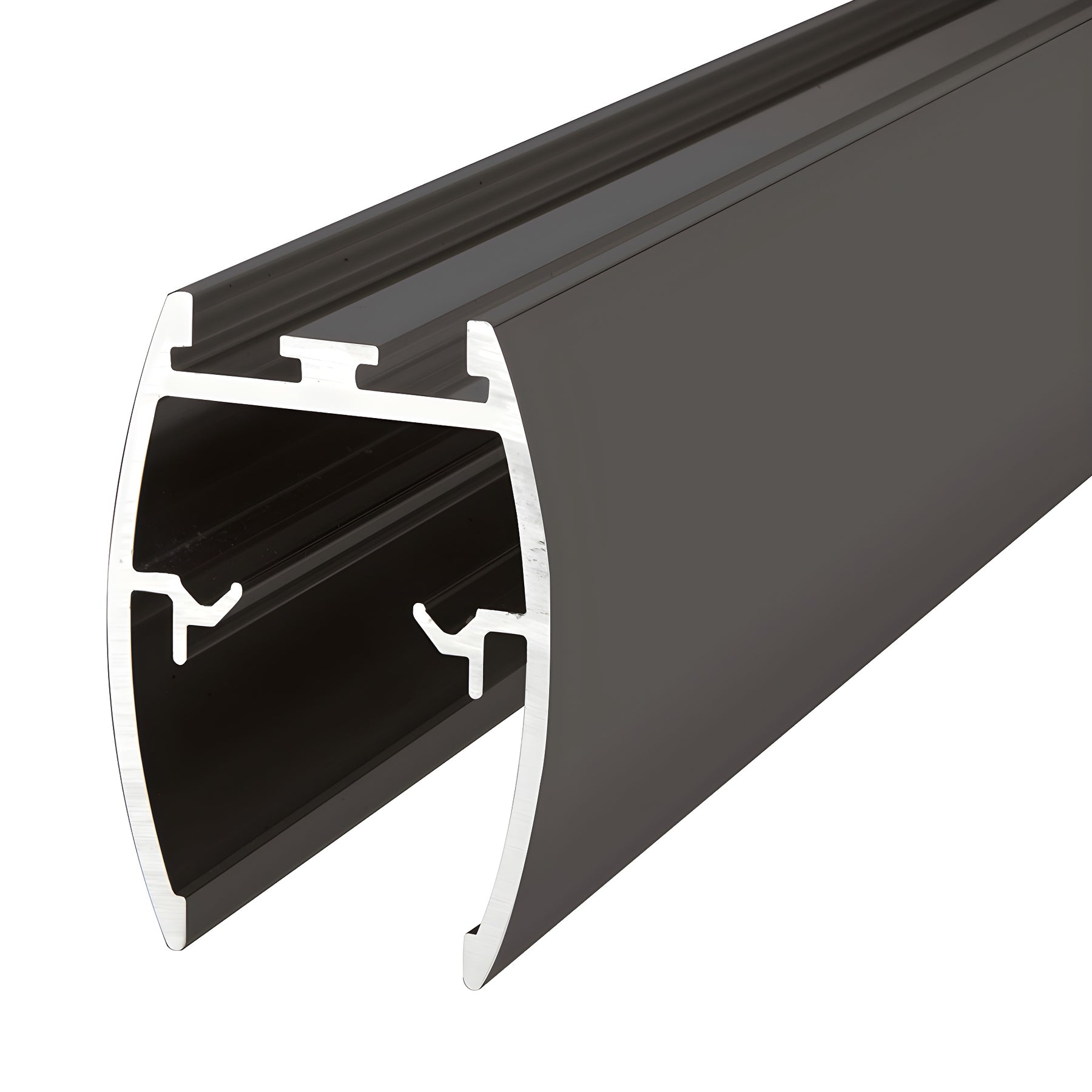

CRL 72" Oil-Rubbed Bronze Header for CK/DK Cottage Sliders

• Individual supplementary extrusions and hardware components to convert our frameless shower door kits into angled enclosures or wider inline units
• Top header extrusion acts as a crown and is used in all Cottage Series applications
• Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze finishes to match our kits
• Do it yourself, or send us a drawing to customize a unit for you
• Use monolithic tempered glass

DK Cottage Series components (SKU: DK610RB) were designed by CRL to add versatility to our frameless sliding shower door kits. Use these DK Cottage Series extrusions and hardware to add additional panels, build a designer enclosure, or construct a custom sliding unit by combining headers, side jambs, sill profiles, clear polycarbonate vertical jambs, top hangers, and accessory items. Stock lengths are available for headers, header fillers, side jambs, bottom sills, sidelite sills, and more. We can assist with design—email or fax a drawing with dimensions of your shower opening and we will assemble a customized kit that includes everything except the glass and silicone. Installation instructions are included with each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – One 1/2" (12 mm) diameter hole; Top Hangers – Four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions listed above. These components must be ordered separately. Polycarbonates are translucent in color.
