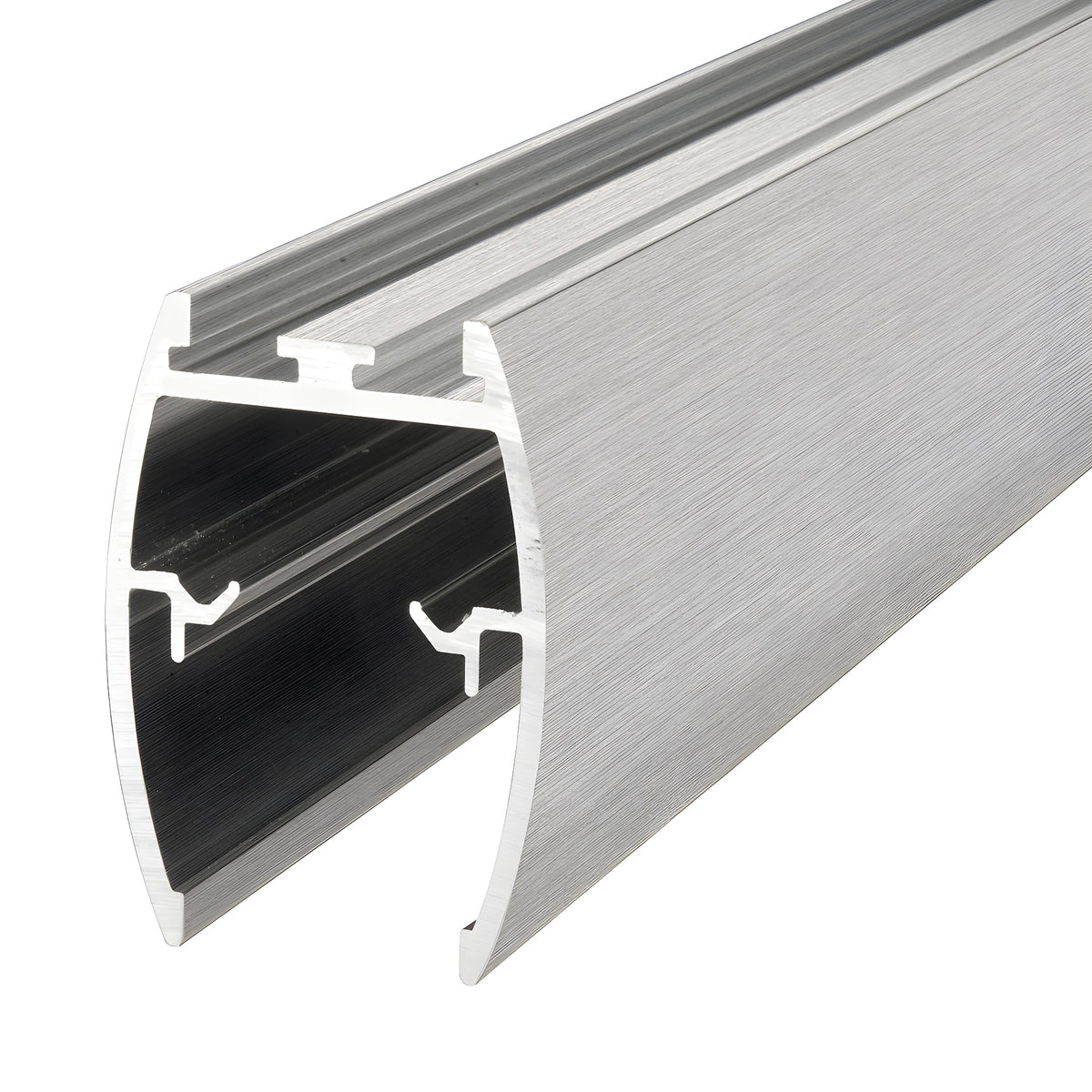

CRL 72 in Brushed Nickel Replacement Header for CK/DK Cottage Sliders

• Individual supplementary extrusions and hardware components to convert frameless shower door kits into angled enclosures or wider inline units
• Top header extrusion acts as a crown and is used in all Cottage Series applications
• Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze — matches our frameless shower door kits
• DIY-friendly components or send us a drawing to customize a unit
• Use with monolithic tempered glass (glass not included)

DK Cottage Series components (SKU: DK61BN) were designed by CRL to add versatility to frameless sliding shower door kits. Use these extrusions and hardware to add panels for a designer angled enclosure, extend an inline unit, or build a custom sliding shower door by combining headers, header fillers, side jambs, bottom sills, sidelite sills, and clear polycarbonate vertical jambs. Stock lengths and accessory items (top hangers, towel bars, knobs, corner and header brackets) let you configure enclosures for custom bathroom layouts and angled shower openings. We can assist with design — email or fax a drawing with dimensions and we will assemble a customized kit that includes everything except glass and silicone. Installation instructions are included with each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions listed above. Must be ordered separately. Polycarbonates are translucent in color.
