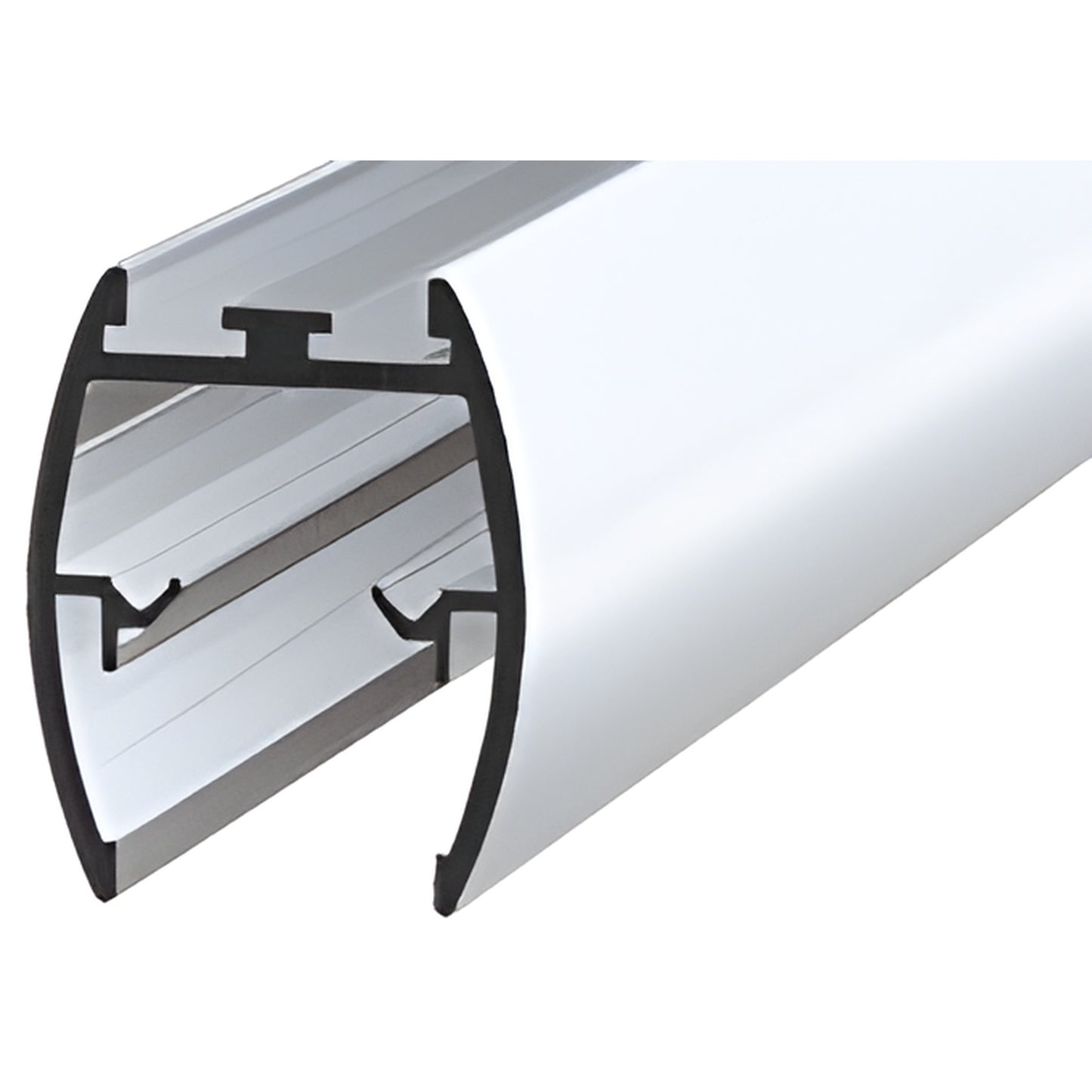

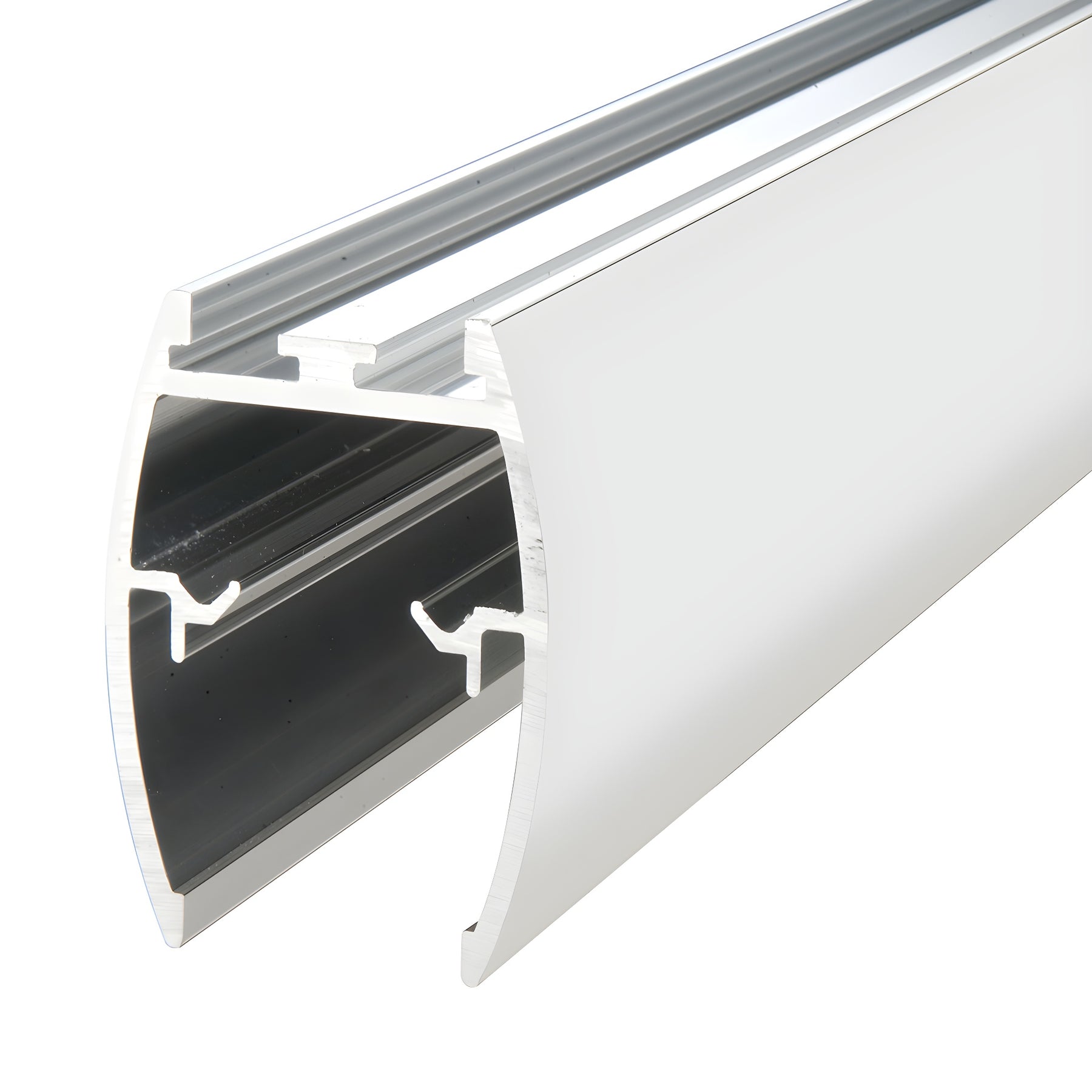

CRL Brite Anodized 72" Aluminum Header for CK/DK Cottage Sliding Doors

• Individual supplementary extrusions and hardware components to convert our frameless shower door kits into angled enclosures or wider inline units
• Top header extrusion acts as a crown and is used in all Cottage Series applications
• Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze finishes to match our kits
• Do-it-yourself assembly, or send us a drawing to customize a unit
• Designed for monolithic tempered glass

DK Cottage Series components (SKU: DK61BA) were designed by CRL to add versatility to frameless sliding shower door kits. Use these frameless shower door components and extrusions to add additional panels, build a wider inline sliding unit, or convert an inline kit into an angled enclosure. Stock lengths include headers, header fillers, side jambs, bottom sills, sidelite sills, and clear polycarbonate vertical jambs, plus top hangers and accessory items. These parts simplify custom angled enclosure construction and frameless sliding shower door installation.

Send a drawing with dimensions (email or fax) and we will assemble a customized kit that includes all required hardware and extrusions (glass and silicone not included). Installation instructions are included with each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Jamb Seals (Polycarbonate), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass Not Included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – One 1/2" (12 mm) diameter hole; Top Hangers – Four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions listed above. Must be ordered separately. Polycarbonates are translucent in color.
