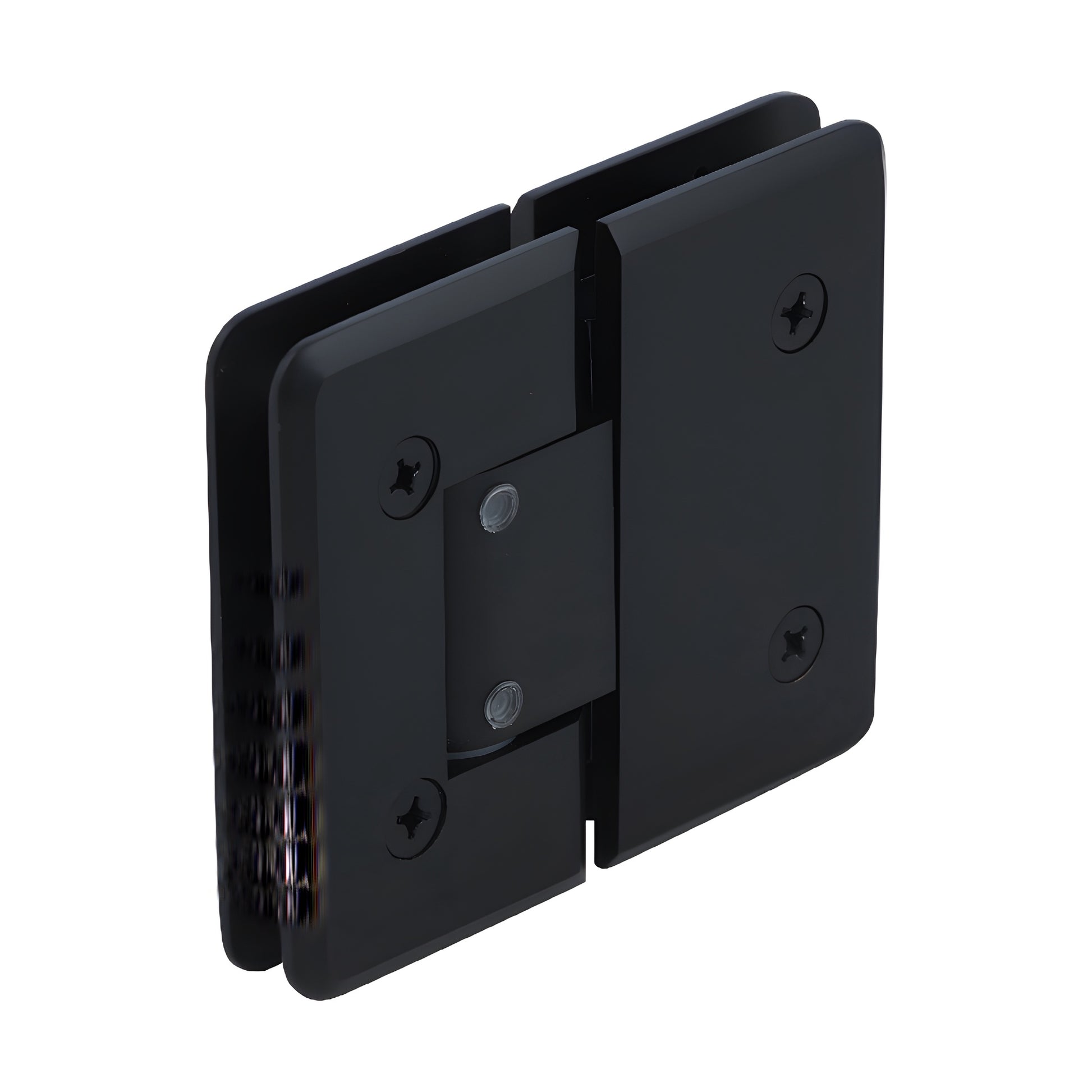

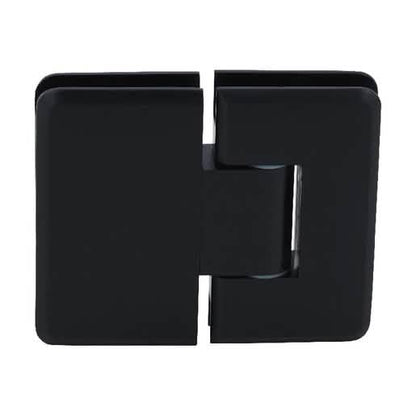

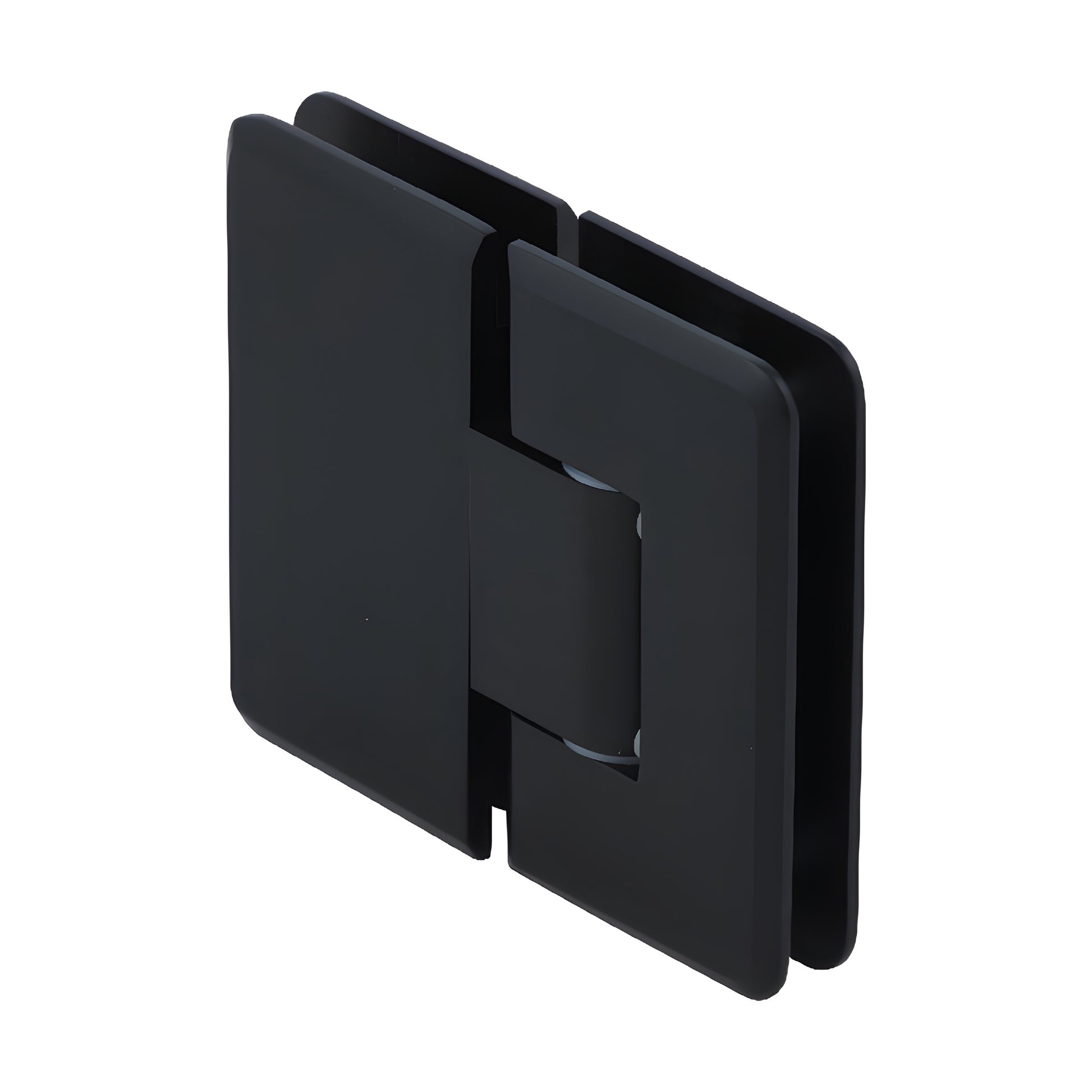

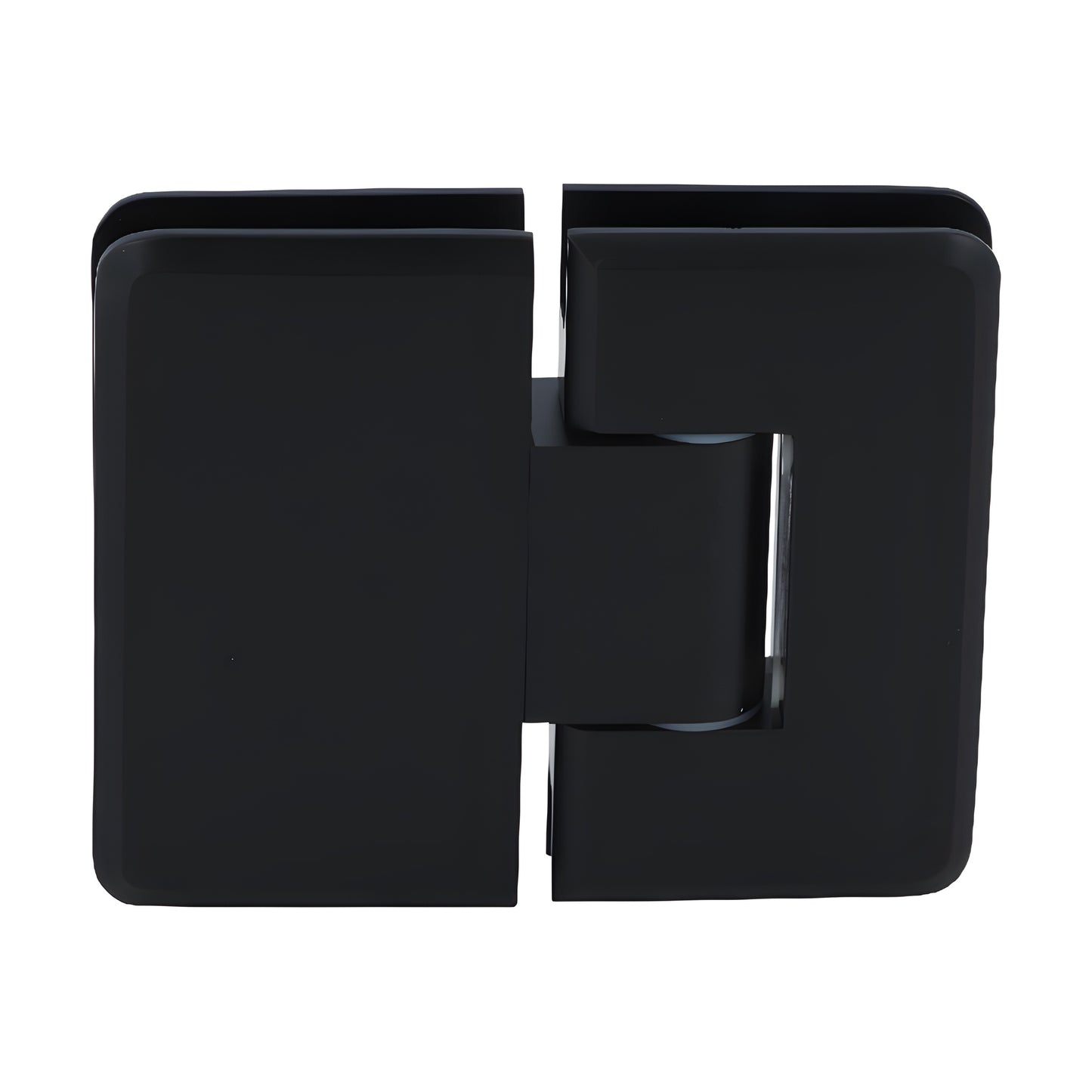

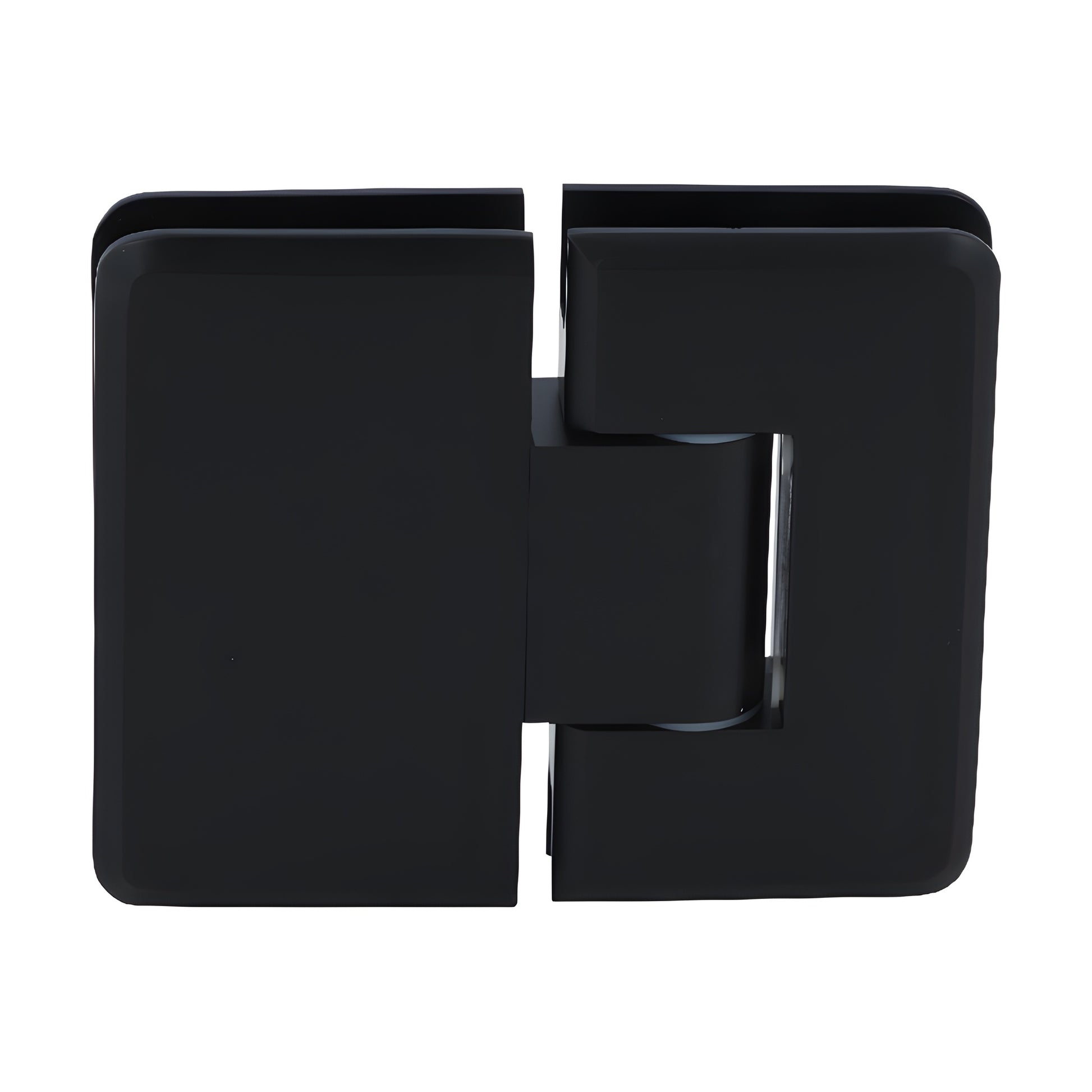

CRL Cologne 380 Oil Rubbed Bronze 180° Glass-to-Glass Adjustable Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes, including custom finishes on request
• Adjustable 180º glass-to-glass hinge — field-adjustable up to 90º after installation
• Use with monolithic tempered glass

The CRL Adjustable Cologne Series hinge (SKU C0L3800RB) upgrades the popular Cologne hinge with tool-free angle adjustment after hanging. Loosen the Allen set screws, rotate the door to the desired closed position, then retighten—the hinge self-centers when within 15º of the closed position. The door swings 90º inward and 90º outward at the factory-set position; adjusting the hinge angle will reduce swing in that direction. For outward-swing doors with a clear jamb, set the hinge to close 5º inside the shower for a snug closure against the jamb.

Load Capacity:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs. (50 kg), max door width 36" (914 mm).

Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs. (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Field-adjustable to any angle up to 90º without removing the door
Construction: Solid brass for long-lasting durability
Hinge Swings: 90º in and 90º out (at factory set position)
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting hinge angles. Call CRL Technical Sales for details.

Custom finishes are available on request by contacting CRL Technical Sales.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
