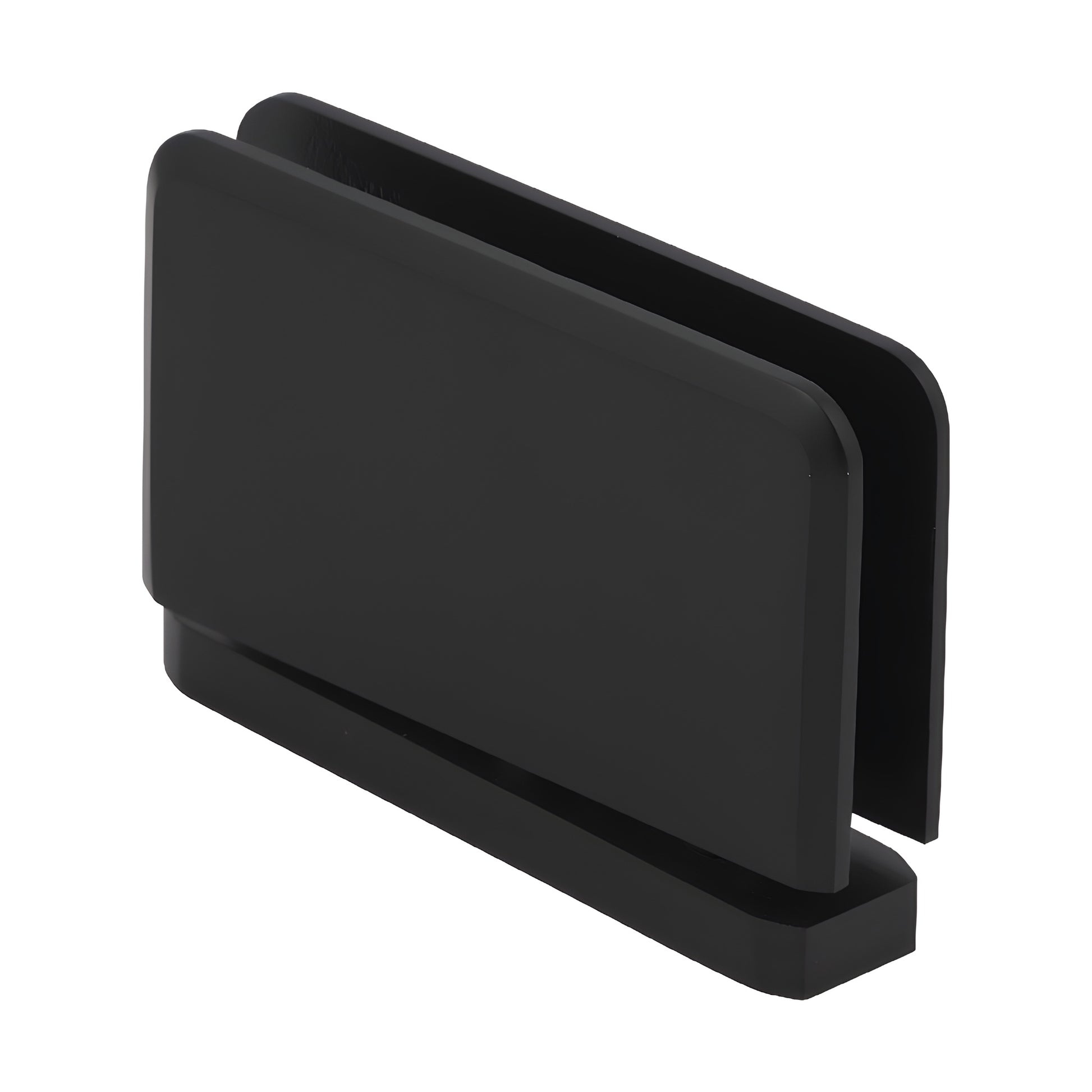

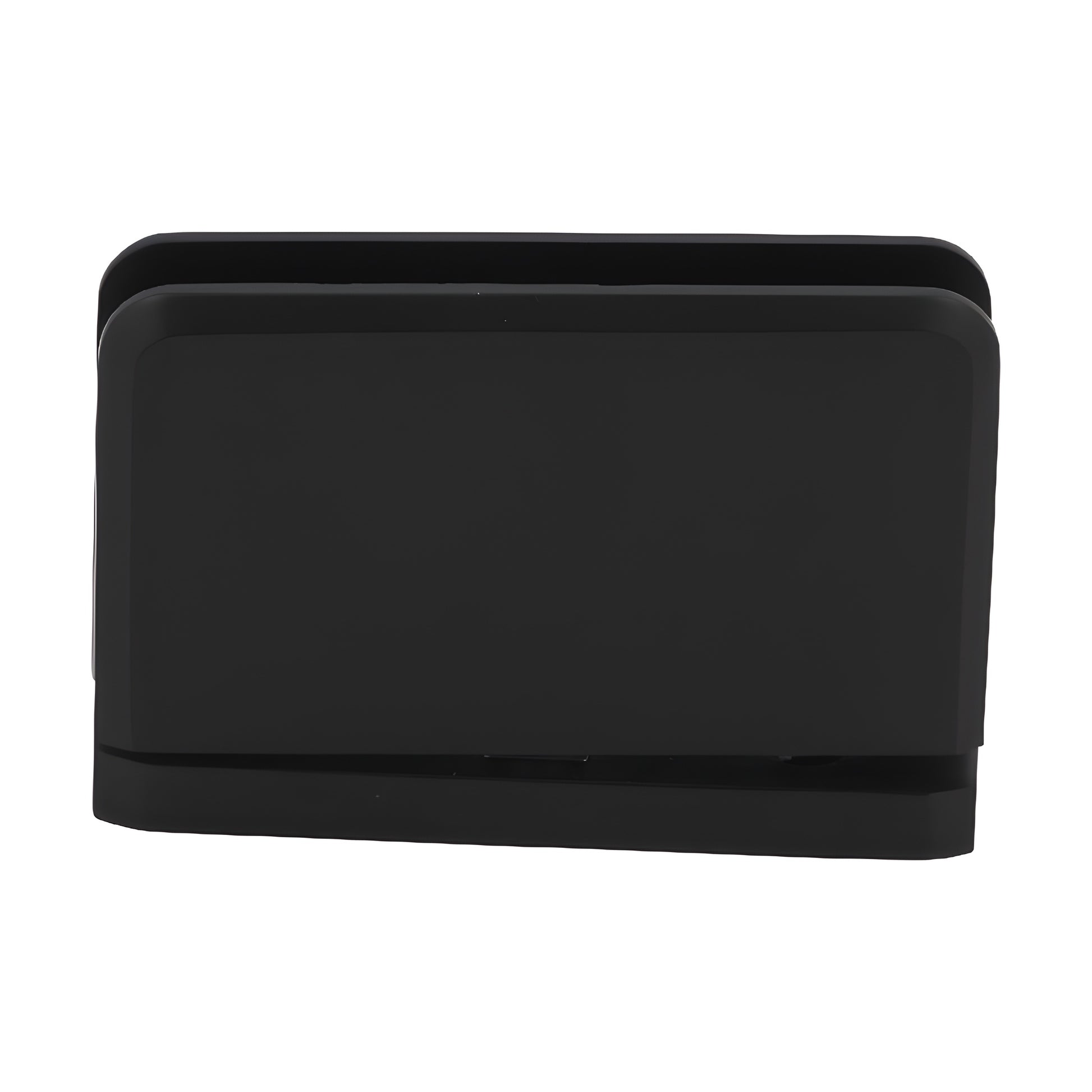

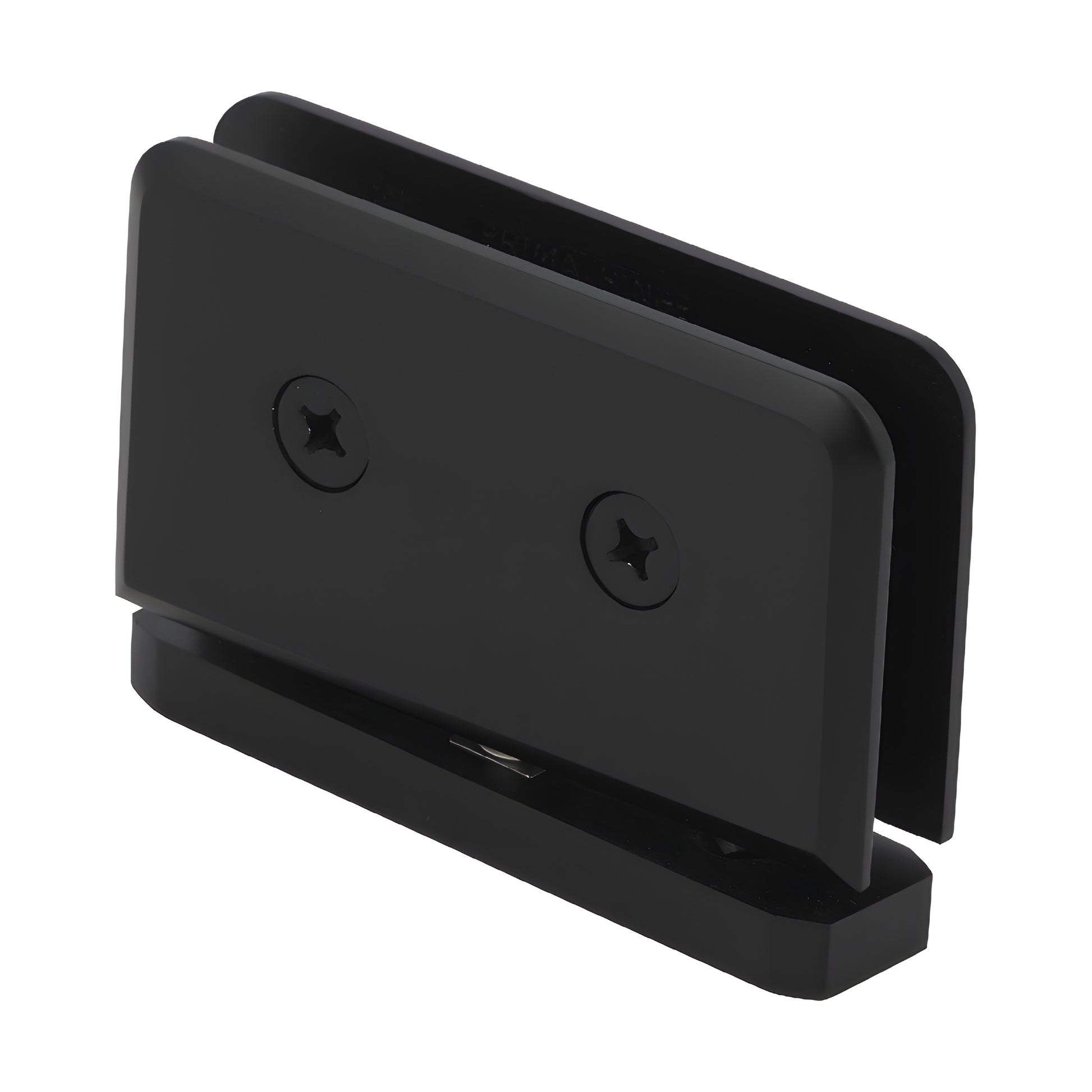

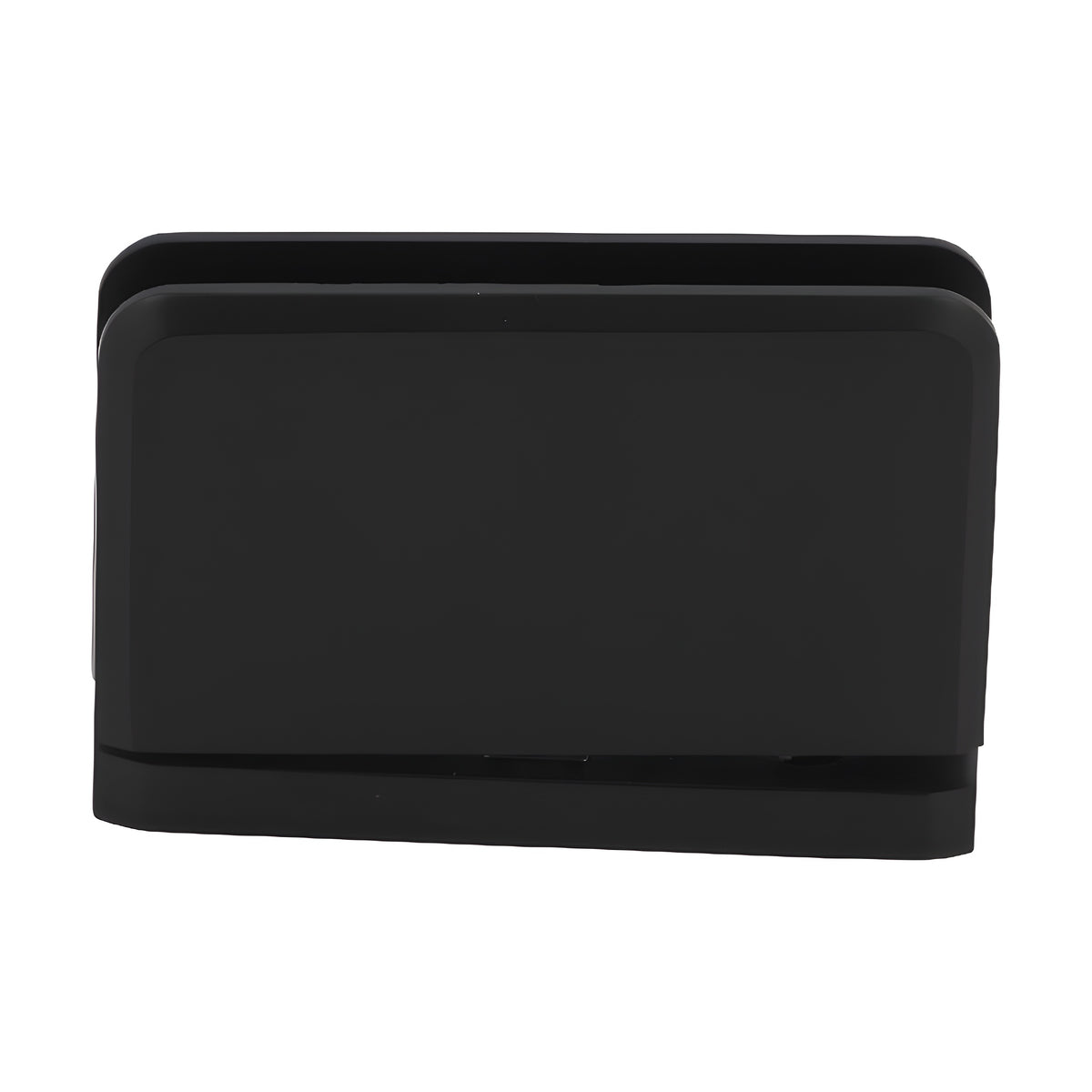

CRL Prima 01 Oil-Rubbed Bronze Door Hinge #2 Pin (Top Right/Bottom Left)

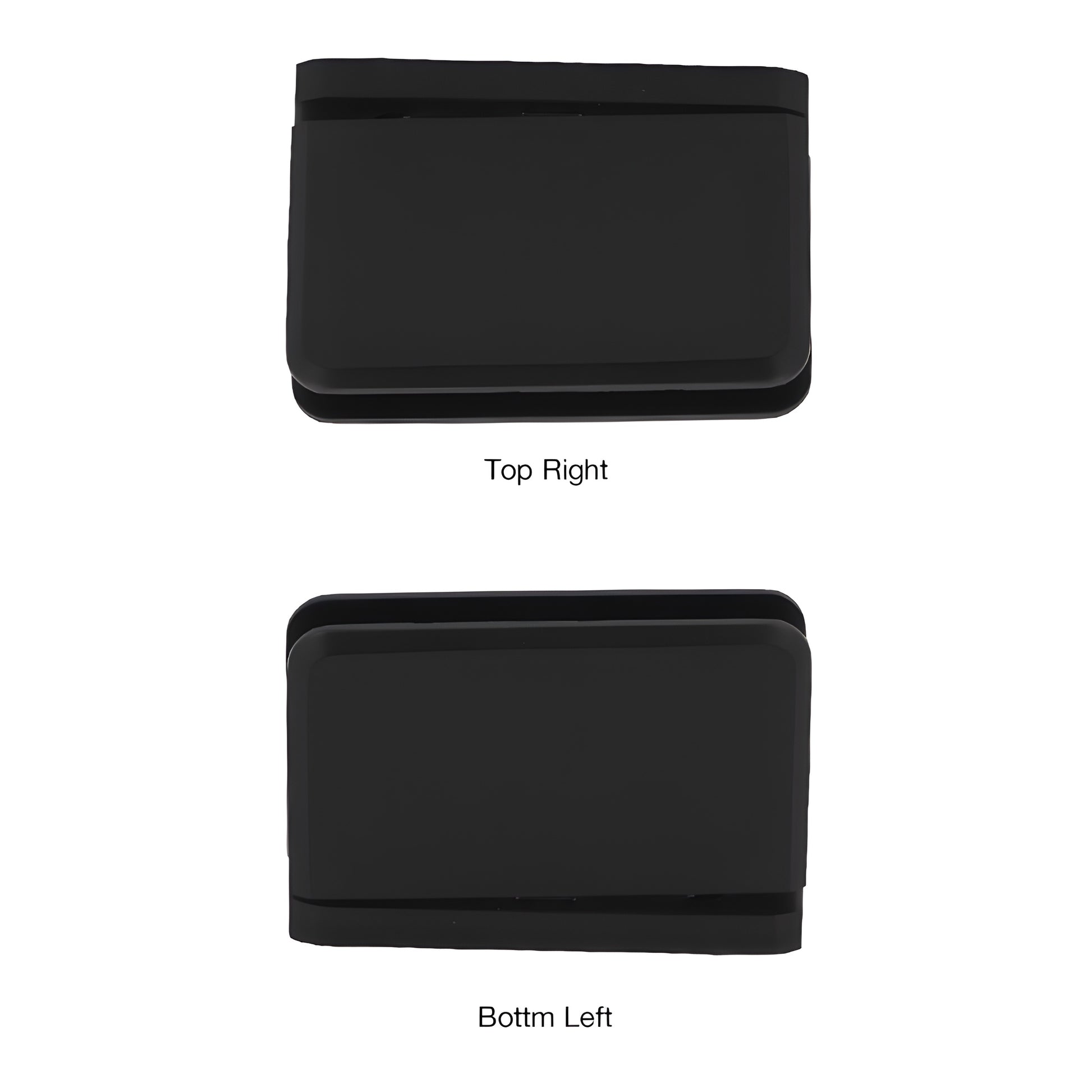

• Number Two Pivot Pin Model for mounting at top right or bottom left of door (viewed from outside)
• Available in several beautiful finishes; custom finishes available on request
• 3 Year Warranty
• Use with monolithic tempered glass
• U.S. Patent 5,297,313

CRL Prima 5° Pre-Set Hinges (SKU: PPH01520RB) are engineered for tempered safety glass 5/16" (8 mm) to 3/8" (10 mm) thick. These 5 degree pre-set shower door hinges require both a Number One and a Number Two pivot pin hinge per door—one installed at the top and one at the bottom—to achieve the designed performance. The Number One pivot pin fits top left or bottom right; the Number Two pivot pin fits top right or bottom left. The 5° pivot offset lets the door close an additional 5° into the enclosure, helpful for sealing tightly against a strike jamb. Mounts to floor and ceiling or into CRL Deluxe Header System.

Using two hinges: with 5/16" to 3/8" glass (8–10 mm) the hinges will support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

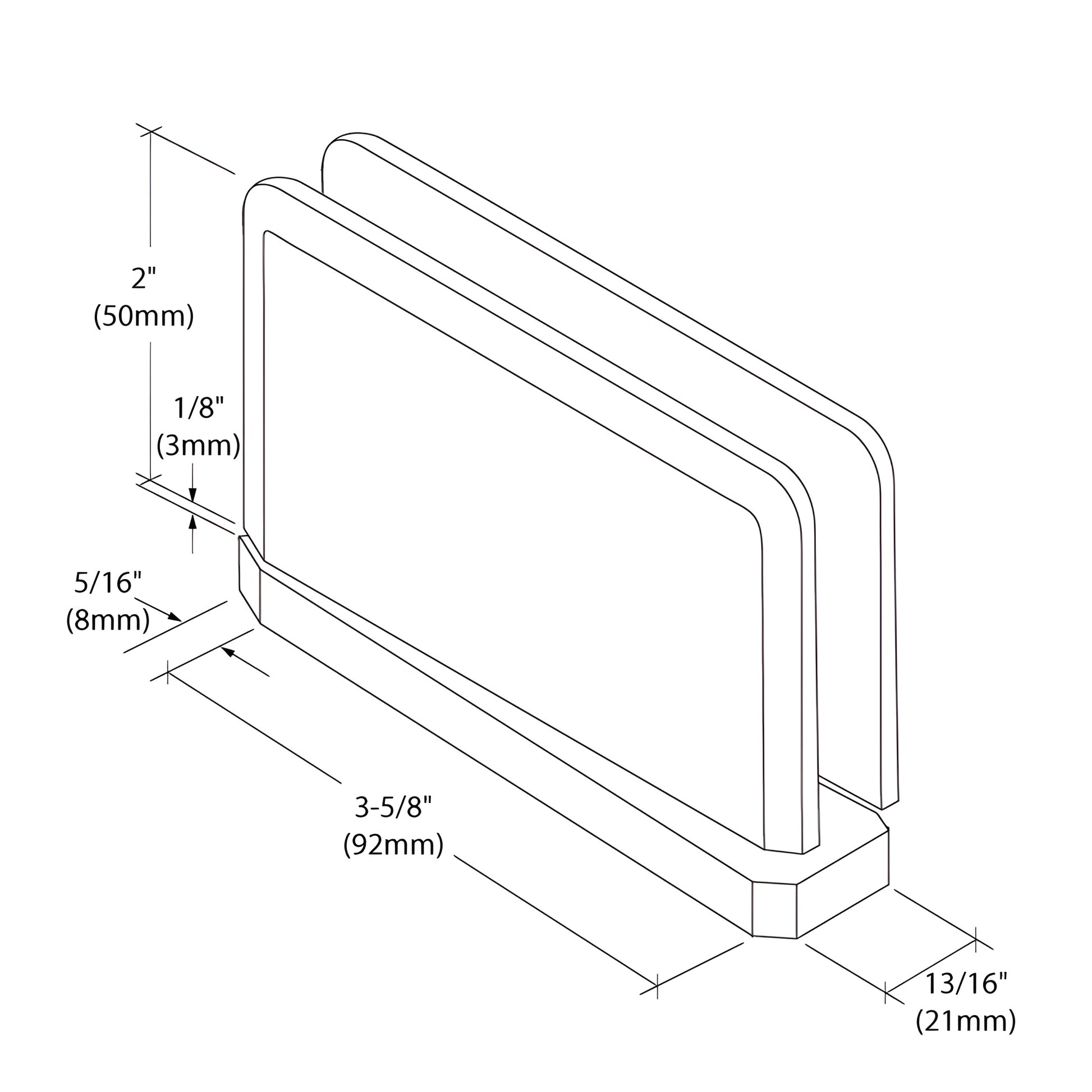

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Pre-set 5° pivot pin for improved shower door closure; ideal for frameless glass shower door installations
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
This hinge series is patented (Patent No. 5,297,313).

*ORDERING TIP: Order one Number One Pivot Pin model and one Number Two Pivot Pin model per door.

Contact the CRL Technical Sales Shower Door Department for custom finishes or questions about installation.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.
