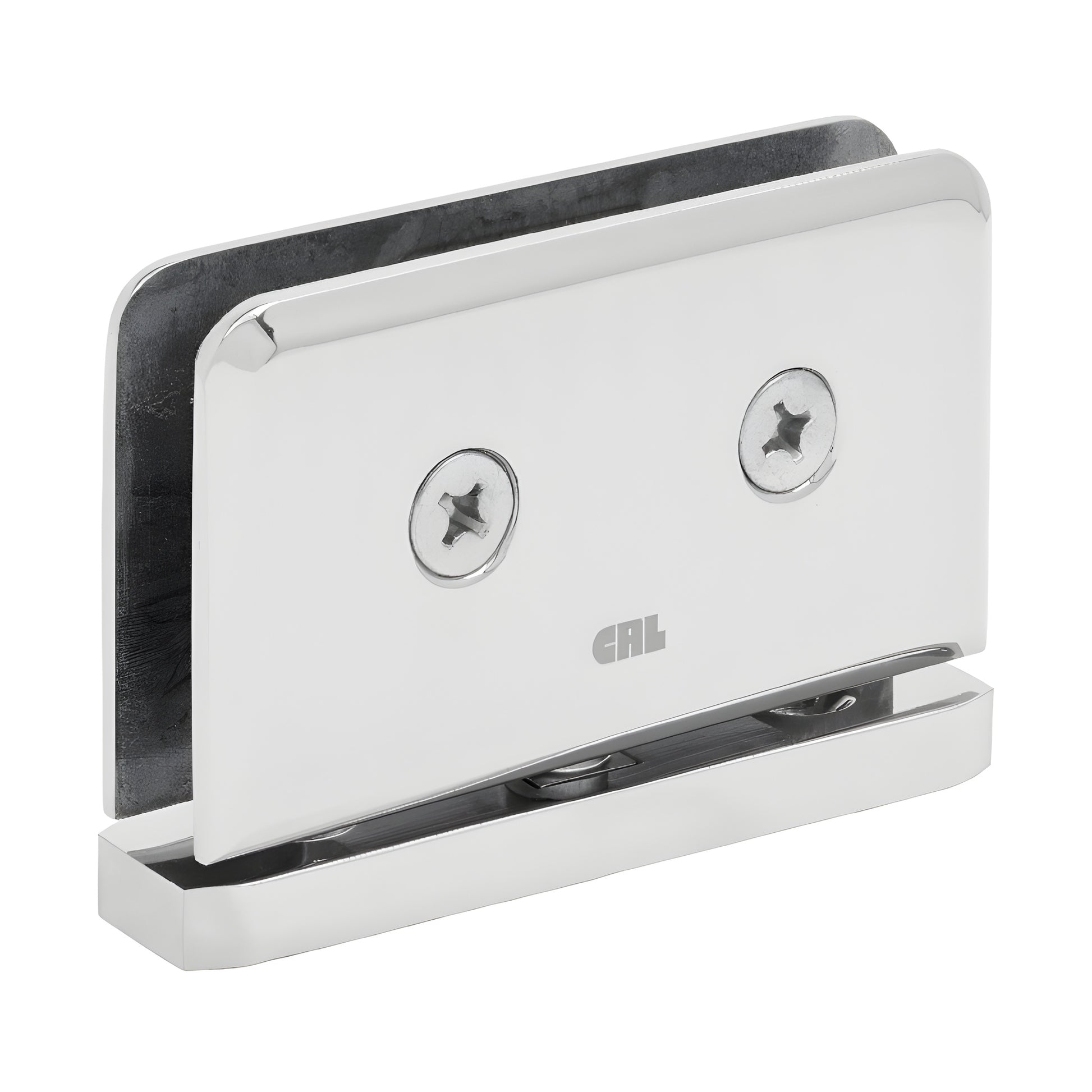

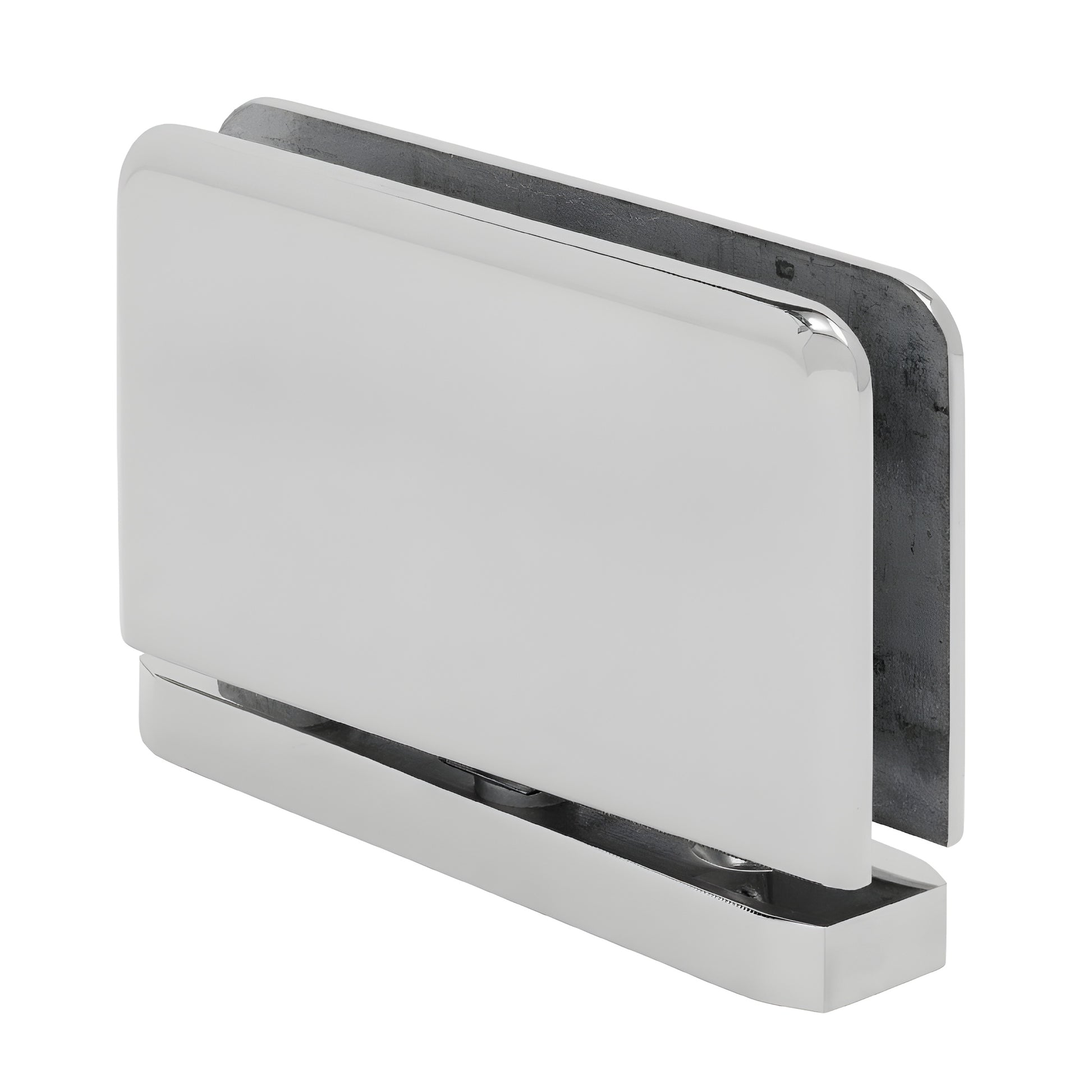

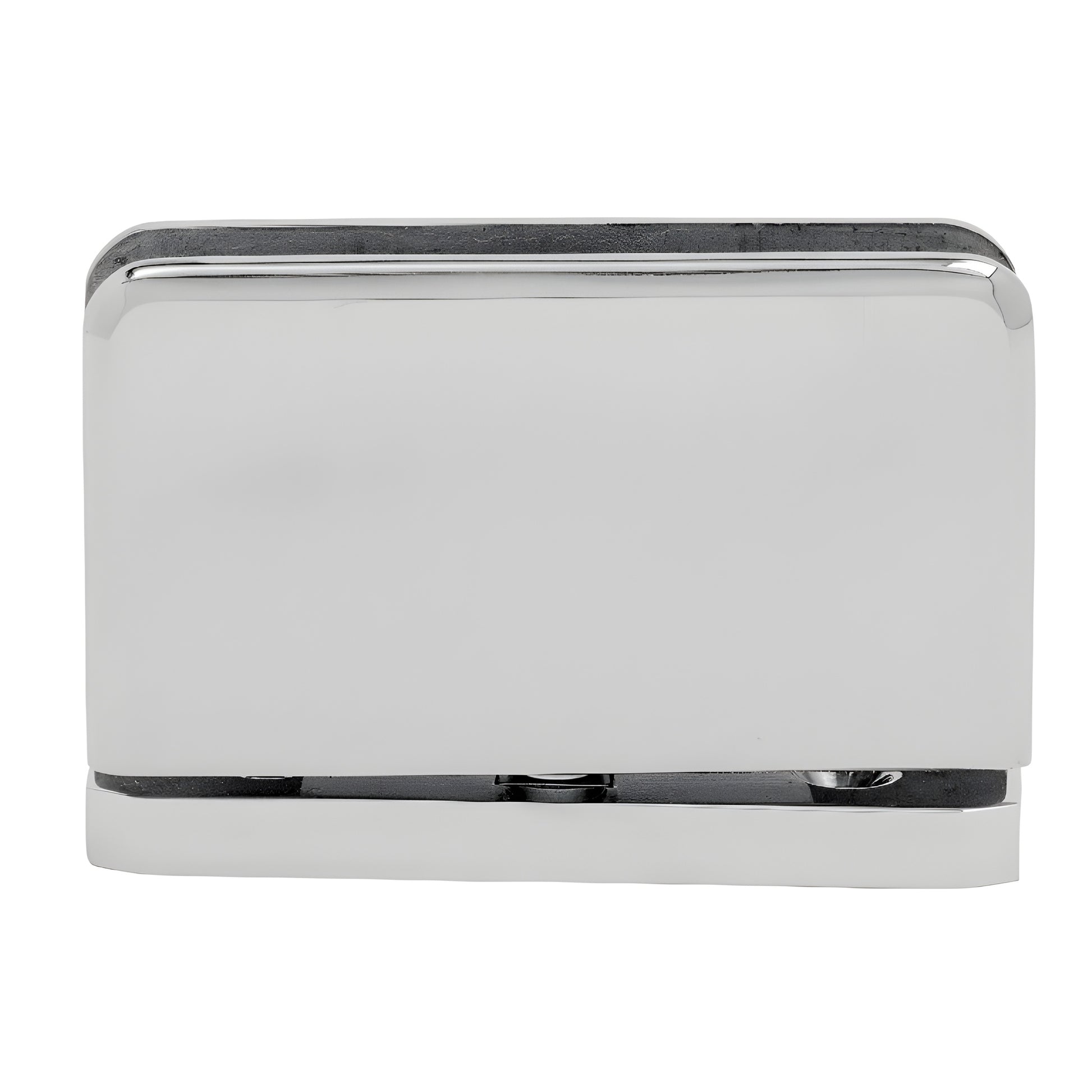

CRL Prima 01 Polished Chrome 2-Pin Top Right/Bottom Left Hinge
Item# PPH0152CH
Shipping Weight: 1.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
5 Degree Pre-Set
Yes
Edge Profile
Beveled
Finish/Color
Polished Chrome
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)

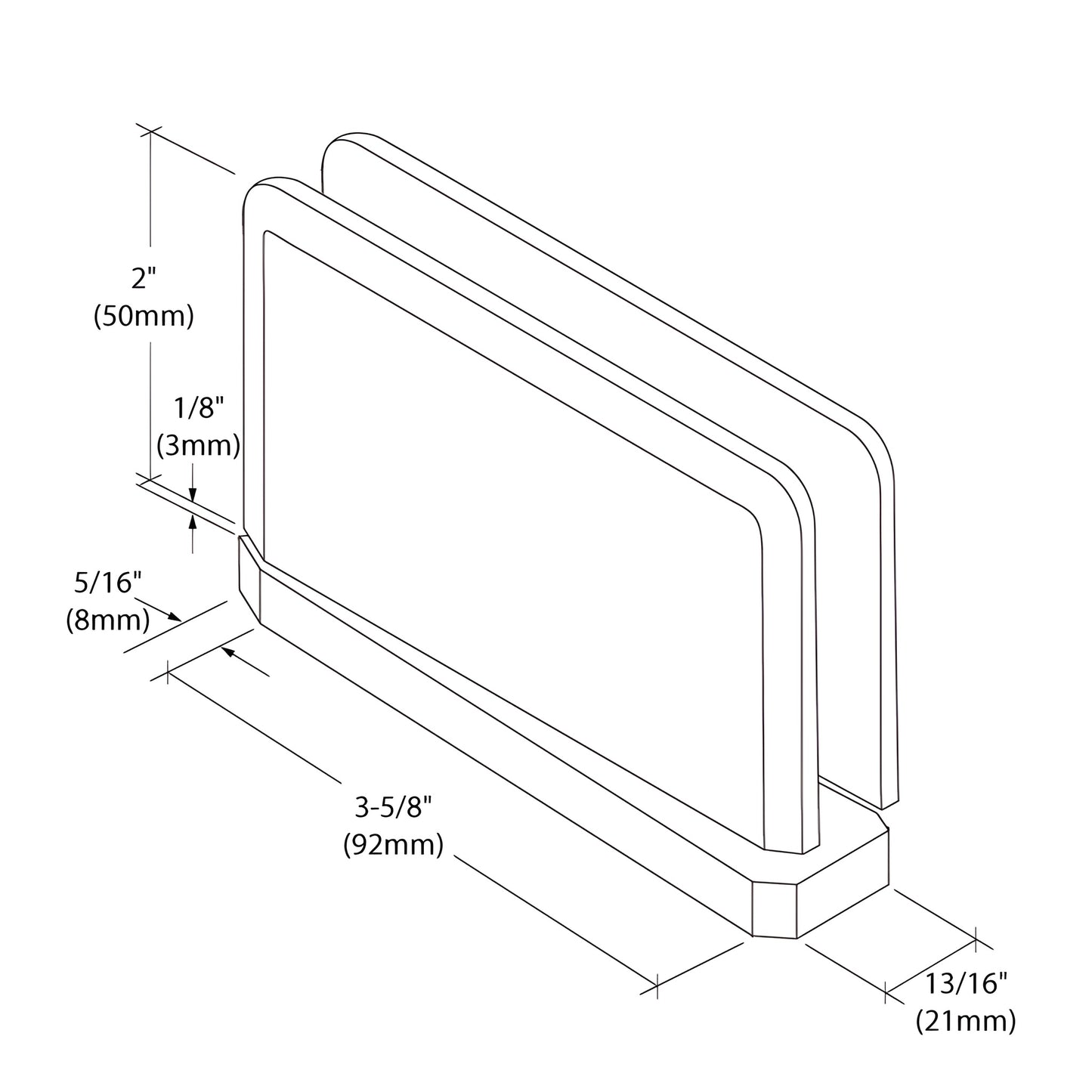

Height
2 in. (51 mm)
Material
Brass
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Weight - 2 Hinges
100
Maximum Door Width
31 in. (787 mm)
Mounting Type
Head & Sill Mount
Self-Centering
Yes
Series
Prima
Width
3-5/8 in. (92 mm)

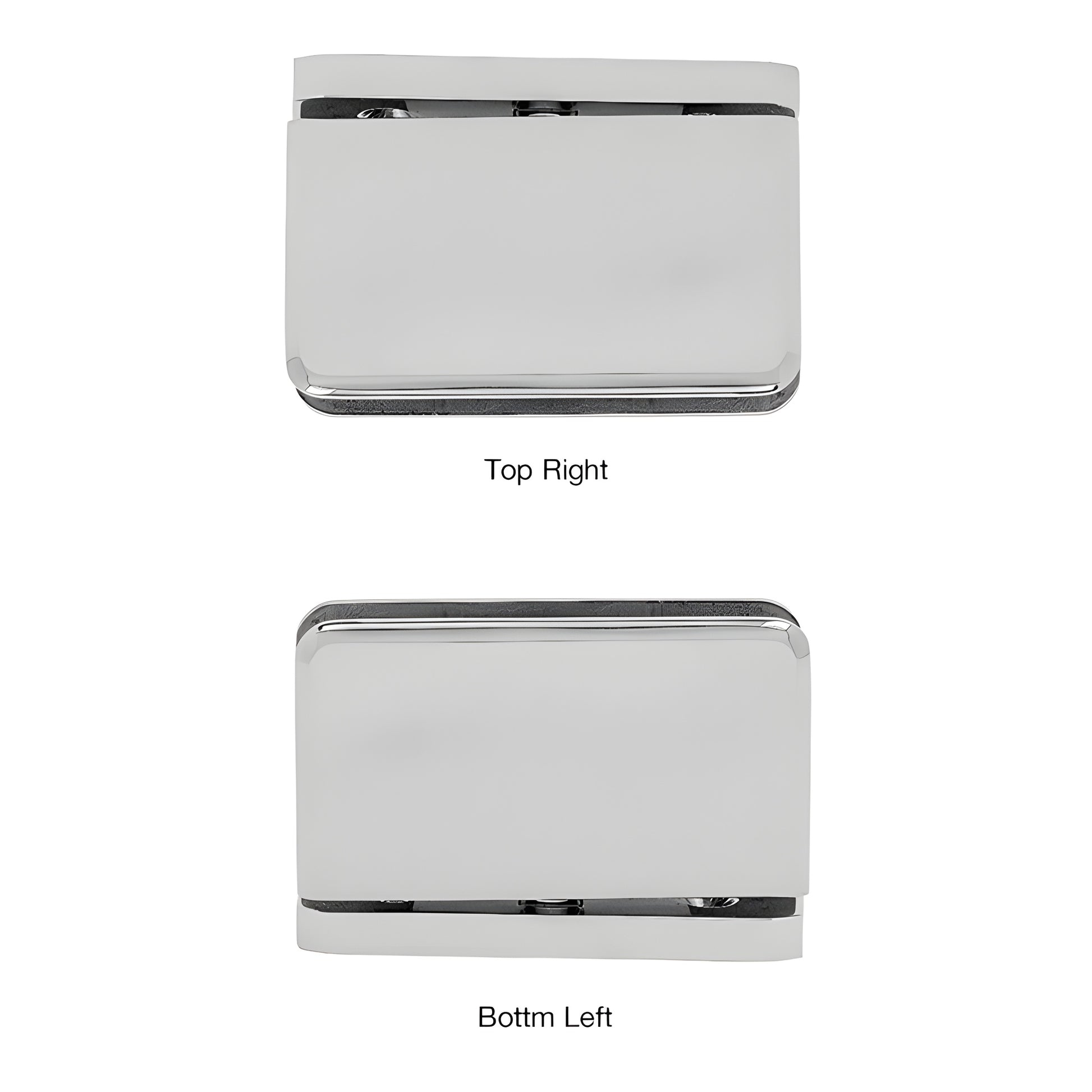

- Number Two Pivot Pin model for mounting at top right or bottom left of door (viewed from outside)
- Available in several beautiful finishes; custom finishes available on request
- 3 year warranty
- Designed for monolithic tempered safety glass
- U.S. Patent 5,297,313
CRL Prima 5° Pre-Set Hinges — engineered for tempered glass shower doors 5/16" (8 mm) to 3/8" (10 mm) thick. These 5 degree pre-set shower door hinges require two hinges per door: one Number One Pivot Pin and one Number Two Pivot Pin. The Number One model mounts top left or bottom right; the Number Two model (this SKU: PPH0152CH) mounts top right or bottom left. The 5° pivot pin lets the door close an extra 5 degrees into the enclosure for a tighter seal against a strike jamb. Can be mounted floor-to-ceiling or used with CRL Deluxe Header System.
Key benefits
- Supports up to 100 lbs (45 kg) with two hinges — suitable for shower doors up to 31" (787 mm) wide
- Solid brass construction for long-lasting corrosion resistance
- Full rotation hinge swing with self-centering closing within 15° of closed position
- Includes gaskets, screws, and glass fabrication dimensions; cut-out template required
Specifications
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Feature: Pre-set 5° pivot pin for improved closure in shower enclosures
Construction: Solid brass
Hinge Swing: Full rotation
Closing Type: Self-centering within 15°
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313
Ordering tip: Order one Number One Pivot Pin and one Number Two Pivot Pin per door. Use only the included cut-out template — cut-outs may not match other brands.
Usage & safety:
Designed for residential and hotel shower applications. For other uses, obtain approval from CRL Shower Door Technical Sales Department.
Most shipping weights are approximate. If exact weight or verified shipping costs are required, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
SKU: PPH0152CH
Upgrade your shower with durable, precision 5° pre-set hinges — order PPH0152CH or contact CRL Technical Sales for custom finishes and installation support.
