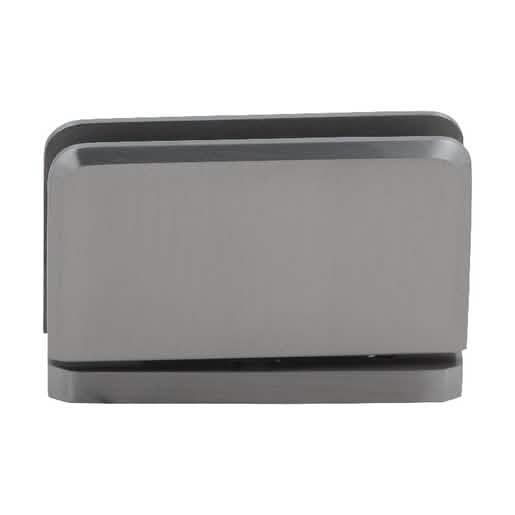

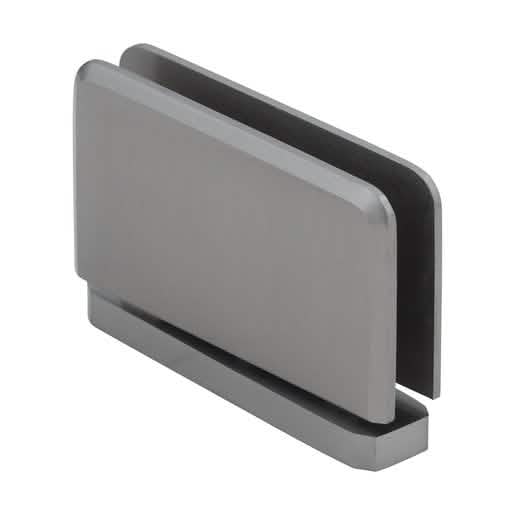

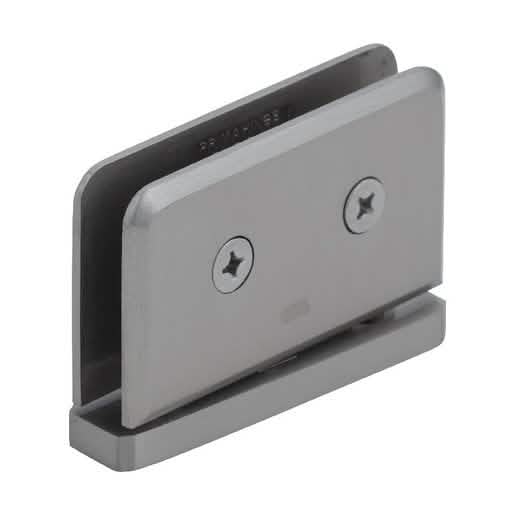

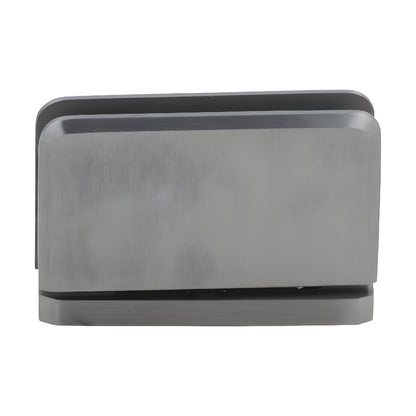

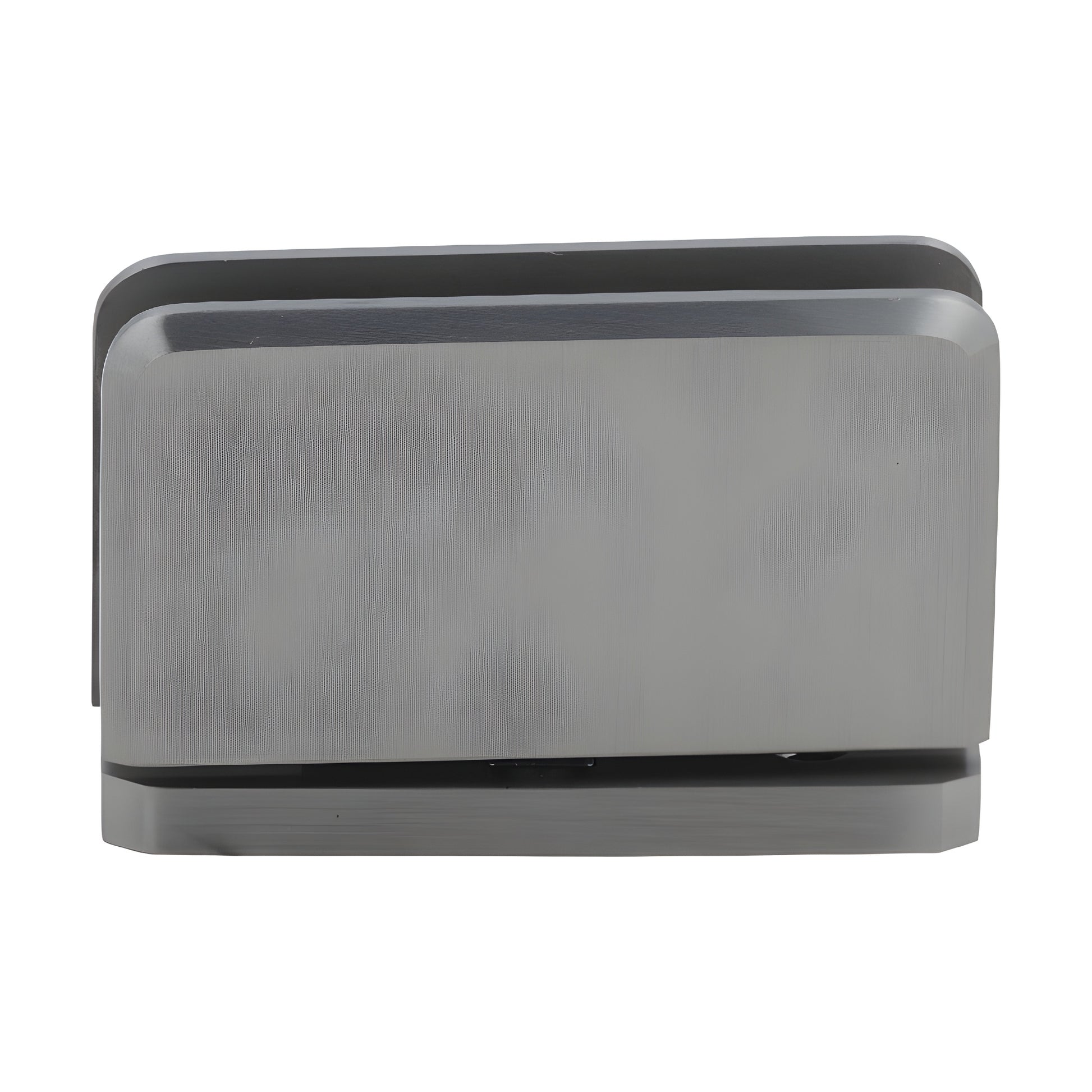

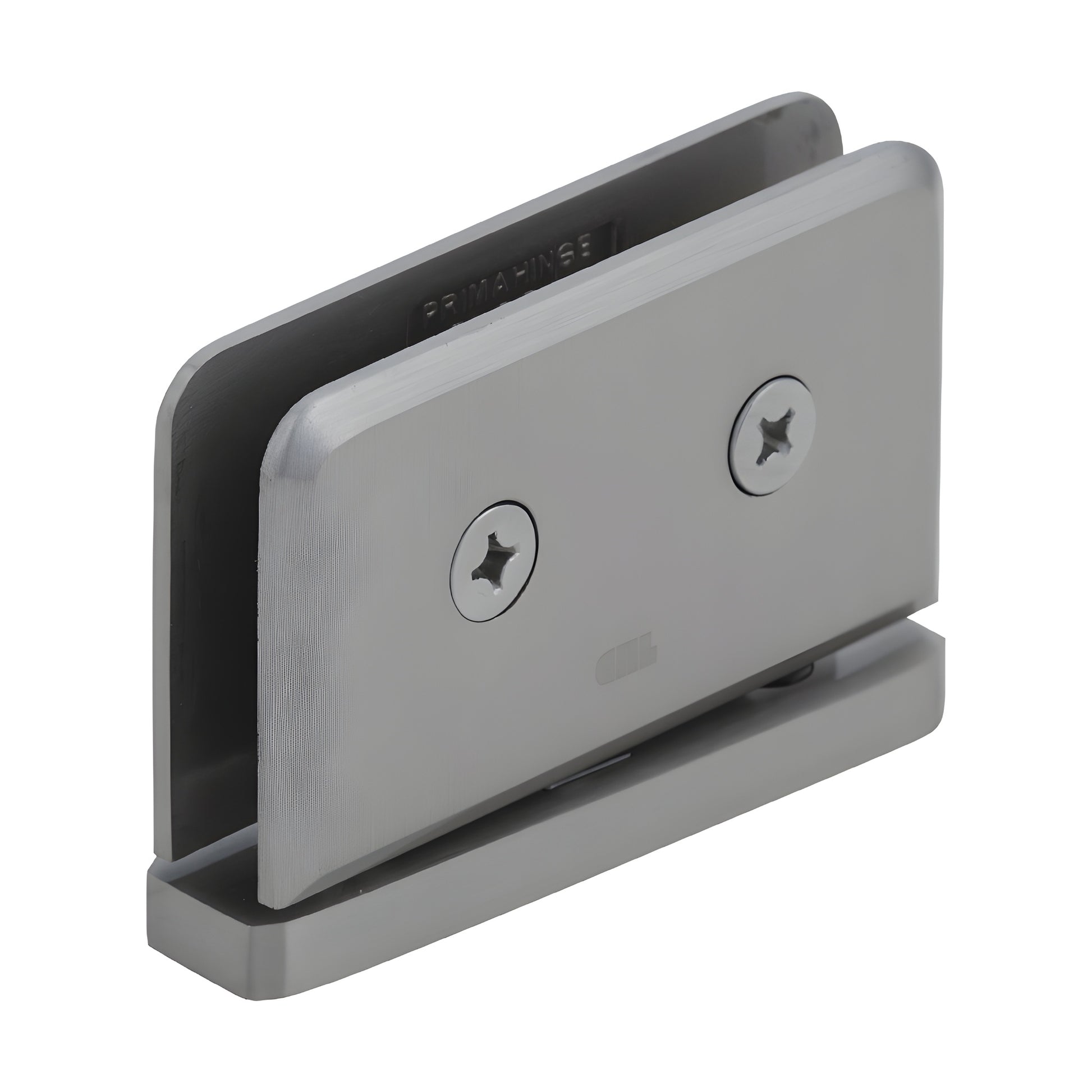

CRL Prima 01 Brushed Nickel #2 Pin Glass Door Hinge Top R/Bottom L

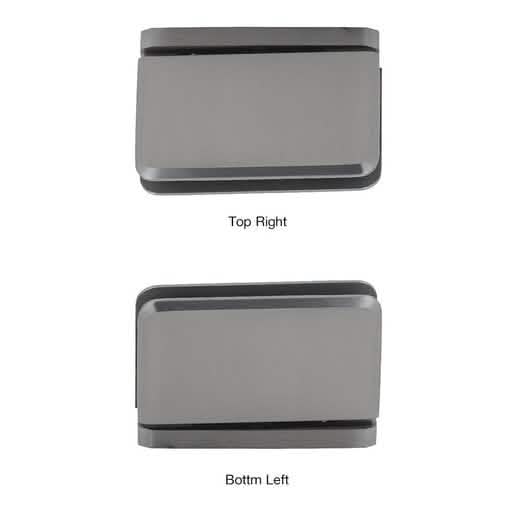

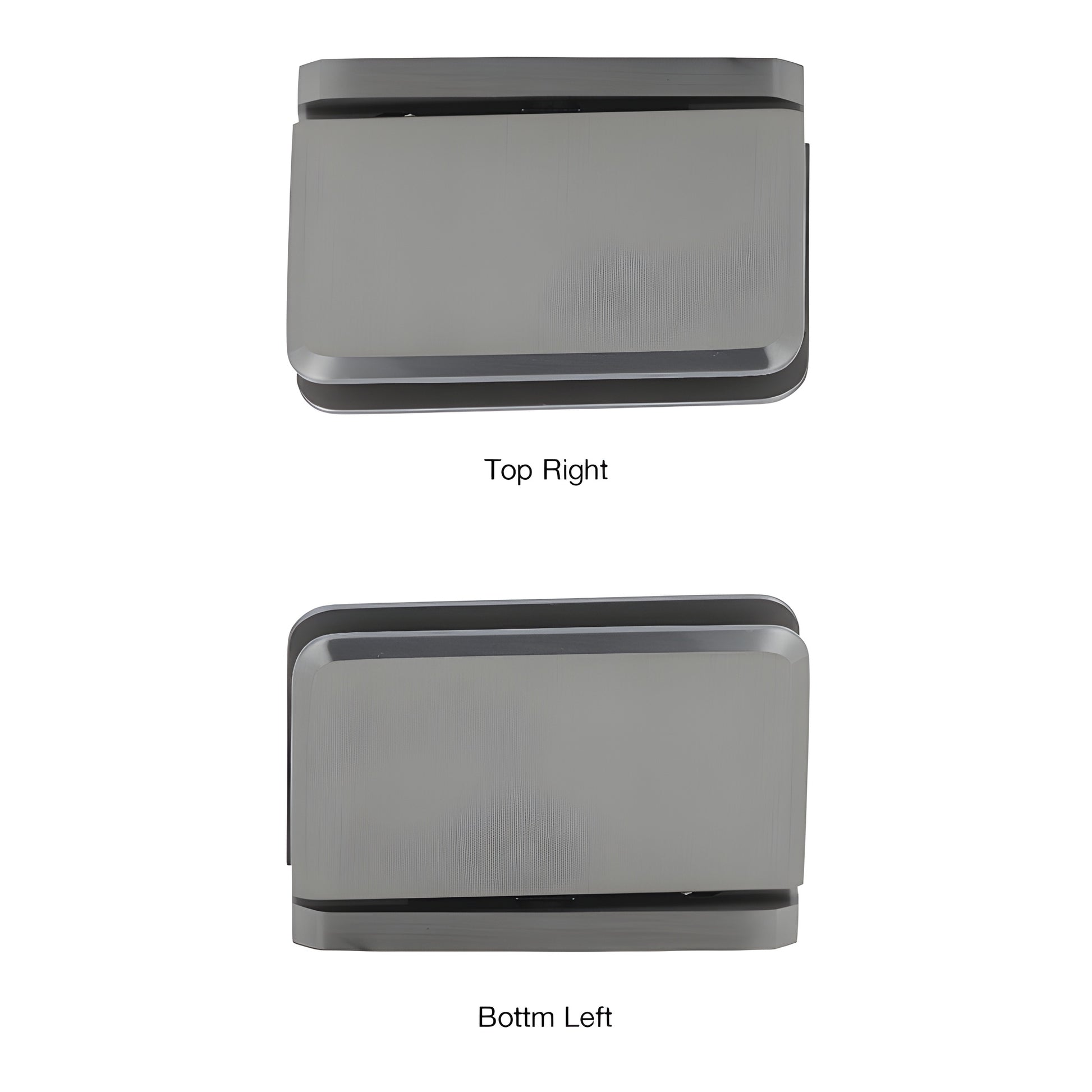

• Number Two Pivot Pin Model for mounting at top right or bottom left of door (viewed from outside)
• Available in several beautiful finishes; custom finishes available on request
• 3 Year Warranty
• Use with monolithic tempered safety glass
• U.S. Patent 5,297,313

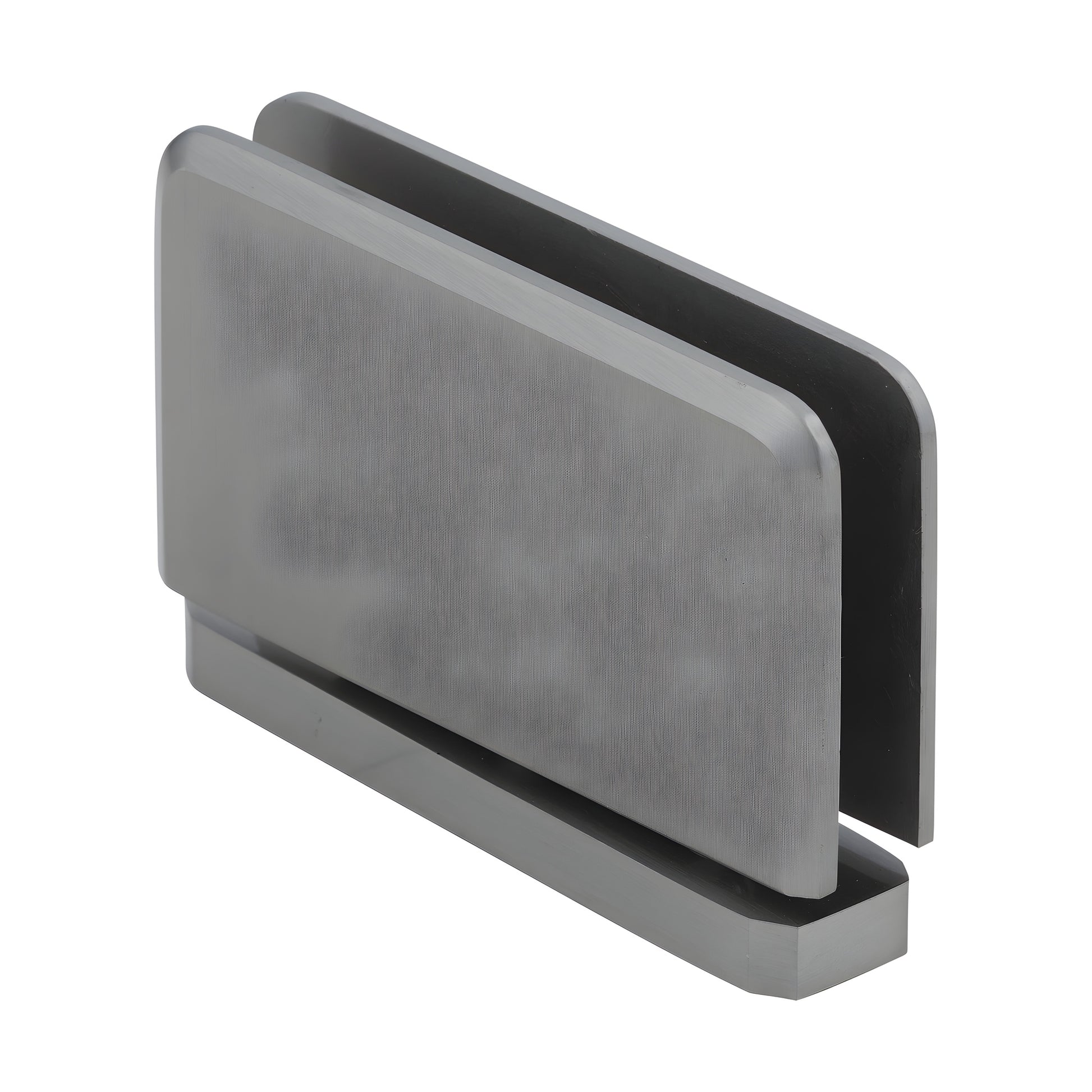

CRL Prima 5° Pre-Set Hinges (SKU: PPH0152BN) are engineered for glass shower doors using 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. These 5 degree pre-set shower door hinges require two hinges per opening: one Number One Pivot Pin (top left or bottom right) and one Number Two Pivot Pin (top right or bottom left). The 5° pivot pin lets the door close 5° further into the enclosure—ideal for tight seals against a strike jamb. Mountable to floor and ceiling or into CRL’s Deluxe Header System.

Performance: Using two hinges with 5/16"–3/8" (8–10 mm) glass, each hinge system supports up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

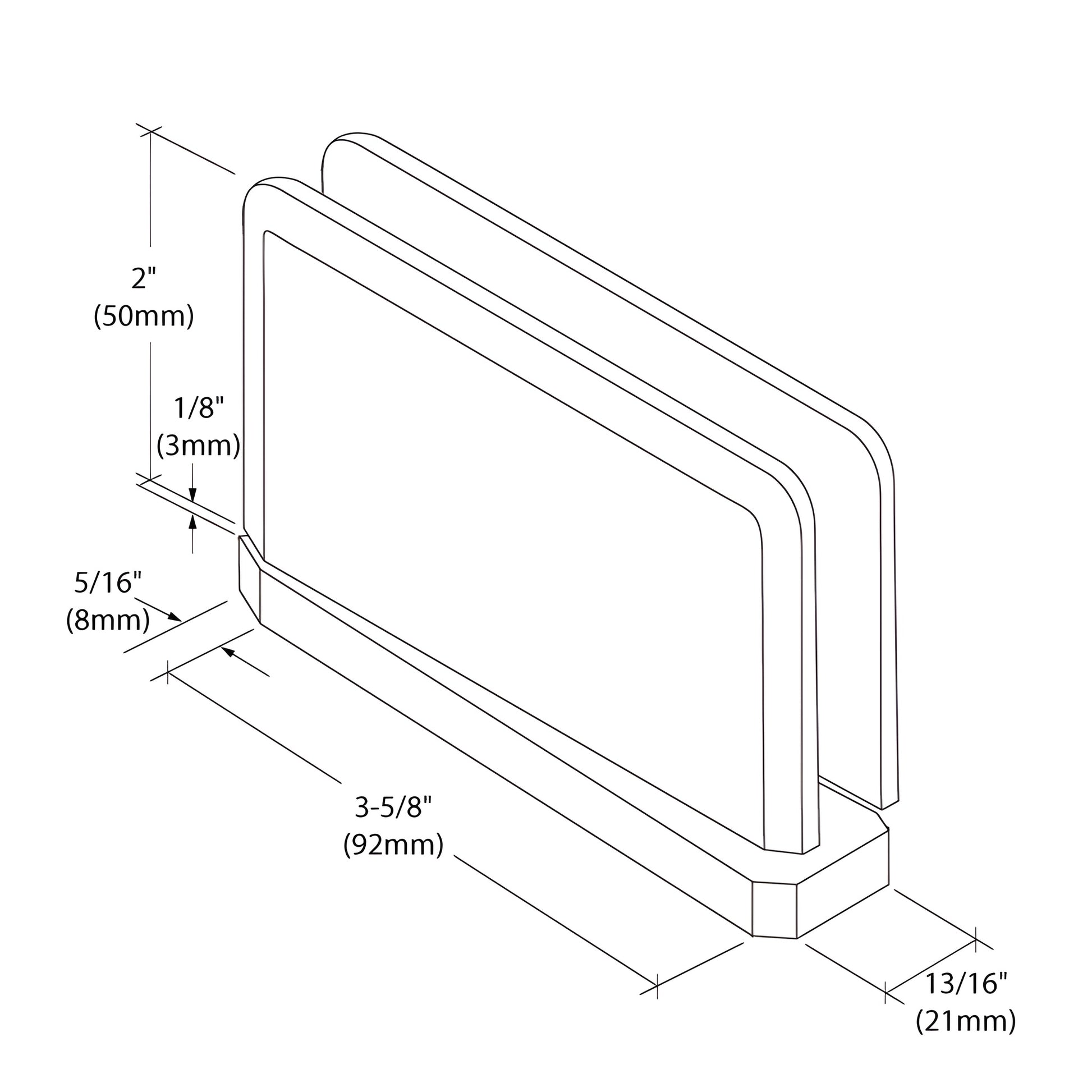

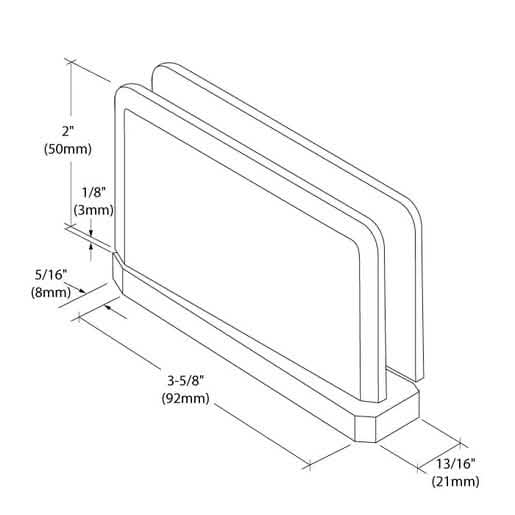

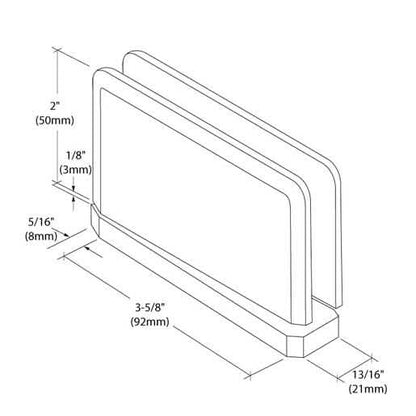

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Pre-set 5° pivot pin for enhanced closing into shower enclosure (see ordering tip)
Construction: Solid brass for corrosion resistance and durability
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out: Cut-out required; use the included template
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

*ORDERING TIP: Order one Number One Pivot Pin model and one Number Two Pivot Pin model per door to ensure correct top/bottom orientation.

Contact the CRL Technical Sales Shower Door Department for custom finishes or application approval.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
