CRL
CRL P7 36 in Polished Stainless Railing End Post Kit - No Fittings
CRL P7 36 in Polished Stainless Railing End Post Kit - No Fittings
Regular price
$1,114.96 CAD
Regular price
Sale price
$1,114.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F36EPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder coat finishes available

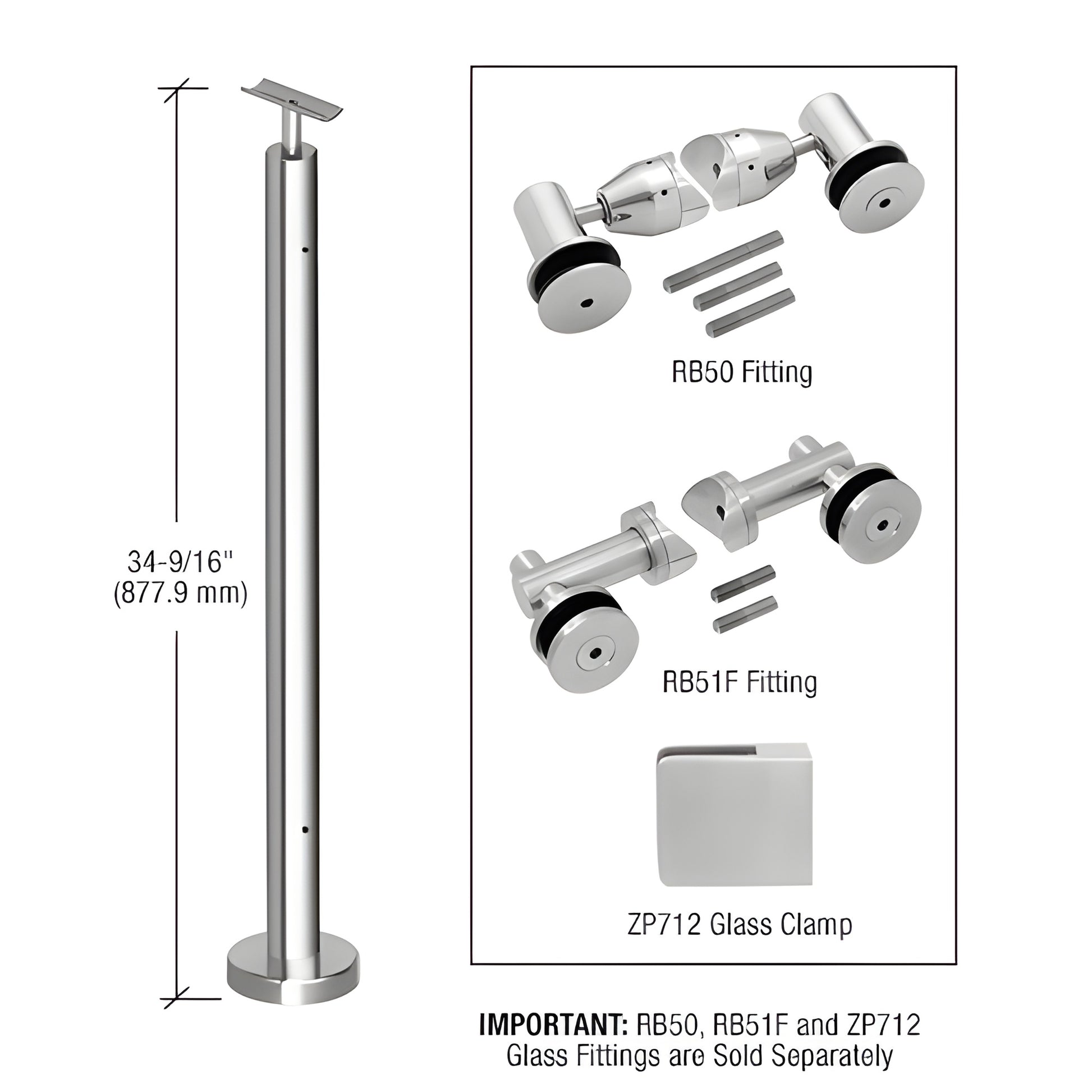

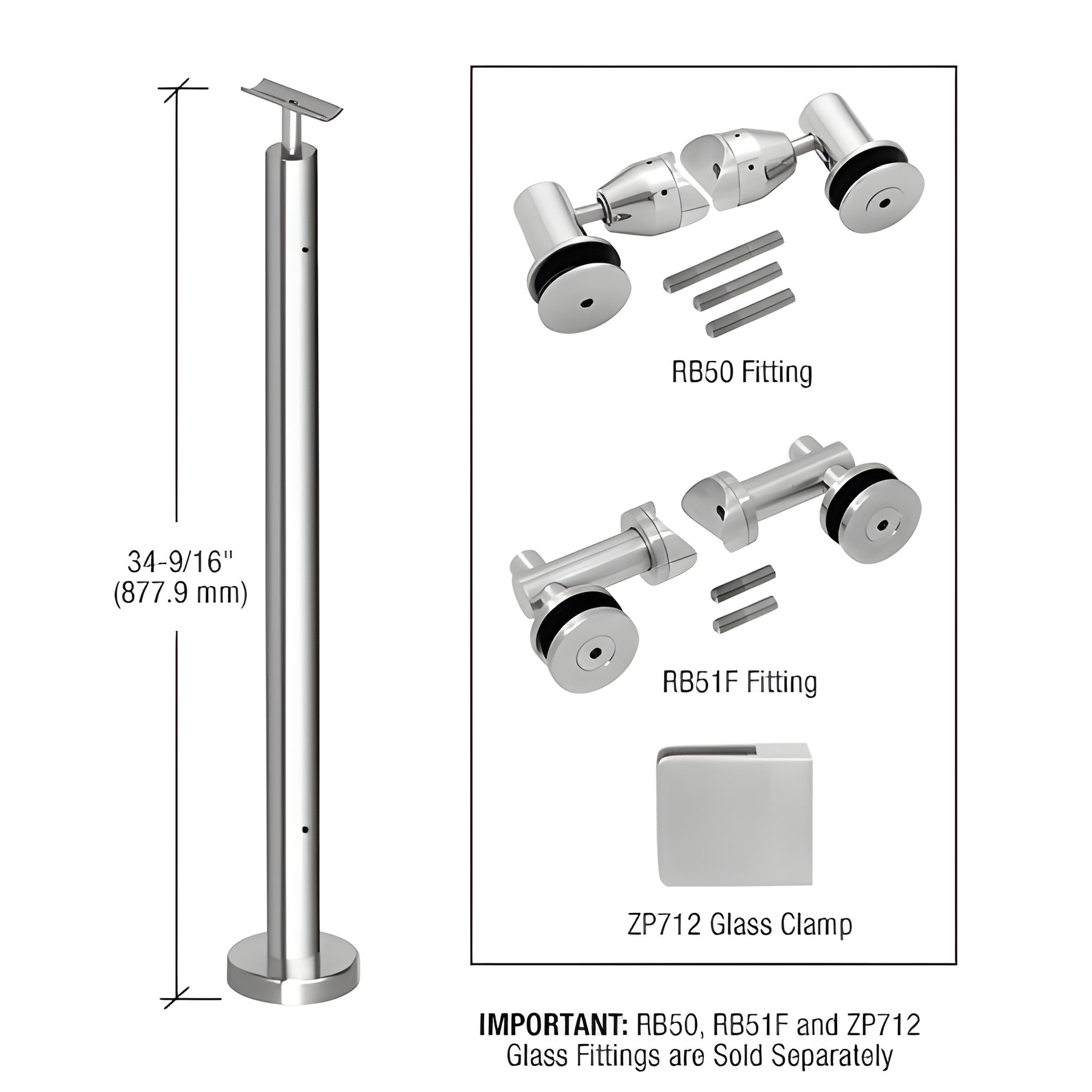

CRL Surface Mounted Post Railing Kits (SKU: P7F36EPS) are manufactured from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and are designed for guard rail and handrail applications, including glass railing systems. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 handrail tubing. Each kit is supplied complete with a base plate, base cover flange, and welded top saddle. For top rail attachment screws specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; those must be purchased separately.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Order CRL surface mounted post railing kits (SKU P7F36EPS) for durable stainless steel post solutions for glass railings and handrail systems — contact CRL Customer Service to confirm finishes, custom heights, or to order glass attachment fittings.
