CRL P7 Brushed Stainless 36" End Post Kit Glass Railing - No Fittings
CRL P7 Brushed Stainless 36" End Post Kit Glass Railing - No Fittings
Regular price
$1,011.12 CAD
Regular price
Sale price
$1,011.12 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F36EBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder coat finishes available

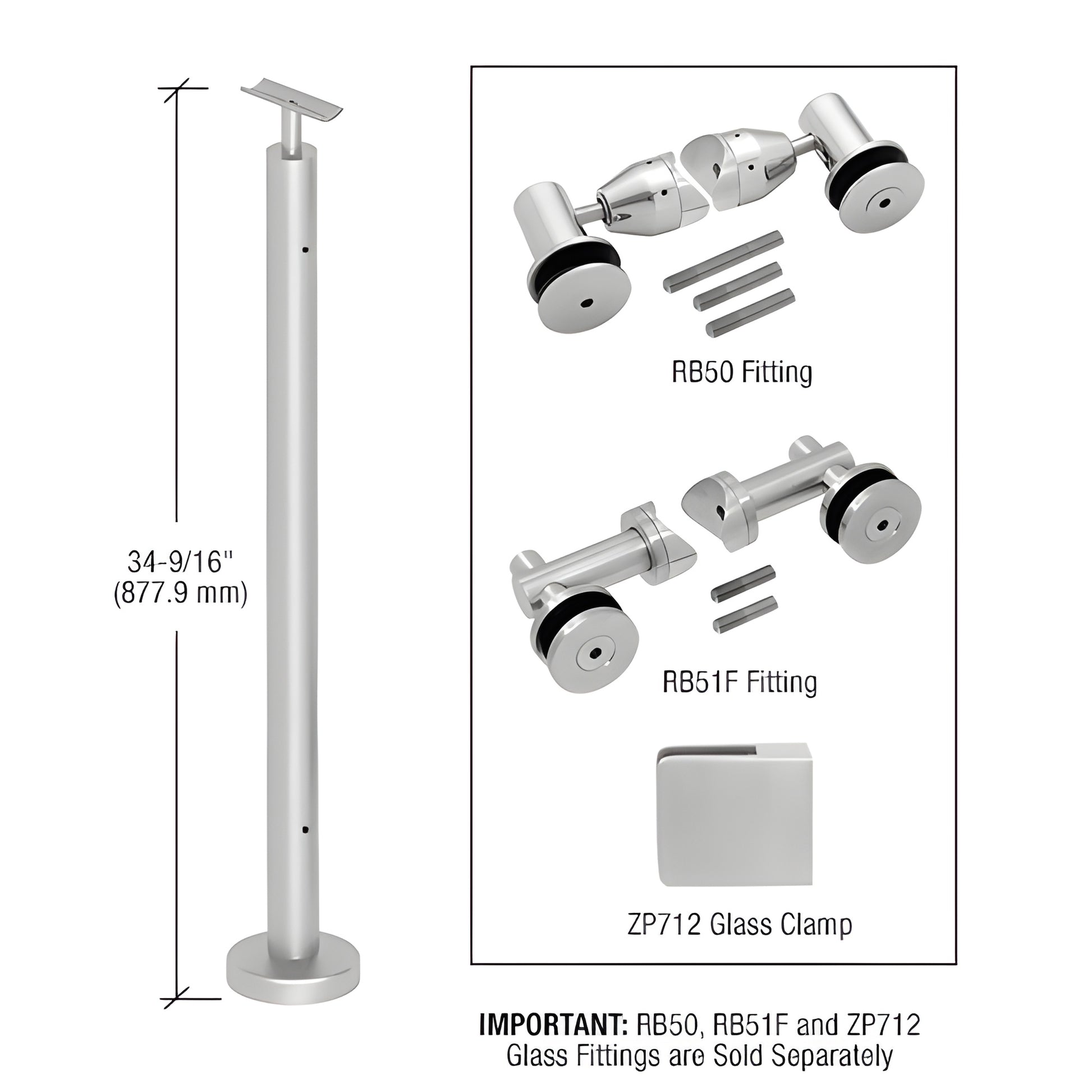

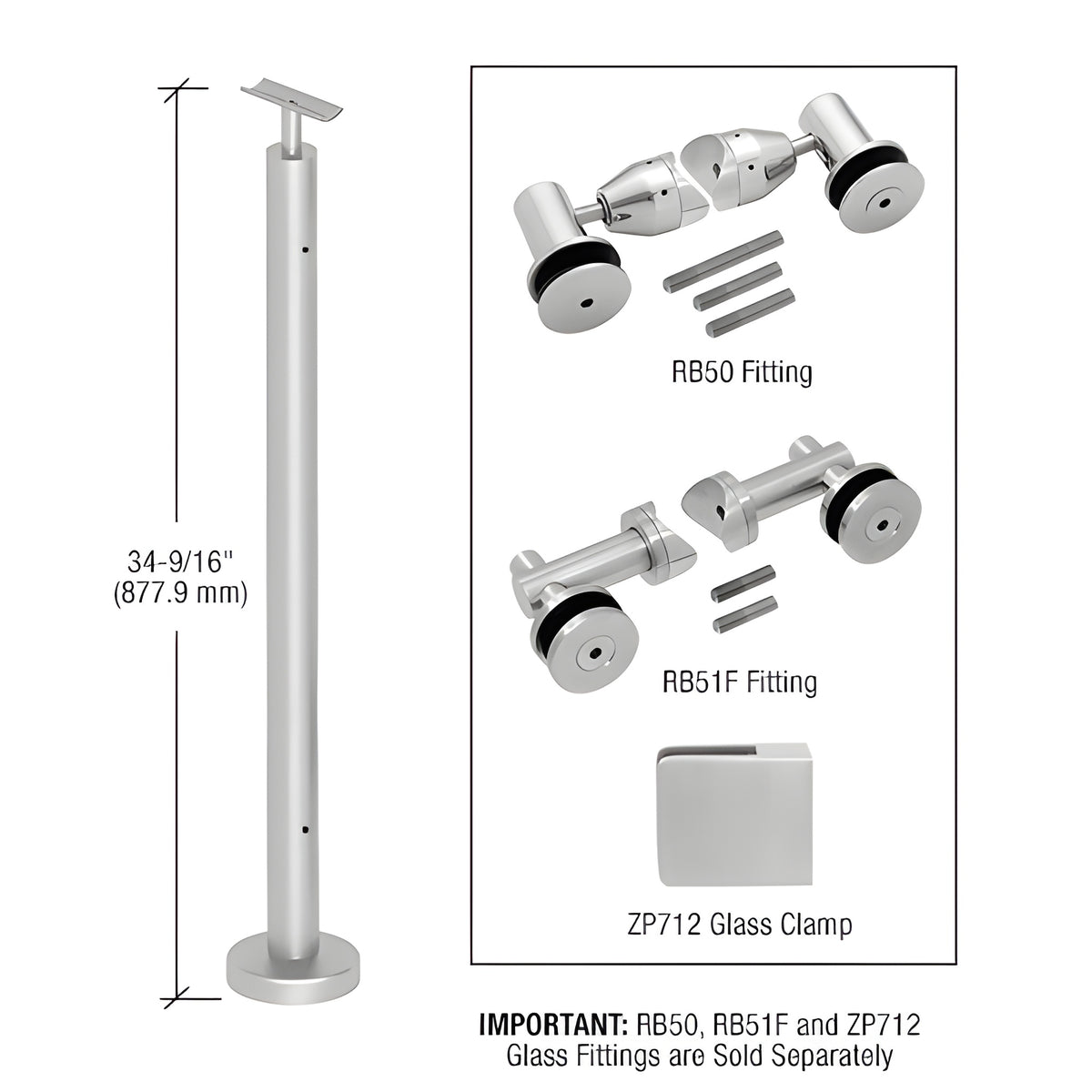

CRL Surface Mounted Stainless Steel Post Railing Kits (SKU: P7F36EBS) are manufactured from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing for guard rail and handrail applications. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 handrail tubing. Kits include a base plate, base cover flange, and welded top saddle. For top rail attachment screws, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack). These surface mounted stainless post railing kits are ideal for stair and balcony glass railing systems requiring durable, code-compliant posts.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care details.
Need help specifying fittings or custom finishes for SKU P7F36EBS? Contact CRL Customer Service to get a quote and place your order.
