CRL P7 36in Brushed SS 180° Center Post Railing Kit (No Fittings)
CRL P7 36in Brushed SS 180° Center Post Railing Kit (No Fittings)
Regular price
$1,178.55 CAD
Regular price
Sale price
$1,178.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F36CBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights available
- Two standard stainless finishes; custom powder coat finishes available

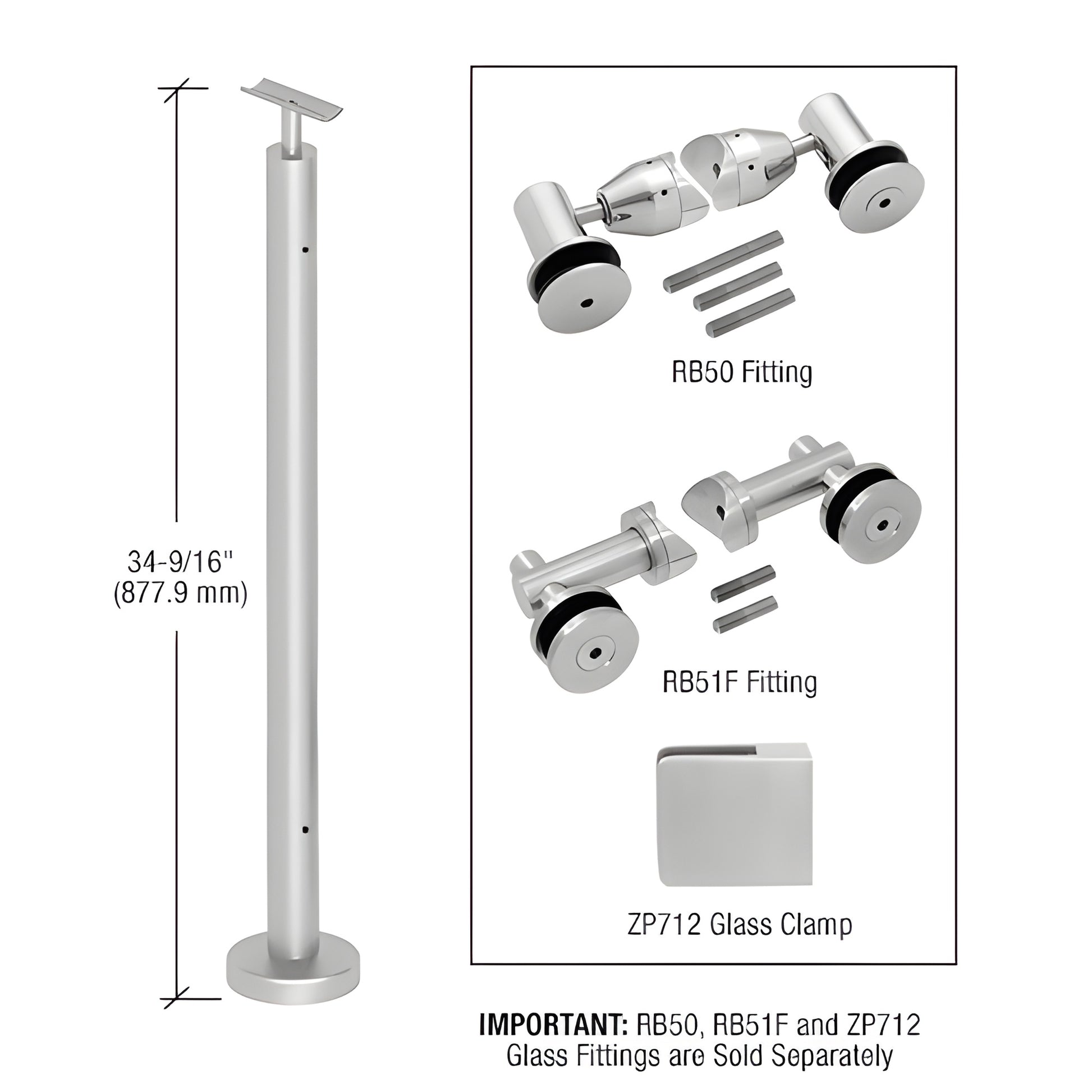

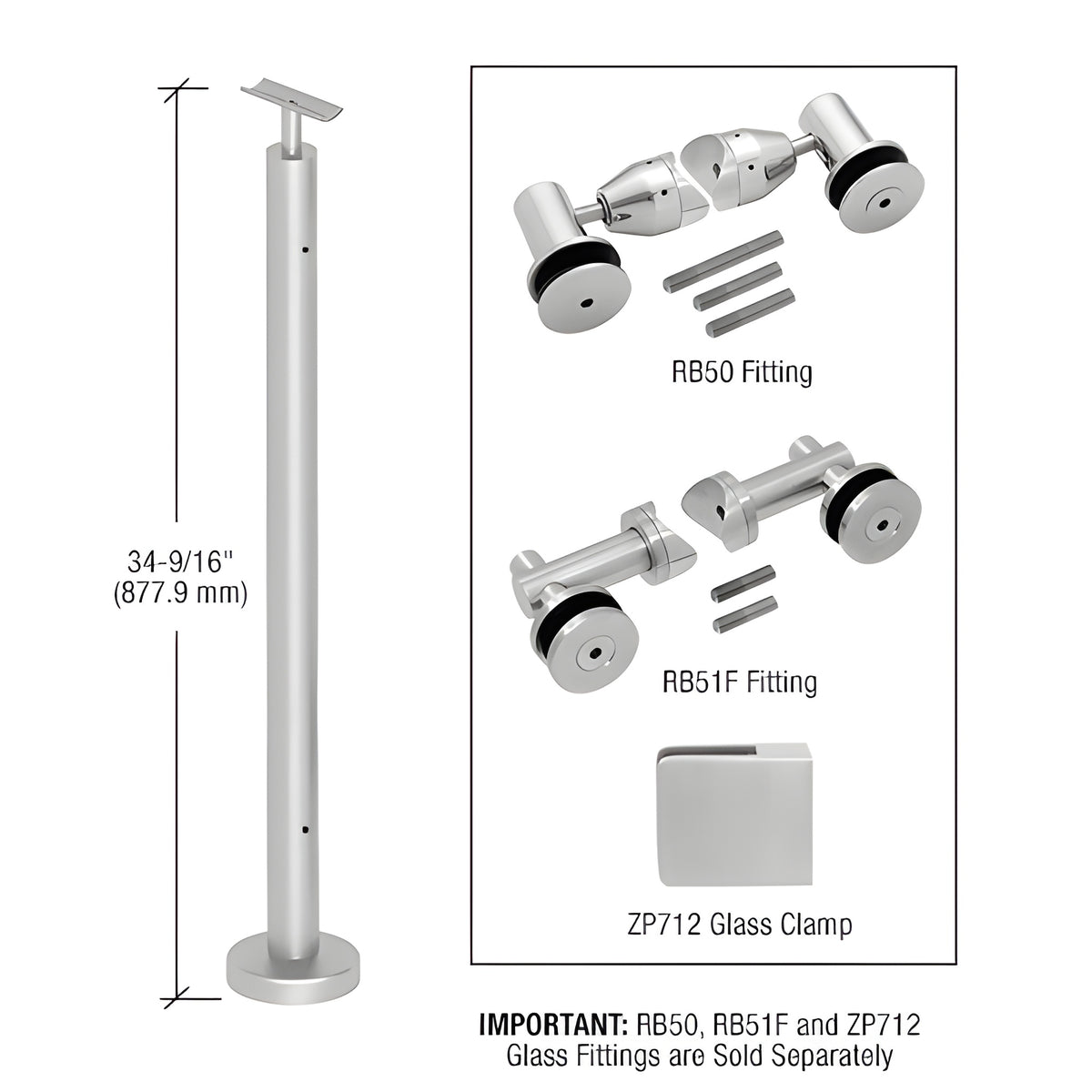

CRL Surface Mounted Post Railing Kits (SKU: P7F36CBS) are precision-manufactured from Schedule 40 1.9" (48 mm) diameter stainless steel tubing for durable surface-mounted guard rail and hand rail applications. These stainless steel post kits include a base plate, base cover flange, and welded top saddle. Saddles accept 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 hand rail tubing for secure top-rail attachment—ideal for commercial and residential stainless steel railing projects and glass panel balustrade systems.
For fastening the top rail to the saddle, specify Cat. No. PRS1032 (10-32 x 5/8" stainless screws, 50 per pack; minimum one pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Why choose this kit:
- Durable Schedule 40 stainless steel tubing for long-lasting performance
- Complete base hardware included—simplifies installation
- Options for custom heights and finishes to match project requirements
Order the P7F36CBS surface-mounted stainless steel post railing kit today or contact CRL for custom heights, finishes, and glass attachment options.
