CRL
CRL P7 Polished SS 36in 180° Center-Post Railing Kit No Fittings
CRL P7 Polished SS 36in 180° Center-Post Railing Kit No Fittings
Regular price
$1,151.30 CAD
Regular price
Sale price
$1,151.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F36CPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder paint finishes available

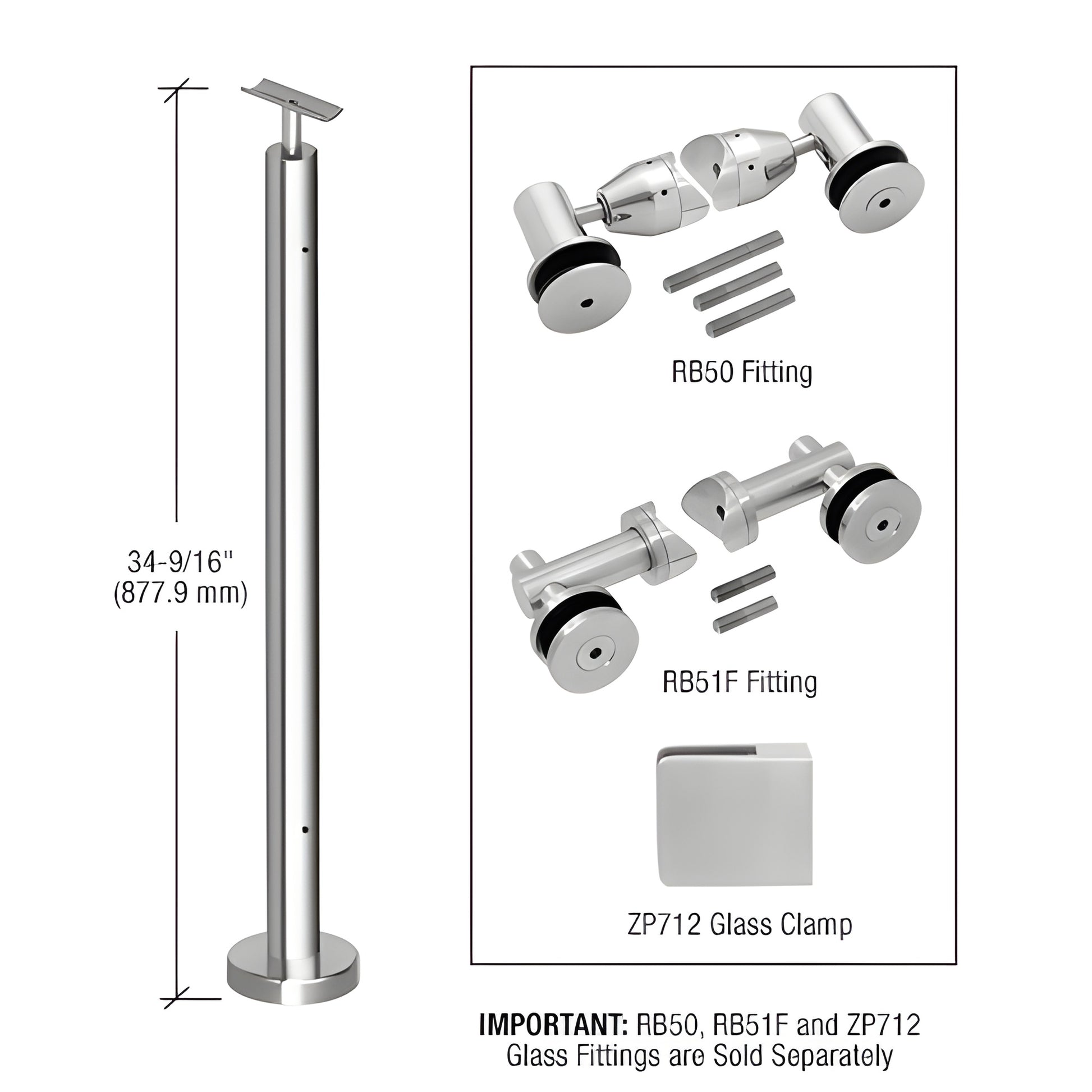

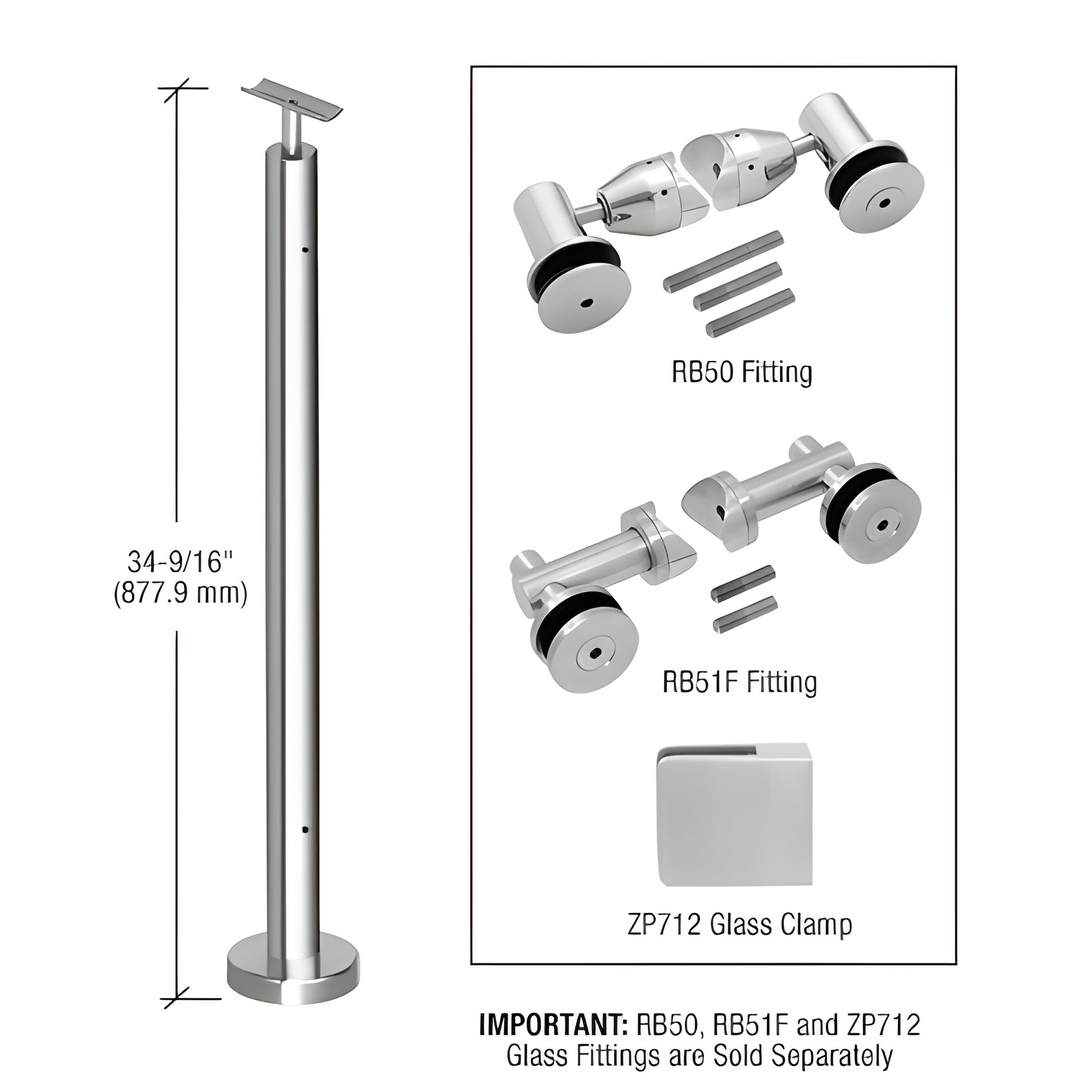

CRL Surface Mounted Post Railing Kits (SKU P7F36CPS) are heavy-duty, surface-mounted stainless steel post kits designed for guard rail and hand rail applications. Manufactured from Schedule 40 1.9" (48 mm) diameter stainless steel tubing, these kits include a base plate, base cover flange, and welded top saddle. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 hand rail tubing. For attaching the top rail to the saddle, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack; minimum one pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Highlights: Schedule 40 1.9" stainless posts, welded top saddle, base plate and cover flange included, supports common hand rail tubing sizes, custom heights and finishes available. Order SKU P7F36CPS or contact CRL Customer Service to request exact shipping weights, finishes, or glass attachment options.
