CRL P7 42" Brushed Stainless Steel End Post Railing Kit - No Fittings
CRL P7 42" Brushed Stainless Steel End Post Railing Kit - No Fittings
Regular price
$446.49 CAD
Regular price
Sale price
$446.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F42EBS
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder coat finishes available

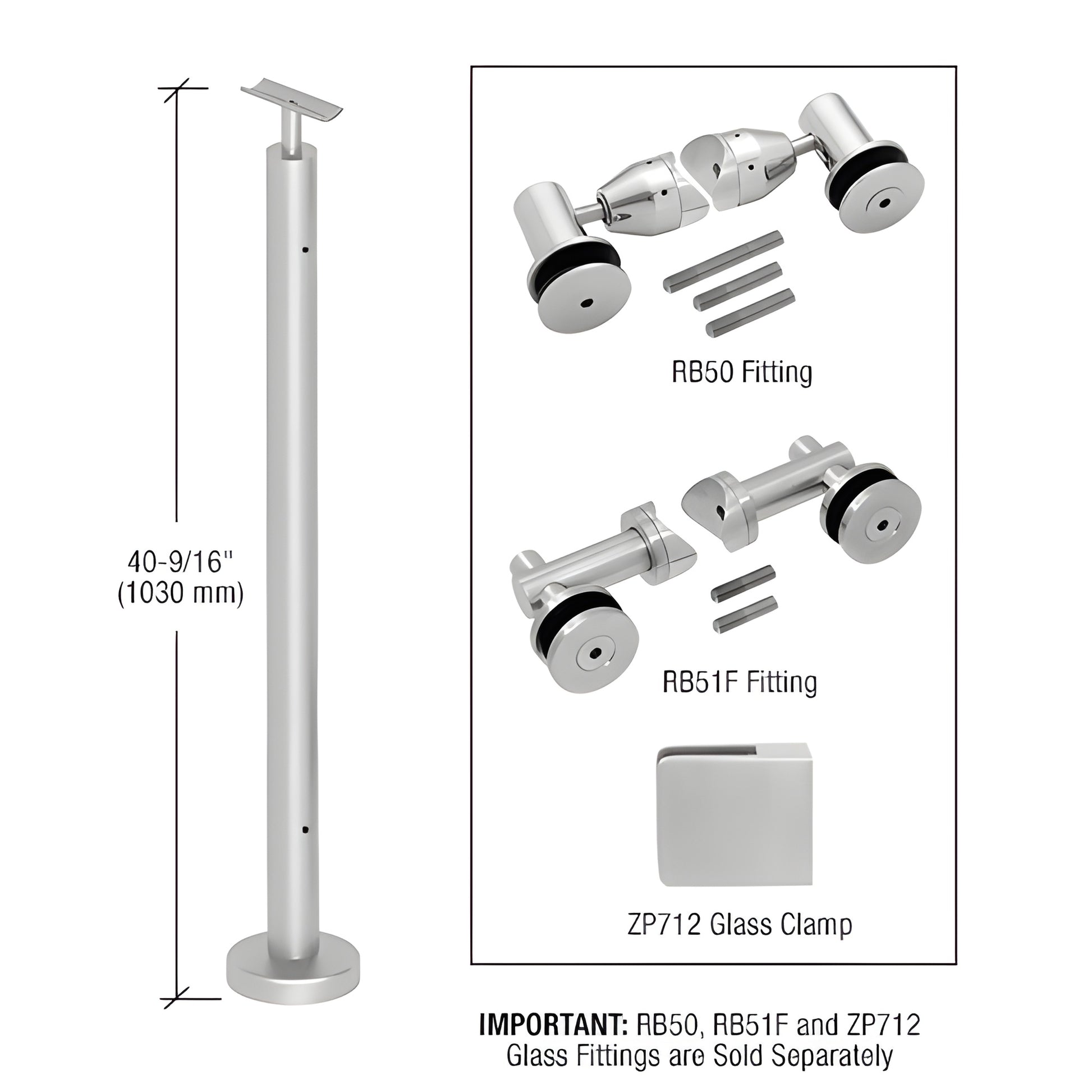

CRL Surface Mounted Post Railing Kits (SKU: P7F42EBS) are fabricated from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and are engineered for guard rail and handrail applications. These kits support glass panel installations and hand rails, with saddles sized to accept 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 hand rail tubing. Each kit is supplied complete with a base plate, base cover flange, and welded top saddle. For attaching the top rail to the saddle, specify Cat. No. PRS1032 — 10-32 x 5/8" stainless steel screws (50 per pack).
Product Warning:
All P-Series Post Kits are sold without glass attachment fittings; glass attachment fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more details.
For pricing, custom heights, or to order glass attachment fittings for your surface mounted stainless steel post railing kit (SKU: P7F42EBS), contact CRL Customer Service or request a quote today.
