CRL P7 42" Stainless Steel End Post Railing Kit - No Fittings
CRL P7 42" Stainless Steel End Post Railing Kit - No Fittings
Regular price
$530.87 CAD
Regular price
Sale price
$530.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F42EPS
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder paint finishes also available

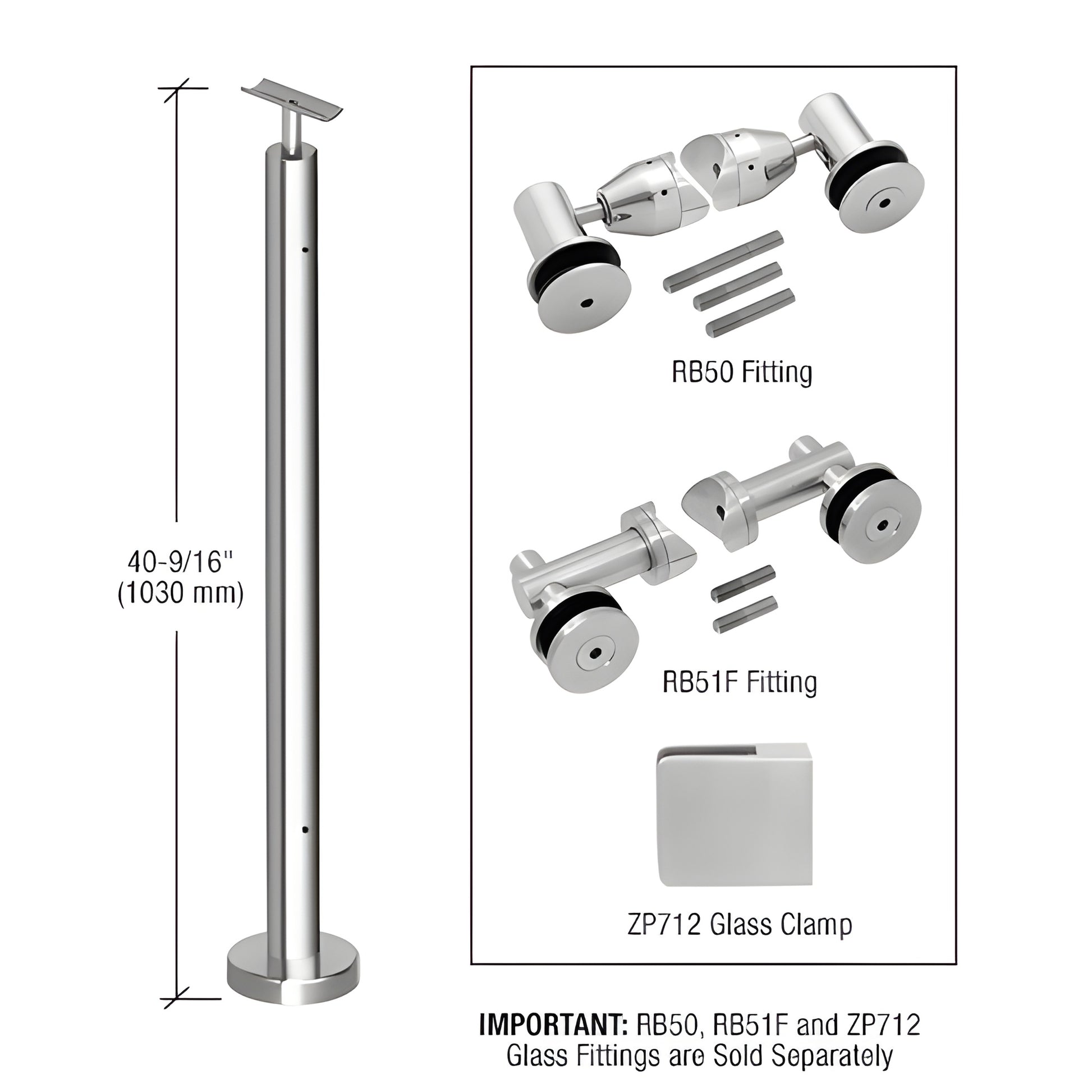

CRL's Surface Mounted Post Railing Kits are built from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing for guard rail and hand rail applications. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 hand rail tubing. Each kit is supplied complete with Base Plate, Base Cover Flange, and Welded Top Saddle. For top rail attachment screws specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel, 50 per pack). SKU: P7F42EPS.
Product Warning:
All P-Series Post Kits are sold without glass attachment fittings; those must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Features: surface mounted stainless steel post railing kits, Schedule 40 1.9" stainless tubing, compatible with 1/2"–1" glass panels, customizable heights and finishes. Ideal for commercial and residential glass guardrail systems. Order SKU P7F42EPS or contact CRL for custom options and glass attachment fittings.
Call to action: Contact CRL Customer Service to confirm requirements and place your order.
