Product Details
- For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
- Glass Attachment Fittings Sold Separately
- Standard Post Height is 42" (1.07 m)
- Custom Post Heights Also Available
- Two Standard Stainless Finishes with Custom Powder Paint Finishes Also Available

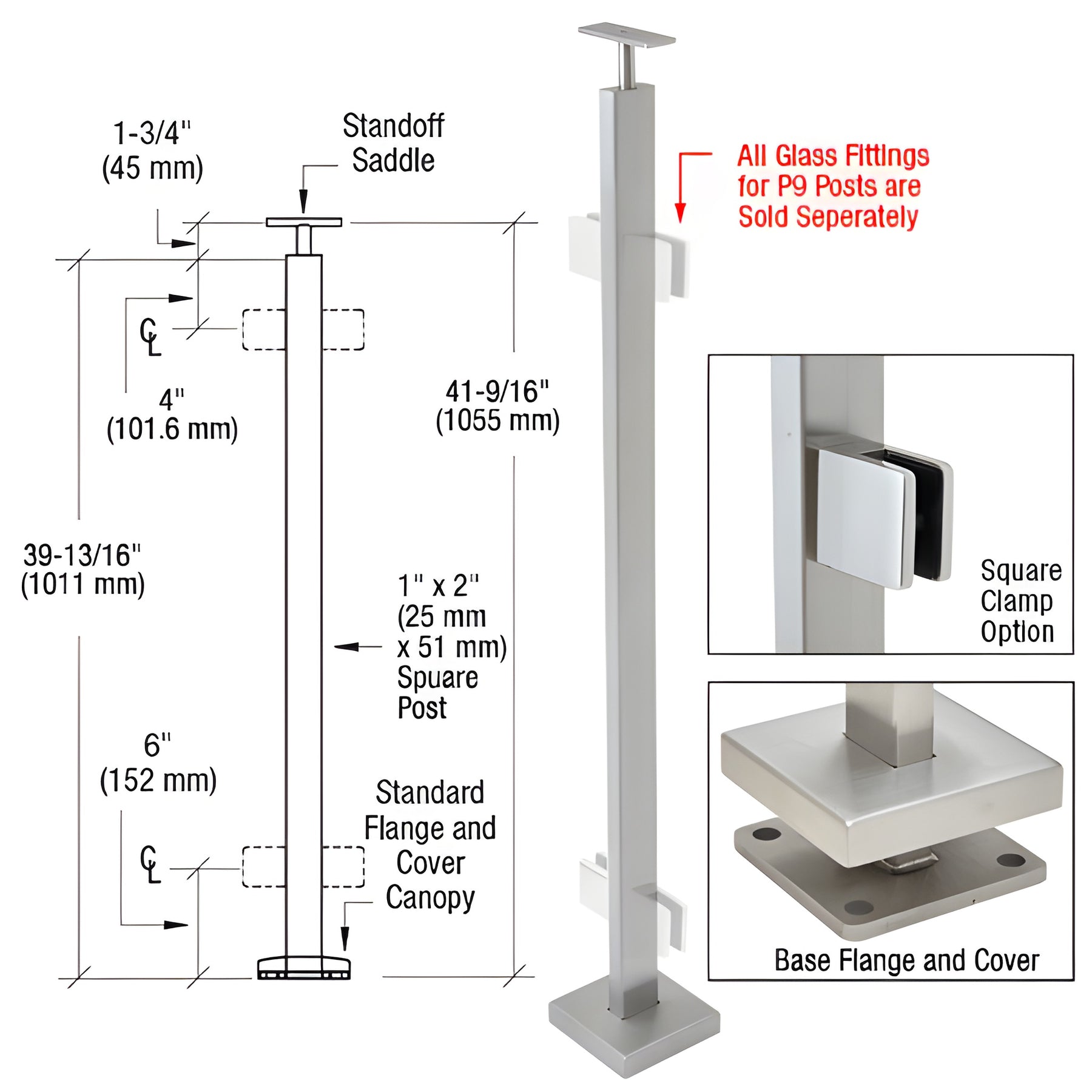

CRL P9 Surface Mounted Post Railing Kits are manufactured from 1” x 2” (25 mm x 51 mm) Stainless Steel Rectangular Tubing, and are designed for guardrail or handrail applications. Saddles support 1” x 2” (25 mm x 51 mm) Stainless Steel Rectangular Top Rail. Kits are supplied complete with a Base Plate, Base Cover Flange, and Welded Top Saddle with vertical adjustment. For screws to attach the Top Rail to the Saddle, specify Cat. No. PRS1032. These 10-32 x 5/8" stainless steel screws sold 50 per pack.
Product Warning:
All P-Series Post Kits are sold without glass attachment fittings. Those must be purchased separately.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
